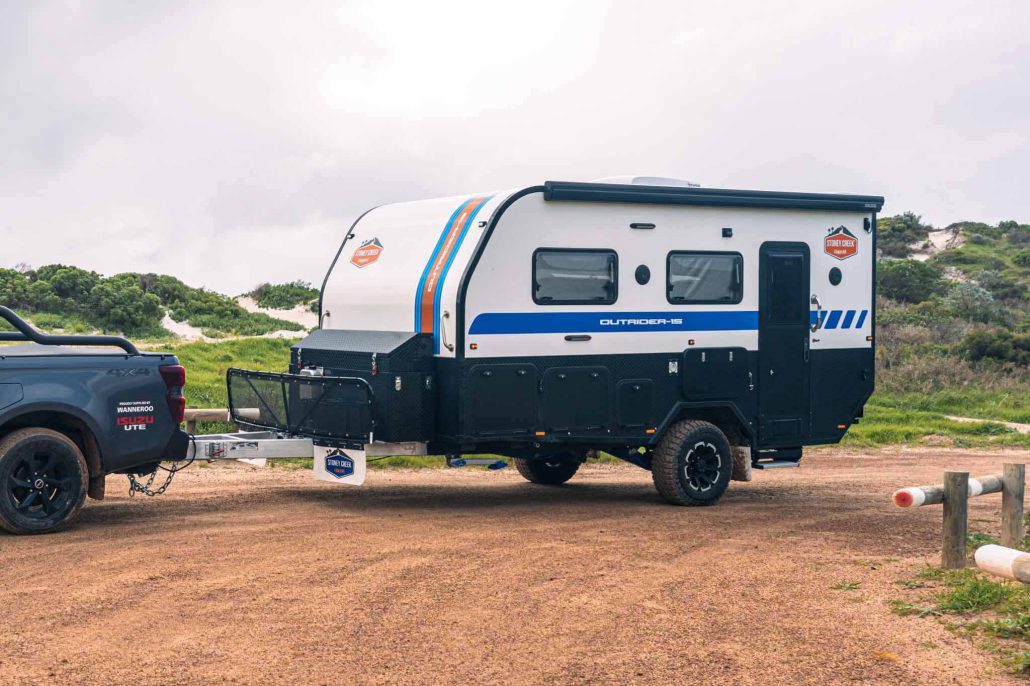

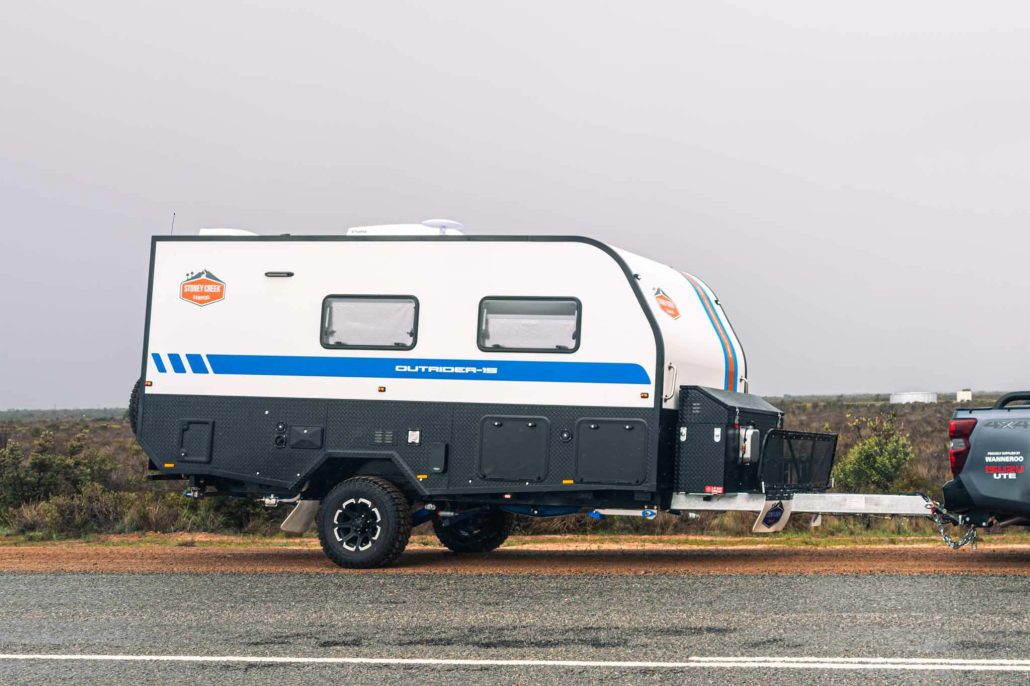

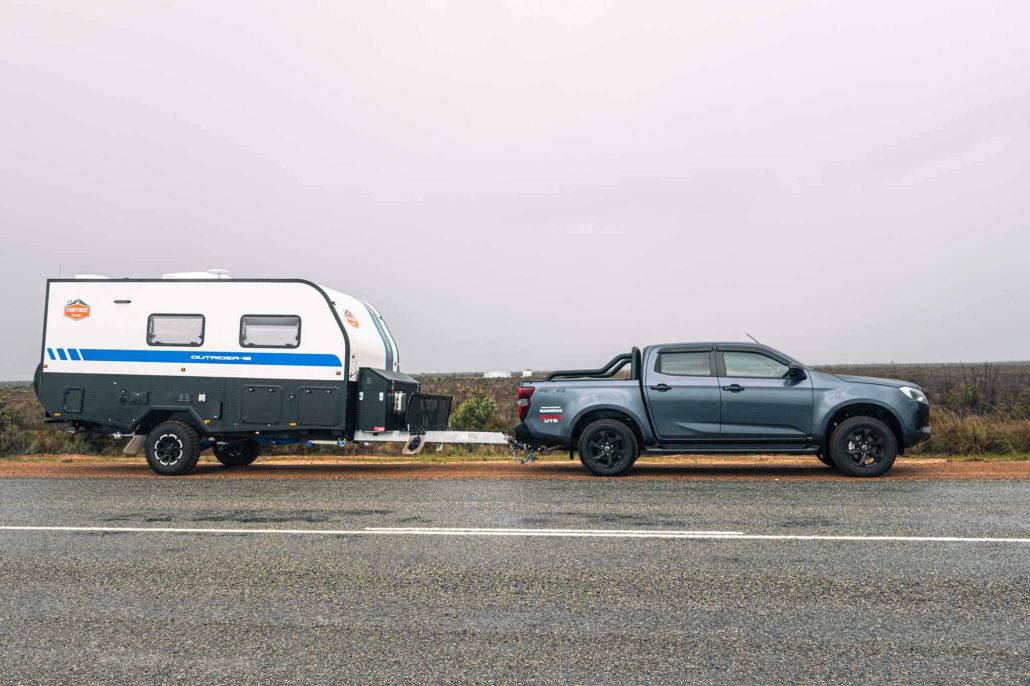

Outrider-15 Off-Road Hybrid Caravan
Family sized luxury.
If you and your family love camping and outdoors but don’t want to leave the luxuries at home, then look no further than the Outrider-15. With a large bed, bunks, A/C and internal ensuite, this hybrid-caravan is built to tackle all life can throw at it.
Powered by a triple battery and solar setup, constructed with an extremely tough welded aluminium box section frame and finished with a fully galvanised sheeted floor, the Outrider-15 Off-Road Hybrid Caravan is perfect for all terrains.
The Outrider-15 not only looks great but is designed to take your family on the toughest tracks our amazing country has to offer.
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Overall Length (mm) | 7100 |
| Body Length (mm) | 4750 |
| Travel Height (mm) | 2700 |
| External Width (mm) | 2300 |
| Tare Weight (kg) | 2500 |
| ATM Weight (kg) | 2950 |
| Ball Weight @ tare (approx) (kg) | 190 |
| Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. |
| Item | Description |
|---|---|
| Frame | Hot-dipped galvanised frame to protect against corrosion with 6″ x 2″ main members. |
| External Skin | Aluminium box channel, smooth skin, and hail & dent-resistant external frame. |
| Doors & Hinges | High quality metal hinges bolted to the frame. Adjustable latches on all external doors allow for easy adjustment. |
| Suspension Fixings | High tensile fixings. |

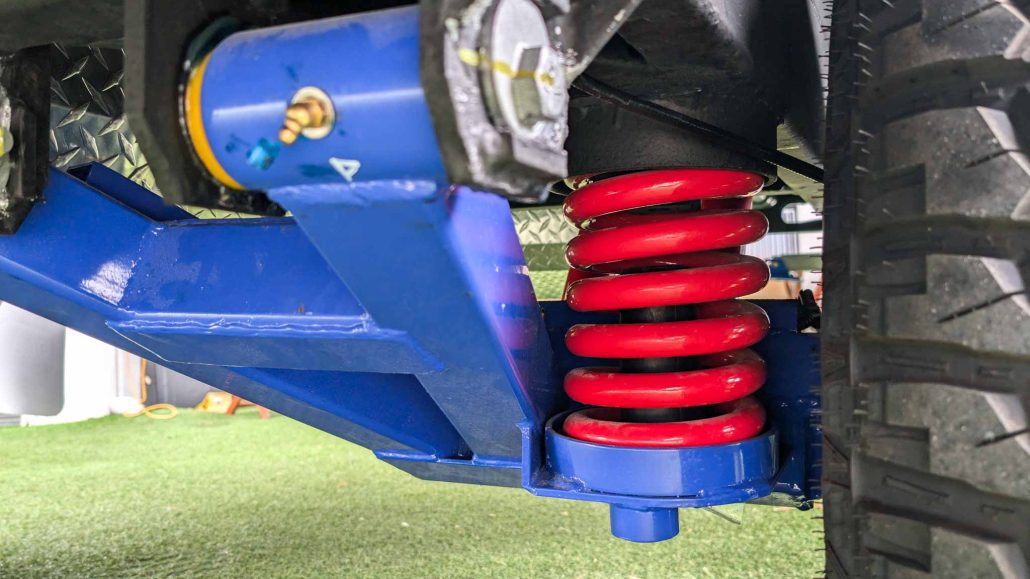

| Suspension | 2800kg independent trailing arm suspension with dual shock absorbers and coil springs. |
| Chains | 2 x ADR compliant safety chains with D shackle. |
| Stone Guard | Front stone guard for protection in-line with front toolbox unit to protect van and tow vehicle against rock damage and ricocheting stones. |
| Jockey Wheel | Adjustable and removable AL-KO jockey wheel. |
| Coupling | Cruisemaster DO35 all-terrain coupling. |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |
| Brakes | 12″ heavy-duty electric brakes with breakaway safety system and handbrake. |
| Mud Flaps | Heavy duty, durable mud flaps. |
| Wheel Rims | Alloy rims for added strength and reduced weight. |

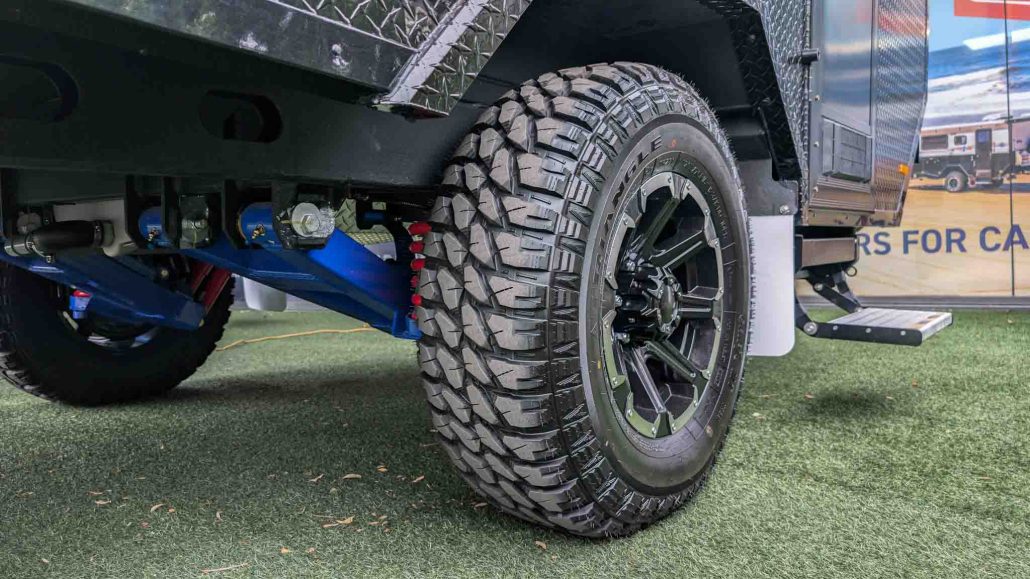

| Tyres | Mud Terrain 265/75R16 tyres (inc. 2 spares). |
| Tyre Pressure | Tyre pressure as per Stoney Creek Campers owners manual. |
| Drop Down / Stabiliser Legs | Corner wind-down support legs (for stabilisation only). |
| Item | Description |
|---|---|
| Toolbox | Large A-frame toolbox for gas and generator (2Kva) storage. |
| Chequer plate | Protective (black). |
| Power | 240V Management and 20 amp charger |
| Step | Power-operated single step. |

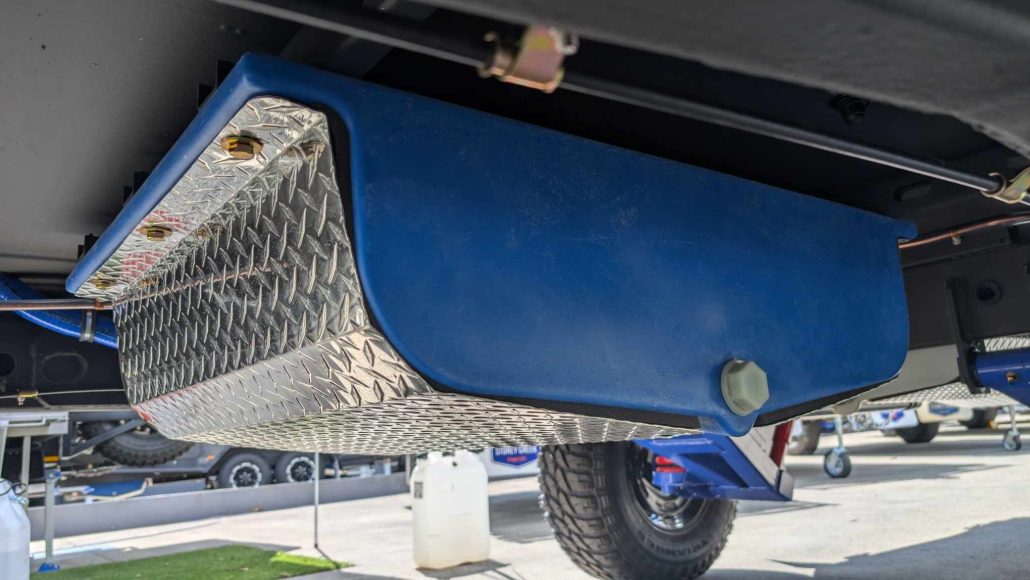

| Water Tank Protection | Chequer plate water tank guard. |
| Battery | 3 x 100amp deep-cycle AGM batteries. |
| Fuses | Resettable fuses. |

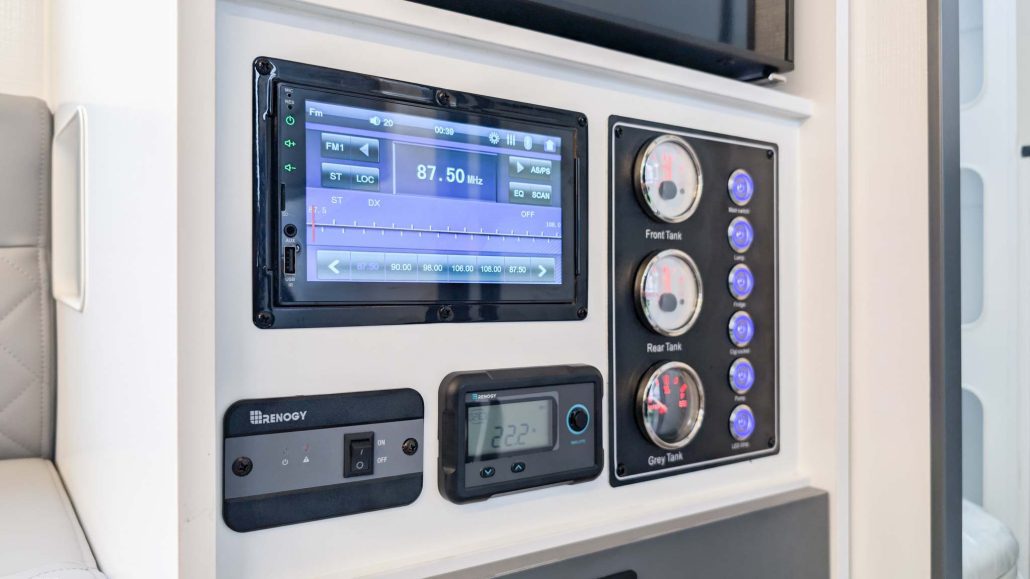

| Control Panel | Marine-style control panel water gauges, 12v power and two USB outlets. |
| Solar System | Roof-mounted panel and regulator (300w). |
| Gas Bottles | 2 x 4.5kg gas bottles positions provision plumbed and certified by a qualified gas technician. |
| Gas Bayonet | Supplied (ext. kitchen) with quick connect / release connection. |
| Gas Cook Top | High quality Dometic 4-Burner (with Flame Failure Device) including wind protection (Australian gas compliant). |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |
| Jerry Can Holders | 2 x 20L Jerry can holder for additional fuel or water. |
| Water Pumps | 12v pump and external switch. |
| Water Tank (Fresh) | 2 x 100L poly water tanks. |
| Water Filler | 2 x secure & lockable water fill points. |
| Sink | Stainless steel basin with hot and cold mixer tap. |

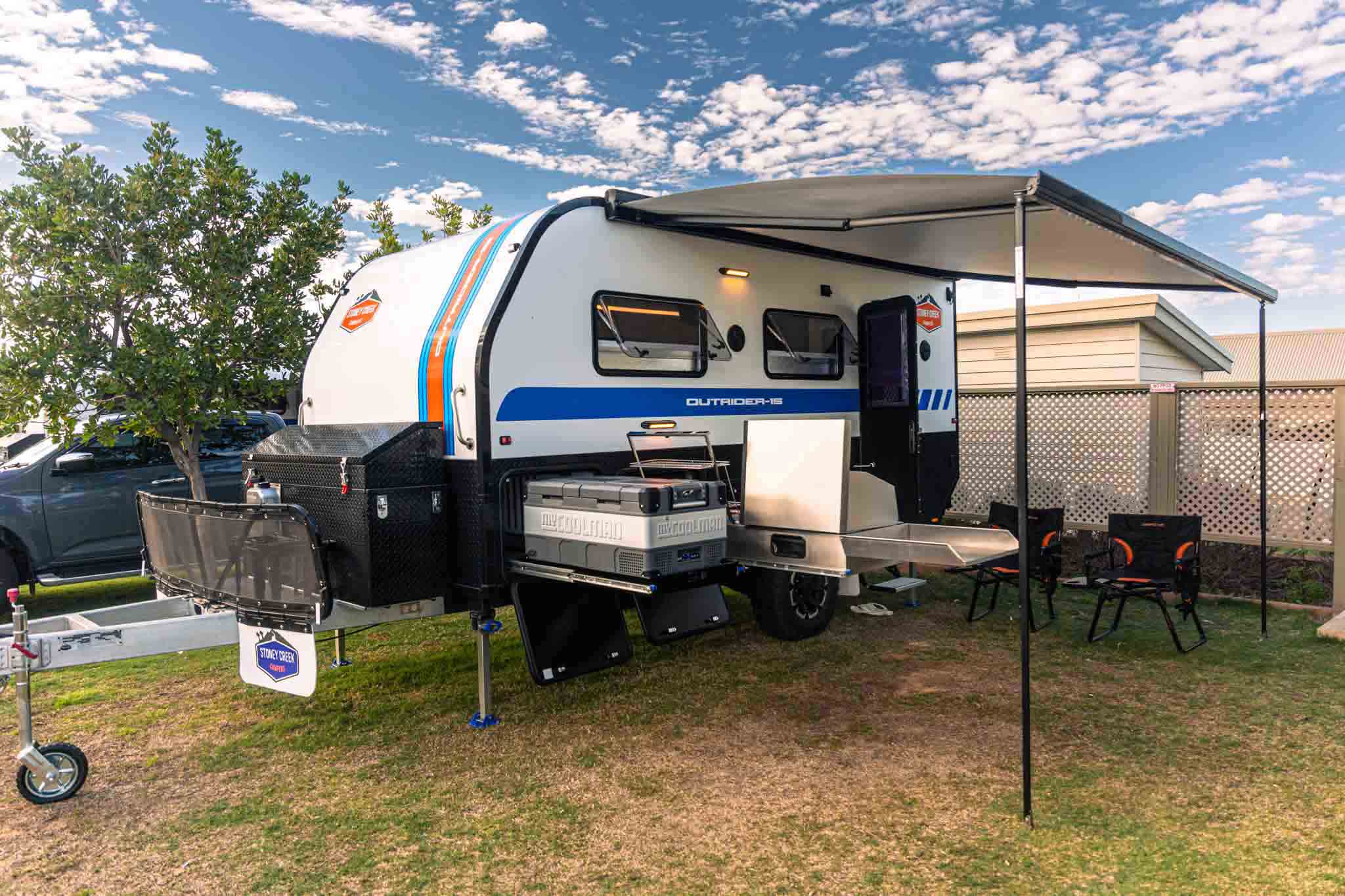

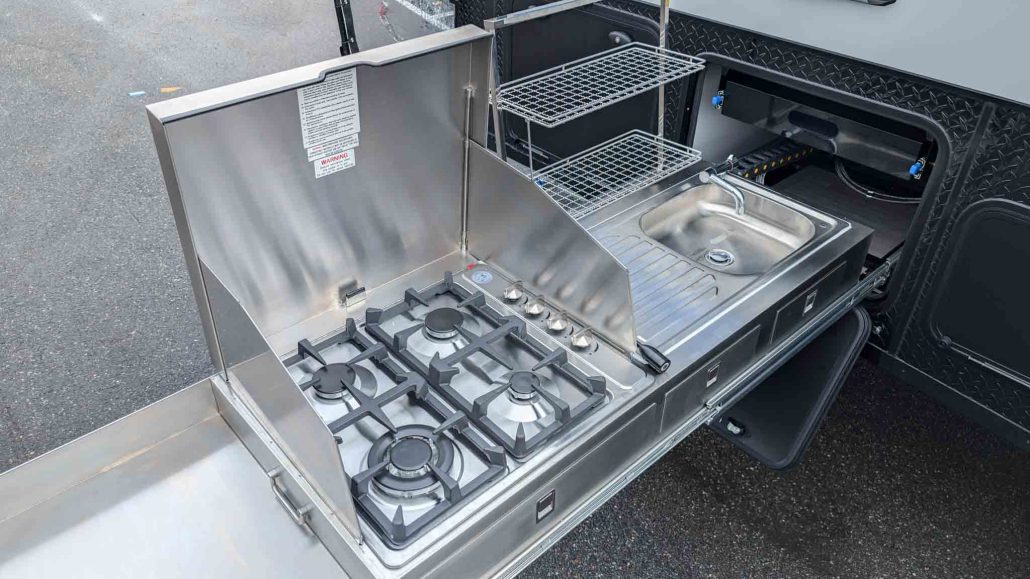

| External Kitchen | Pull out kitchen with cutlery drawer, utensil drawer, and fold-out bench extension with drop-down support legs. |

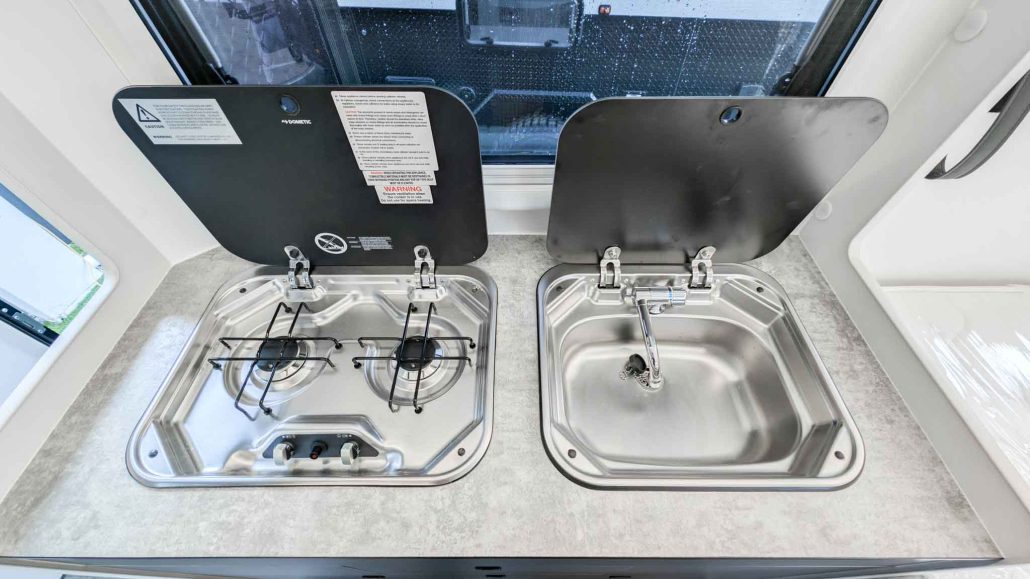

| Internal Kitchen | Internal kitchen storage drawers, 2-burner cook top with lid and stainless steel sink with hot and cold mixer tap also with lid. |
| Awning | Easy wind-out awning. |
| Awning Frame | Strong, lightweight wind-out frame for basic setup in moments. |
| Ventilation | Double-glazed windows with internal screens and block-out blinds. |
| External Lighting | Side running LED and annexe LED. |
| Internal Lighting | Reading 12V and ceiling 12V LED. |
| Internal Floor | Durable vinyl in a modern design. |

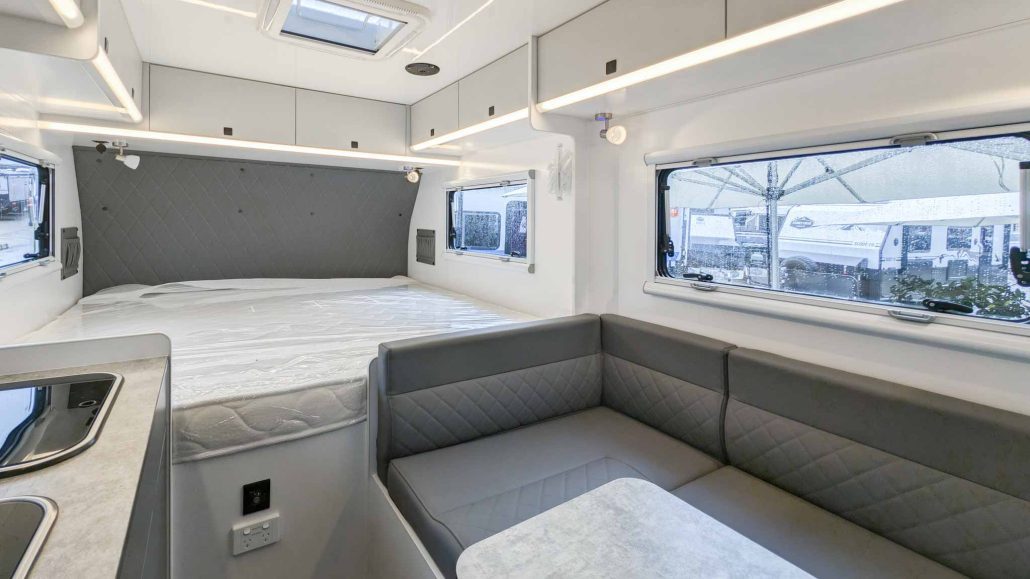

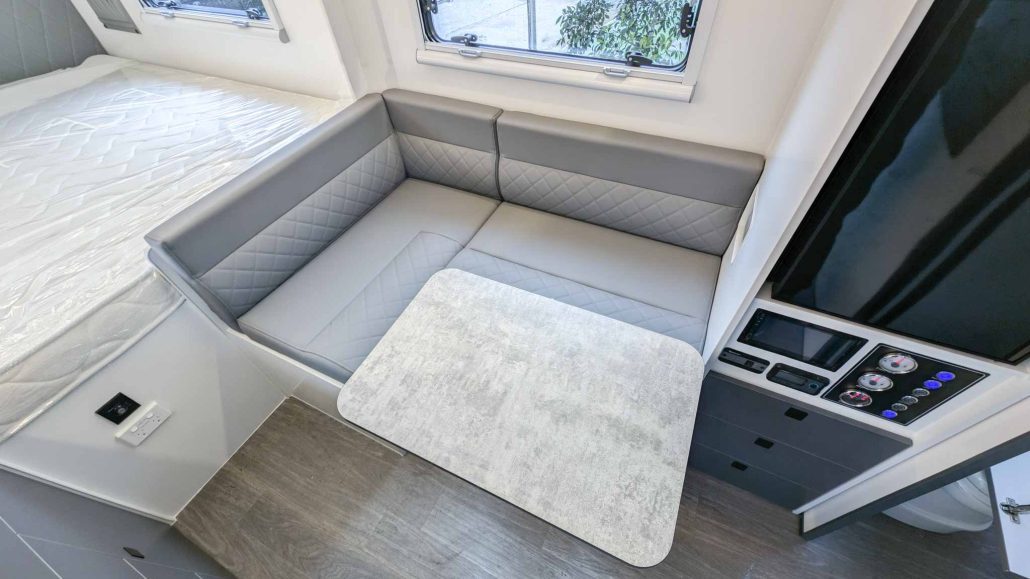

| Internal Seating | Dinette seating with durable designer fabric and high resilience, antibacterial seat foam. |

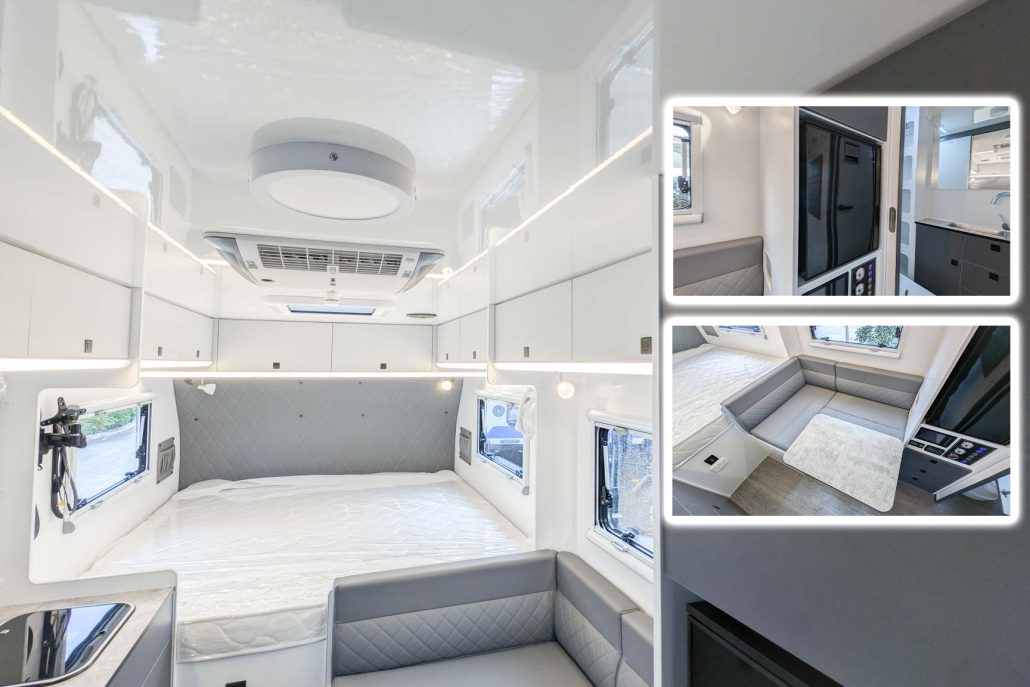

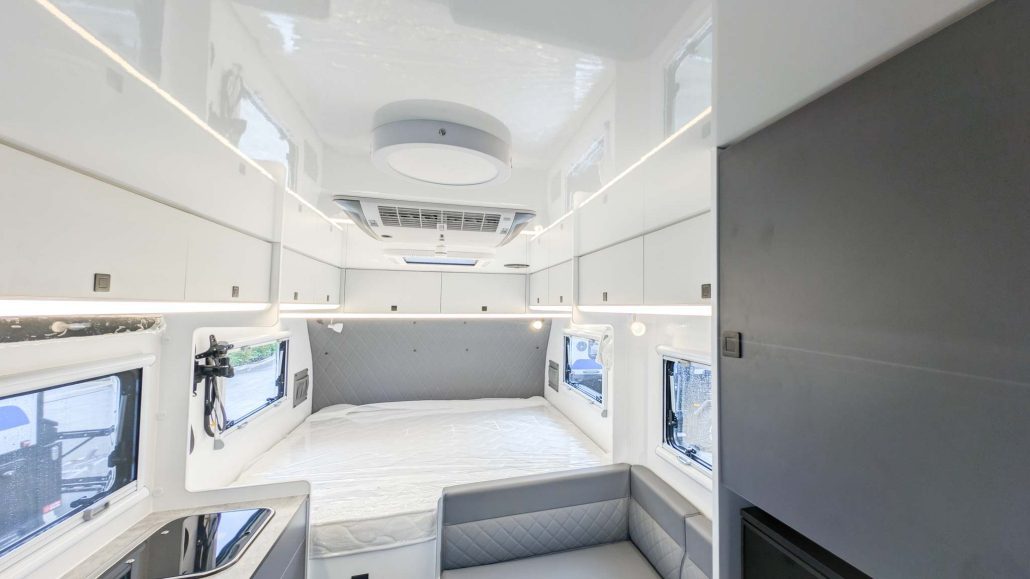

| Main Bed (Front) | King-size bed with comfortable, high quality memory foam mattress. |
| Twin Bunks/Lounge | Twin bunks convertible to dinette. |
| Internal storage | Under-bed and vertical storage compartments. |

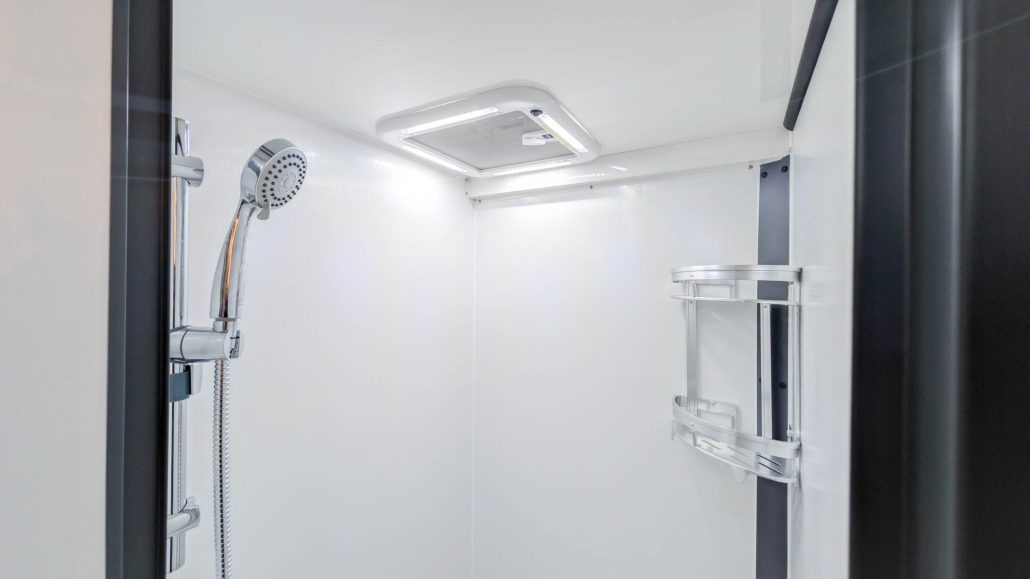

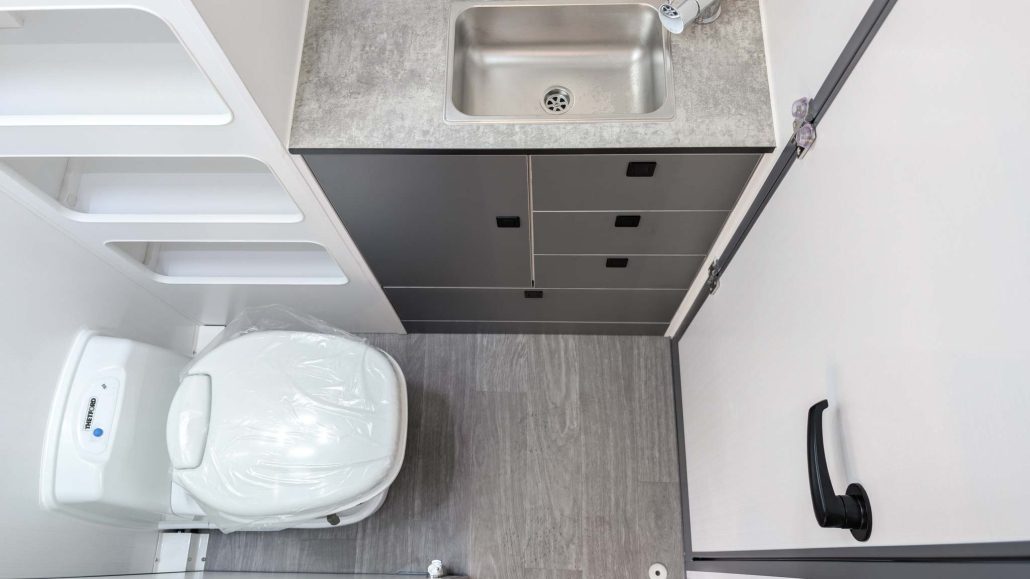

| Ensuite / Bathroom Facilities | Internal shower and cassette toilet |
| Table | Café-style swing-away for dinette. |
| Mains Connector | Mains Pressure to van. |
| Hot Water System | Truma gas hot water system. |
| TV Aerial | 12V Power-boosted aerial available for use with TV system. |
| Television | 22″ LED TV. |
| Stereo/DVD Player | CD/DVD/Radio system with internal speakers. |
| External Table | Fold-out table located next to exterior kitchen. |
| Water Tank (Grey) | 70L poly water tank. |

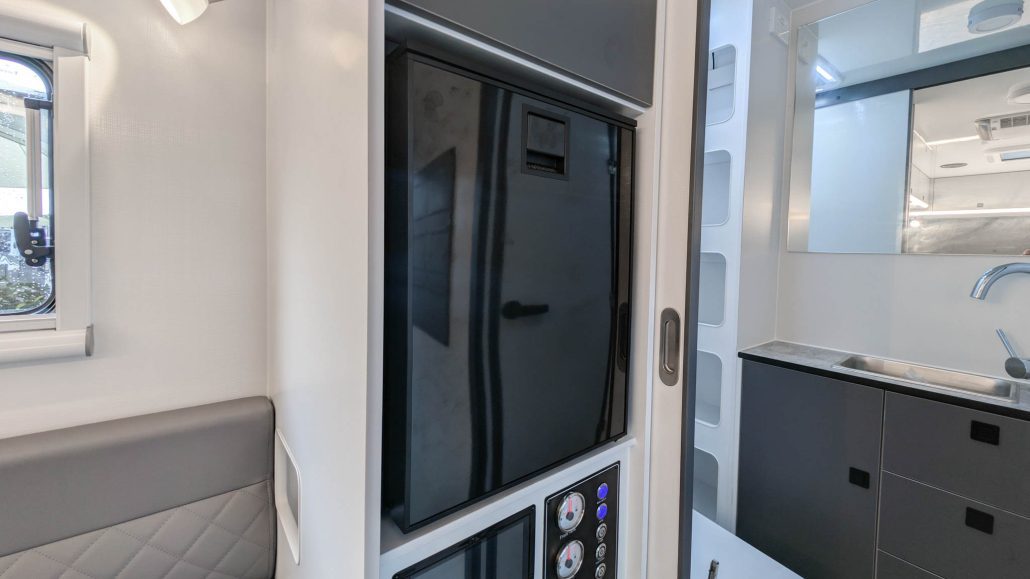

| Fridge | 85-litre 12V fridge/freezer. |
| Air Conditioning | Roof-mounted air conditioning system. |
| Item | Description |
|---|---|
| Lithium | Renogy or Enerdrive packs available. |
| Battery Charger (Smart) (upgrade) | Victron Energy Plus: 70 amp charger / 1600w inverter |
| DC to DC Charger | CTEK D250SA Intelligent DC to DC charger |
| Awning Extension | Porch extension (front or rear). |
| Reversing Camera | Reversing camera kit. |
| Diesel Heater | Diesel heater and fuel tank install. |
| BBQ Arm | Powder-coated galvanised steel arm with chequer plate tray and universal drawbar mount. |
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
