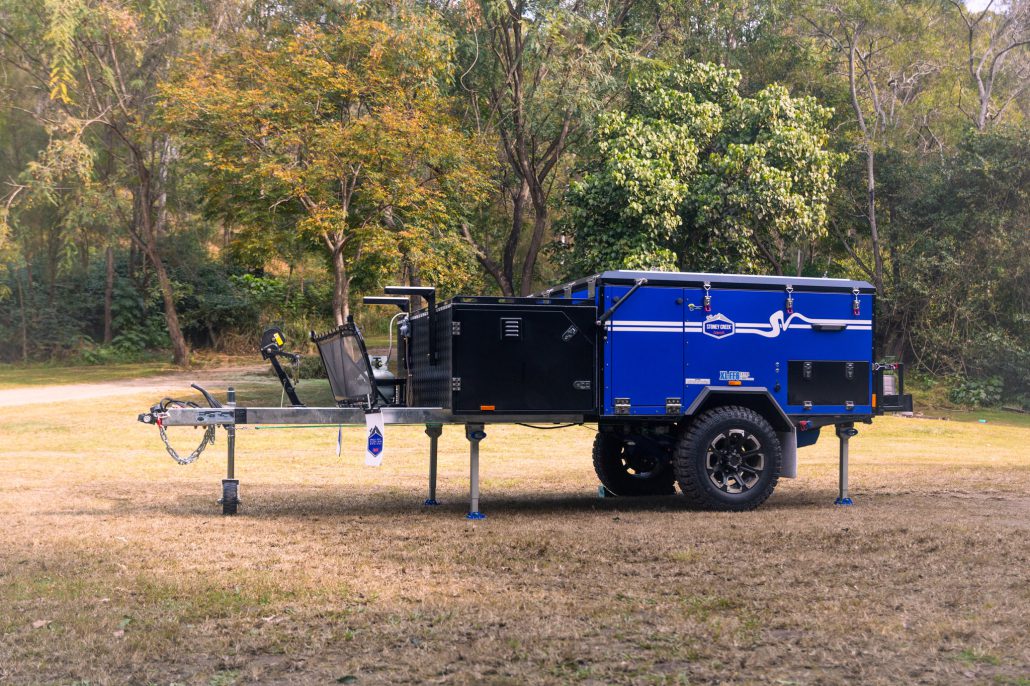

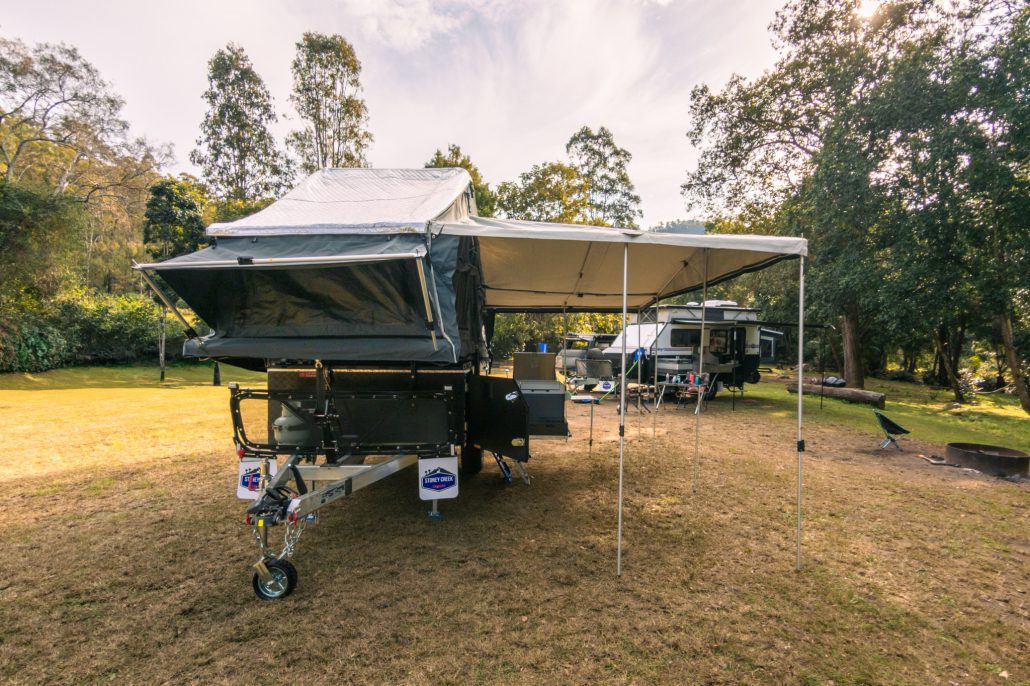

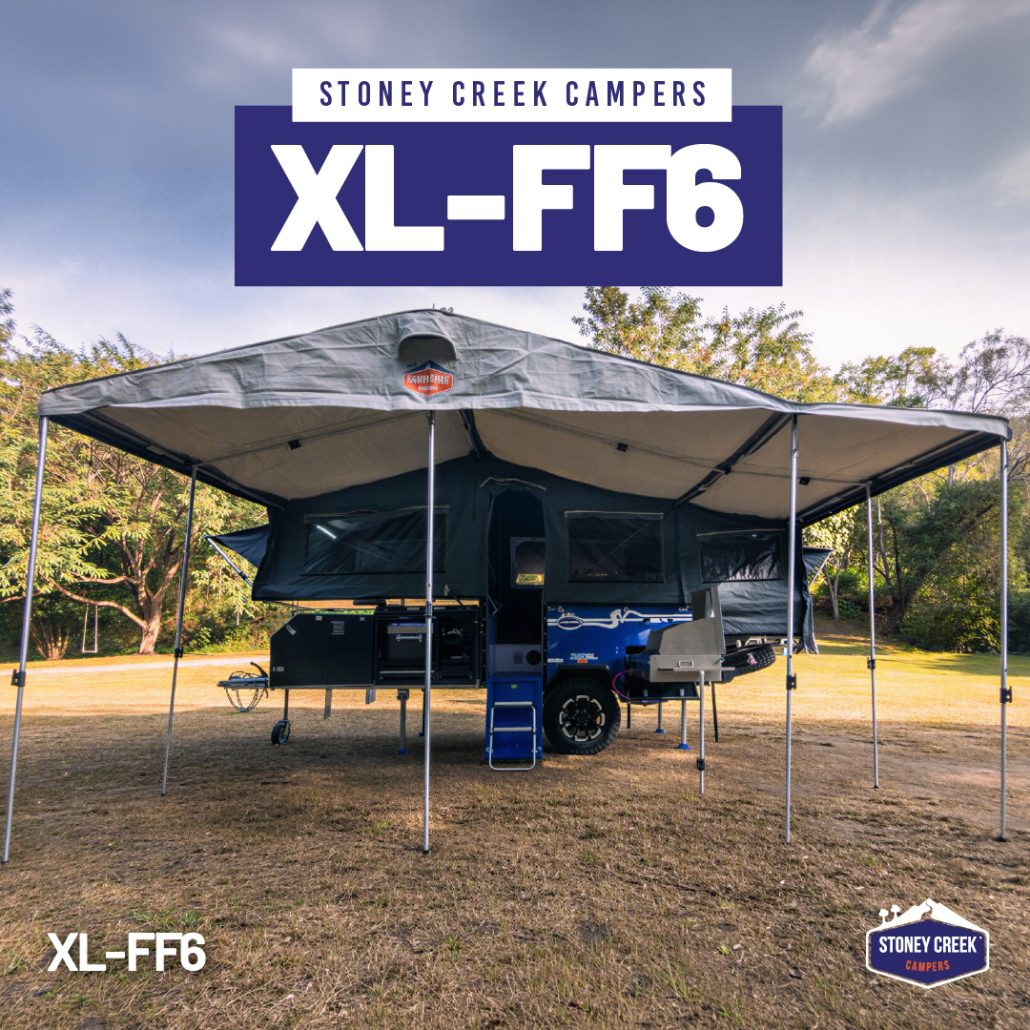

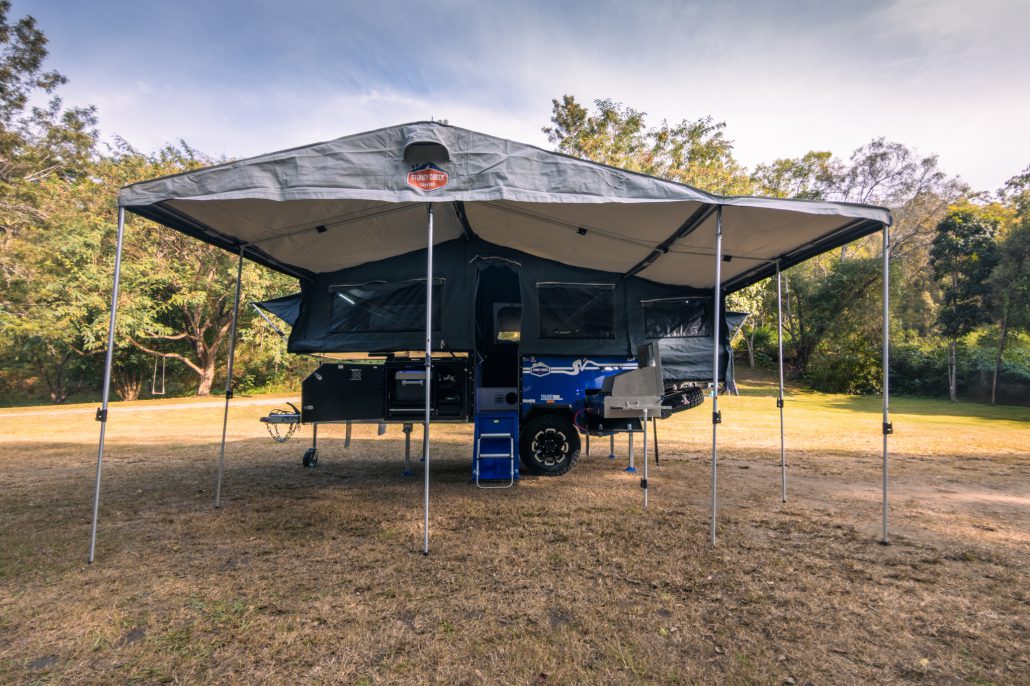

XL-FF6 Adventure Series Camper Trailer
Suitable for
6 x People
Lightweight – For the Family
Easy to Tow & Fits the Whole Family
This forward fold is Stoney Creek Campers spacious extra light family camper that includes a rear slide-out bed and can sleep up to 6 people.
Being light and straightforward to set up, it’s great for mini getaways but is equipped enough for longer trips.
This camper is perfect for quick getaways as it is lightweight and easy to set up. Its light weight means it can be towed by small to medium SUVs and Sedans.
The XL-FF6 has all the advantages and comforts of the forward fold concept but with a light tare and tow ball weight.
It’s excellent for those new to towing or with a smaller car. It crams all the perks of the bigger campers into this compact build – queen bed, fold-out kitchen and loads of storage!
Take the kids (its sleeps six, so why not take their friends too!) and enjoy a simple, easy getaway to your favourite spot!
.
Check out the key features the XL-FF6 has to offer
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Body Length (mm) | 2980 |
| Overall Length (mm) | 5150 |
| Travel Height (mm) | 1500 |
| External Width (mm) | 1755 |
| Tare Weight (kg) | 1200 |
| ATM Weight (kg) | 1650 |
| Ball Weight @ tare (approx) (kg) | 120 |
| Note: | Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. |
| Item | Description |
|---|---|
| Trailer Chassis | 4″ x 2″ with rolled edges. Hot dipped galvanised A-frame helps protects the steel from corrosion. |
| Trailer Frame | Lightweight yet strong aluminium panels pop riveted to the frame and chassis. |
| Doors & Hinges | High quality hinges secured to the frame. All doors are sealed to prevent dust and water ingress. Adjustable latches are provided on all external doors for easy future adjustment. |
| Suspension Fixings | High tensile fixings. |
| Suspension | Upgraded independent trailing arm suspension engineered and designed with twin shock absorbers and coil springs. |
| Stone Guard | In-line with front toolbox / storage unit, to protect against stones and rocks damaging the camper and help prevent damage to the tow vehicle from stones bouncing back. |
| Jockey Wheel | AL-KO removable and adjustable jockey wheel. |
| Coupling | ADR-approved polyblock hitch (rated to 3.0 tonnes). |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |
| Safety Chains | 2 x ADR complaint safety chains with ‘D’ shackle. |
| Brakes | 10″ heavy-duty electric brakes and handbrake. |
| Mud Flaps | Heavy duty, durable, mud flaps. |
| Wheel Rims | Alloy rims for strength and weight saving. |
| Tyres | Mud Terrain 235/75R15 tyres (inc. 1 x spare). |
| Tyre Pressure | Refer to our tyre pressure guide in your product manual. |
| Drop Down Legs | Corner wind-down supports for stabilisation only. |
| Item | Description |
|---|---|
| Battery | 100amp deep cycle AGM. |
| Fuses | Resettable fuses. |
| Control Panel | Marine style control panel with gauges for water, power with 12v and USB outlets. |
| Solar Wiring | Via Anderson plug |
| Gas Bottles | 2 x 4.5kg gas bottles provision plumbed and certified by a qualified gas technician. |
| Gas Bayonet | Supplied (in kitchen) with quick connect / release connection. |

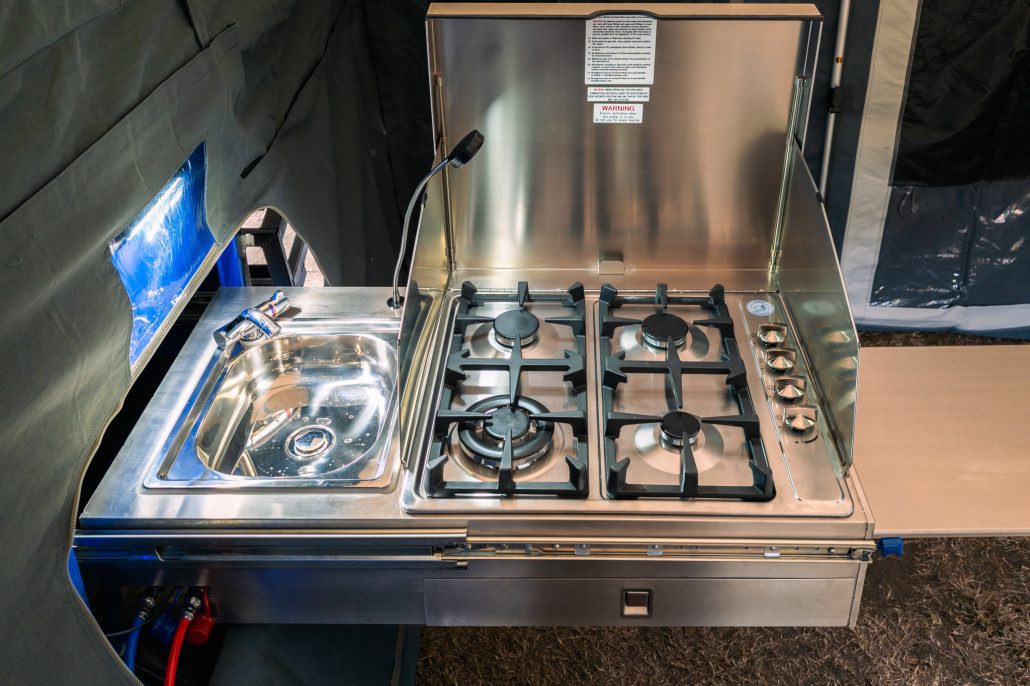

| Gas Cook Top | High quality gas stove top with 4 burners and wind protection (Australian gas compliant). |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |
| Jerry Can Holder | 20L jerry can holder for additional water. |
| Water Pump | 12v pump and external switch. |
| Water Tank | 80L poly water tank. |
| Water Filler | 1 x secure & lockable water fill points. |
| Hoses and Connections | 8mm NITTO fitting for hot and cold water allowing high pressure connectivity, with hoses supplied. |

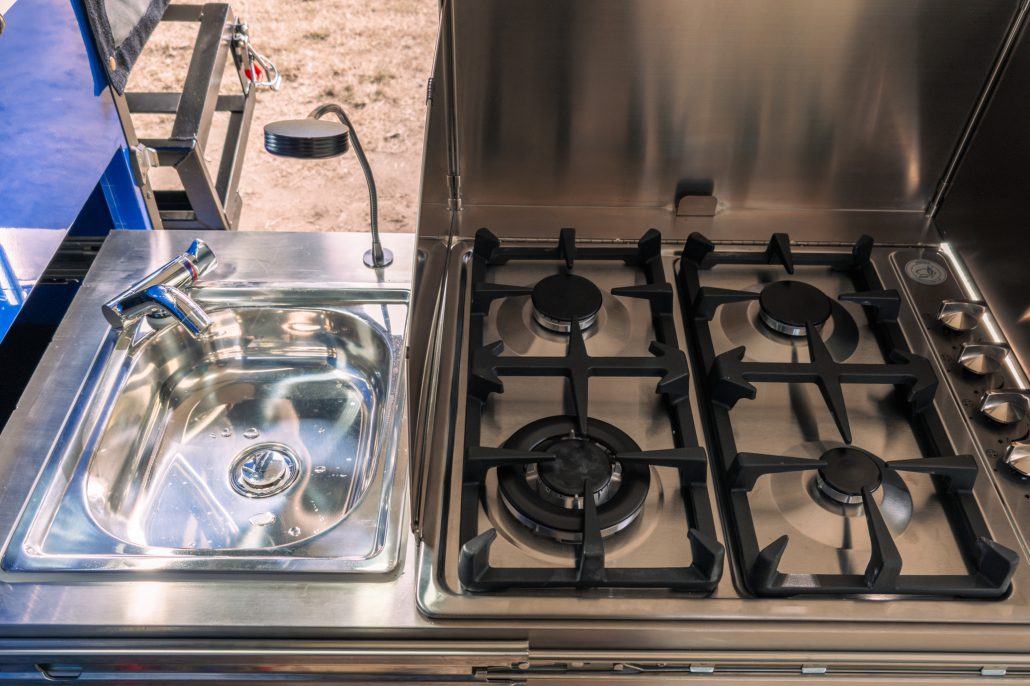

| Sink | Hot and cold mixer with stainless steel basin. |

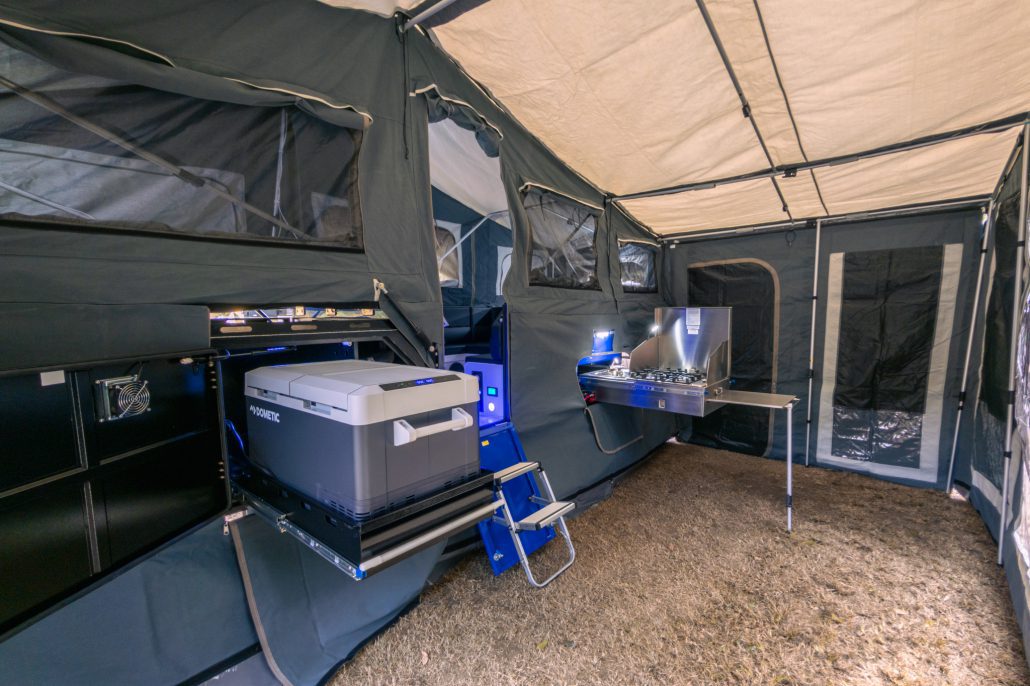

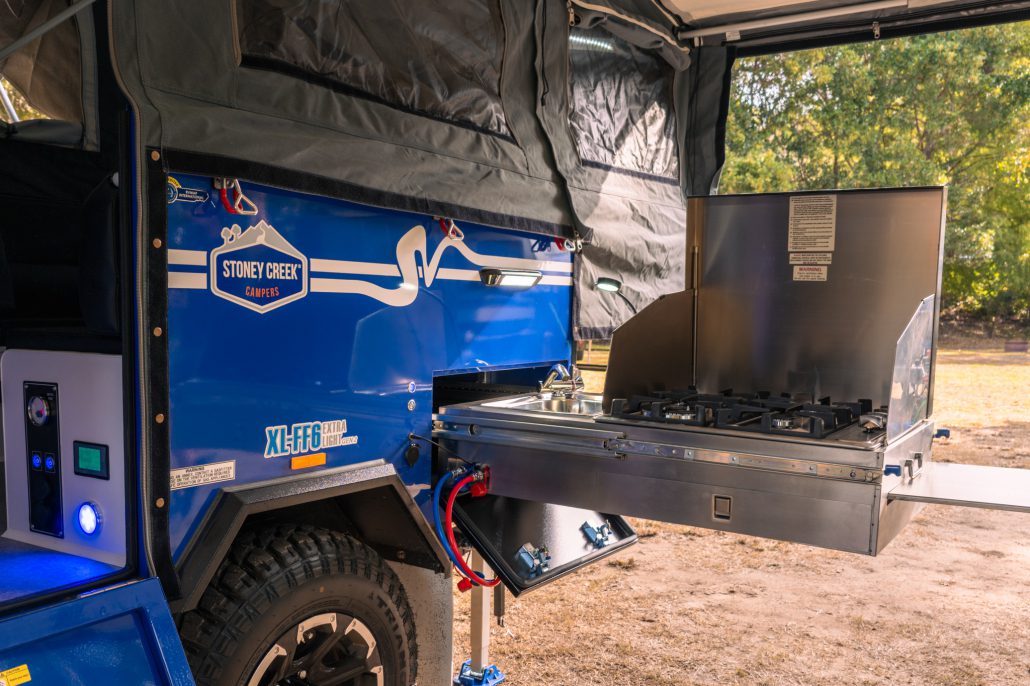

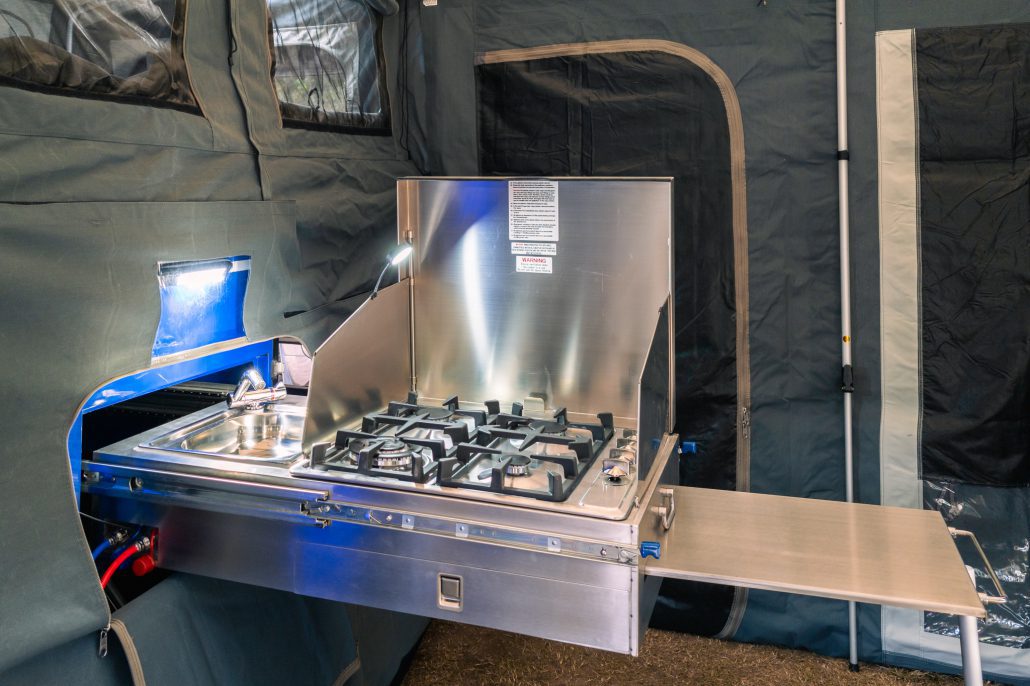

| Kitchen | Pull out kitchen with upgraded rollers, cutlery draw and hidden table extension. |
| Tent Canvas | Heavy-duty 14oz canvas, double-stitched for strength and durability, with waterproof treatment. |
| Tent Frame | Strong yet lightweight easy-style internal frame allowing basic setup in under 2 mins. |
| Poles | Lightweight smart ‘one-handed’ clamping system allows for simple extension and retraction. |
| Ventilation | Tent window flyscreens. Living room walls roll up. |
| External Lighting | Side LED. |
| Internal Lighting | Internal LED strip lights. |
| Internal Floor | Durable material with a modern design. |

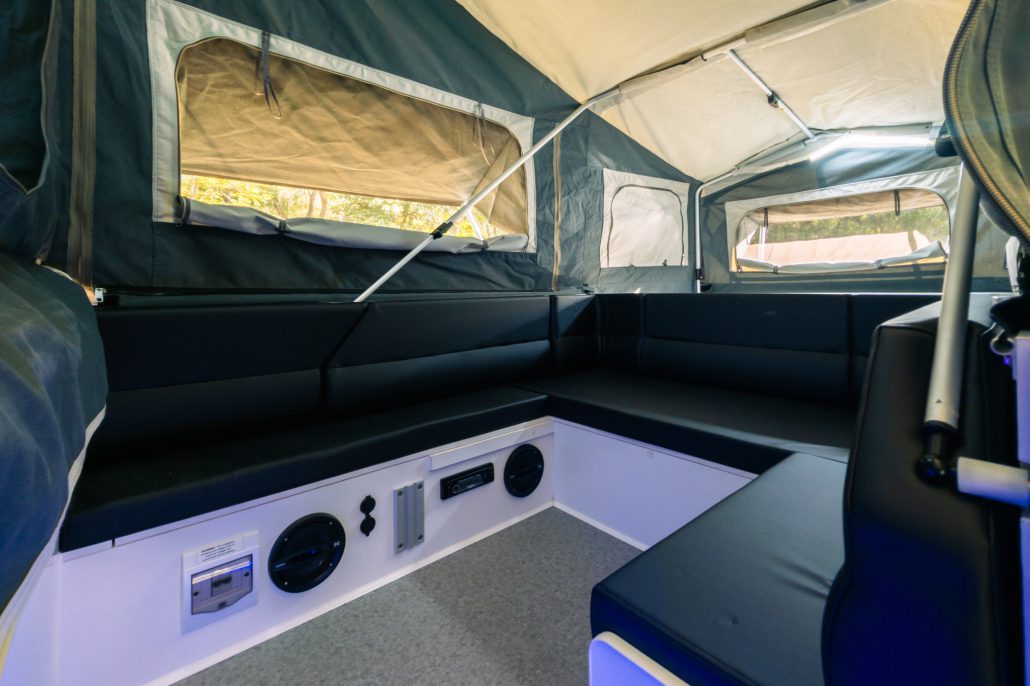

| Internal Seating | Highly durable material with modern designs. Under seat storage is provided. |

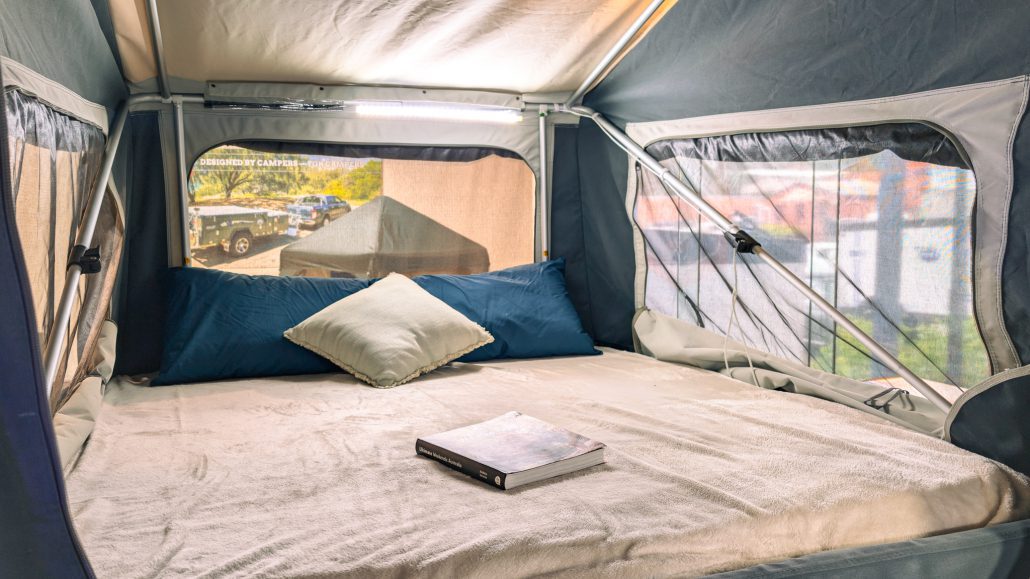

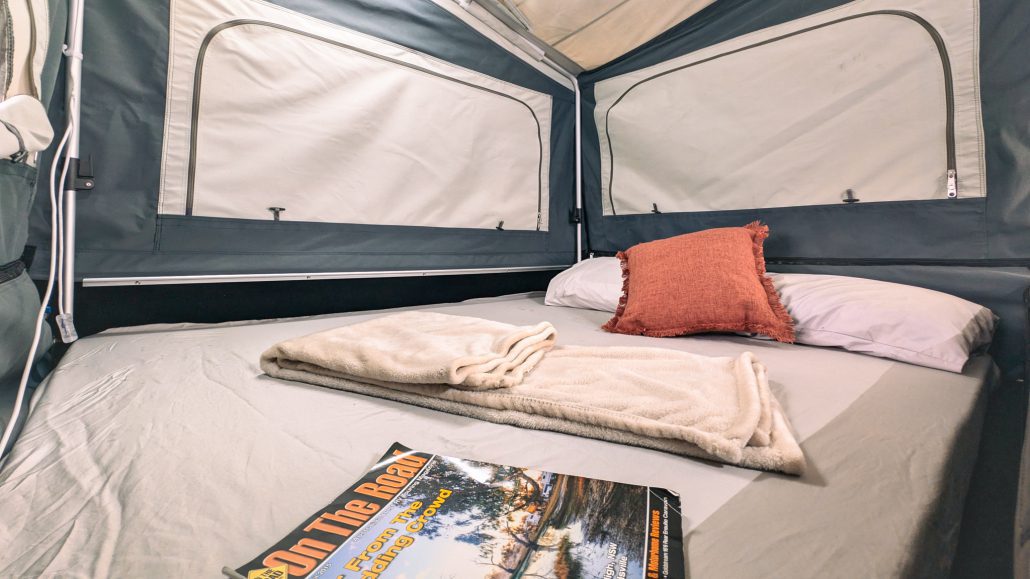

| Bed 1 Main Front | Queen style bed with upgraded soft comfortable and high-quality memory foam mattress. |
| Bed 2 | Double style bed via pull-out with upgraded soft comfortable and high-quality memory foam mattress. |
| Bed 2 Lounge | Convert dining lounge to double style bed. |
| Storage | Lots of internal and external storage allows for flexible packing options. |

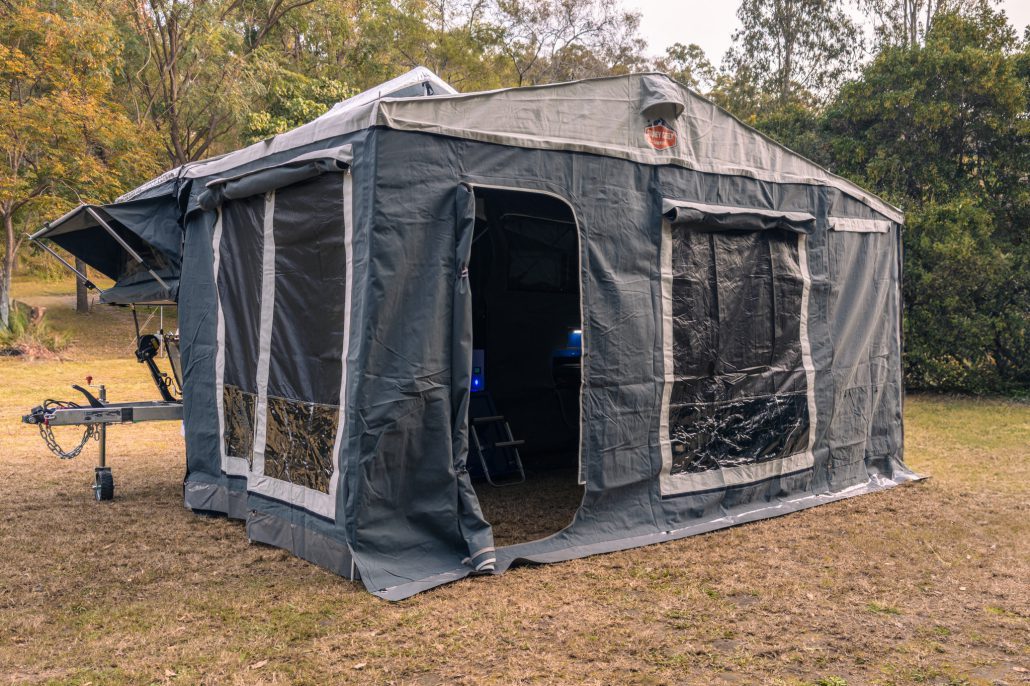

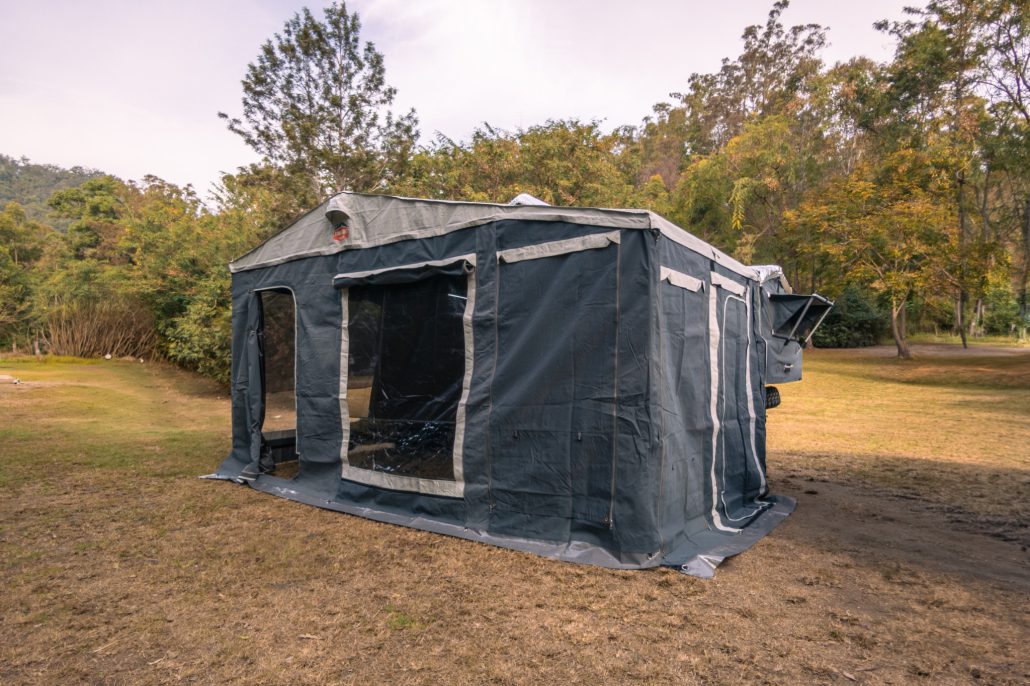

| Annexe | Full annex with poles, walls and floor supplied. Guy ropes and steel pegs supplied. |
| Item | Description |
|---|---|
| Tap | Mains pressure to A-frame. |

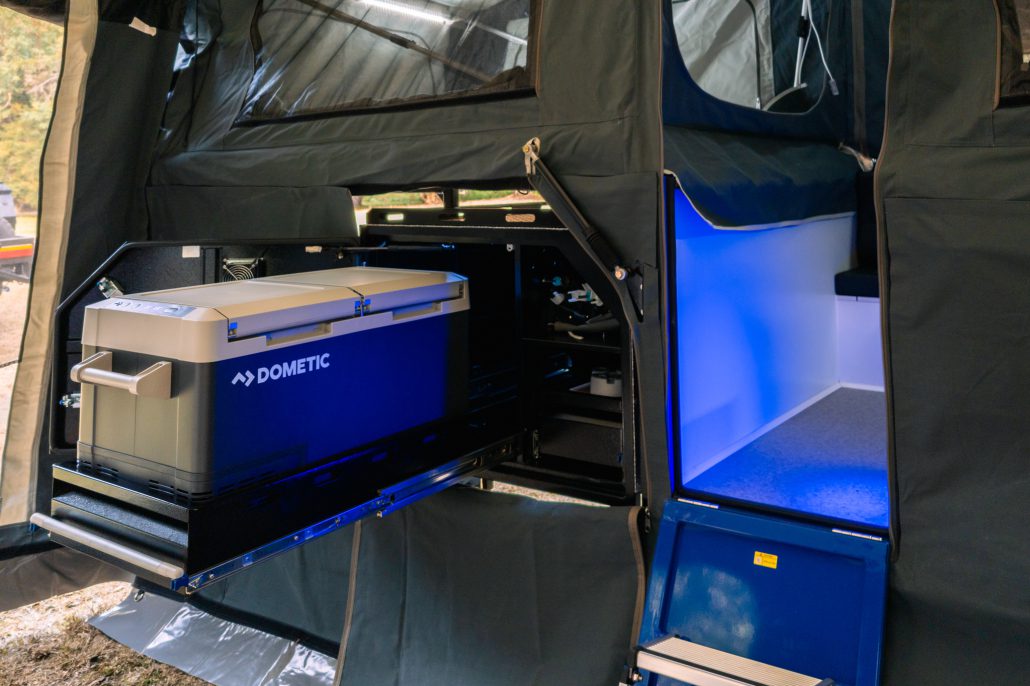

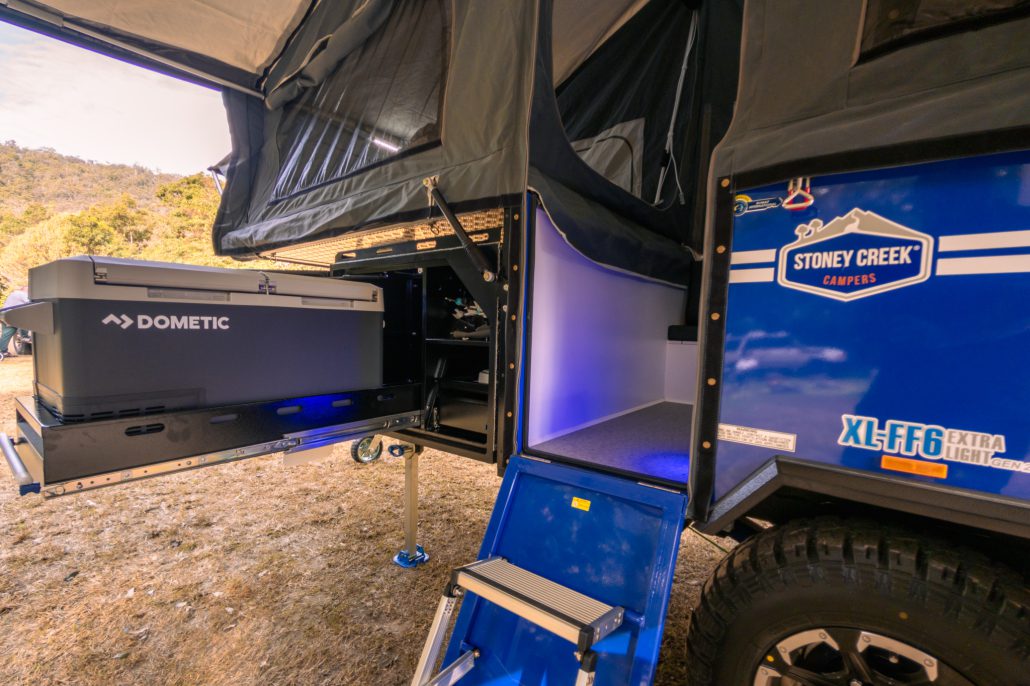

| Fridge | 12/240v fridge freezer up to 70L. |
| Hot Water System | Hot water service – plumbed, with shower. |
| Solar System | 160w solar panel with regulator. |
| TV Aerial | Aerial available for use with TV system. |
| TV / DVD | 19” Television. |
| Stereo | Stereo & speakers. |
| Battery Charger (Smart) | 240v management system. |
| DC to DC Charger | Intelligent DC to DC charger. |
How to set up your XL-FF6 Adventure Series Camper Trailer
Quick Setup
Annexe Setup
Some of the videos and images below are of our SC-FF. XL models have been updated with added features that may not indicated in these videos and images. Please refer to your local stockist for more details.
