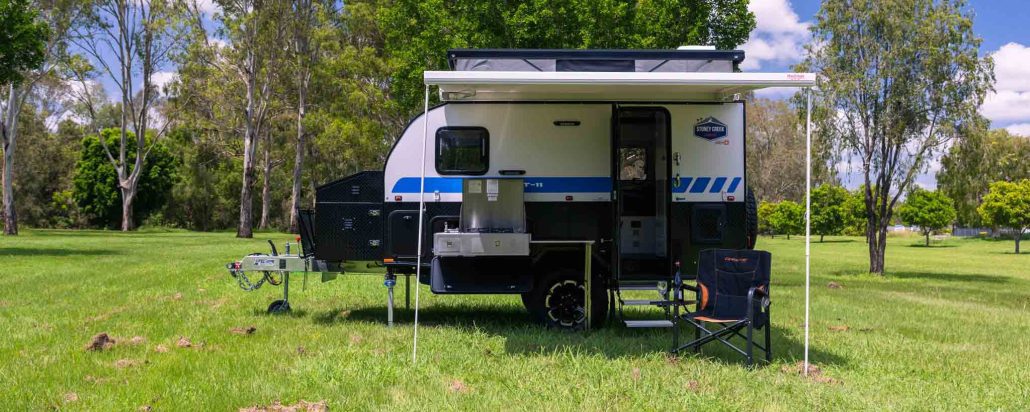

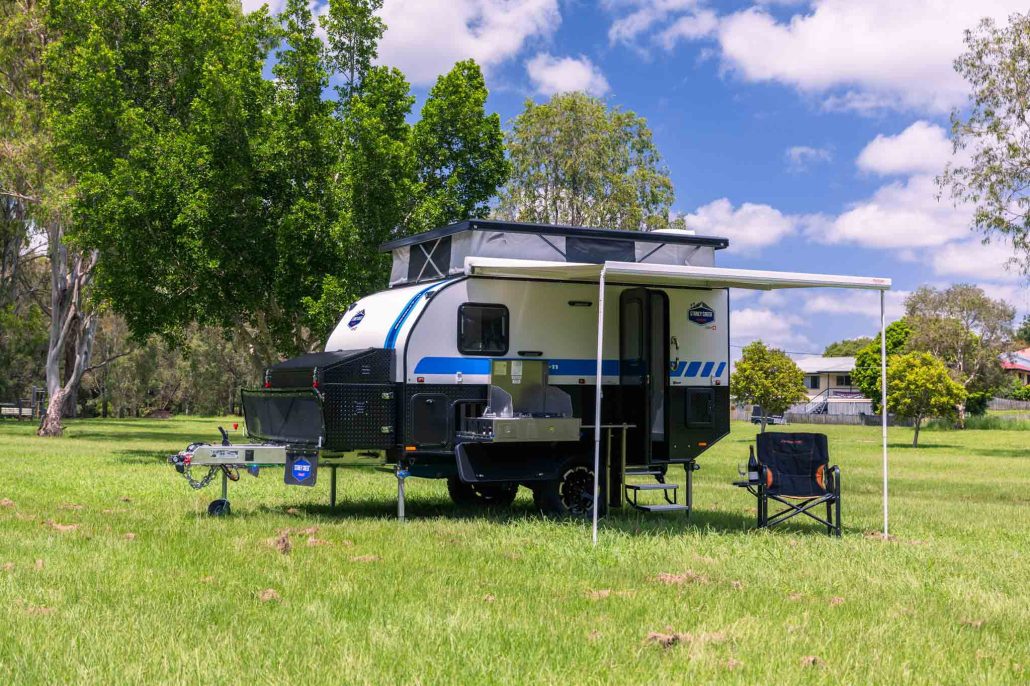

Scout-11 Off-Road Hybrid Caravan
Small in Size. Huge in Features.
The second generation of the Scout-11 Off-Road Hybrid Caravan proves that big things can come in small packages!
The result of extensive performance and design enhancements, this hugely popular hybrid focuses on delivering comfort and quality, room for you and your partner, and great value. The Scout-11 offers the kind of luxury and inclusions usually only afforded in large caravans.
The Scout-11 Off-Road Hybrid Caravan has a unique layout that includes everything you and your partner needs without needing slide-out or pull-out sleeping areas.
The Stoney Creek Scout-11 is the perfect couples camper that cleverly fits the big things into a small space!
Check out the key features the Scout-11 has to offer
What’s New in Gen 2?
The latest generation of hybrid caravans from Stoney Creek Campers
Off-Road Hybrid Caravan
Check out some of the upgrades we’ve implemented for our second generation of campers.
6″ single-piece chassis
Dedicated fridge and LPG bottle storage
Dual water tanks (170L total)
Upgraded off-road suspension
Upgraded slide-out kitchen
Upgraded mud terrain tyres and alloy rims
Easy wind-out awning
Thetford cassette toilet
Technical Specifications & Optional Extras
|Overall Length (mm)||5700|
|Body Length (mm)||4200|
|Travel Height (mm)||2650|
|External Width (mm)||2300|
|Tare Weight (kg)||1870|
|ATM Weight (kg)||2500|
|Ball Weight @ tare (approx) (kg)||185|
|Note:||Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative.|
|Frame||Hot-dipped galvanised frame to protect against corrosion with 6” & 2” main members.|
|External Skin||Aluminium box channel, smooth skin, and hail & dent resistant external frame.|
|Doors & Hinges||High quality hinges secured to the frame. All doors are sealed to prevent dust and water ingress. Adjustable latches on all external doors for easy adjustment.|
|Carrier||Mesh to A-frame.|
|Suspension Fixings||High tensile fixings.|
|Suspension||Upgraded independent trailing arm suspension engineered and designed with twin shock absorbers and coil springs.|
|Safety Chains||2 x ADR compliant safety chains with ‘D’ shackle.|
|Jockey Wheel||Removable and adjustable AL-KO jockey wheel.|
|Coupling||ADR-approved off-road poly block hitch.|
|Trailer Plug Connection||Included 7-pin as standard (or alternative to suit vehicle).|
|Trailer Power Connection||Included Anderson plug.|
|Brakes||12″ heavy-duty electric brakes with breakaway safety system and handbrake.|
|Mud Flaps||Heavy duty, durable mud flaps.|
|Wheel Rims||Alloy rims for strength and weight saving.|
|Tyres||Mud Terrain 265/75R16 tyres (inc. 1 x spare).|
|Tyre Pressure||Tyre pressure as per Stoney Creek Campers owners manual.|
|Drop-down Stabiliser Legs||Corner wind-down support legs (for stabilisation only).|
|Toolbox||Large A-frame toolbox for gas and fridge storage.|
|Power||Multiple 12V weatherproof cig socket and 240V weatherproof outlets.|
|Step||Power-operated single step (double available).|
|Battery||2 x 100amp deep cycle AGM batteries.|

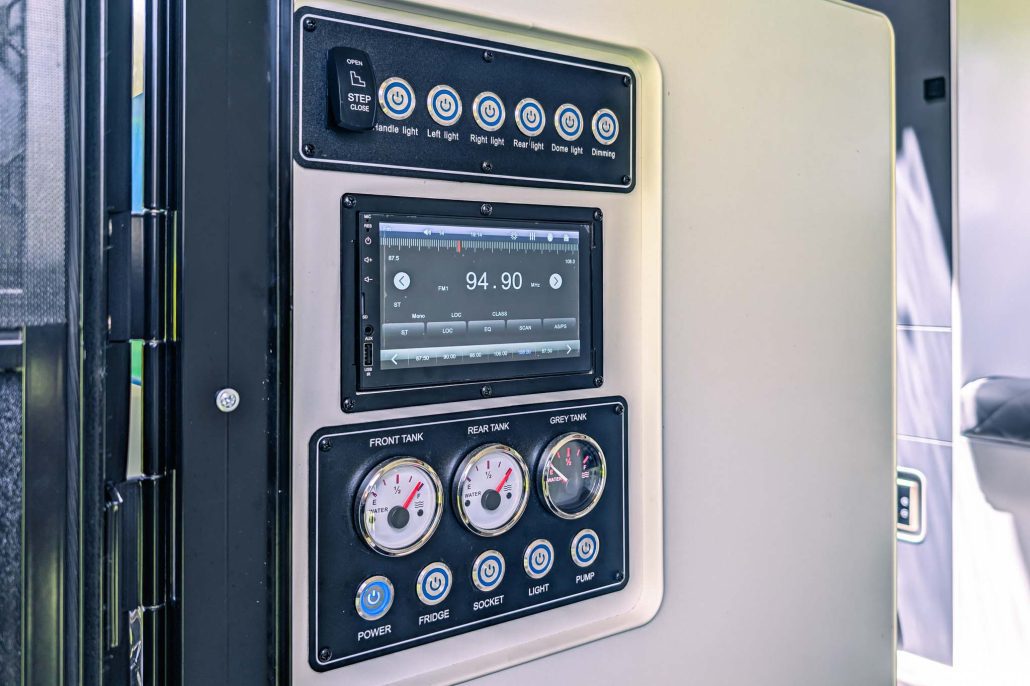

|Control Panel||Marine-style control panel with water gauges, 12v power and two USB outlets.|
|Solar System||Roof-mounted panel and regulator (300w).|
|Gas Bottles||2 x 3.7kg gas bottles provision plumbed and certified by a qualified gas technician.|
|Gas Bayonet||Supplied (in kitchen) with quick connect / release connection.|
|Gas Cook Top||High quality 4-burner cooktop (with Flame Failure Device) including wind protection (Australian gas compliant).|
|Fire Extinguisher||1kg Dry Powder Type Stored Pressure Fire Extinguisher.|
|Water Pump||12v pump and external switch.|
|Water Tank (Fresh)||120L poly water tank + 50L secondary tank.|
|Water Filler||Secure & lockable water fill points.|
|Sink||Stainless steel basin with hot and cold mixer.|
|Kitchen||Pull-out kitchen with upgraded rollers, cutlery drawer, utensil drawer and retractable table extension.|
|Awning||Wind-out awning (with option to upgrade) for basic set up in moments.|
|Ventilation||Double-glazed windows with internal screens and block-out blinds.|
|External Lighting||Side LED & annexe LED.|
|Internal Lighting||Reading 12V and ceiling 12V LED.|
|Internal Floor||Durable material with a modern design.|
|Internal Seating||Highly durable material with modern designs with plenty of under seat storage.|

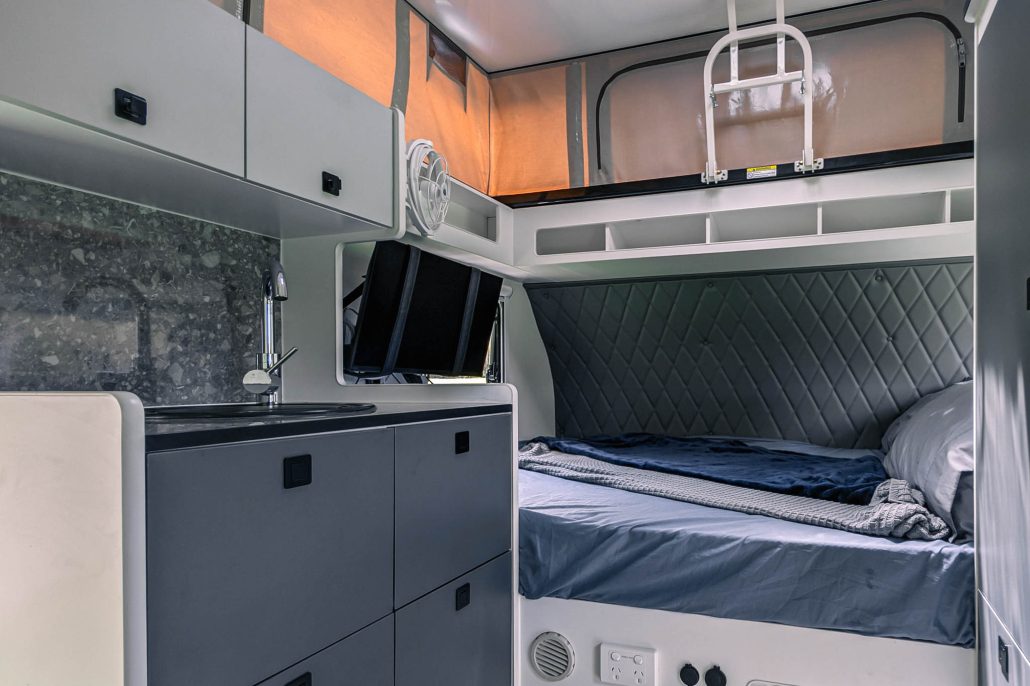

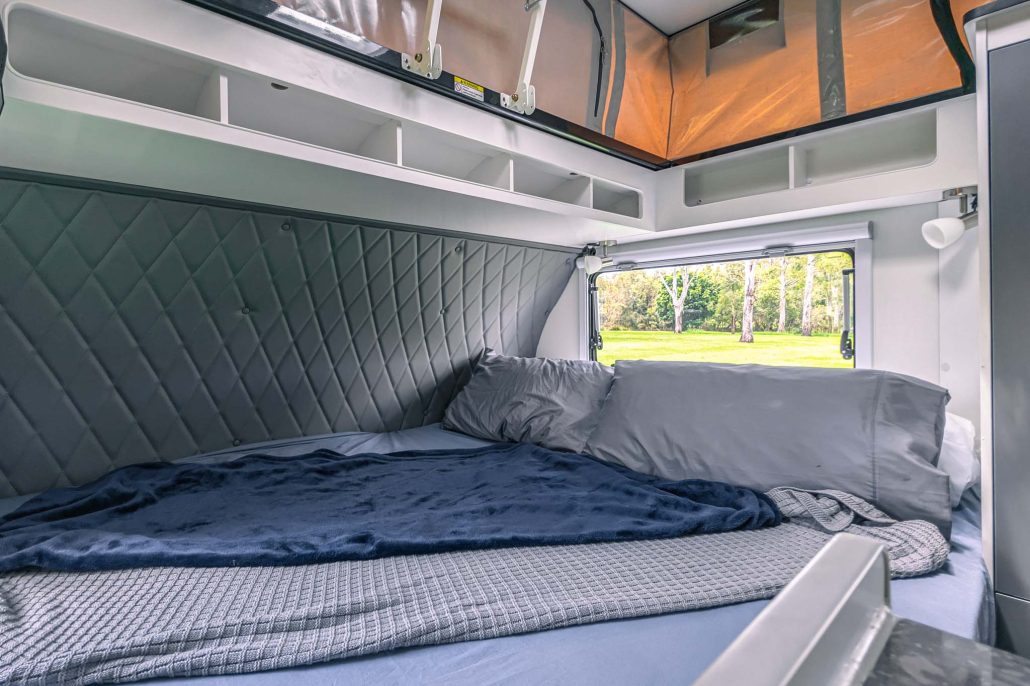

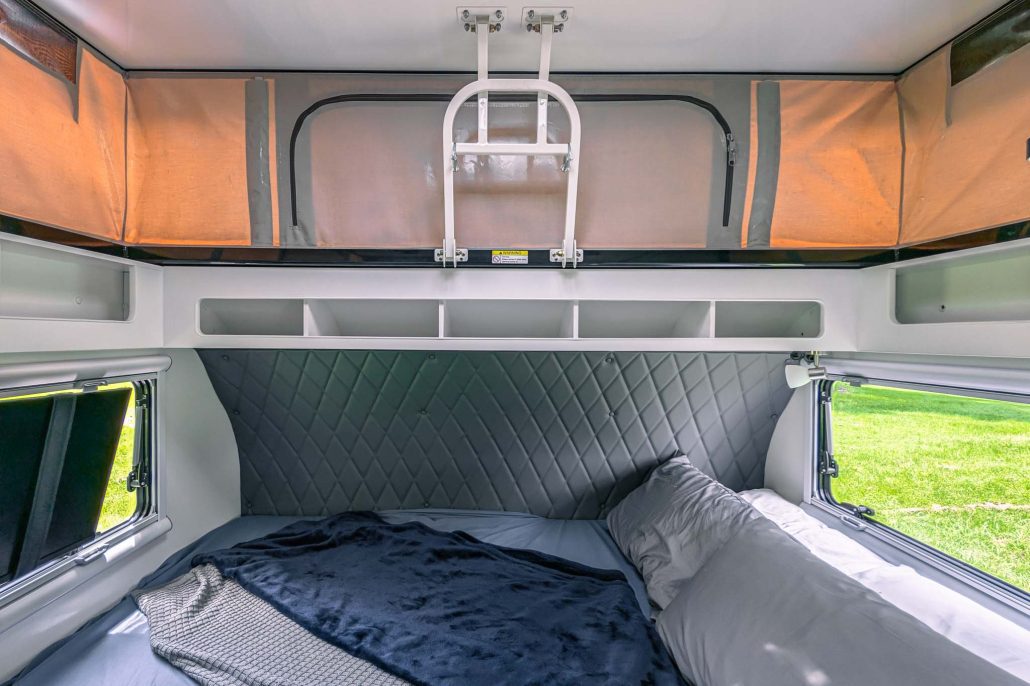

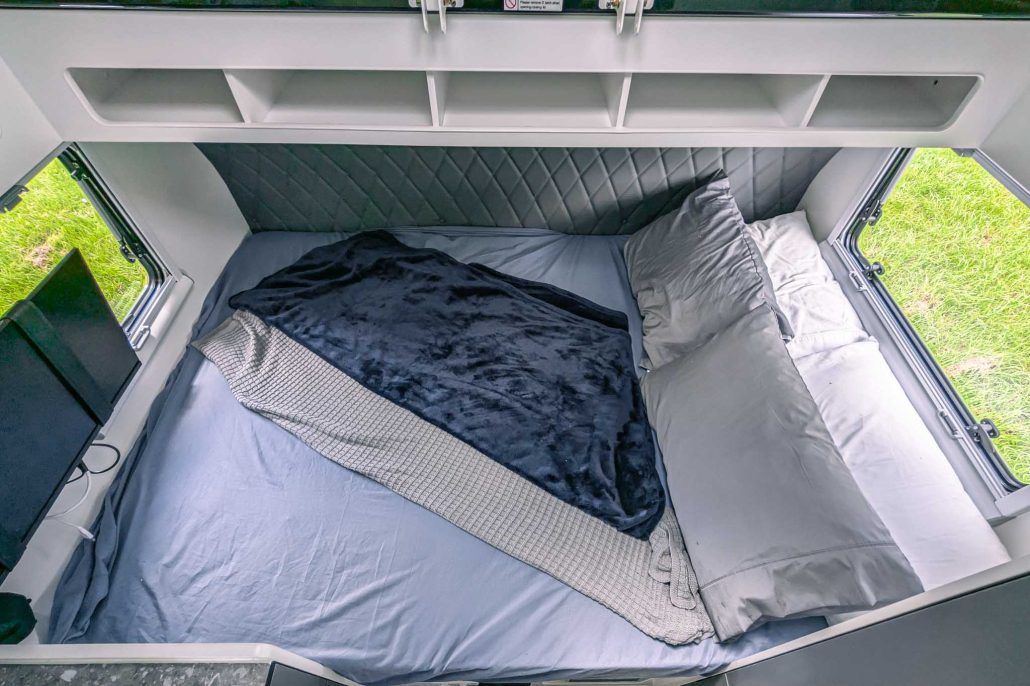

|Bed Main||Queen-size bed with comfortable, high-quality memory foam mattress.|
|L-Shaped Lounge (Dinette)||Converts dinette and features comfortable, high quality cushions.|

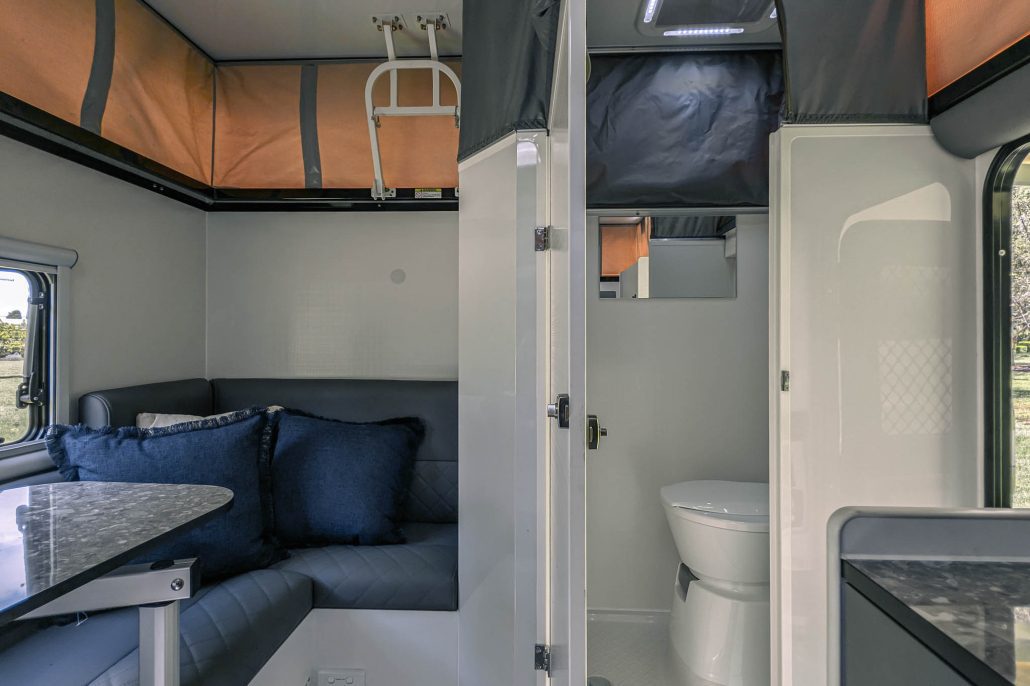

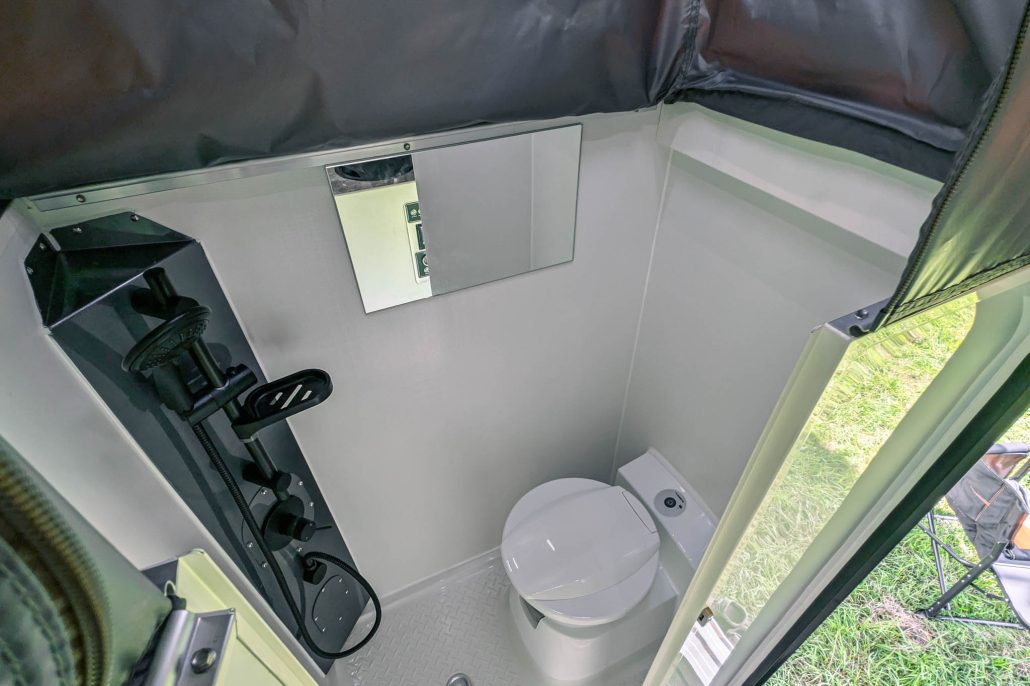

|En-suite / Bathroom Facilities||Shower with removable shower head and Thetford cassette toilet.|

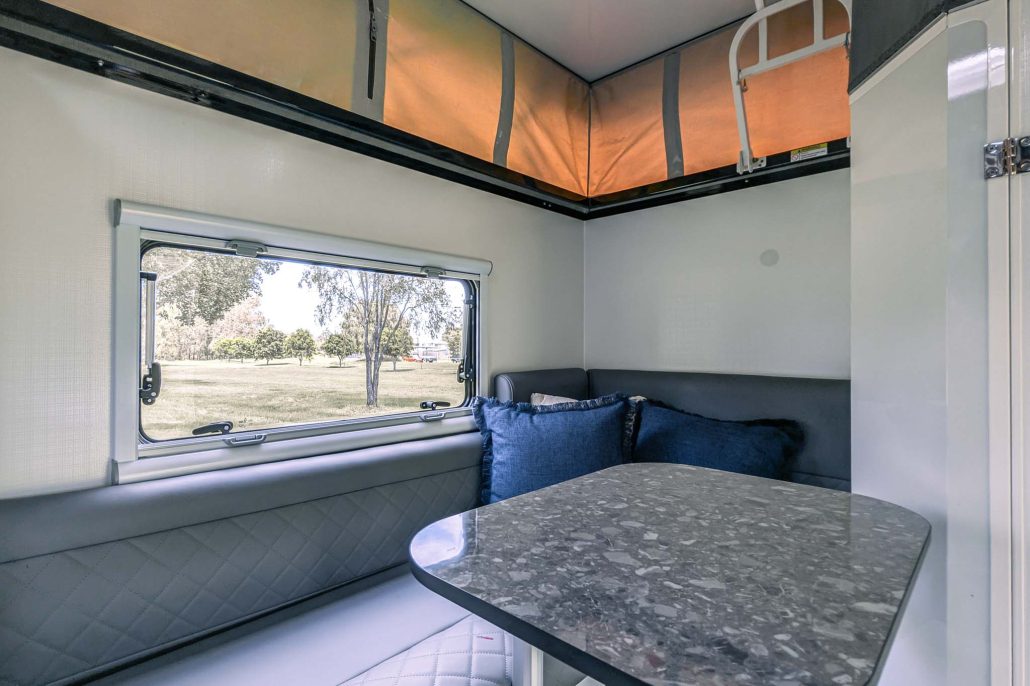

|Dinette & Table||Café-style seating with adjustable table.|
|Hot Water System||Truma gas hot water system.|
|TV Aerial||Aerial available for use with TV system.|
|Stereo/DVD System||Stereo & speakers with built-in DVD player.|
|Battery Charger (Smart)||12V/240V management system.|
|Internal Storage||Overhead cupboard, below sink cupboard, centre robe beside shower area, lounge seat, under bed.|
|External Storage||Forward main front box, tunnel boot (access off-side), battery compartment.|
|Television||24″ Smart TV.|
|Lithium||Renogy or Enerdrive packs available.|
|DC to DC Charger||Intelligent DC to DC charger.|
|Air Conditioning||Floor-mounted air conditioner.|

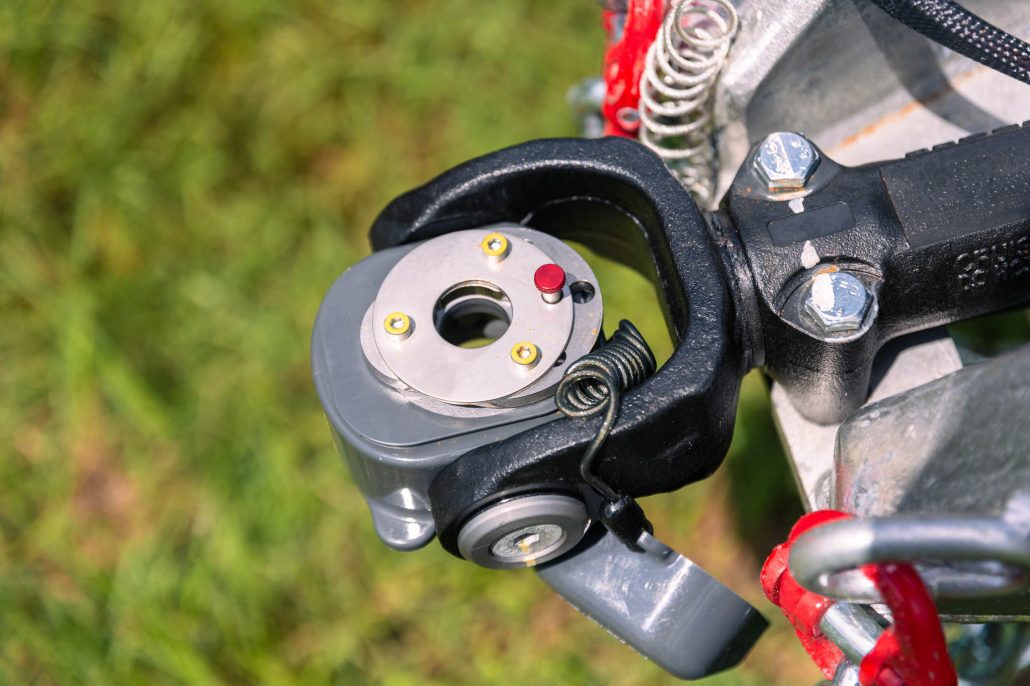

|Coupling||Cruisemaster DO35 All-Terrain Coupling.|
|Water Tank (Grey)||50-litre poly water tank.|

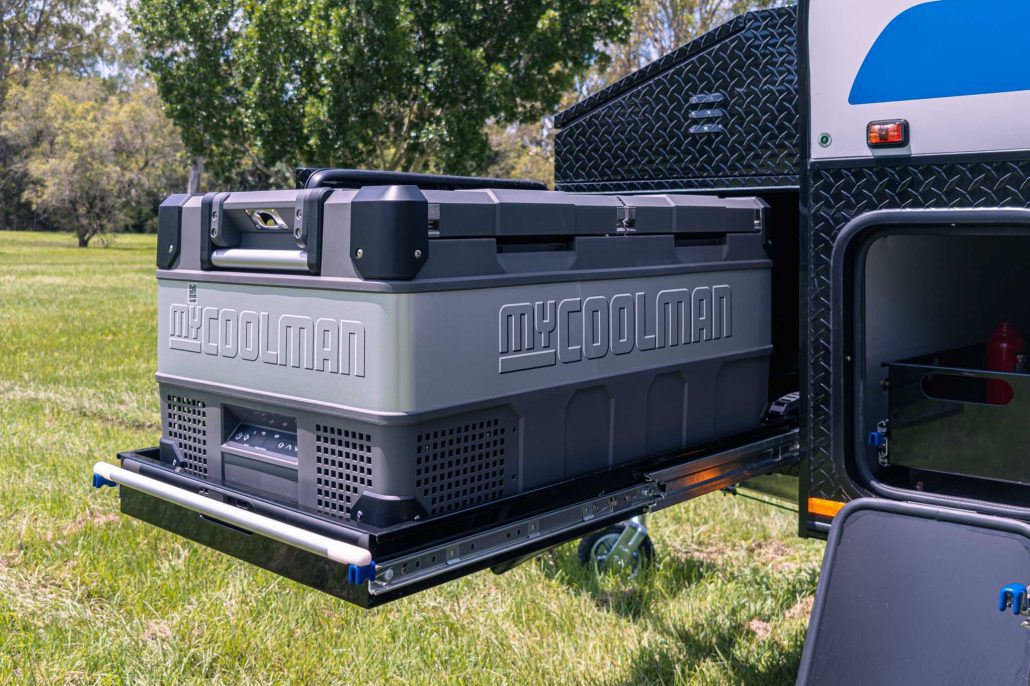

|Fridge/Freezer||85-litre 12V fridge/freexer.|
|Awning (upgrade)||Aussie Traveller Coolabah awning.
Bundutec 360° awning.
|Coupling||ADR-approved Cruisemaster DO35 all-terrain coupling (rated to 3.5 tonnes).|
|BBQ Arm||Powder-coated galvanised steel arm with chequer plate tray and universal drawbar mount.|
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
