Suitable for
3 x People

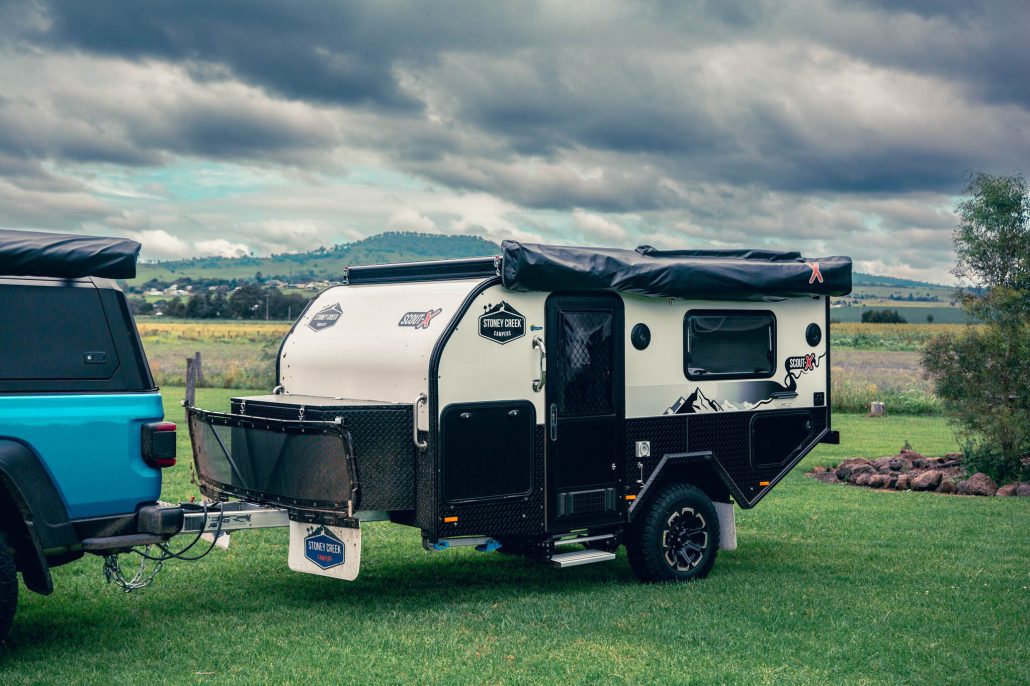

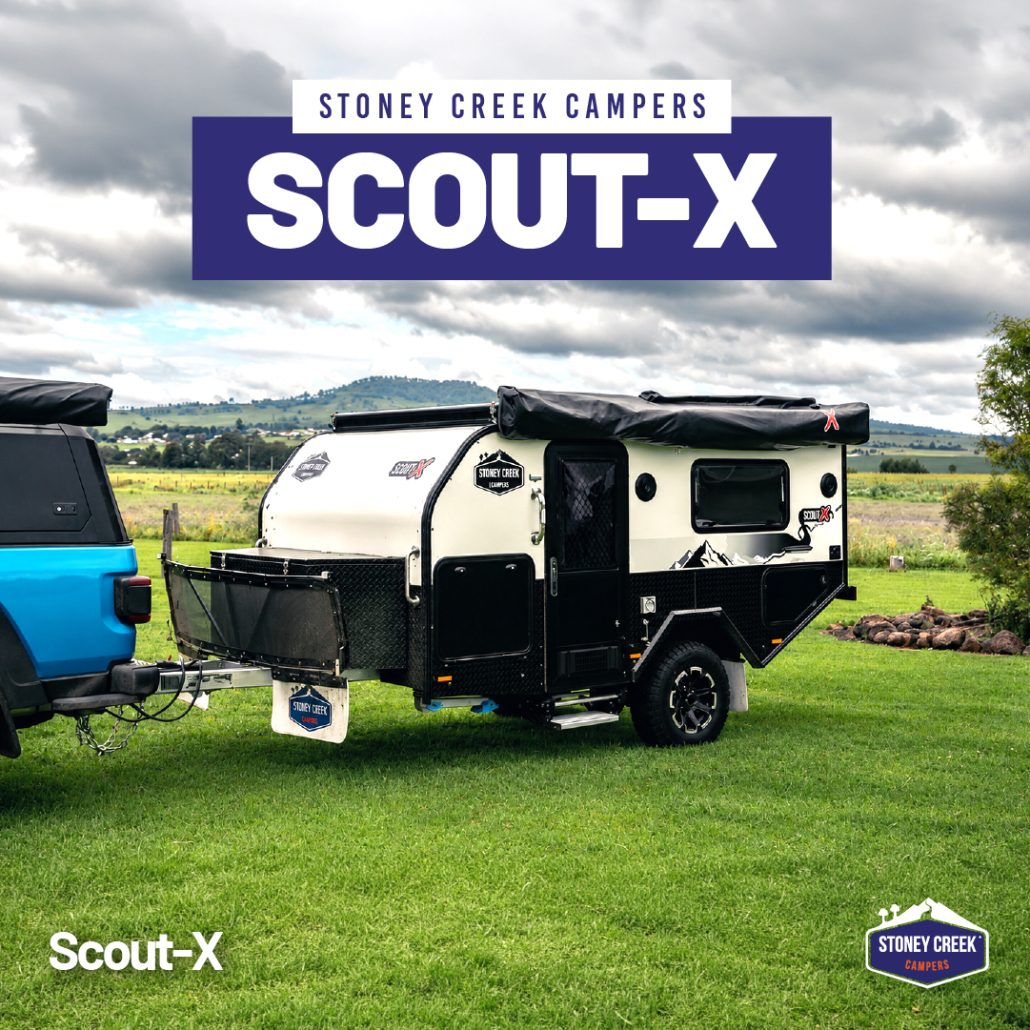

Scout-X Off-Road Hybrid Caravan
Compact-sized & Adventure Ready
One of the newest additions to the Stoney Creek Campers range and the latest addition to our market-leading Hybrid range, the adventure-rated Scout-X Off-Road Hybrid Caravan is the perfect way for couples or small families to hit the road with a compact-sized hybrid without leaving behind the comforts of home.
Focussing on comfort, quality, convenience and value, the Scout-X has inclusions usually only afforded in large caravans! From a queen-sized bed to a bunk and lots of storage – there is so much to love in this hybrid.

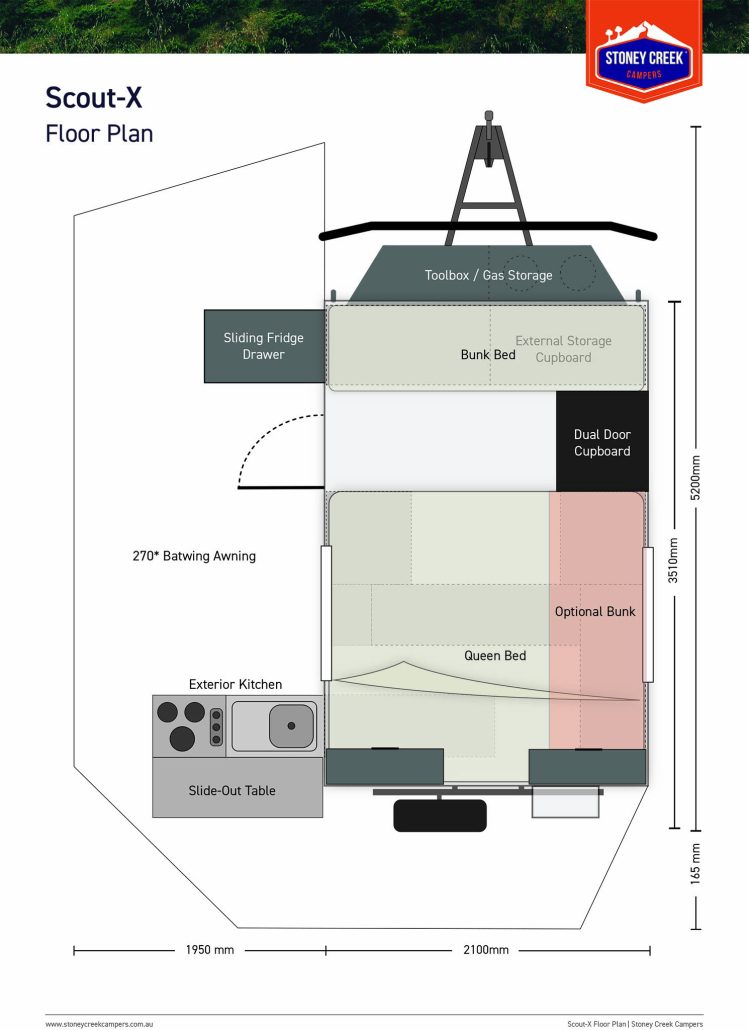

The Scout-X has a unique layout featuring everything the new family needs, without the need for slide-outs, pull-outs or canvas sleeping areas.
Check out the key features the Scout-X has to offer
Scout-X
Off-Road Hybrid Caravan
Check out some of the upgrades we’ve implemented for our second generation of campers.
1
2
3
4
5
6
7
8
9
10
1
DO35 Off-Road coupling allowing you to tow anywhere with piece of mind.
2
4″ single-piece, hot dipped galvanised steel chassis for unmatched strength and superior rust resistance.
3
Lightweight protective mesh to protect the front of the Scout-X and rear of your car.
4
Black chequer plate toolbox with LPG gas bottle section on one side and further storage slide on the other side.
5
Aluminium composite panelling for improved chip resistance added structural strength.
6
Mould resistant marine grade vinyl for enhanced insulation.
7

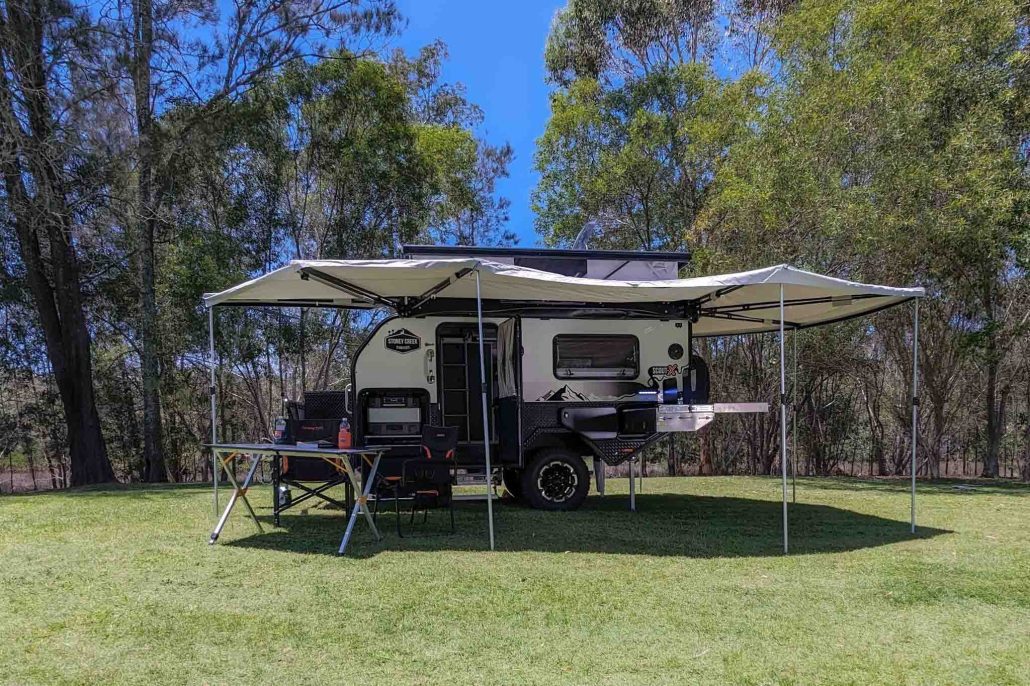

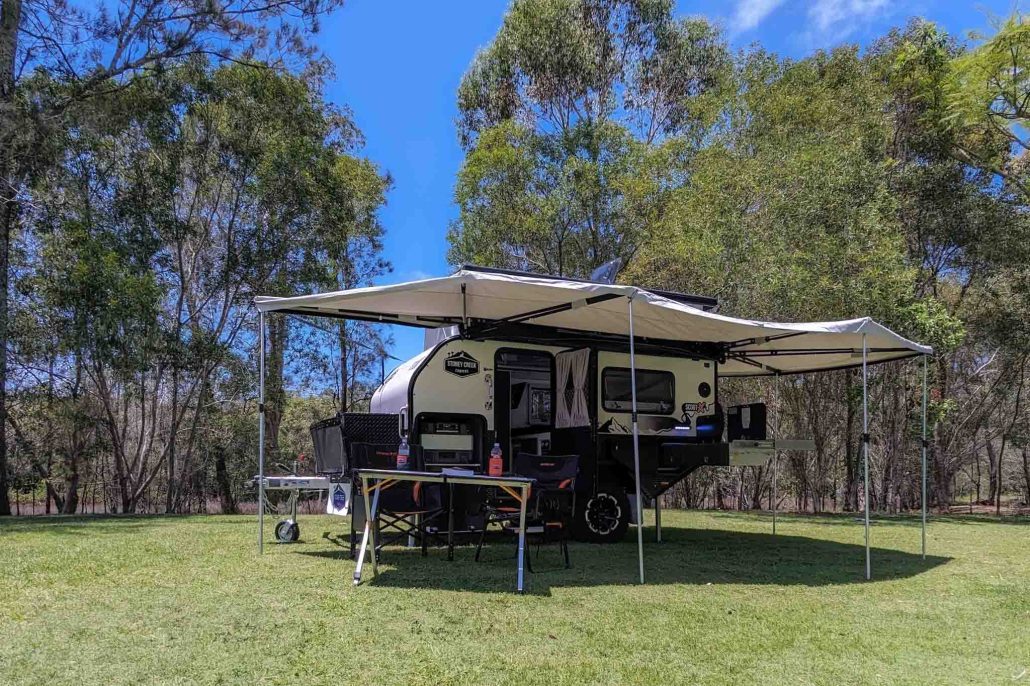

Expansive 270 degree batwing awning for industry leading protection.
8
Spacious 85-litre fridge freezer storage slide.
9
Upgraded independent trailing arm suspension with 15″ all-terrain tyres and 12″ electric brakes.
10
Hot/cold mixer tap sink and dual gas burner stove with bar table extension for outdoor entertaining.
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Overall Length (mm) | 5200 |
| Body Length (mm) | 3510 |
| Travel Height (mm) | 2400 |
| External Width (mm) | 2100 |
| Tare Weight (kg) | 1410 |
| ATM Weight (kg) | 1850 |
| Ball Weight @ tare (approx) (kg) | 150 |
| Note: | Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. |
| Item | Description |
|---|---|
| Frame | Hot-dipped galvanised frame to protect against corrosion with 4” & 2” main members. |
| External Skin | Smooth skin, and hail & dent resistant external frame. |
| Doors & Hinges | High quality hinges secured to the frame. All doors are sealed to prevent dust and water ingress. Adjustable latches on all external doors for easy adjustment. |
| Suspension Fixings | High tensile fixings. |
| Suspension | Independent trailing arm suspension engineered and designed with twin shock absorbers and coil springs. |
| Safety Chains | 2 x ADR compliant safety chains with ‘D’ shackle. |
| Jockey Wheel | Removable and adjustable AL-KO jockey wheel. |
| Coupling | ADR-approved off-road poly block hitch. |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |
| Brakes | 10″ heavy-duty electric brakes with breakaway safety system and handbrake. |
| Mud Flaps | Heavy duty, durable mud flaps. |
| Wheel Rims | Alloy rims for strength and weight saving. |
| Tyres | Mud Terrain 235/75R15 tyres (inc. 1 x spare). |
| Tyre Pressure | Tyre pressure as per Stoney Creek Campers owners manual. |
| Drop-down Stabiliser Legs | Corner wind-down support legs (for stabilisation only). |
| Item | Description |
|---|---|
| Power | Multiple 12V weatherproof cig socket and 240V weatherproof outlets. |
| Step | Power-operated single step (double available). |
| Battery | 1 x 100amp deep cycle AGM batteries. |
| Fuses | Resettable fuses. |
| Control Panel | Marine-style control panel with water gauges, 12v power and two USB outlets. |
| Solar System | Roof-mounted panel and regulator (300w). |
| Gas Bottles | 2 x 3.7kg gas bottles provision plumbed and certified by a qualified gas technician. |
| Gas Bayonet | Supplied (in kitchen) with quick connect / release connection. |
| Gas Cook Top | High quality 3-burner cooktop (with Flame Failure Device) including wind protection (Australian gas compliant). |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |
| Water Pump | 12v pump and external switch. |
| Water Tank (Fresh) | 120L poly water tank |
| Water Filler | Secure & lockable water fill points. |
| Sink | Stainless steel basin with hot and cold mixer. |
| Kitchen | Pull-out kitchen with heavy duty rollers, cutlery drawer, utensil drawer and retractable table extension. |
| Awning | 270° awning brings next level shade to your camping set up. |
| Ventilation | Double-glazed windows with internal screens and block-out blinds. |
| External Lighting | Side LED & annexe LED. |
| Internal Lighting | Reading 12V and ceiling 12V LED. |
| Internal Floor | Durable material with a modern design. |
| Internal Seating | Highly durable material with modern designs with plenty of under seat storage. |
| Bed Main | Queen-size bed with comfortable, high-quality memory foam mattress. |

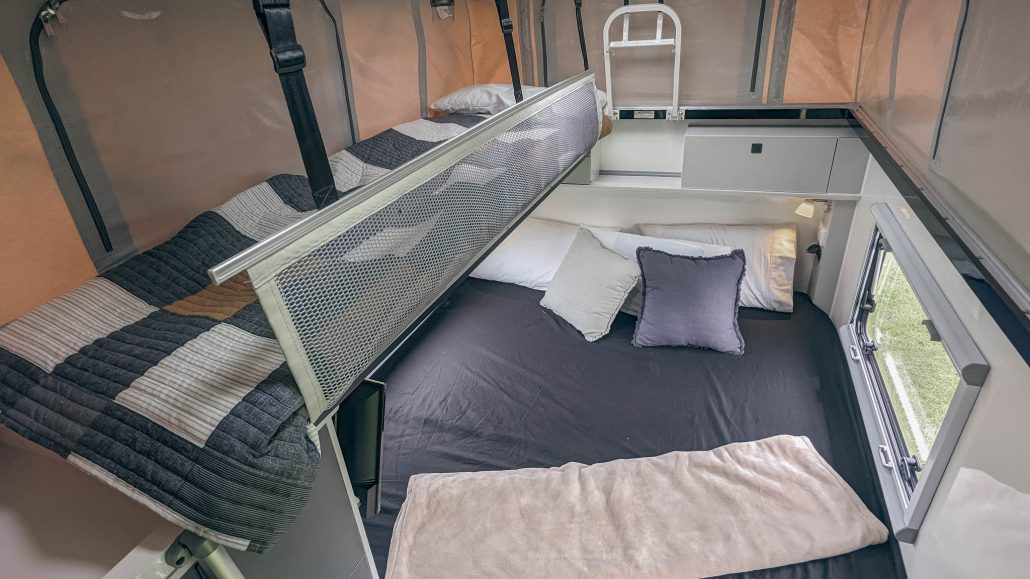

| Bunk | Doubles as extra storage space and features comfortable, quality mattress. |
| Stereo/DVD System | Stereo & speakers with built-in DVD player. |
| Battery Charger (Smart) | 12V/240V management system. |
| Internal Storage | Overhead cupboard, centre robe beside bed area, lounge seat, under bed. |
| External Shower | External shower – hot (applicable if HWS installed) and cold |
| External Storage | Forward main front box, tunnel boot (access off-side) | Television | 24″ Smart TV |
| Item | Description |
|---|---|
| Television | 24″ Smart TV. |
| Coupling | Cruisemaster DO35 All-Terrain Coupling. |
| Air Conditioning | Floor-mounted air conditioning system. |
| Ensuite Tent | Externally fitted 23Zero Shower Tent drop ensuite. |
| Awning Walls | Add protective, privacy walls to your awning. |
| Hot Water System | Truma gas/electric hot water system. |
| BBQ Arm | Powder-coated galvanised steel arm with chequer plate tray and universal drawbar mount. |
| Fridge/Freezer | Mycoolman 85-litre dual zone. |
| Lithium | Renogy or Enerdrive packs available. |
| Inverter | 2000 Watt or 3000 Watt. |
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
