Scout-15B Off-Road Hybrid Caravan (Twin Bunks)
Suitable for
4 x People
Scout-15B Off-Road Hybrid Caravan
Built for Families, Ready for Adventure
The Gen 3 Scout-15B Off-Road Hybrid Caravan is built for adventurous families who want rugged performance without sacrificing comfort. With twin bunks and a clever, versatile layout, it’s designed to make the most of every inch of space—whether you’re deep in the bush or parked up for a weekend escape.
Using next-generation composite construction, the Scout-15B offers exceptional strength, reduced weight, and year-round insulation. Inside, you’ll find a queen bed for the grown-ups, sleeping space for the kids, and all the must-have conveniences—from a shower and toilet to an inviting lounge that doubles as a second living space.
Powered by a robust lithium battery setup and a huge 600W solar array, it’s ready for life off-grid. Combined with proven off-road handling and a quick electric roof lift, it’s a caravan that’s just as capable as it is comfortable.
Wherever the road leads, the Scout-15B brings your family closer to the great outdoors—without leaving the luxuries of home behind.
Now with 2 interior layout options!
The Scout-15 Twin Bunk version has just gotten even easier to shop, with 2 thoughtful layout options available.

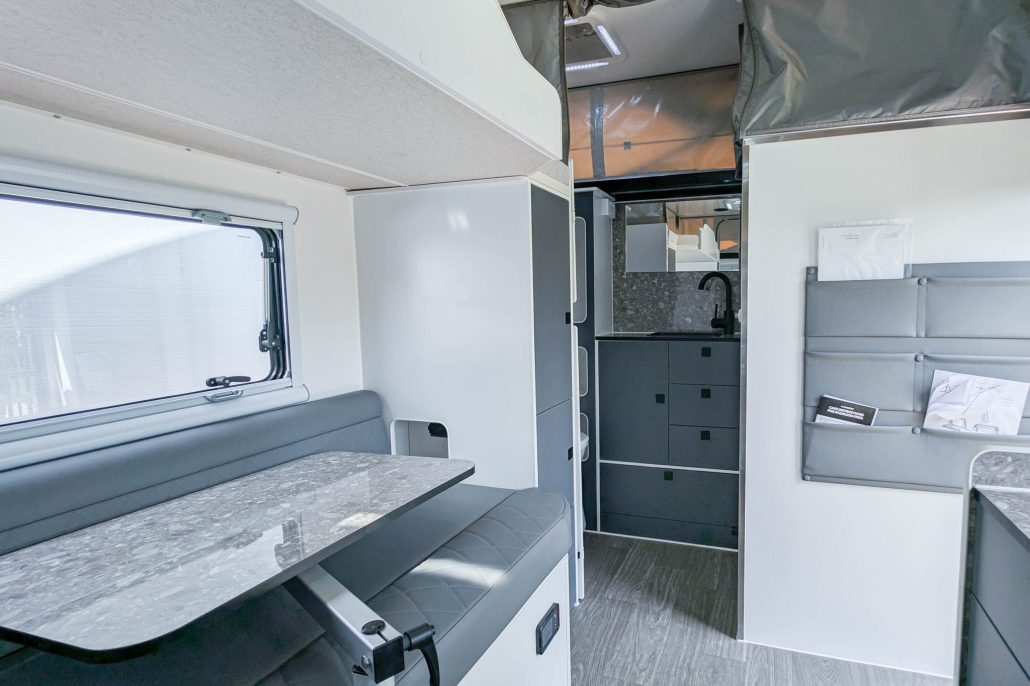

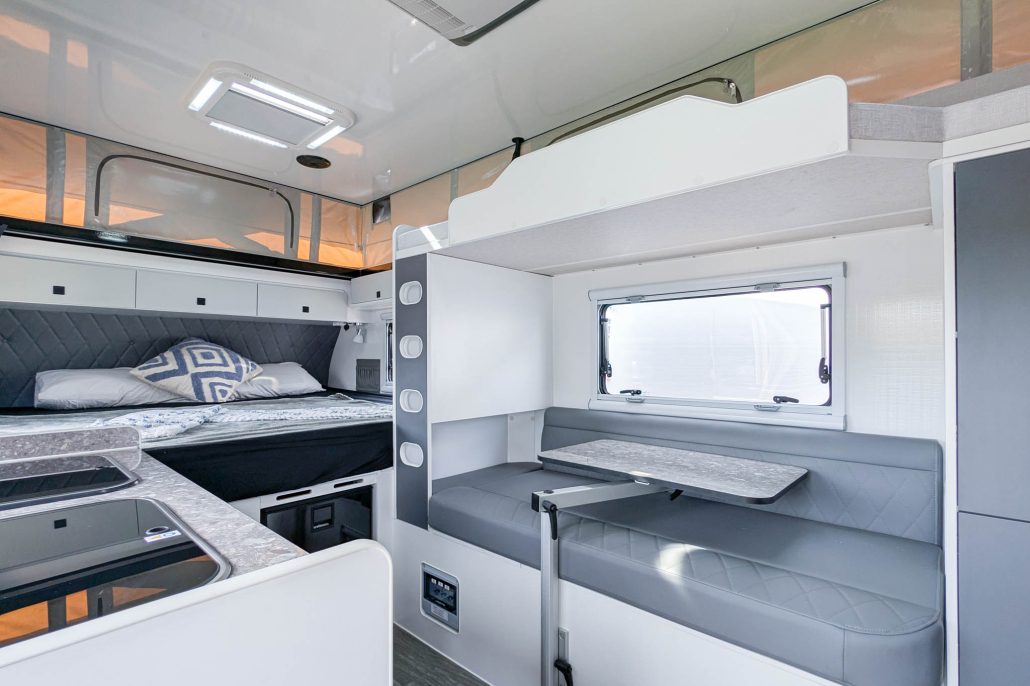

The Scout-15B has:

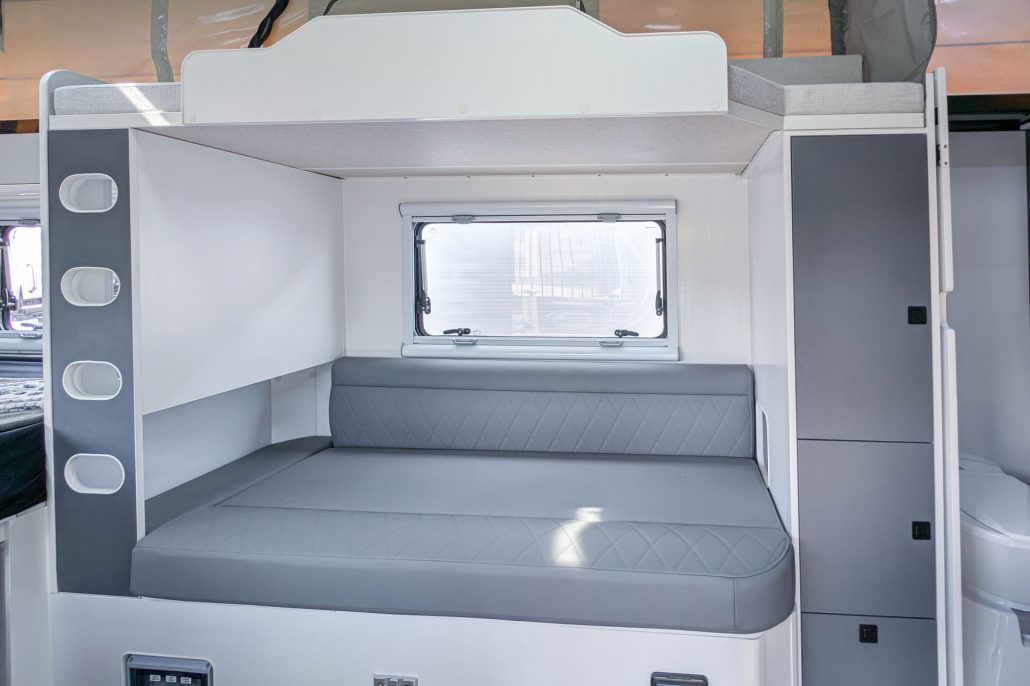

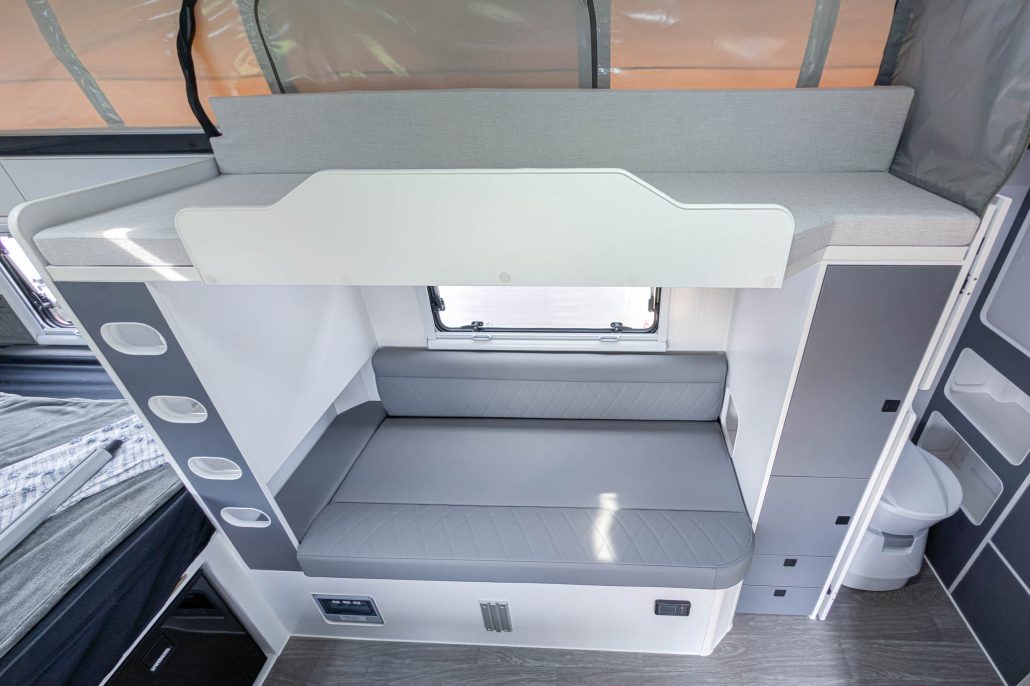

- Twin-bunks with the bottom bunk convertible to your lounge/dinette.
- Ensuite with separate toilet & shower.
- 2 burner interior gas cooktop and stainless sink opposite the bunks.

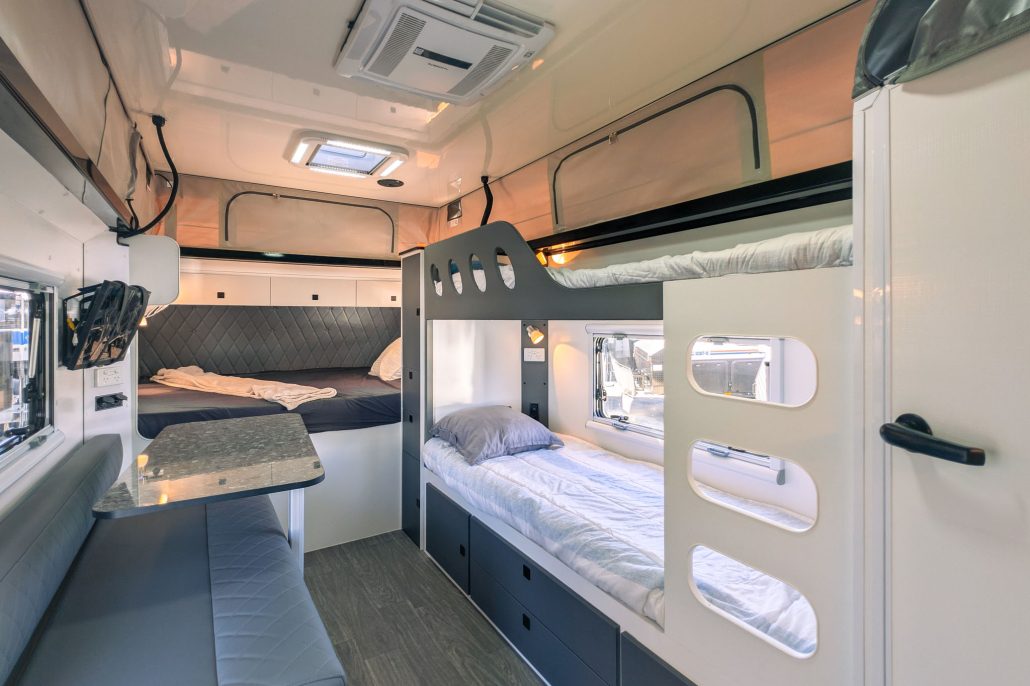

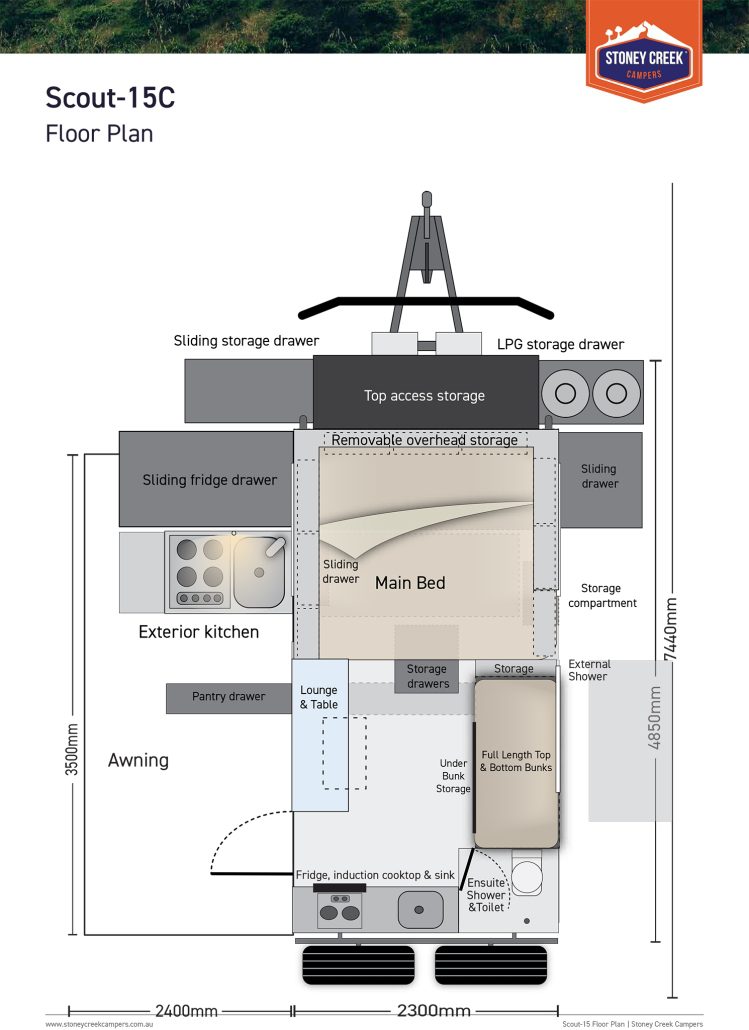

The Scout-15C has:
- Permanent full-size twin-bunks.
- Ensuite with combined toilet & shower.
- Large lounge & dinette opposite bunks.
- Relocated interior kitchen with 2 burner induction cooktop & stainless sink.
CLICK HERE TO SEE THE SCOUT-15C IN FULL
Check out the key features the Scout-15 has to offer
Scout-15
Off-Road Hybrid Caravan
Check out some of the upgrades we’ve implemented for our third generation of campers.
1
2
3
4
5
6
7
8
9
10
1
Cruisemaster DO35 Off-Road coupling allowing you to tow anywhere with piece of mind.
2
6″ single-piece, hot dipped galvanised steel chassis for unmatched strength and superior rust resistance.
3
Lightweight protective mesh to protect the front of the Scout-15 and rear of your car.
4
Black chequer plate toolbox with LPG gas bottle slide on one side, generator storage slide on the other and further storage on top
5
Composite body/panelling providing superior strength, durability, insulation and looks. Hail and dent resistant.
6
Electric roof as standard
7
Spacious myCOOLMAN 85-litre fridge freezer storage slide.
8
Expansive external kitchen with 4 burner hot plate, large hot/cold miser tap sink, intuitive drying rack and sturdy bench extension.
9
Independent trailing arm suspension with 16″ mud-terrain tyres and 12″ electric brakes.
10
Electric awning
1
2
3
4
5
6
7
8

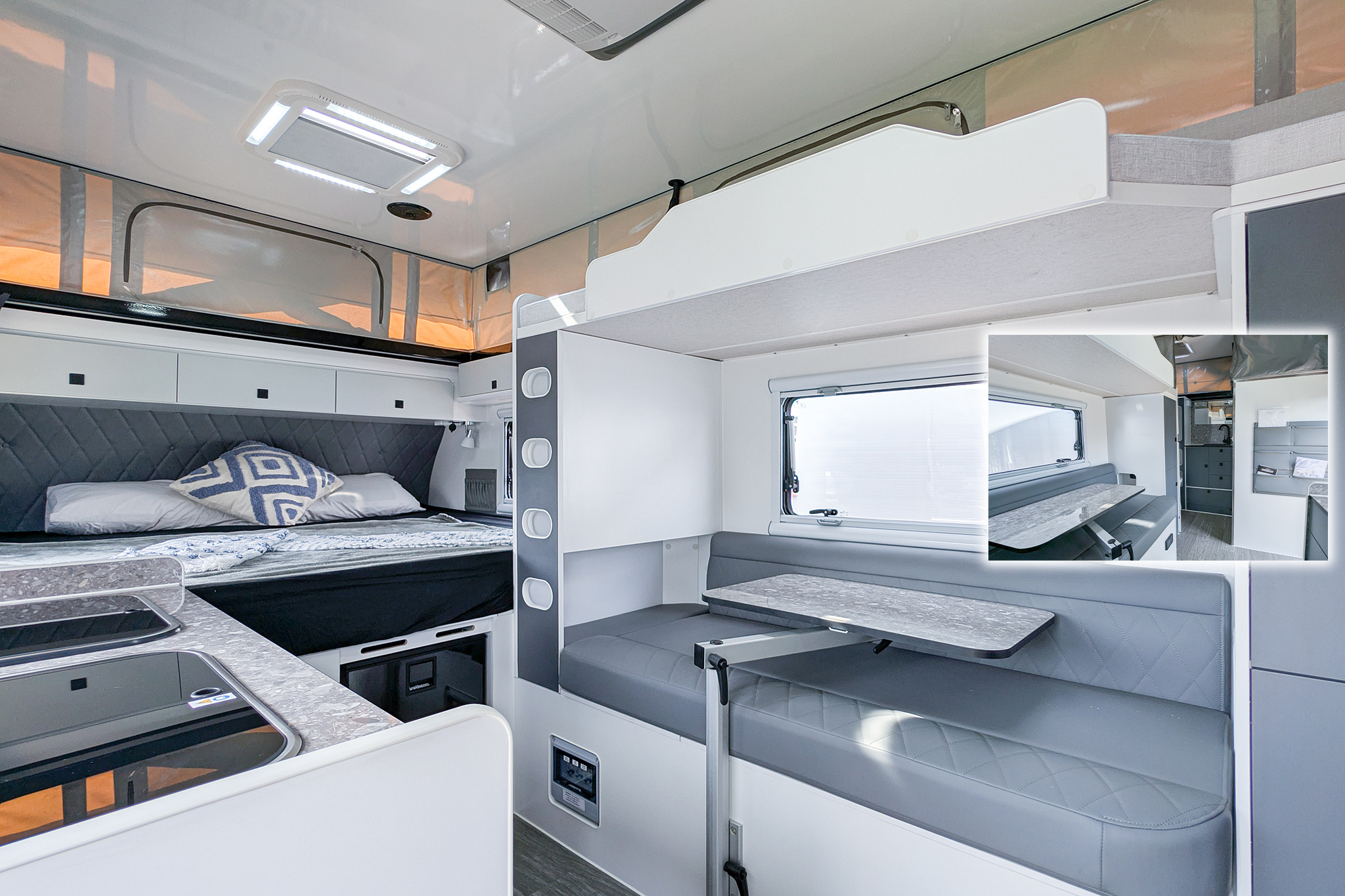

9
1

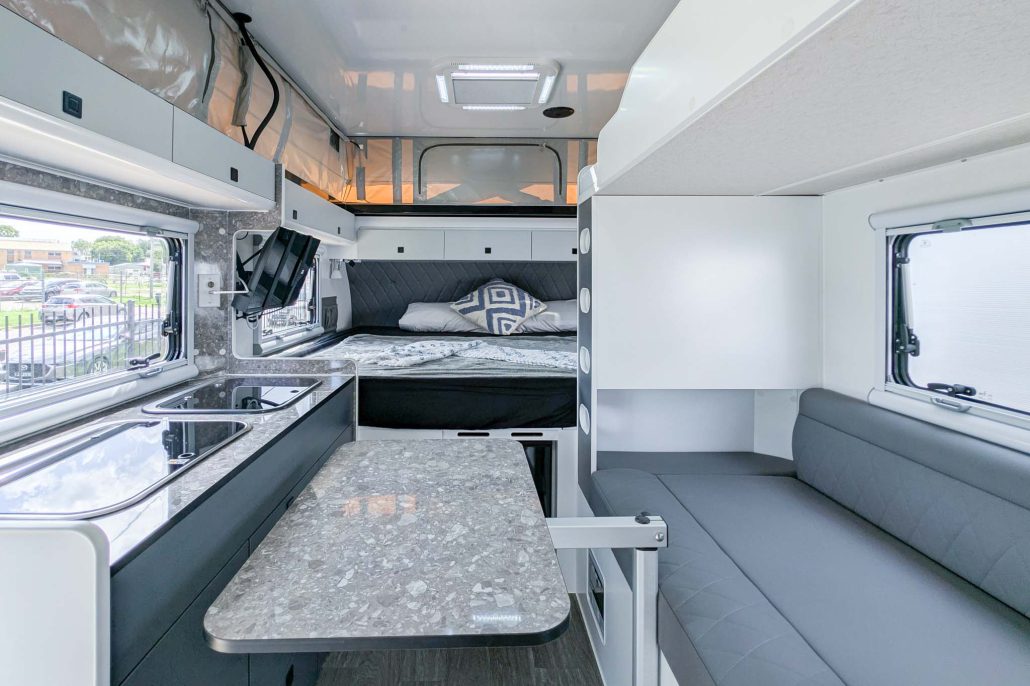

Internal kitchen with 2-burner gas cooktop & stainless steel sink with hot/cold water.
2
Extensive storage
3
King size bed
4
Truma reverse-cycle air-conditioning.
5

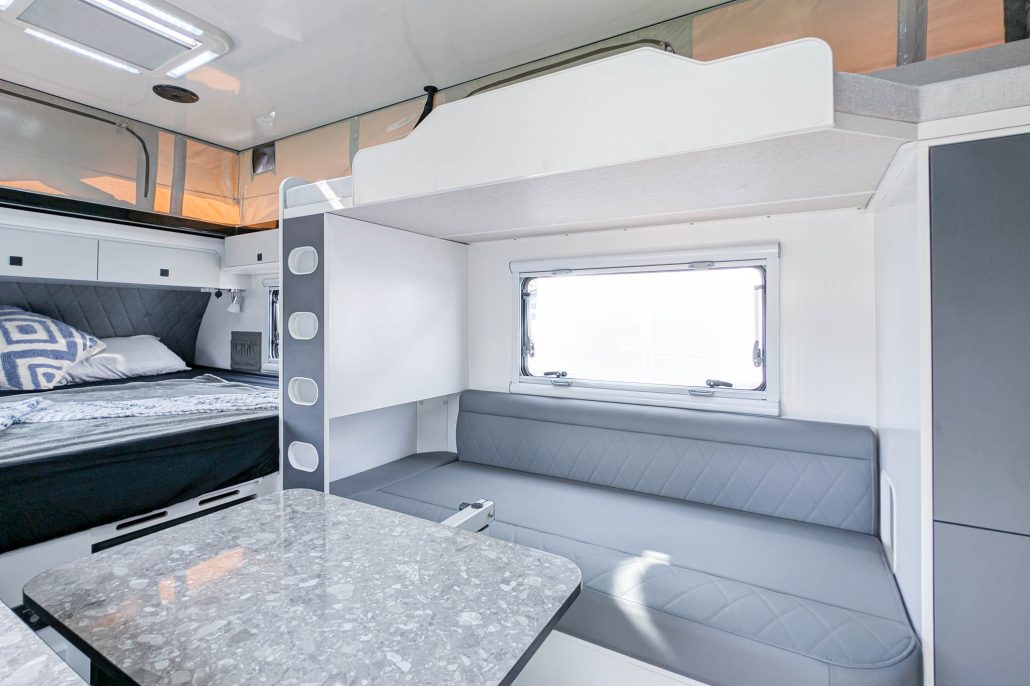

Twin bunks with dinette.
6
49L internal fridge/freezer
7
Extensive bathroom storage
8
Separate toilet
9
Internal shower
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Overall Length (mm) | 7440 |
| Body Length (mm) | 4850 |
| Travel Height (mm) | 2700 |
| External Width (mm) | 2300 |
| Tare Weight (kg) | 2305 |
| ATM Weight (kg) | 3000 |
| Ball Weight @ tare (approx) (kg) | 165 |
| Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. | |
| Toolbox (mm) | 1530 x 430 x 880 |
| Fridge Slide Draw (mm) | 500 x 420 x 820 |
| Chassis, Suspension & Tyres | |
|---|---|
| Engineered Chassis | Hot-dipped galvanised steel chassis to protect against corrosion with 6″ x 2″ main members. |
| Wall Structure | Composite body/panelling providing superior strength, durability, insulation & looks. Hail and dent resistant. |
| Stone Guard | Front stone guard for protection in-line with front toolbox unit to protect van and tow vehicle against rock damage and ricocheting stones. |
| Suspension | Independent trailing arm suspension with dual shock absorbers and coil springs. |
| Suspension Fixings | High tensile fixings. |
| Tyres | Mud Terrain 265/75R16 tyres (inc. 2 spares). |
| Wheel Rims | 16″ Alloy rims for added strength and reduced weight. |
| Tyre Pressure | Tyre pressure as per Stoney Creek Campers owners manual. |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |
| Jockey Wheel | Adjustable and removable AL-KO jockey wheel. |
| Brakes | 12″ heavy-duty electric brakes with breakaway safety system and handbrake. |
| Chains | 2 x ADR compliant safety chains with D shackle. |
| Coupling | Cruisemaster DO35 all-terrain coupling. |
| Doors & Hinges | High quality metal hinges bolted to the frame. Adjustable latches on all external doors allow for easy adjustment. |
| Drop Down / Stabiliser Legs | Corner wind-down support legs (for stabilisation only). |
| Mud Flaps | Heavy duty, durable mud flaps. |
| Power & Electrical | |
|---|---|
| Solar Power System | Roof-mounted panel and regulator (600w). |
| Battery | 460 Ah Haidi Lithium Battery Bank featuring advanced LFP (Lithium Iron Phosphate) Technology, delivering high-capacity, deep-cycle power with exceptional efficiency, long lifespan and proven reliability for extended off-grid use. |
| Inverter | Renogy 3000W Pure Sine Wave Inverter for powerful and stable off-grid performance. |
| Power (240V) | Victron 240v power management system. |
| Power Outlets | Multiple weatherproof 12v & 240v outlets. |
| Mains Connector | Mains Pressure to van. |
| Control Panel | Marine-style control panel water gauges, 12v power and two USB outlets. |
| DC-DC Charger | Renogy DC-DC 30amp smart charger. |
| Fuses | Resettable fuses. |
| Water System & Ventilation | |
| Water Tank (Fresh) | 2 x 120L poly water tanks. |
| Water Tank (Grey) | 1 x 75L poly water tank. |
| Water Tank Protection | Chequer plate water tank guard. |
| Hot Water System | Truma gas/240v hot water system. |
| Water Filler | 2 x secure & lockable water fill points. |
| Water Pumps | 12v pump and external switch. |
| Air Conditioning | Truma Roof-mounted reverse cycle air conditioning system. Inverter-compatible and can operate from the onboard battery system via the fitted inverter when off-grid. *Runtime will vary depending on battery, capacity, state of charge and overall system load. |
| Ventilation | Double-glazed windows with internal screens and block-out blinds. |
| Exterior | |
| Awning | Electric awning for basic set up in moments. |
| Kitchen | Slide-out kitchen with cutlery drawer, utensil drawer, and fold-out bench extension with drop-down support legs. |
| Fridge/Freezer | 85L myCOOLMAN 12v external dual-zone. |
| Sink | Stainless steel basin with hot and cold mixer tap. |
| Gas Stove Top | High quality 4-Burner (with Flame Failure Device) including wind protection (Australian gas compliant). |
| Gas Bayonet | Supplied (ext. kitchen) with quick connect / release connection. |
| Gas Bottles | 2 x 3.7kg gas bottles positions provision plumbed and certified by a qualified gas technician. |
| Jerry Can Holders | 2 x 20L Jerry can holders for additional fuel or water. |
| Lighting | Side switchable exterior cool & amber LED and cool LED annexe lighting. |
| Entry Step | Power-operated single step. |
| Toolbox | Large A-frame toolbox for gas and generator (2Kva) storage. |
| Chequer Plate | Protective (black). |
| Interior | |
| Electric Roof | Electric pop-up roof. |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |
| Main Bed | King-size bed with comfortable, high quality memory foam mattress. |
| Bunk Bed | Fixed twin bunks with separate lounge. |
| Kitchen | 2 burner induction cooktop and sink with hot/cold water tap. |
| Ensuite / Bathroom Facilities | Combined shower and cassette toilet. |
| Dinette & Seating | Separate large lounge and dinette located opposite bunk beds. |
| Fridge/Freezer | 49L Internal Fridge/Freezer |
| Flooring | Durable vinyl in a modern design. |
| Lighting | 12V LED reading lamps and 12v ceiling LEDs. |
| Storage | Under-bed and overhead storage compartments. |
| Entertainment & Technology | |
| Television | 24″ Smart TV. |
| Television Aerial | 12V Power-boosted aerial. |
| Stereo/DVD Player | Touchscreen entertainment unit & speaker system. |
| Item | Description |
|---|---|
| Awning Upgrades | Extensions and annexes available. |
| BBQ Arm | Powder-coated galvanised steel arm with chequer plate tray and universal drawbar mount. |
| Diesel Heater | 2kw diesel heater and fuel tank. Compact, fuel-efficient heating solution for off-grid comfort. |
| Exterior Table | Fold down exterior side mounted table. |
| Gas Bottle Holders | Upgrade to dual 8.5kg gas bottle holders on the A-frame. |
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
