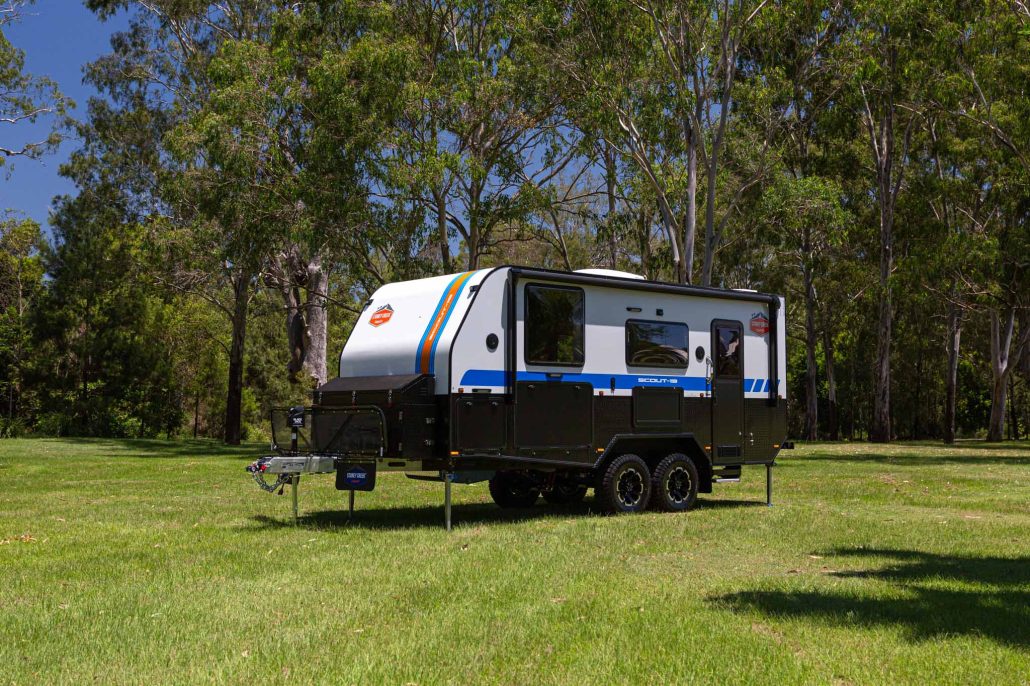

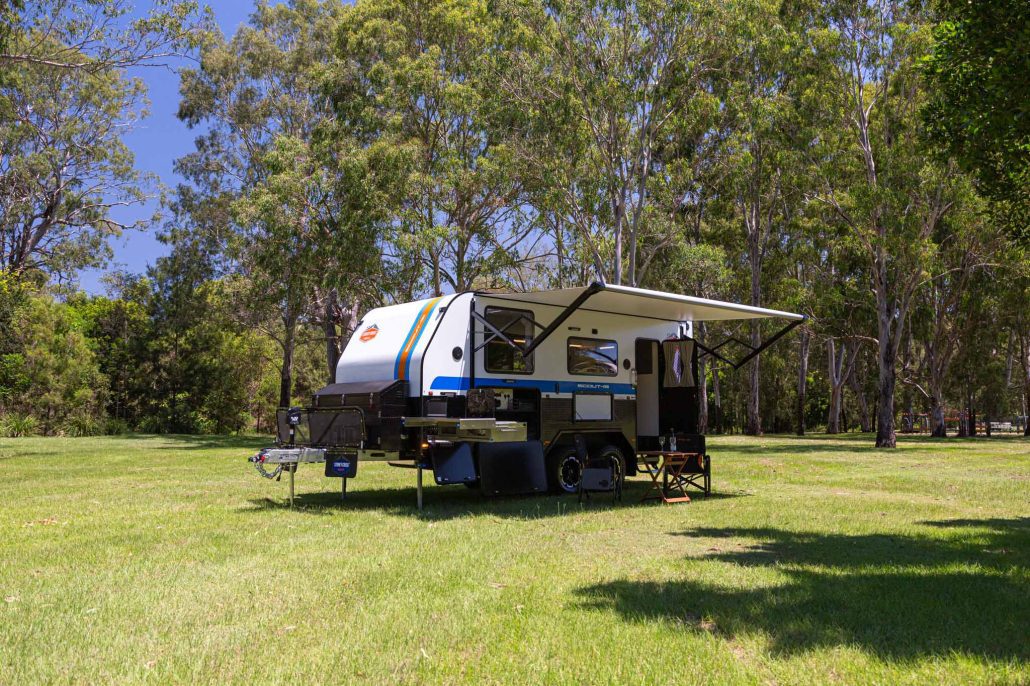

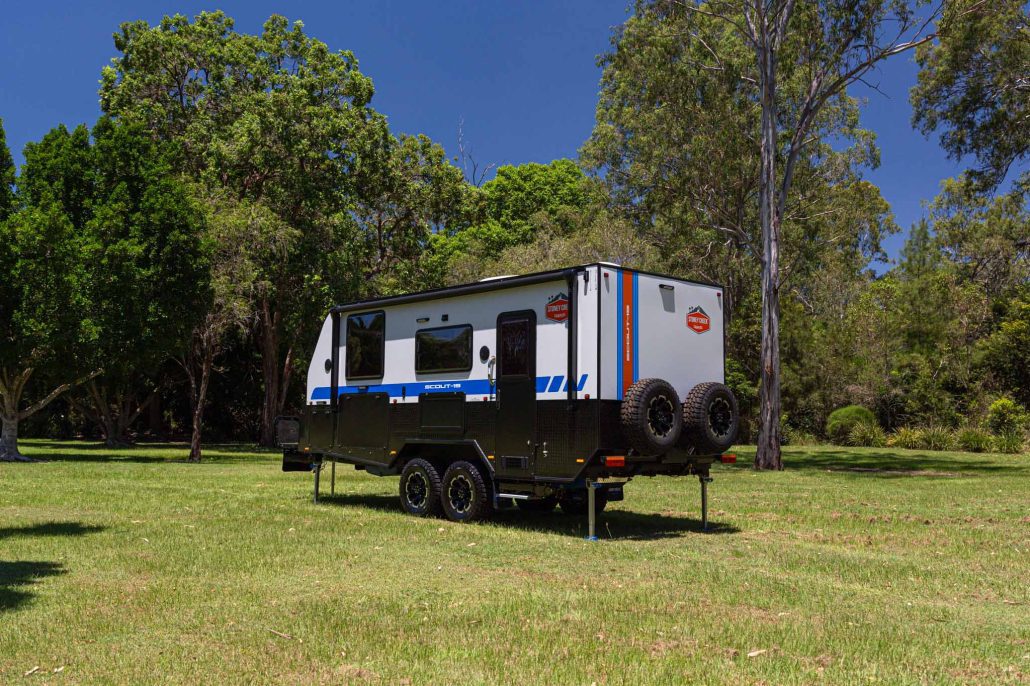

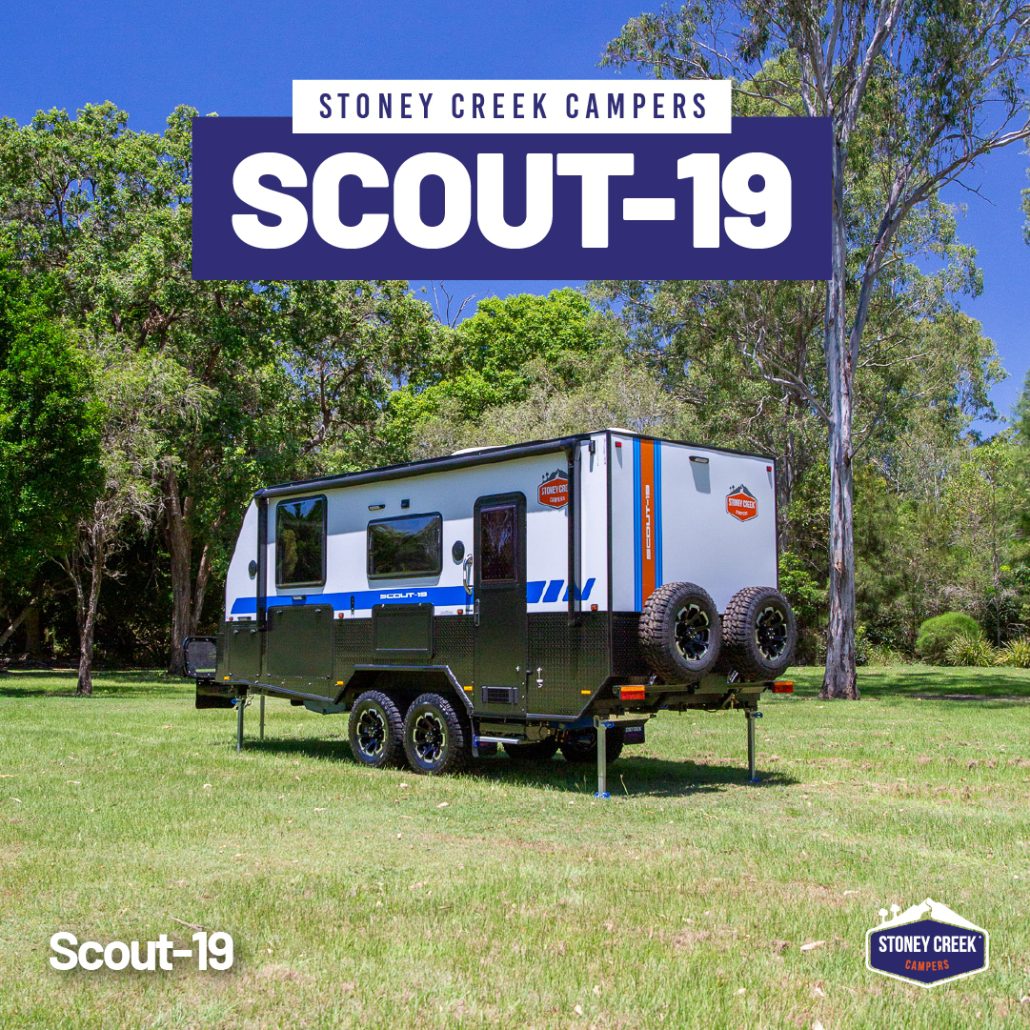

Scout-19 Off-Road Caravan

Travel in Style. Live in Comfort. Our Most Luxurious Model Yet.

If you love camping and the travel lifestyle but don’t want to leave the luxuries of a solid roof, a large bed or a shower and toilet at home, look no further than the newest model in the Stoney Creek Campers range – the Scout-19 Off-Road Caravan.

Powered by the latest battery storage and solar setup and constructed with a tough welded aluminium box section frame, this caravan is perfect for the luxury travel experience, on and off-road. Adjust your Scout 19’s suspension to match your load and road conditions, ensuring optimal stability and comfort on every journey.

The Scout-19 not only looks great but is designed to take on the most challenging tracks our amazing country has to offer. Fulfil that spirit of adventure in comfort and style.

Check out the key features the Scout-19 has to offer

1
2
3
4
5
6
7
1

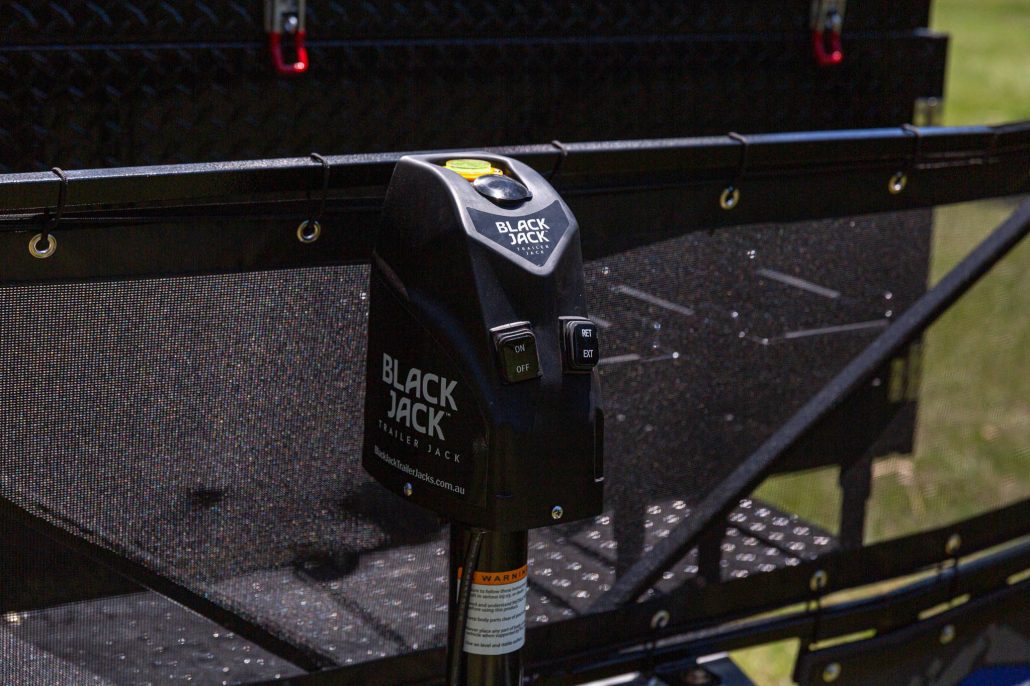

Black Jack electric Jack

2

Slide out kitchen & prep area

3

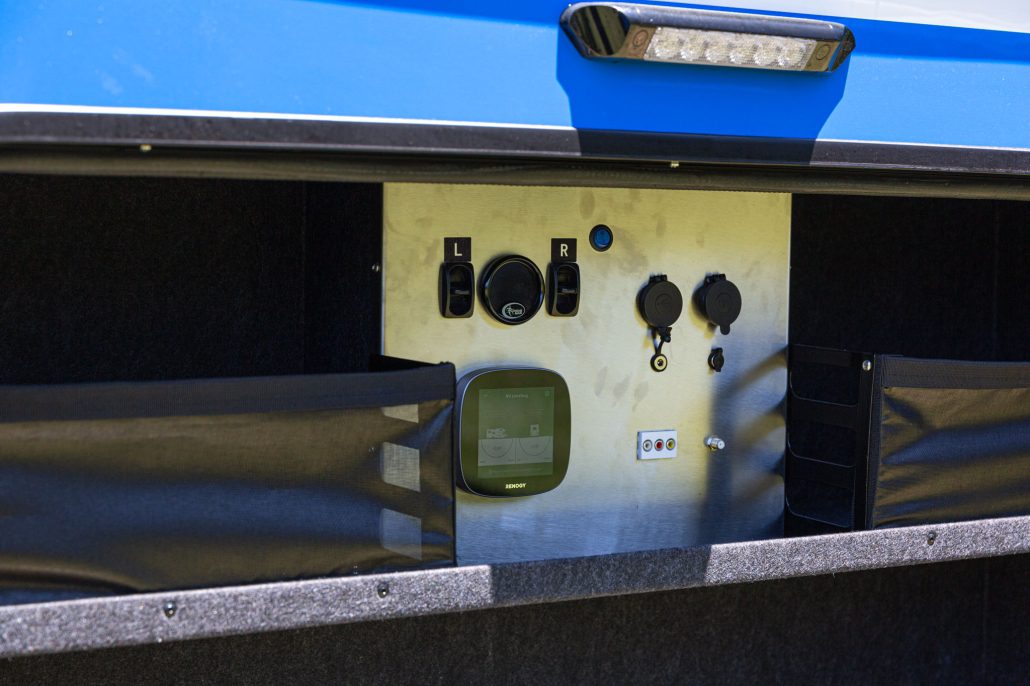

Pantry & airbag control access

4

Electric awning

5

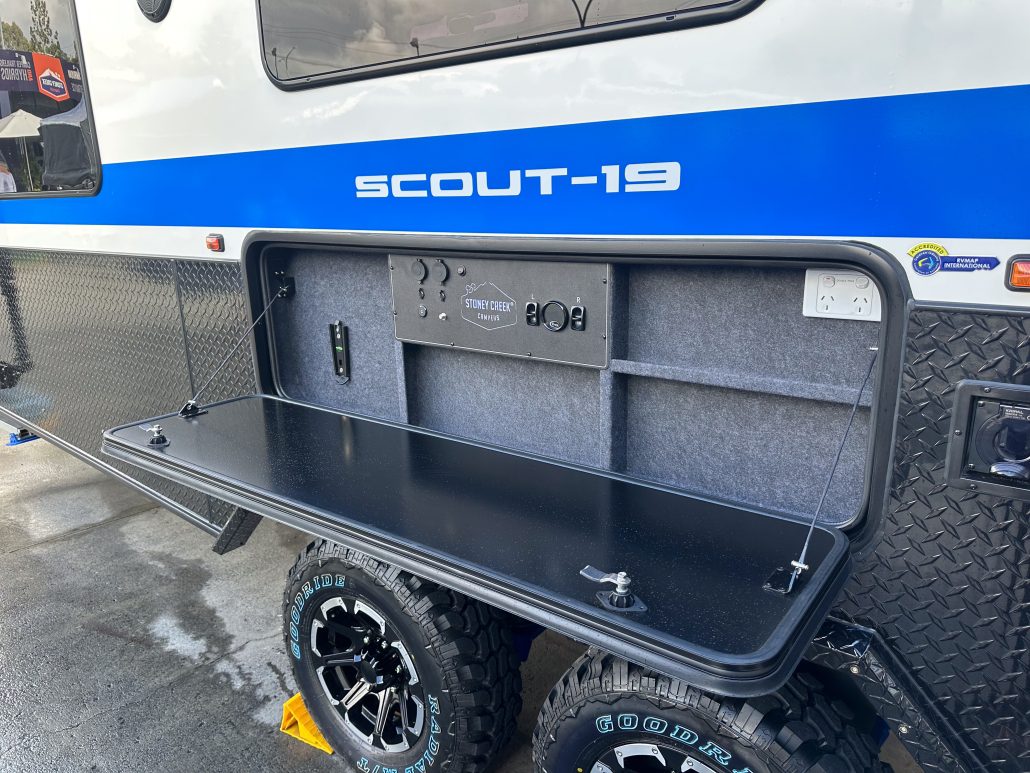

Fold out table

6

Airbag Man airbag suspension

7

Dual axle/mud terrain tyres/12 inch electric brakes

1
2
3
4
5
6
7
8
9
1

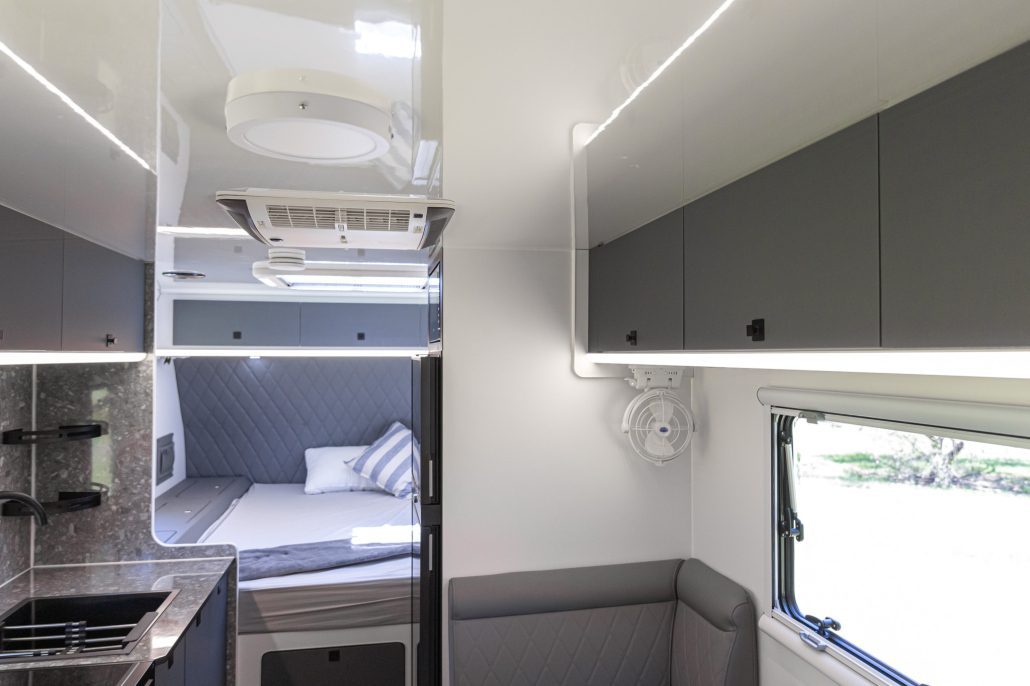

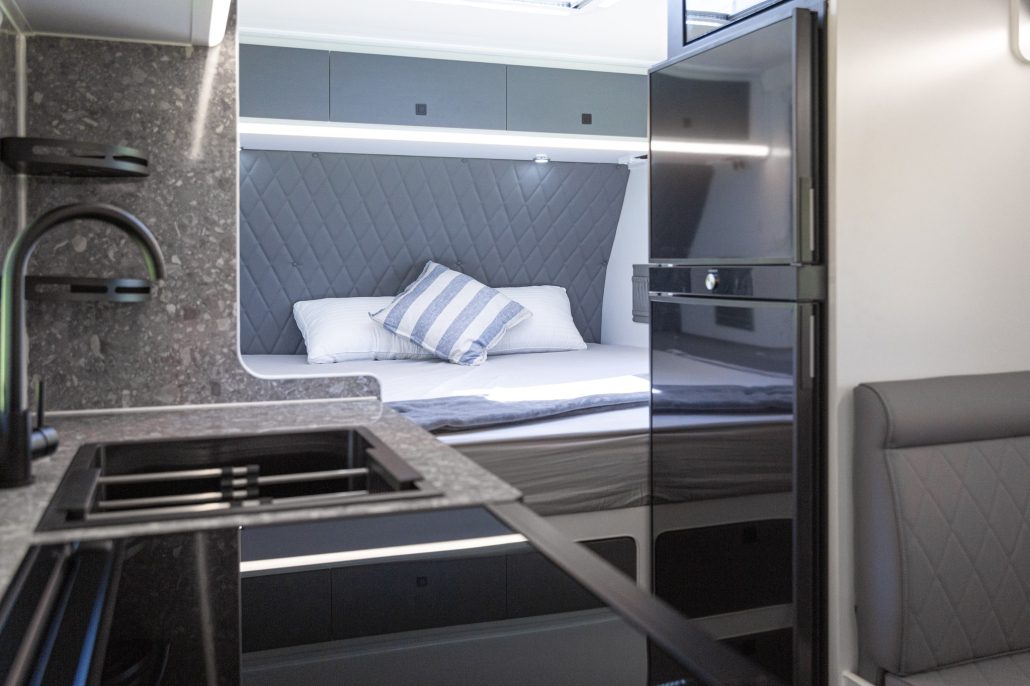

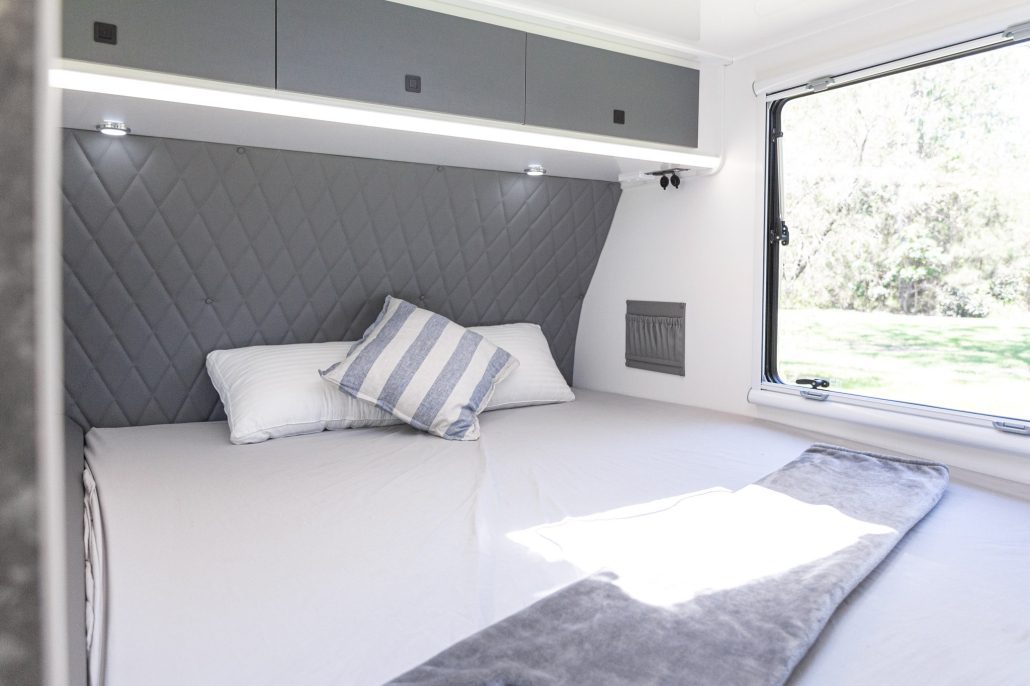

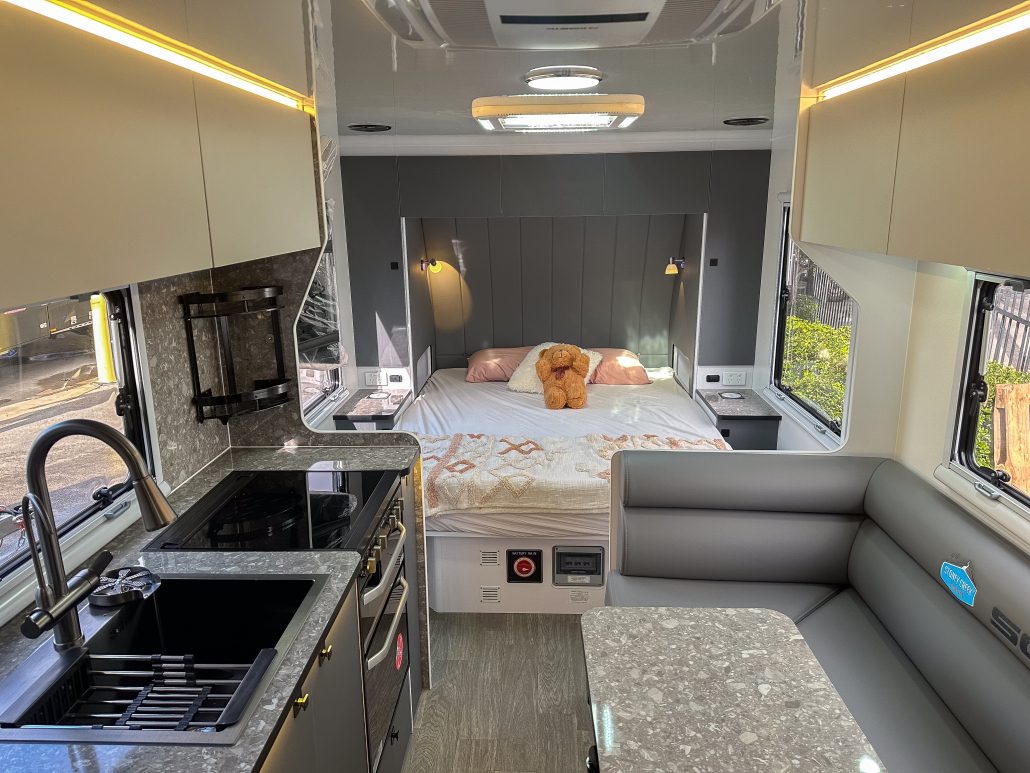

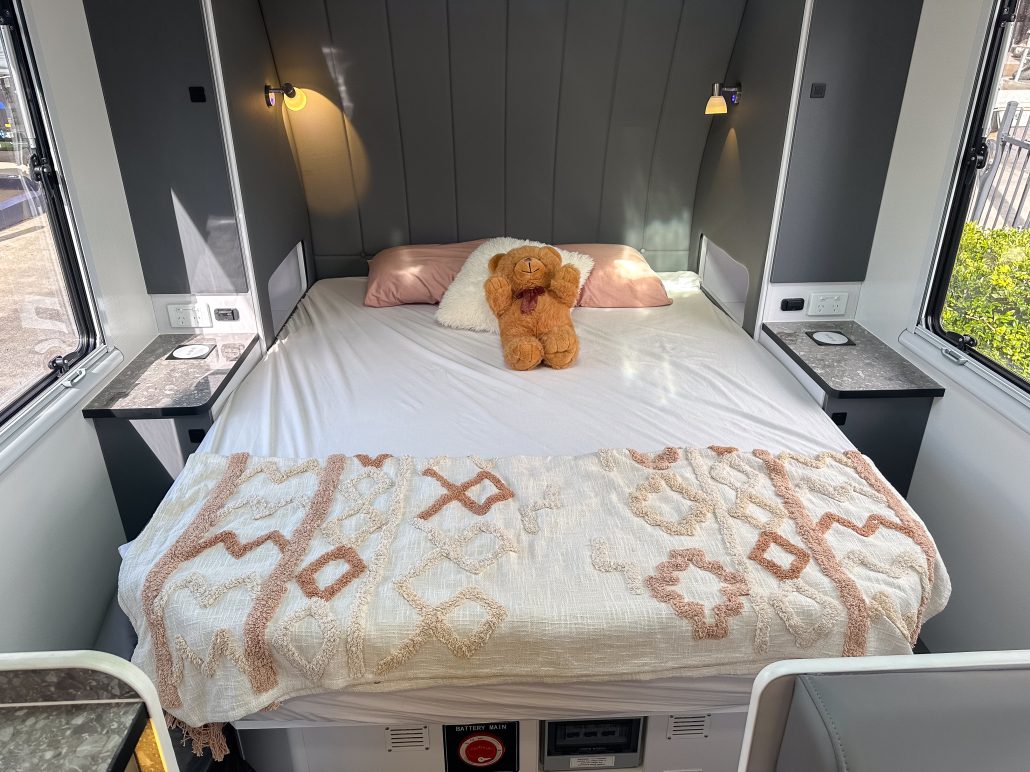

King style bed

2

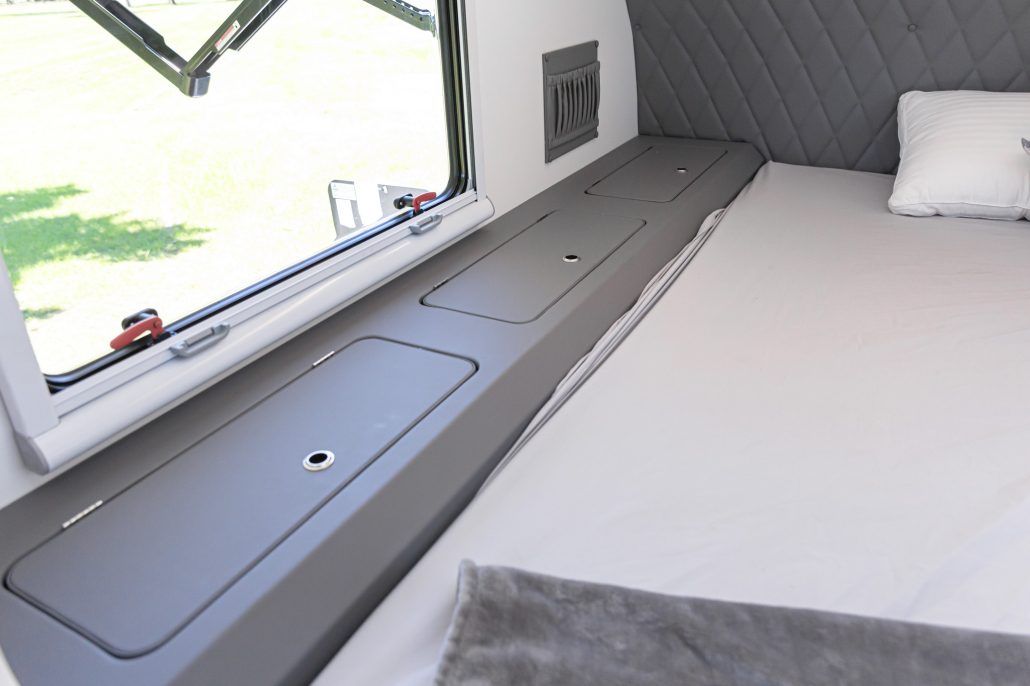

Bedside and above-bed storage

3

Large bed-side windows for natural light and airflow

4

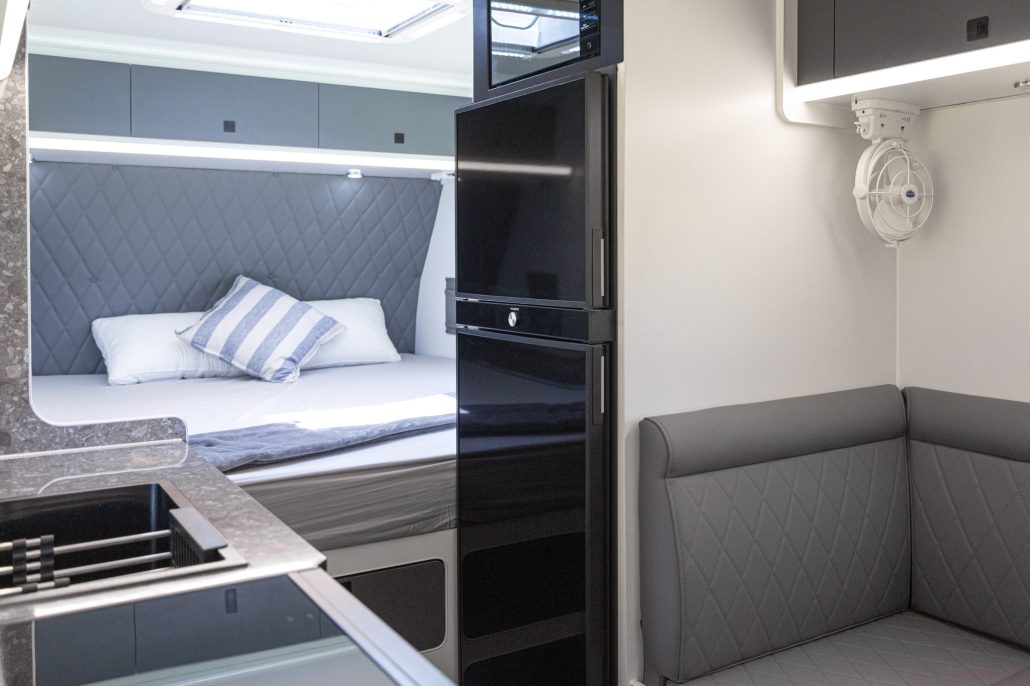

Upright compressor fridge & freezer

5

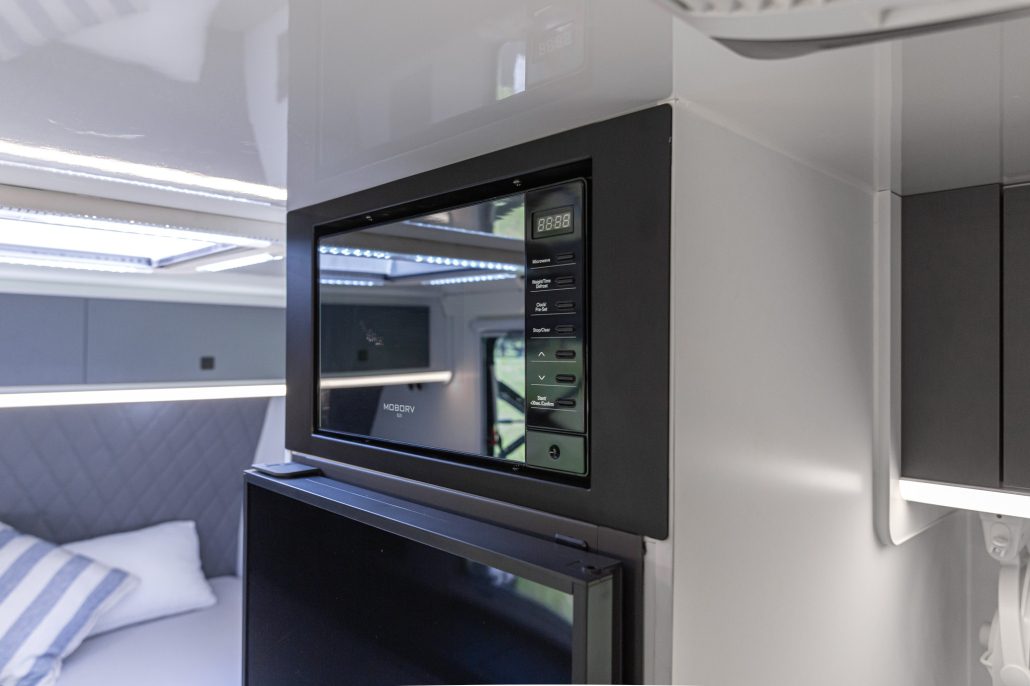

Microwave

6

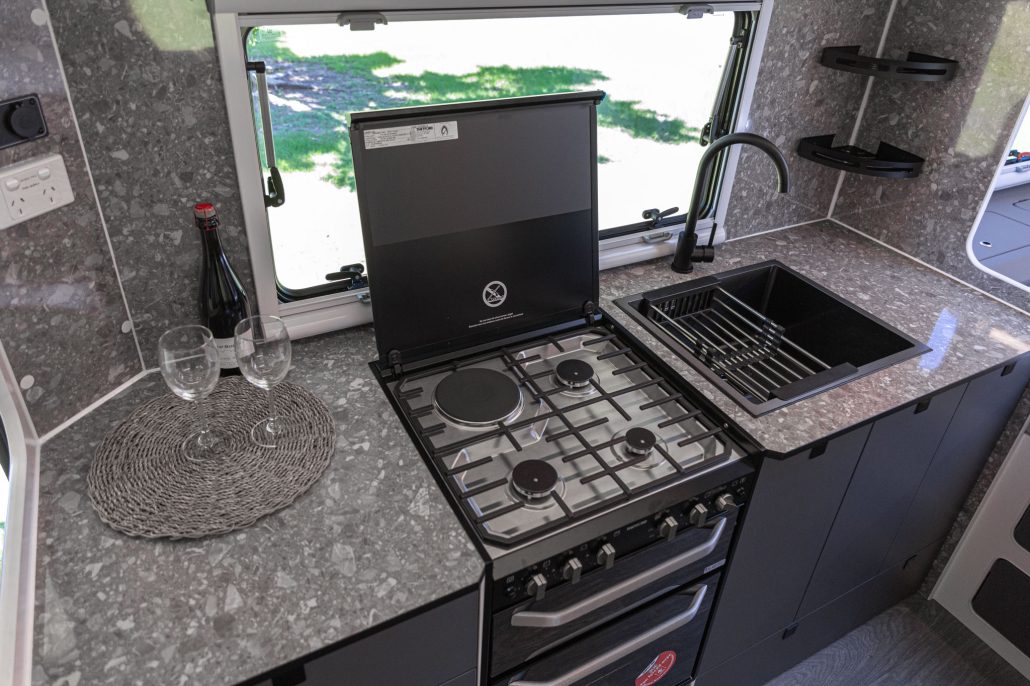

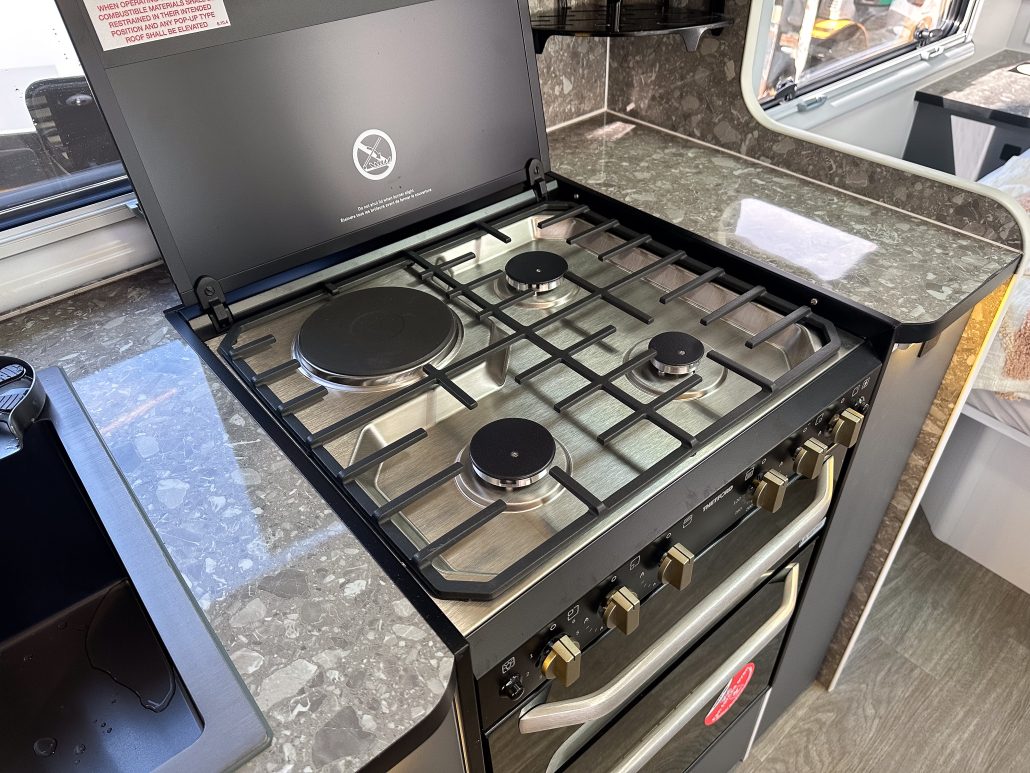

Thetford grill, oven & stove top with rangehood

7

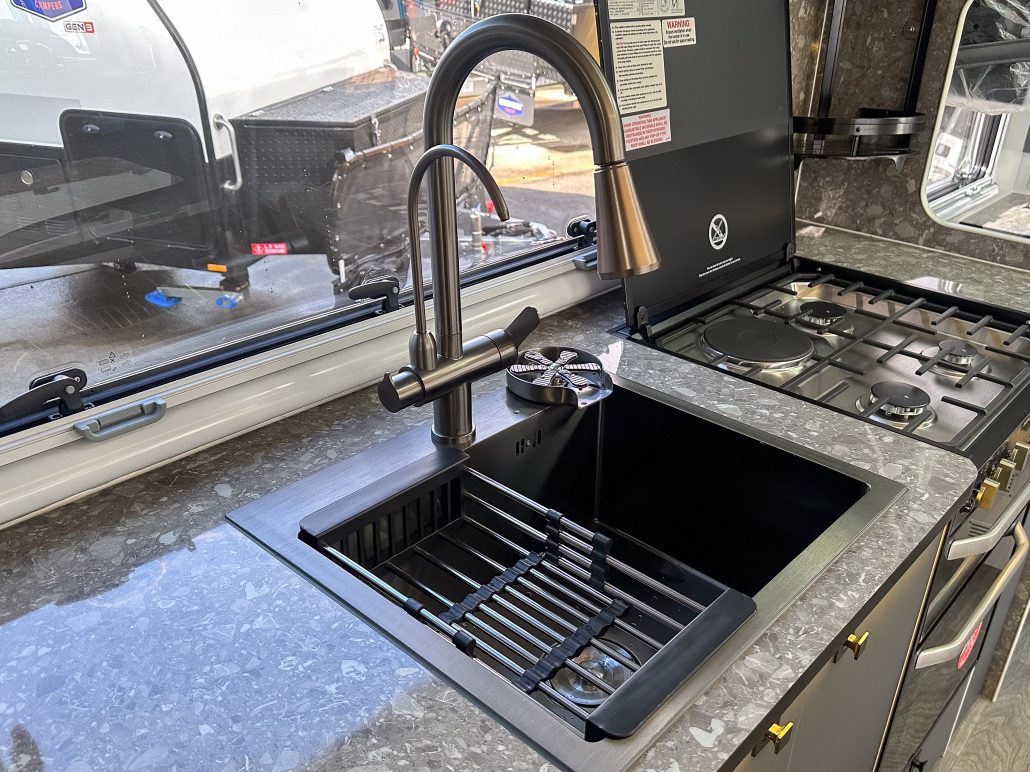

Sink with hot/cold water

8

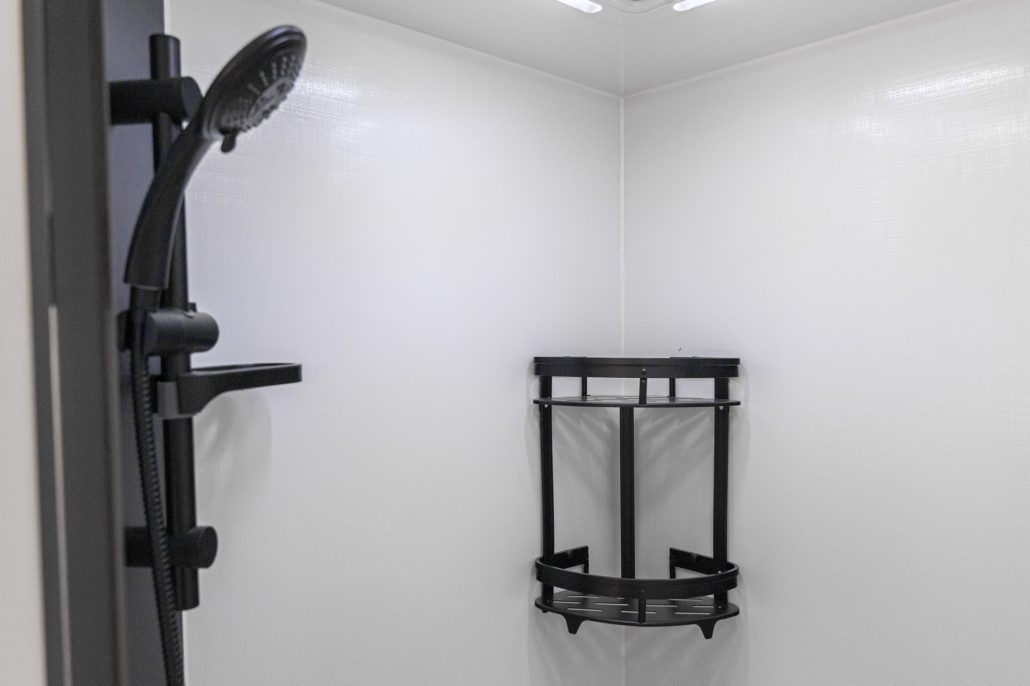

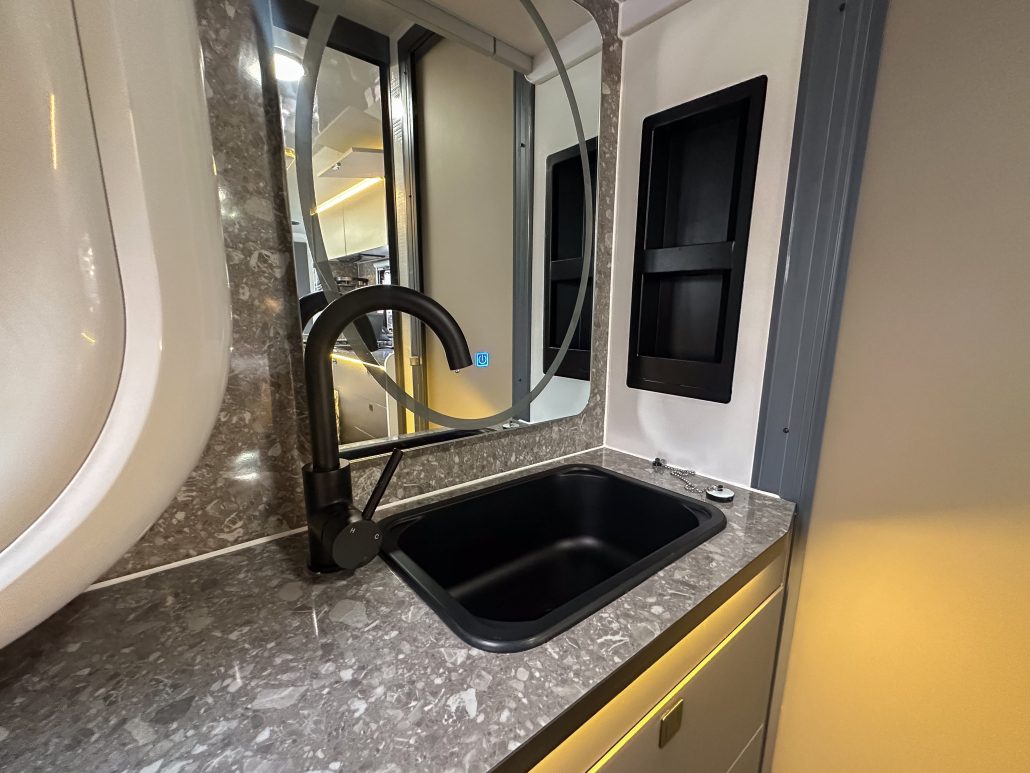

Ensuite with separate toilet & shower. Plenty of storage.

9

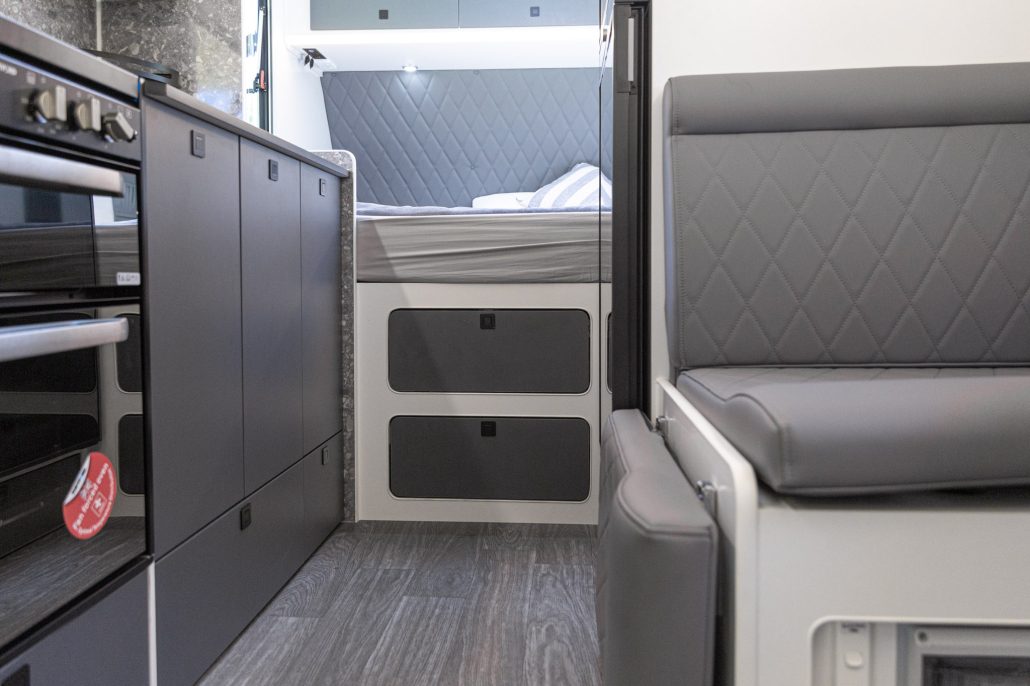

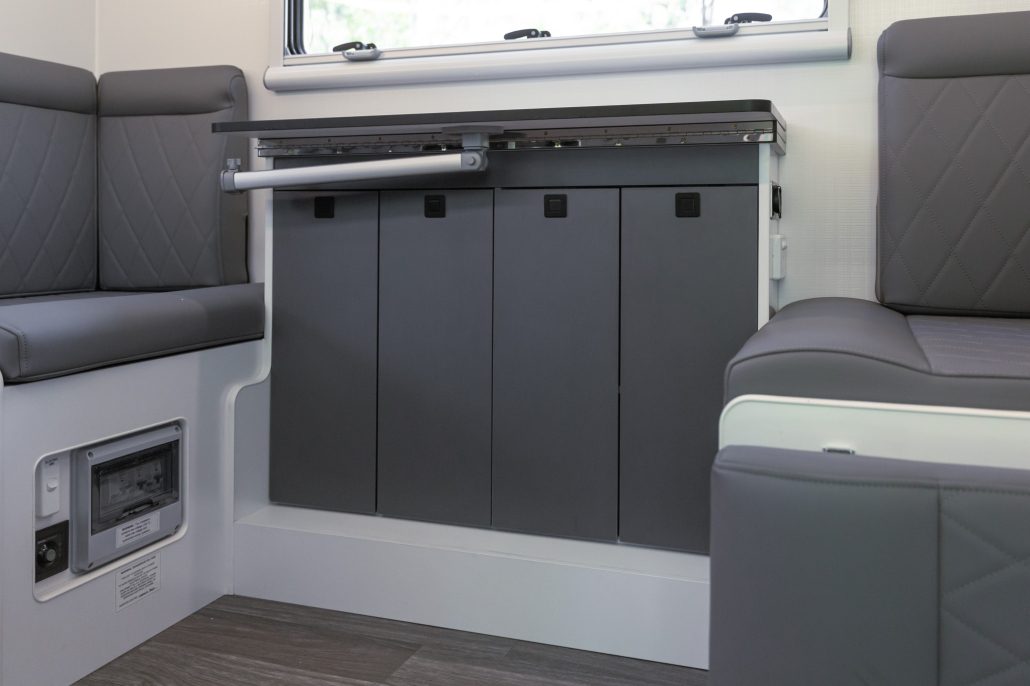

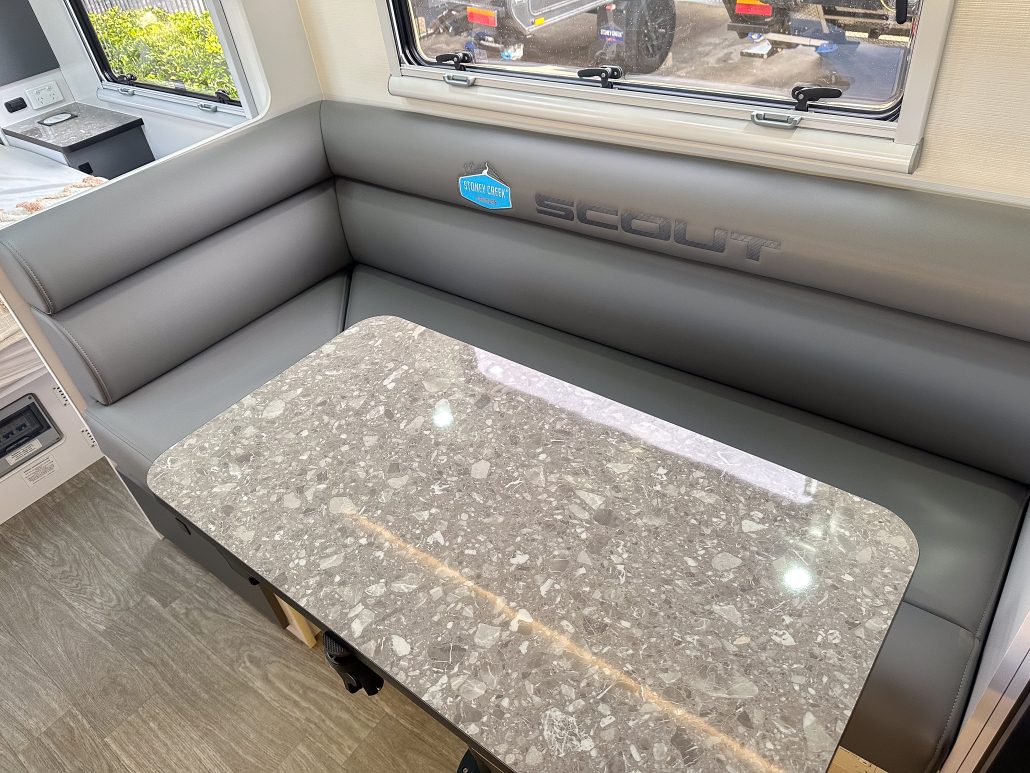

Interior dinette.

Technical Specifications & Optional Extras

Item Description
Overall Length (mm) 7780
Body Length (mm) 5800
Travel Height (mm) 3000
External Width (mm) 2270
Tare Weight (kg) 2900
ATM Weight (kg) 3500
Ball Weight @ tare (approx) (kg) 260
Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative.
Toolbox (mm) 1530 x 430 x 880
Item Description
Frame Hot-dipped galvanised frame to protect against corrosion with 6″ x 2″ main members.
External Skin Aluminium box channel, smooth skin, and hail & dent-resistant external frame.
Doors & Hinges High quality metal hinges (not plastic) bolted to the frame (not screwed). Adjustable latches on all external doors allow for easy adjustment.
Suspension Fixings High tensile fixings.

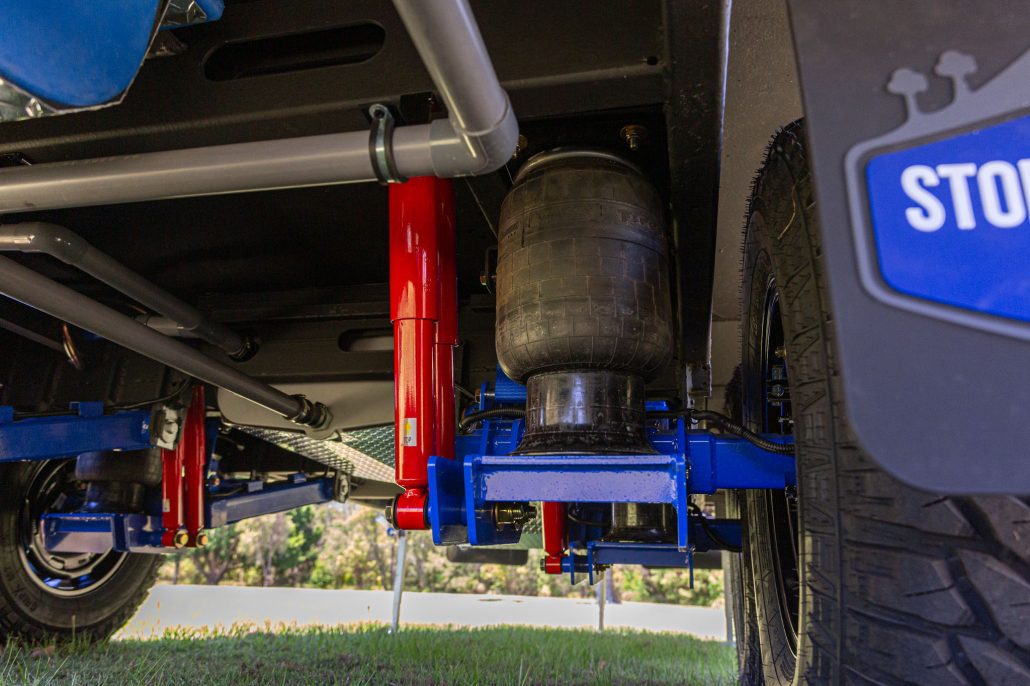

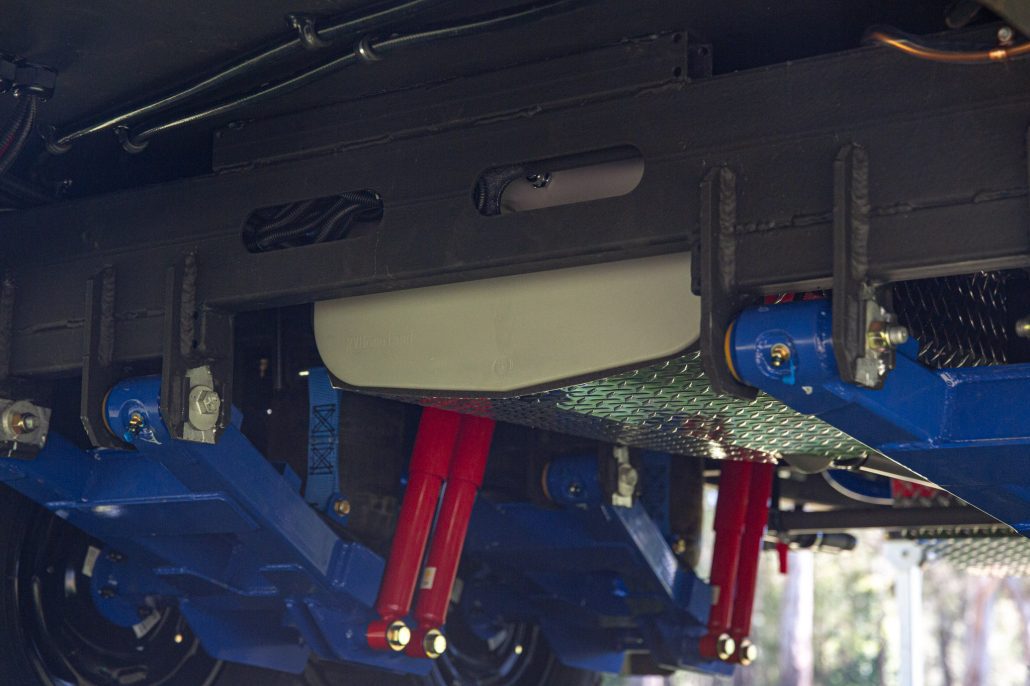

Suspension 3500kg Tandem Axle with independent trailing arm suspension with dual shock absorbers and Airbag Man airbags.
Chains 2 x ADR compliant safety chains with ‘D’ shackles.
Stone Guard Front stone guard for protection in-line with front toolbox unit to protect van and tow vehicle against rock damage and ricocheting stones.

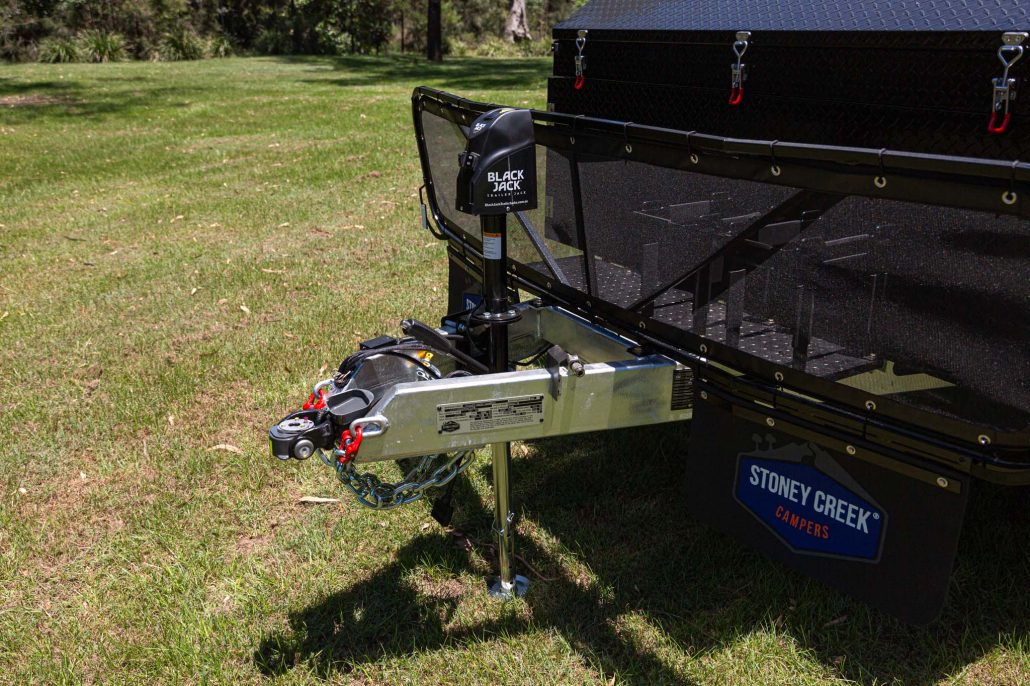

Jockey Wheel Black Jack Electric Jockey Stand.

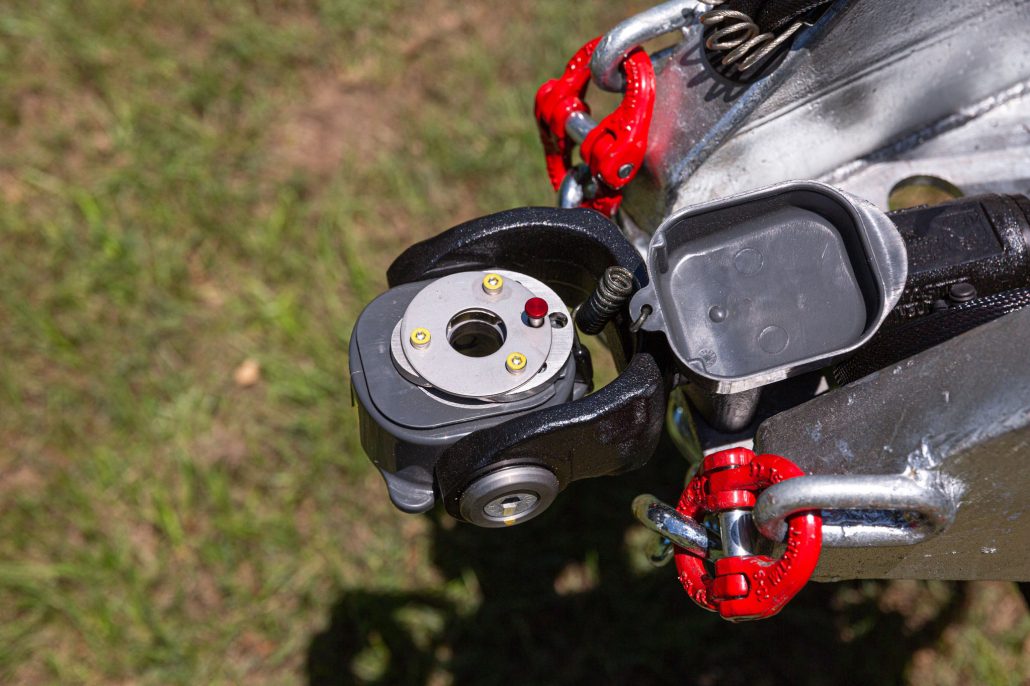

Coupling Cruisemaster DO35 All-Terrain Coupling.
Trailer Plug Connection Included 7-pin as standard (or alternative to suit vehicle).
Trailer Power Connection Included Anderson plug.
Brakes 12″ heavy-duty electric brakes with breakaway safety system and handbrake.

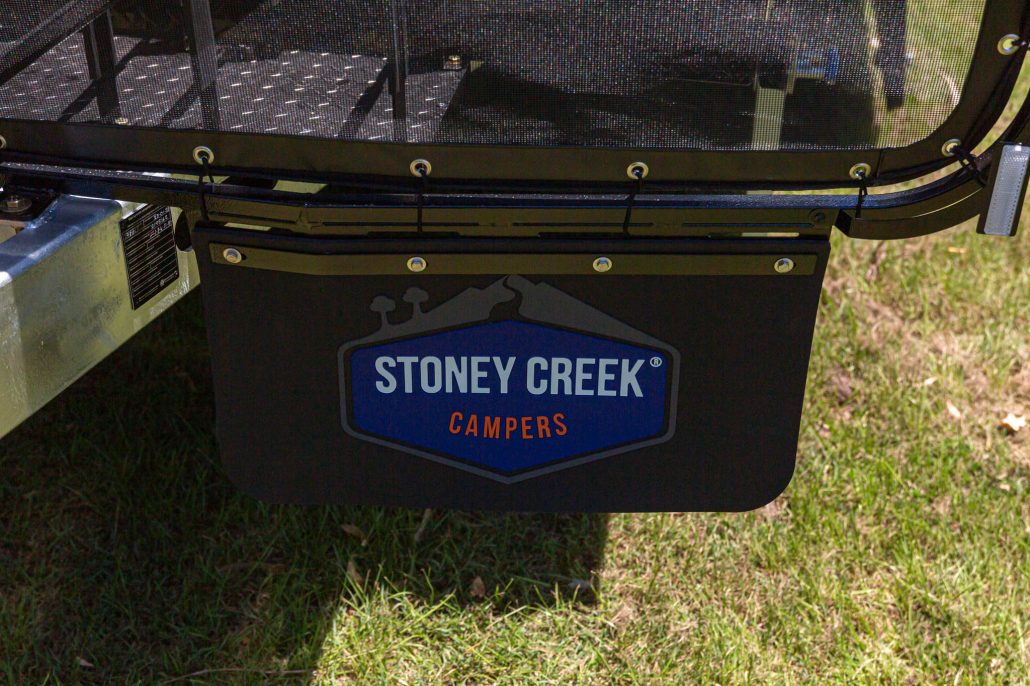

Mud Flaps Heavy duty, durable mud flaps.

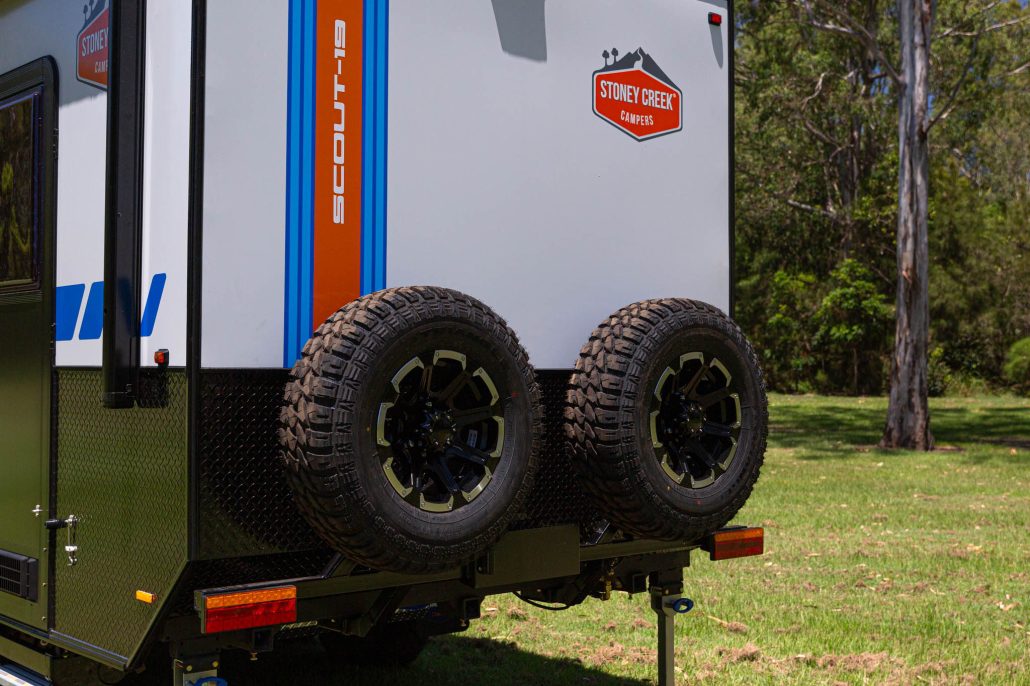

Wheel Rims 16″ alloy rims for added strength and reduced weight (incl. two spares).

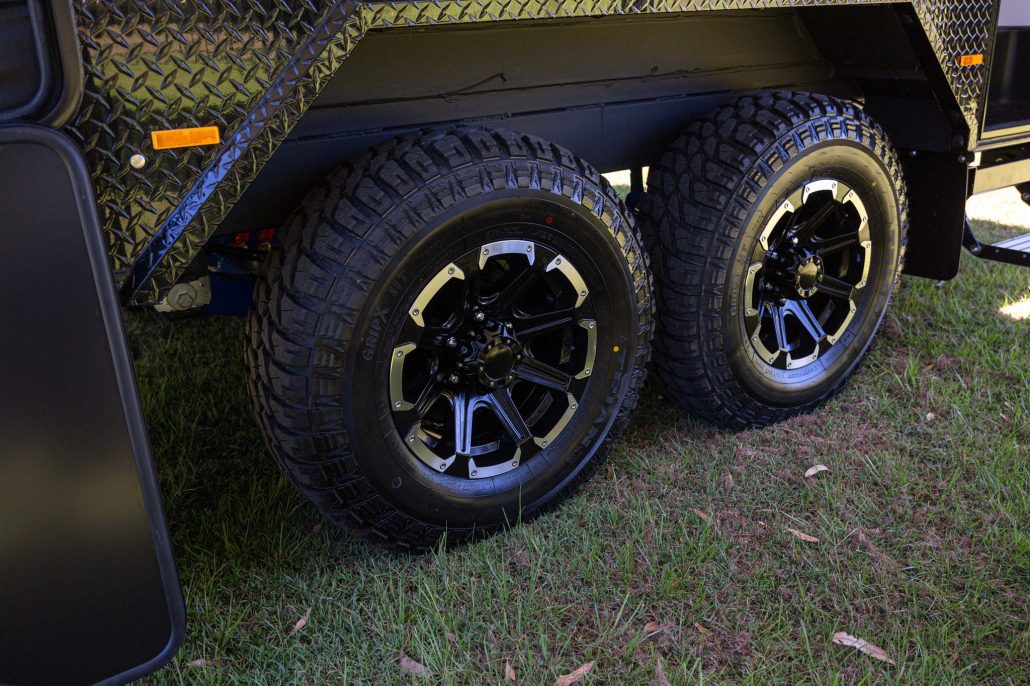

Tyres Mud Terrain 265/75R16 tyres (incl. two spares).
Tyre Pressure Tyre pressure as per Stoney Creek Campers owners manual.
Drop Down / Stabiliser Legs Corner wind-down support legs (for stabilisation only).
Stabilisation Tuson sway control.
Item Description
Toolbox Large A-frame toolbox for gas and generator (2Kva) storage.

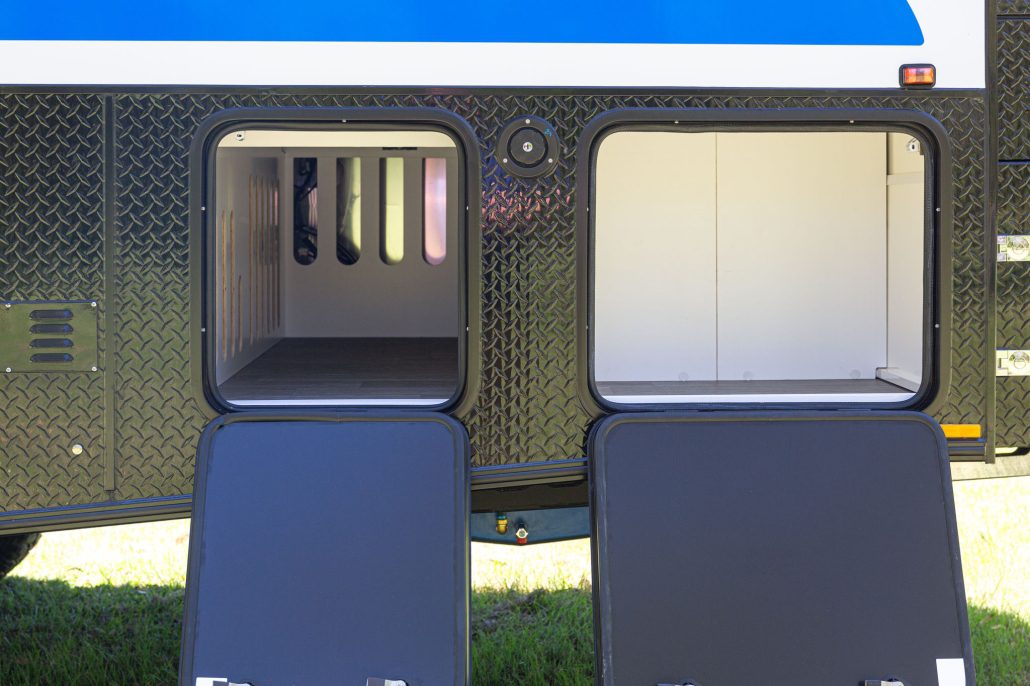

Tunnel Boot Twin offside storage areas
Chequer plate Protective (black).
Power 240V Management and 30 amp charger
DC-DC Charger Intelligent DC-DC Charger.
Inverter 3000w sine wave inverter

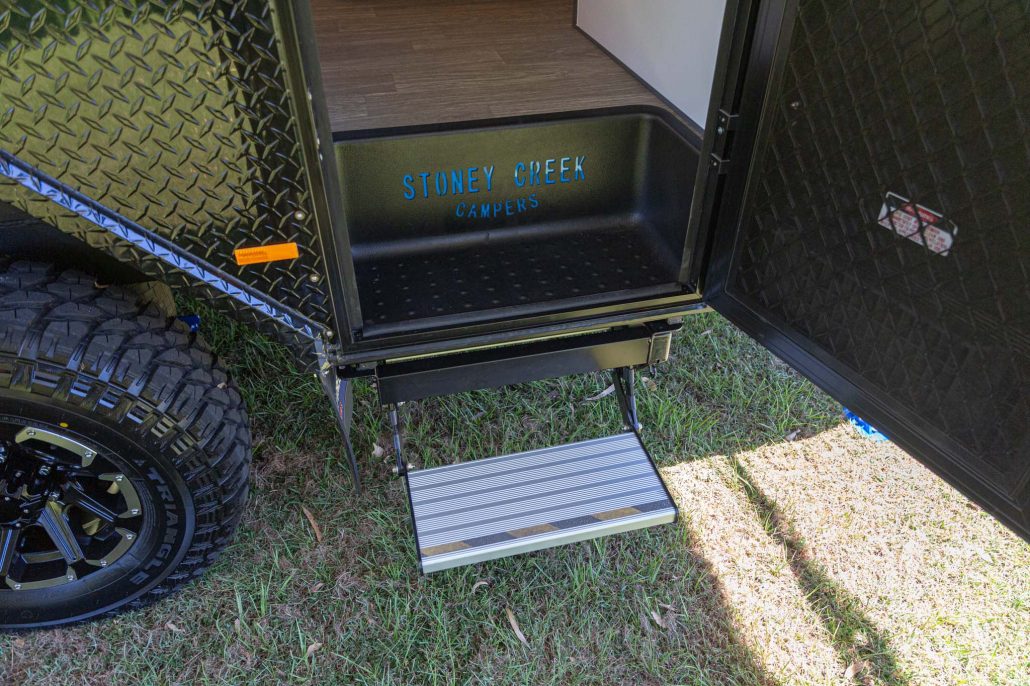

Step Power-operated single entry step.
Water Tank Protection Chequer plate water tank guard.
Battery 3 x 100ah lithium batteries.
Fuses Resettable fuses.

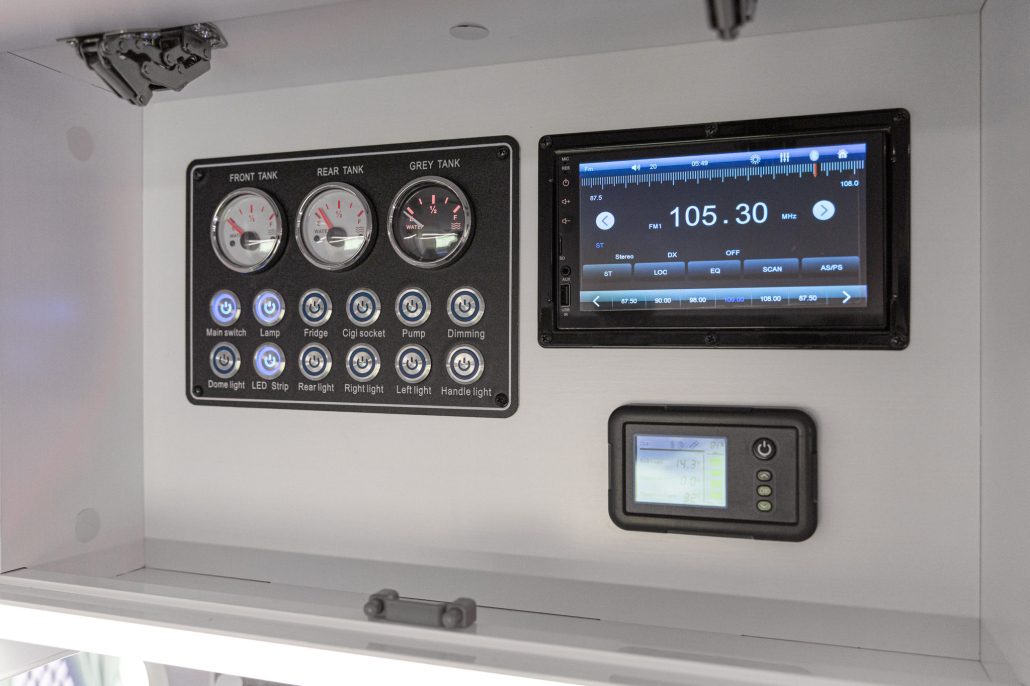

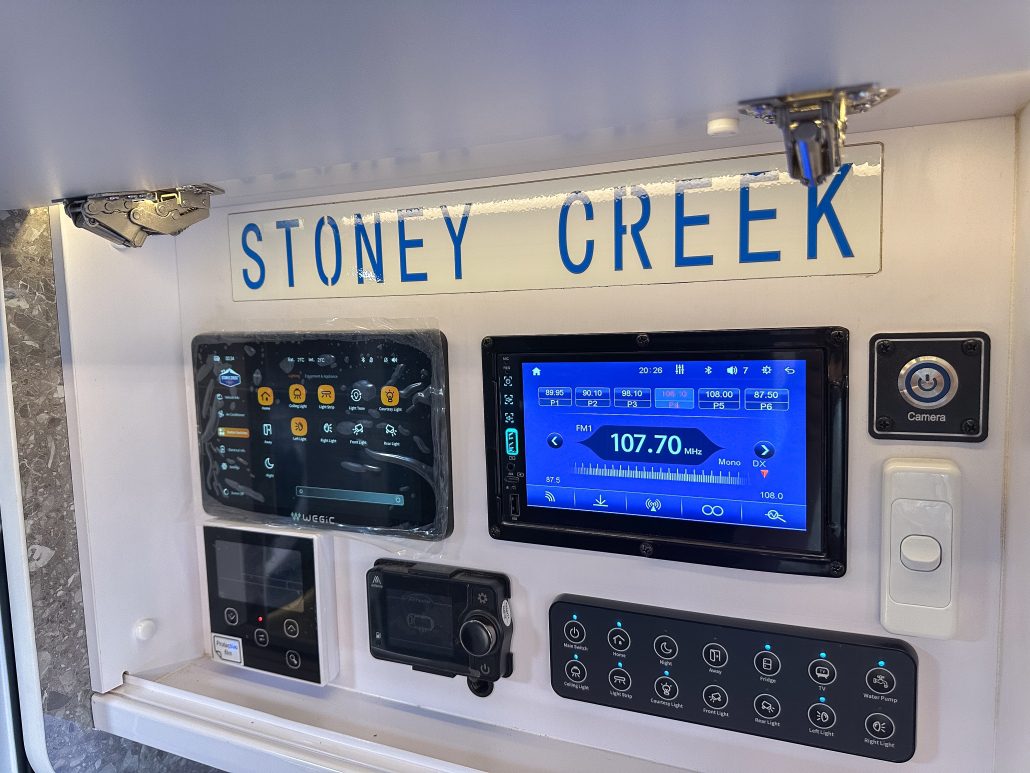

Control Panel All-in-one marine-style control panel with gauges for power and water.

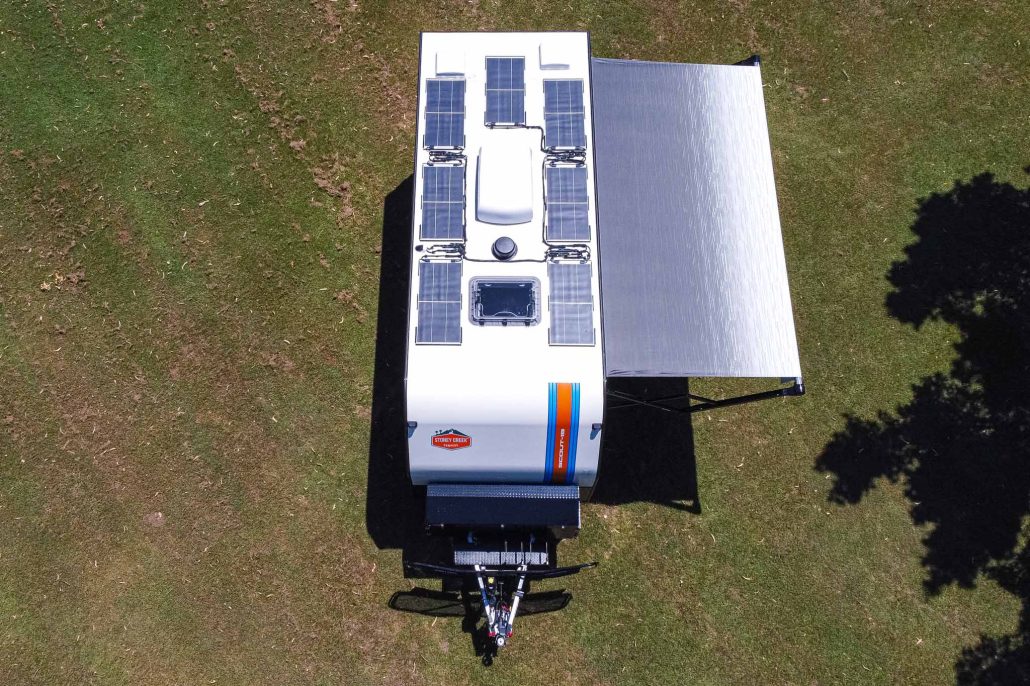

Solar Power System Roof-mounted panel and regulator (700w).

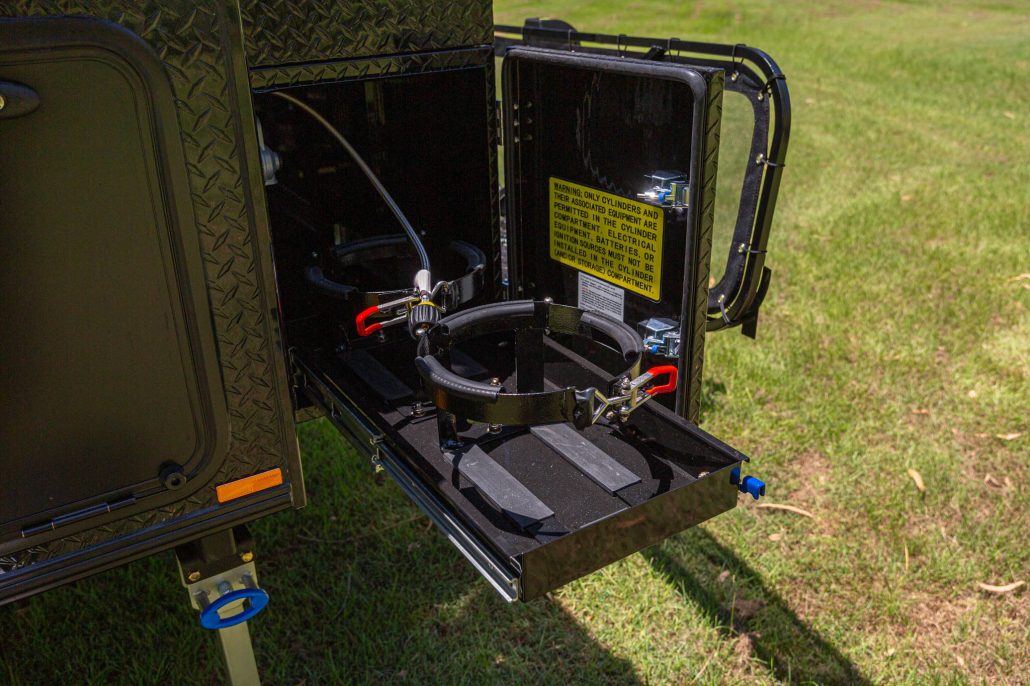

Gas Bottles Dual 3.7kg gas bottles supplied, installed and certified by a qualified gas technician.
Gas Bayonet Exterior kitchen supplied with quick connect / release connection.
Fire Extinguisher 1kg Dry Powder Type Stored Pressure Fire Extinguisher.

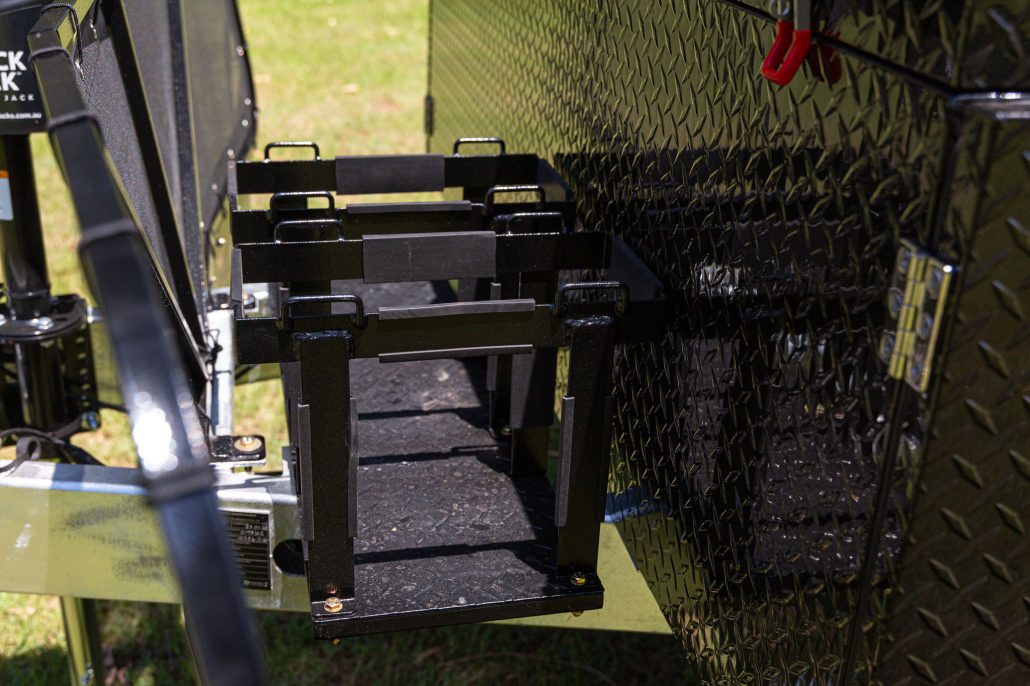

Jerry Can Holders 20L Jerry can holder for additional fuel or water.
Water Pumps 12v pump and external switch.
Water Tank (Fresh) Dual 110-litre poly water tanks.
Water Tank (Grey) 65-litre poly water tank.

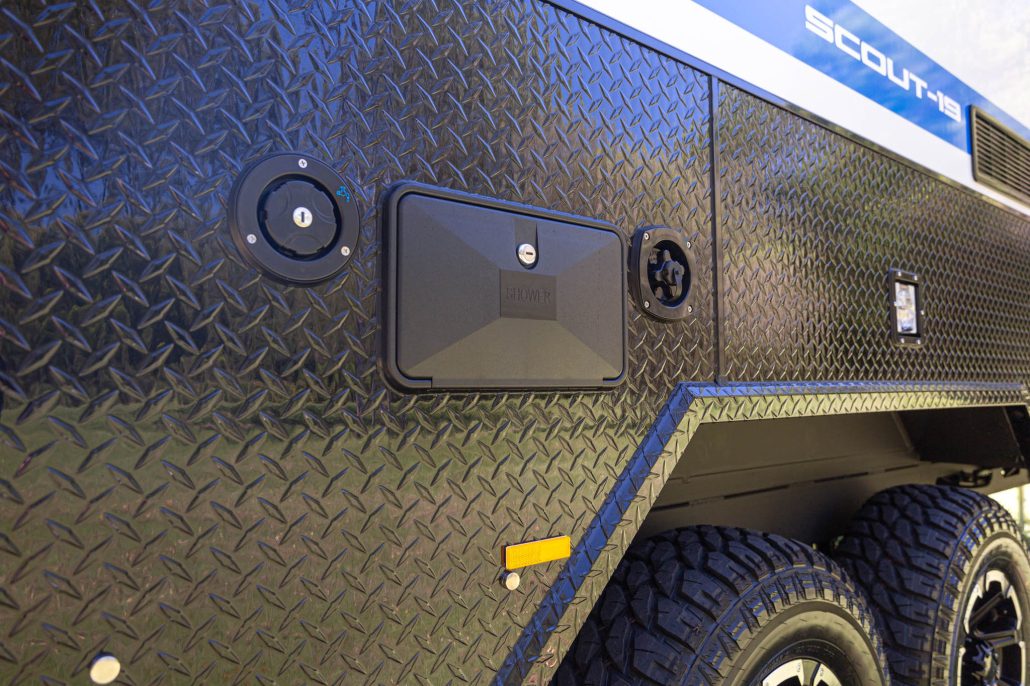

Water Filler Dual secure & lockable water fill points.

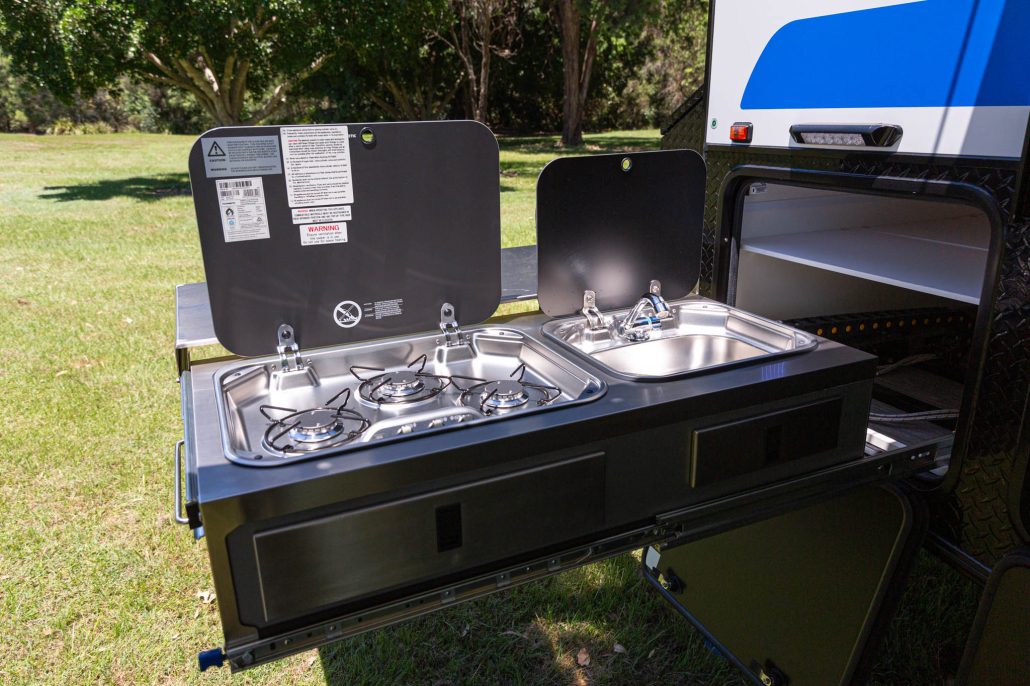

Exterior Kitchen Pull out kitchen with cutlery drawer, utensil drawer, and slide-out bench extension with drop-down support legs.
Exterior Sink Stainless steel basin with hot & cold mixer taps.

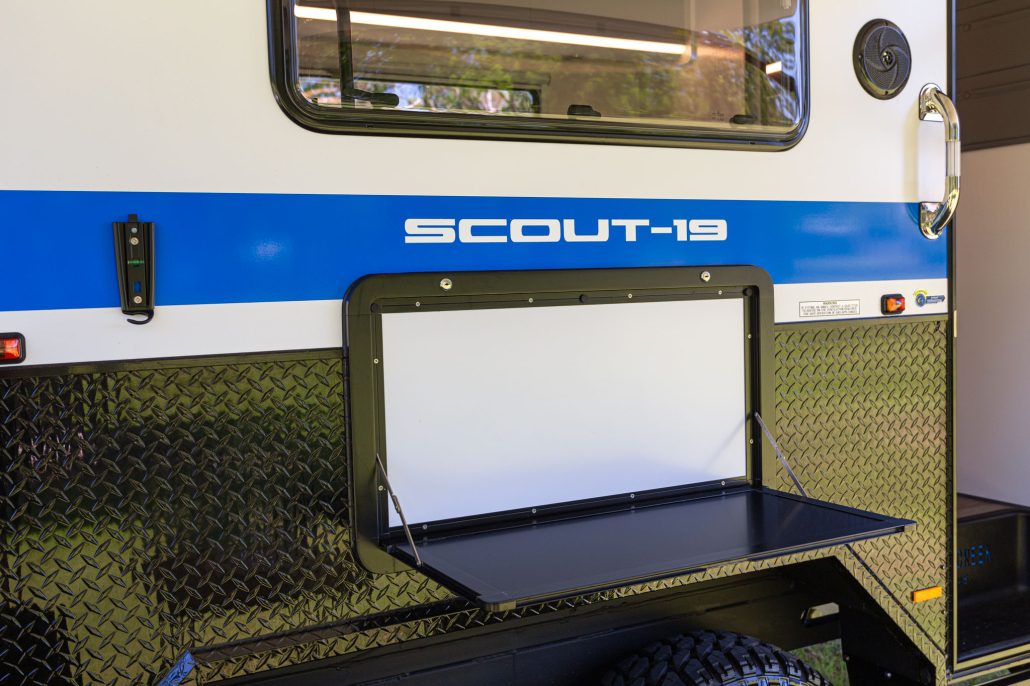

Exterior Table In-built fold-out table.
Exterior Gas Stove Top High quality 3-Burner (with Flame Failure Device) including wind protection (Australian gas compliant).
Exterior Pantry Storage area beside external kitchen.
Exterior Lighting Rear, side and annexe LED lighting.

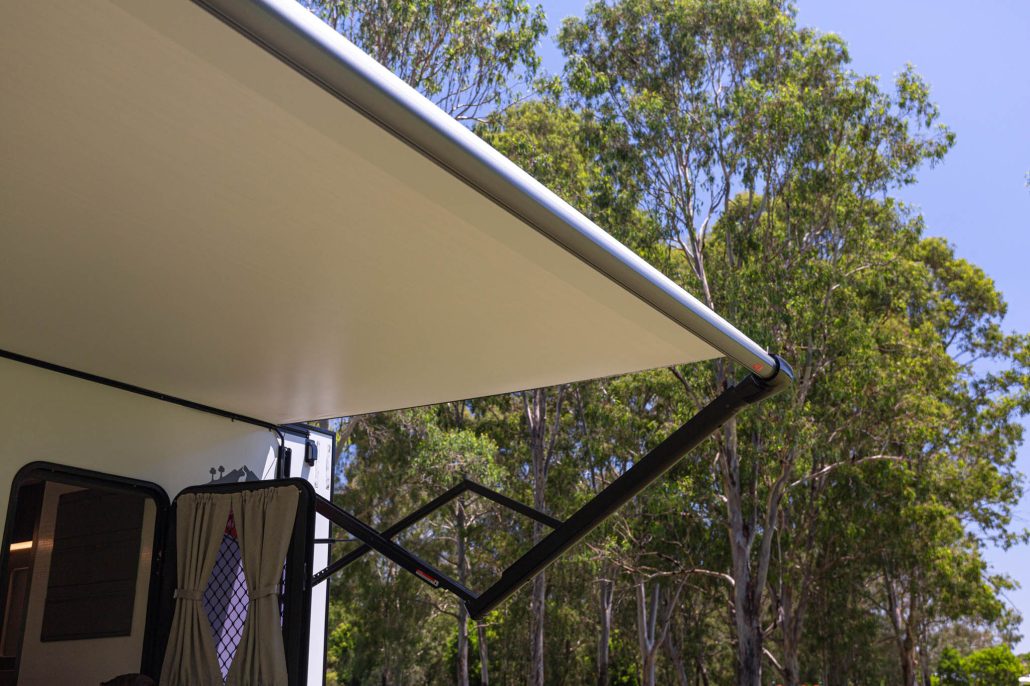

Awning Electric awning for basic set up in moments.
Ventilation Double-glazed windows with internal screens and block-out blinds.

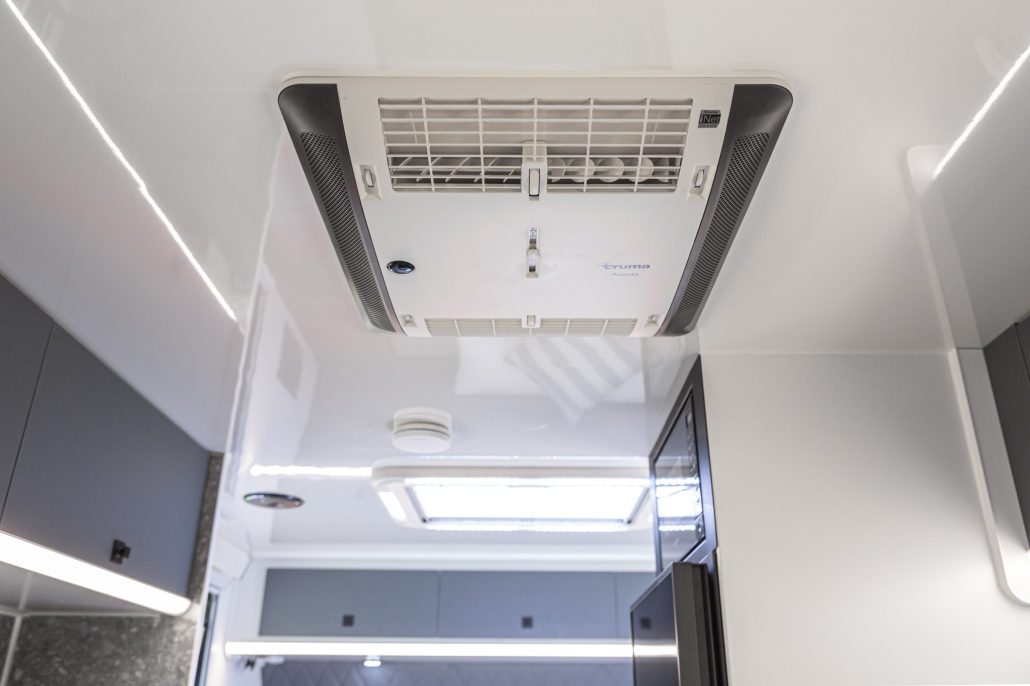

Air Conditioning Roof-mounted reverse-cycle air conditioning system.
Skylight Hatch Overhead skylight with in-built LEDs, fly screen and adjustable.

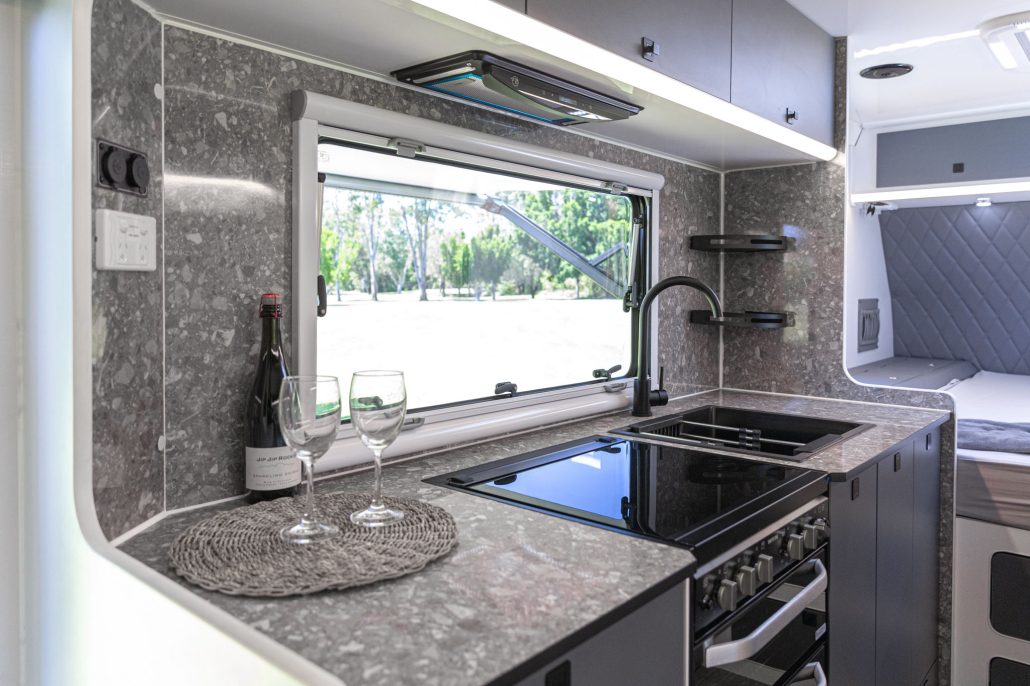

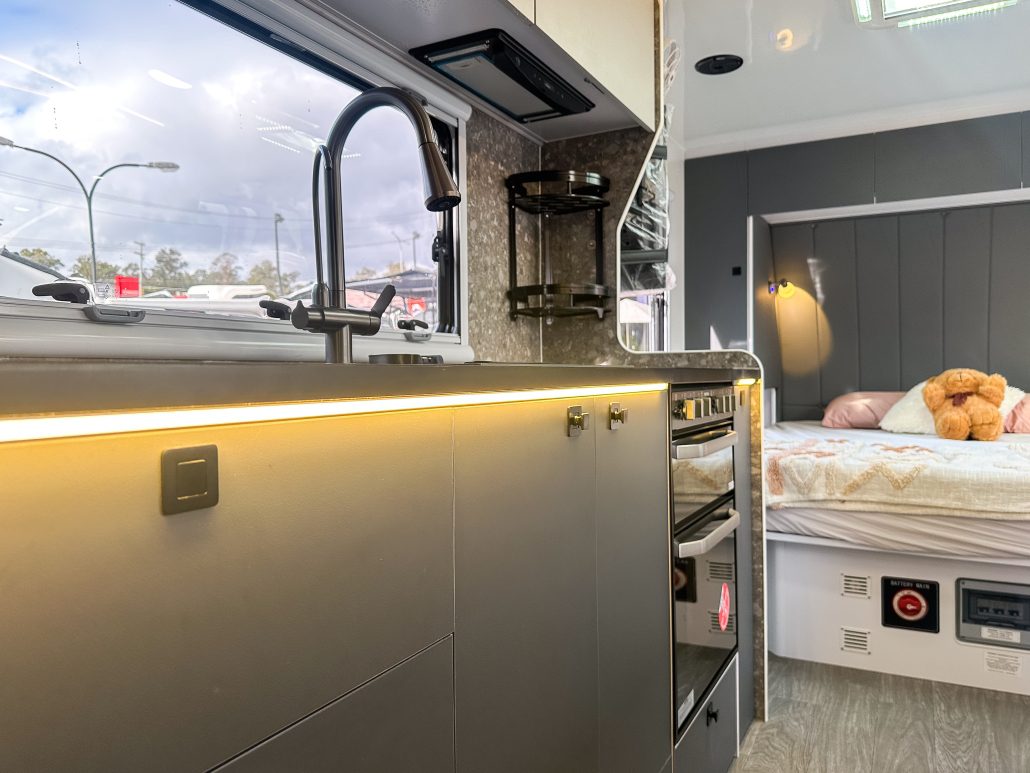

Interior Kitchen Thetford grill, oven and stove top with range hood.
Cooking Microwave
Interior Pantry Cupboard storage system.
Interior Fridge/Freezer Upright compressor fridge (incl. freezer).
Interior Lighting 12V reading lamps and LED strip lighting.
Interior Floor Durable vinyl in a modern design.

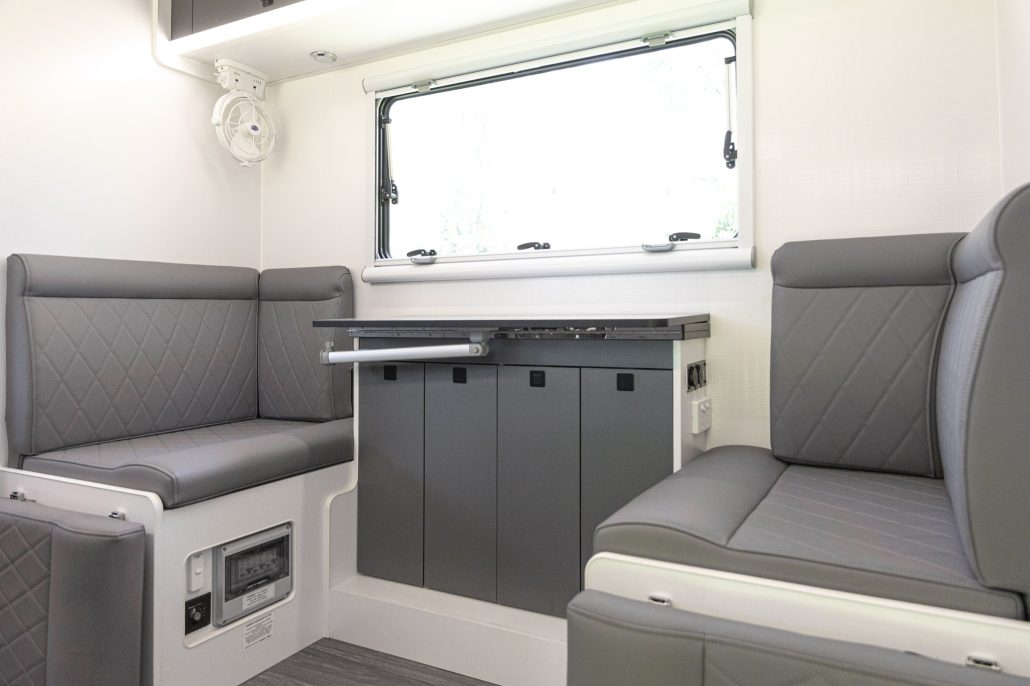

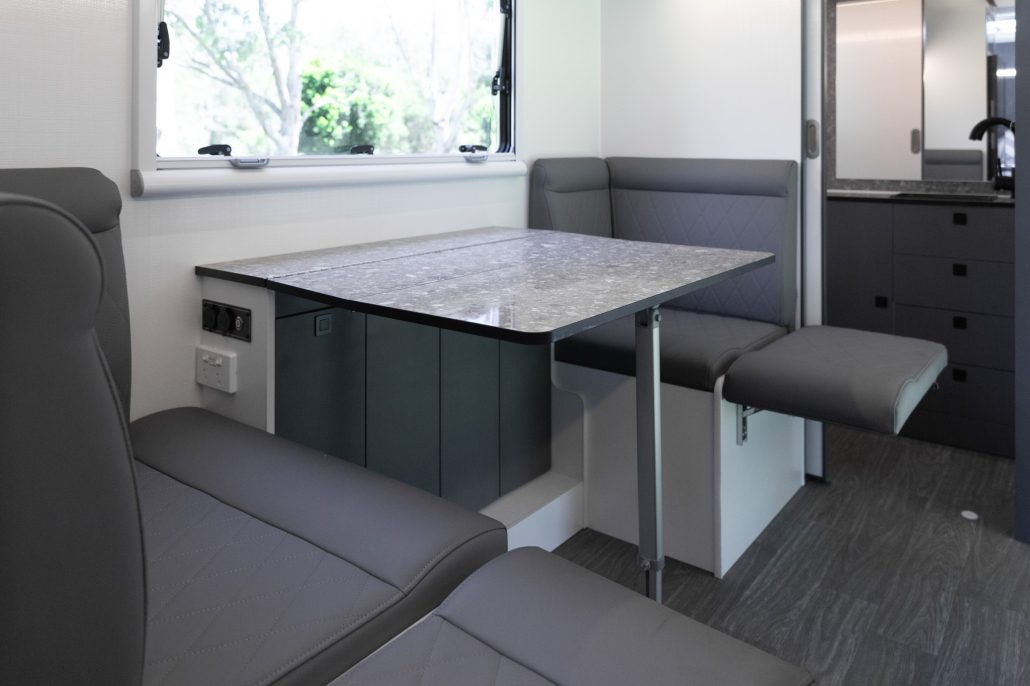

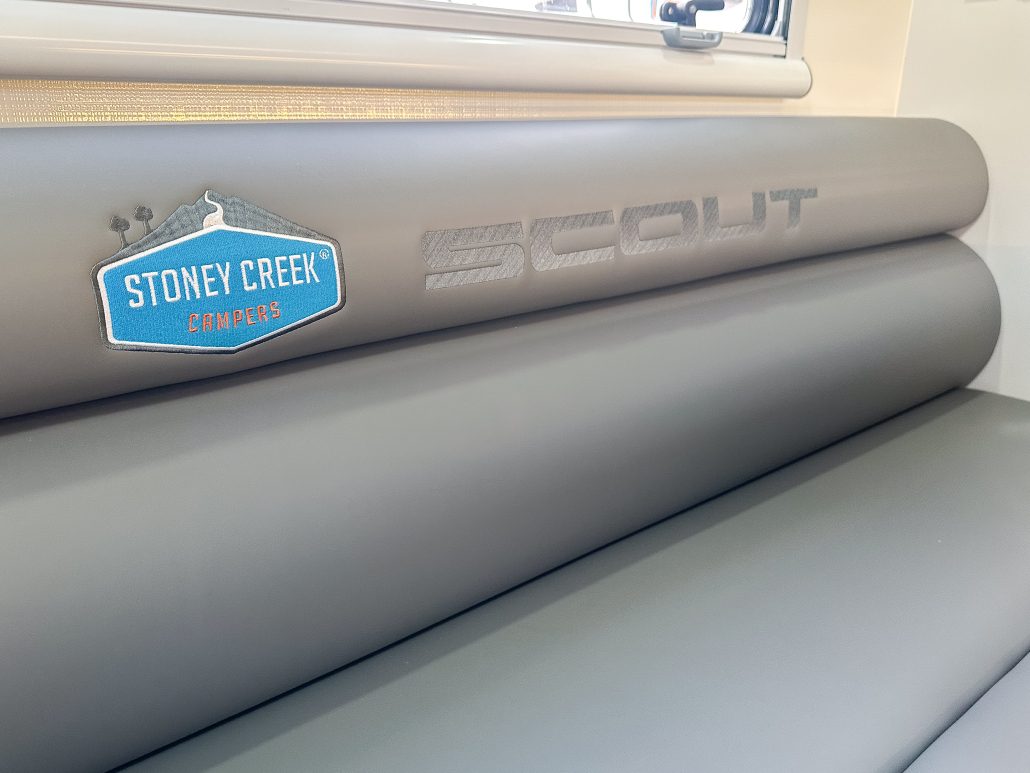

Interior Dinette Seating Spacious dinette with durable finish and plush cushioning.
Interior Flooring Durable vinyl in modern design.
Interior Dinette Table Cafe-style fold-away dinette table.
Interior Storage Under-bed and overhead storage compartments.
Main Bed King-size bed with comfortable, high quality memory foam mattress.

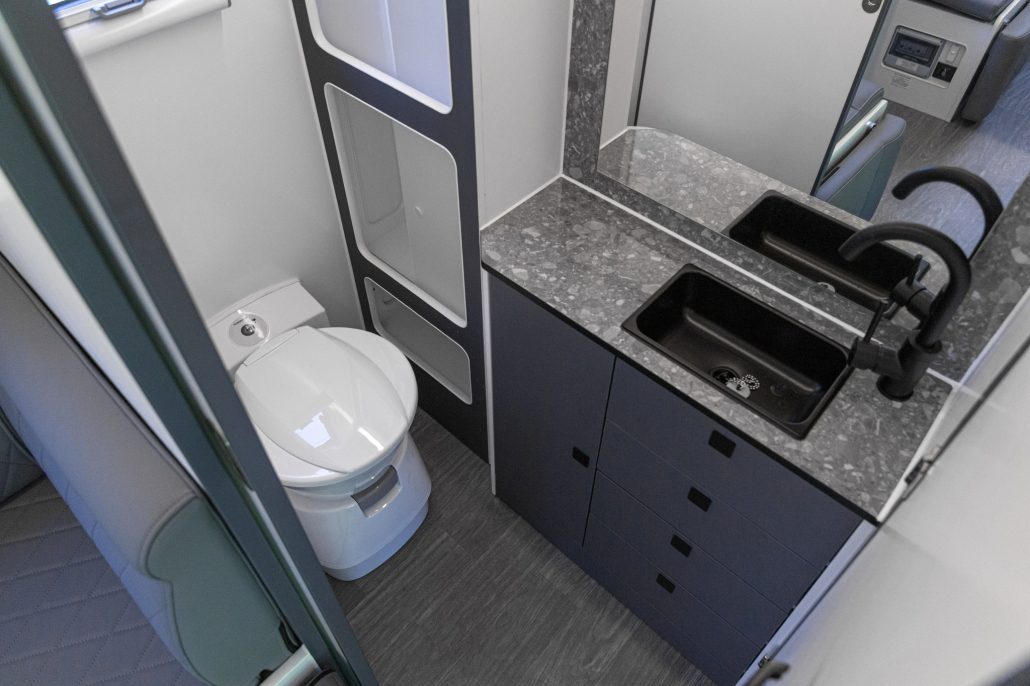

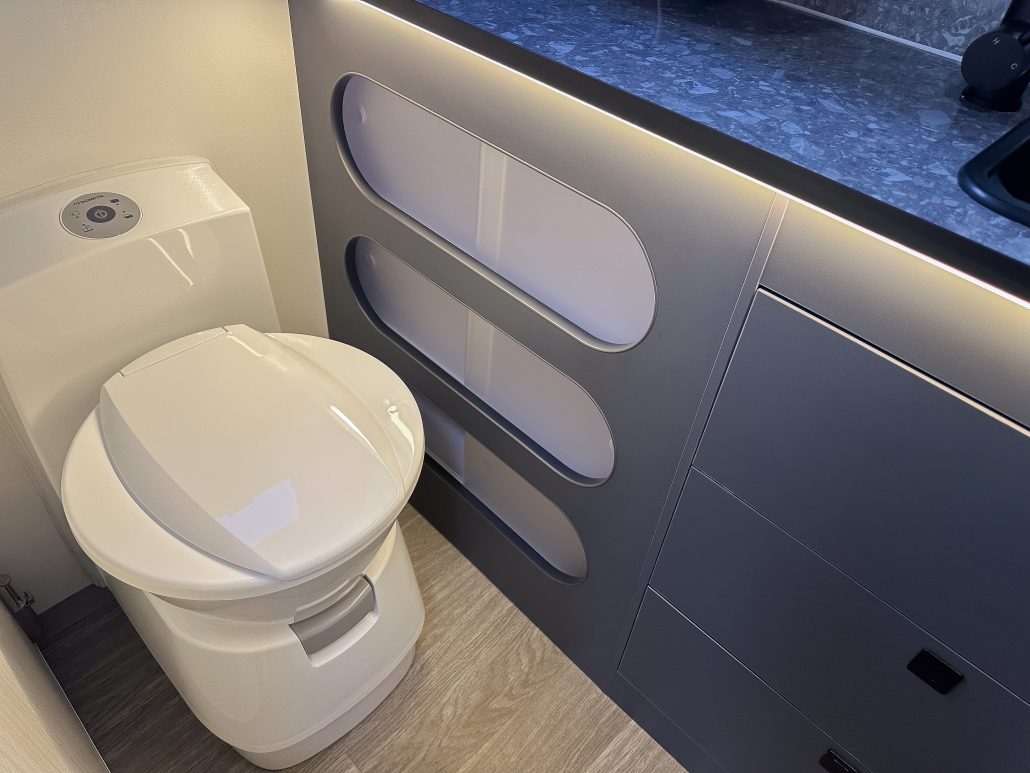

Ensuite / Bathroom Facilities Full-size caravan en-sute with spacious shower, separate toilet and dedicated bathroom storage.
Mains Connector Mains pressure to van.
Hot Water System Truma gas hot water system.
TV Aerial 12V Power-boosted aerial available for use with TV system.
Television 19″ wall-mounted LED TV.
Stereo/DVD Player Stereo & DVD Player (incl. ceiling-mounted speaker system).
Item Description
Reversing Camera Kit Rear-mounted rear vision camera (incl. dashboard monitor).
Awning (Upgrade) Various options to extend and/or enclose awning space.
BBQ ARM Power-coated galvanised steel arm with checker plate tray and universal drawbar mount.
