Somerset-17 On-Road Caravan
Suitable for
2 x Adults

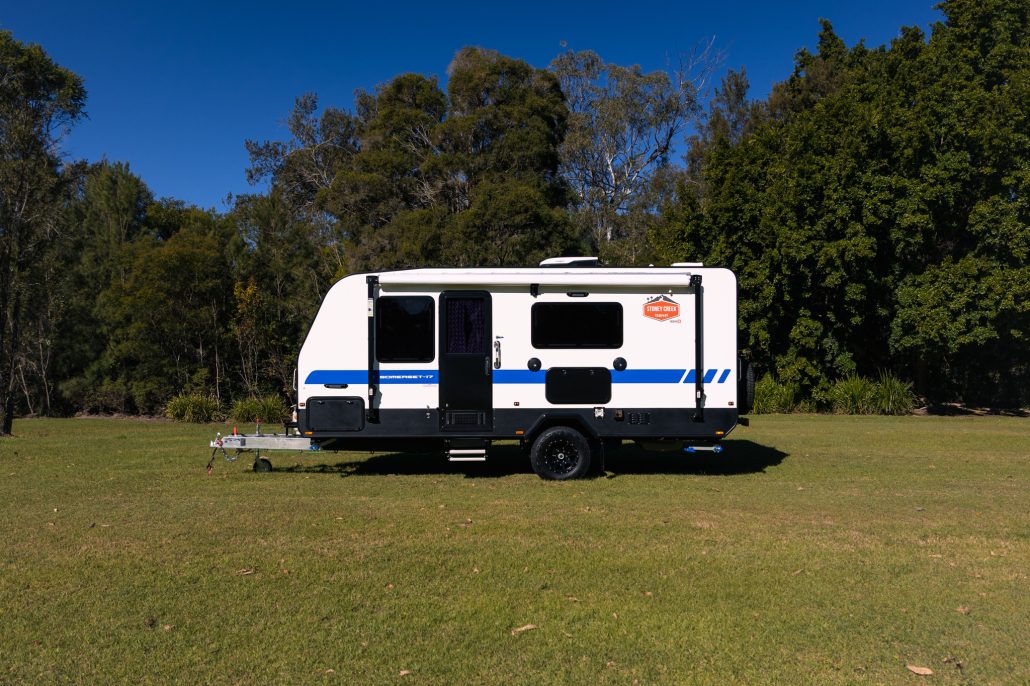

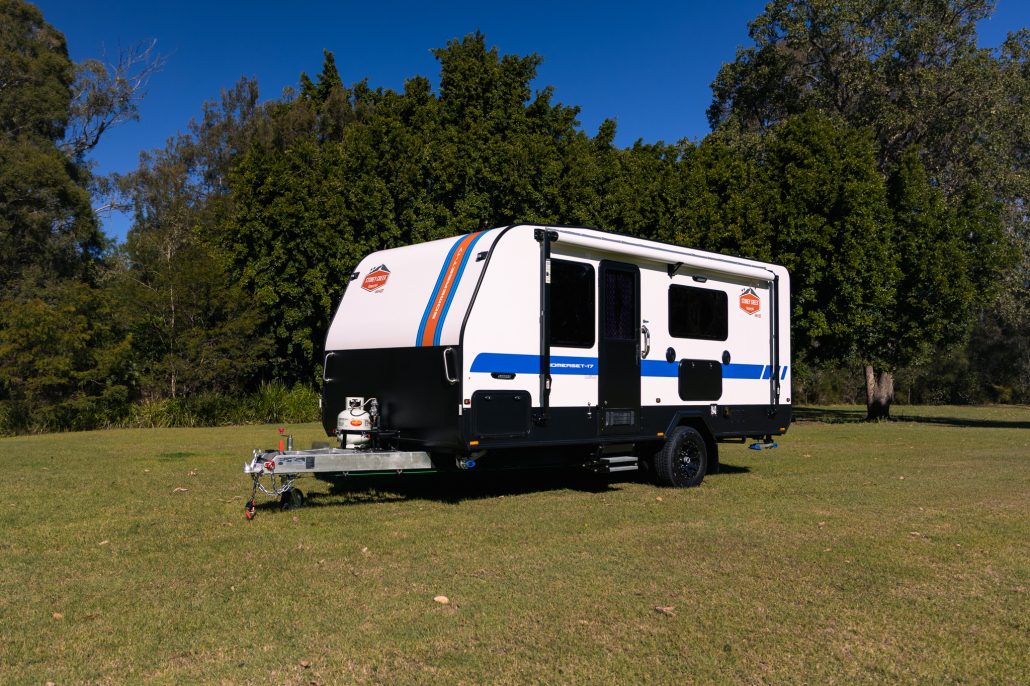

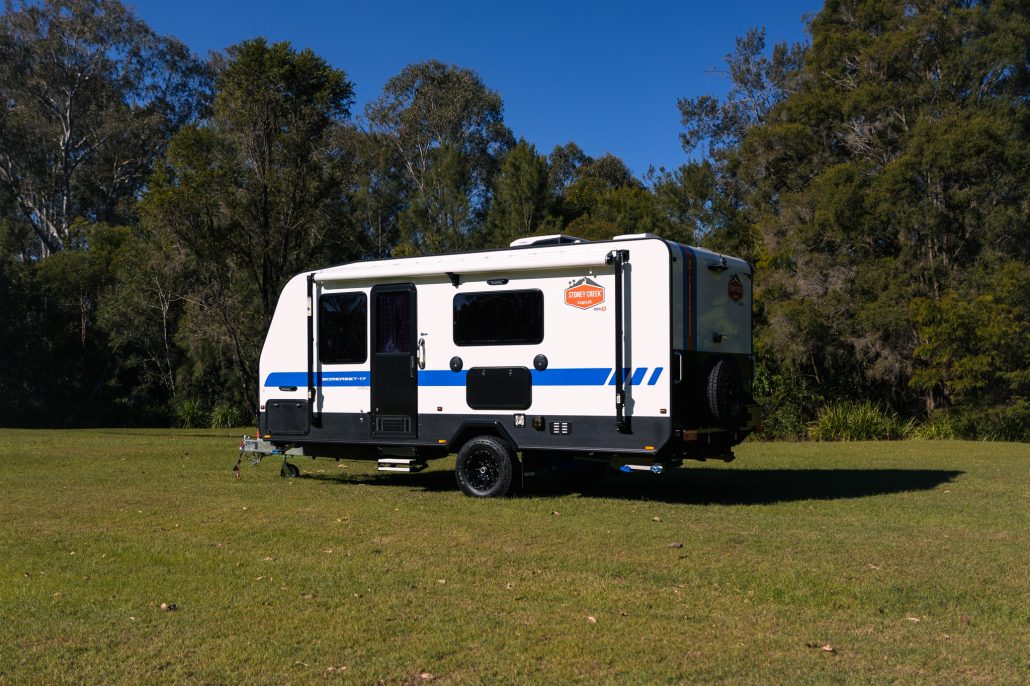

Somerset-17 On-Road Caravan
Effortless Touring for Couples Who Crave Comfort
Experience elevated touring with the Somerset-17 — a spacious, modern on-road caravan crafted for comfort, convenience, and the unbeatable value Stoney Creek is known for. Designed for sealed roads, the Somerset-17 brings the same spirit of adventure and quality craftsmanship found in our off-road range, now with even more room to relax.
Purpose-built for couples, the Somerset-17 offers an expanded layout that adds a little extra luxury to every journey. Whether it’s a quick weekend getaway or an extended road trip, you’ll enjoy premium features, smart storage, and the freedom to travel your way — with space to spare.
Constructed using our advanced Gen 3 composite materials, the Somerset-17 delivers a lightweight yet robust design that enhances towing efficiency without compromising strength or insulation. Inside, you’ll find a generous internal ensuite, a plush sleeping area, and now — the added convenience of a built-in washing machine to keep you fresh on the move.
Powered by 450W of solar and a 230aH lithium battery, the Somerset-17 is well-equipped for stays at unpowered caravan park sites, giving you greater flexibility to explore without losing the comforts of home.
With more space, added functionality, and signature Stoney Creek innovation, the Somerset-17 redefines what’s possible in a caravan built just for two.
Check out the key features the Somerset-17 has to offer
1
2
3
4
5
6
7
8
9
10
1

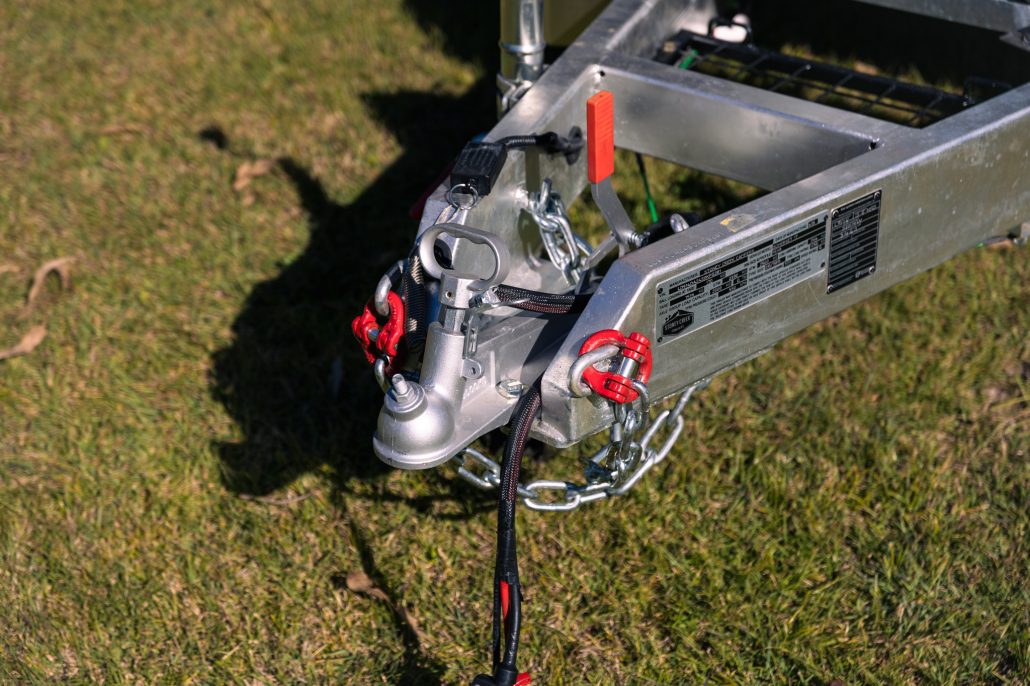

50mm tow ball hitch
2

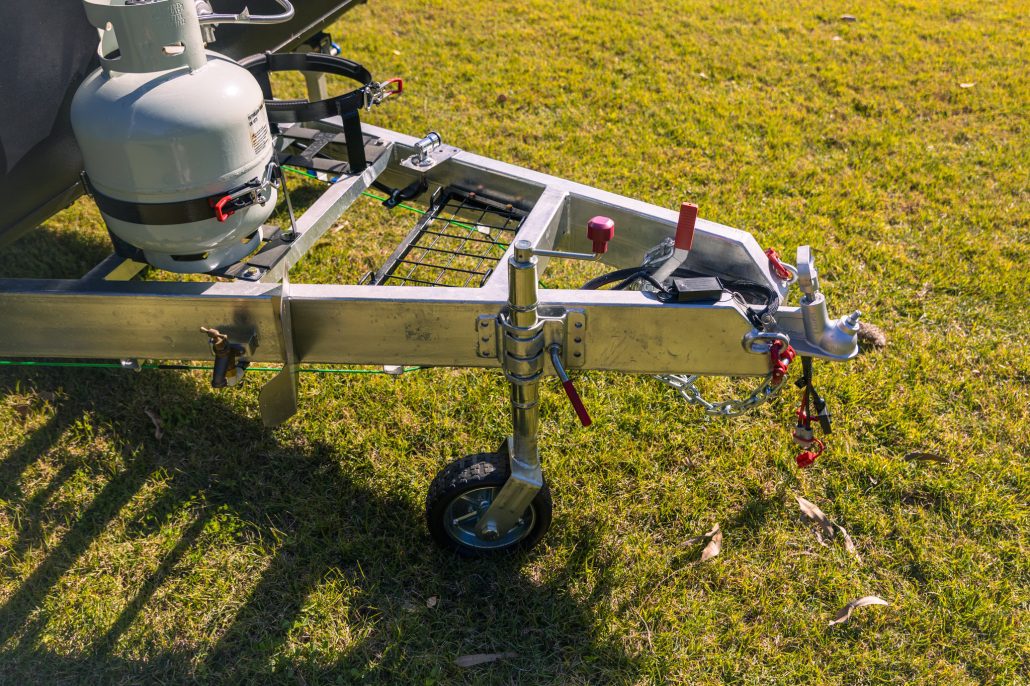

6″ x 2″ A-frame & 4″ x 2″ main members
3
Partial Raptor Coat for stone protection
4

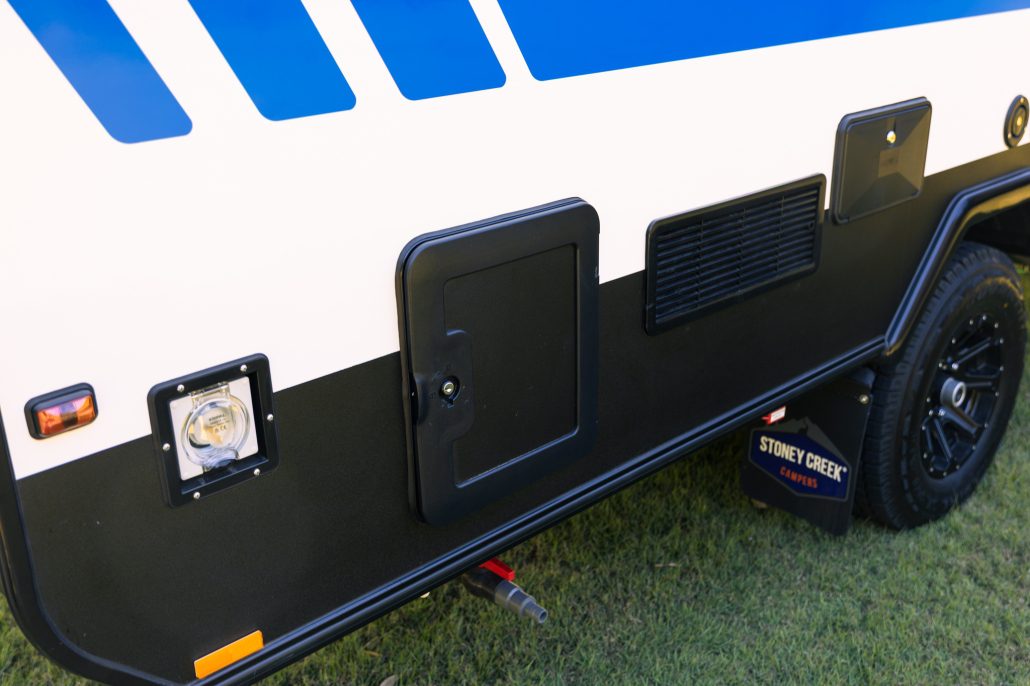

Composite body/panelling providing superior strength, durability, insulation & looks. Hail and dent resistant
5

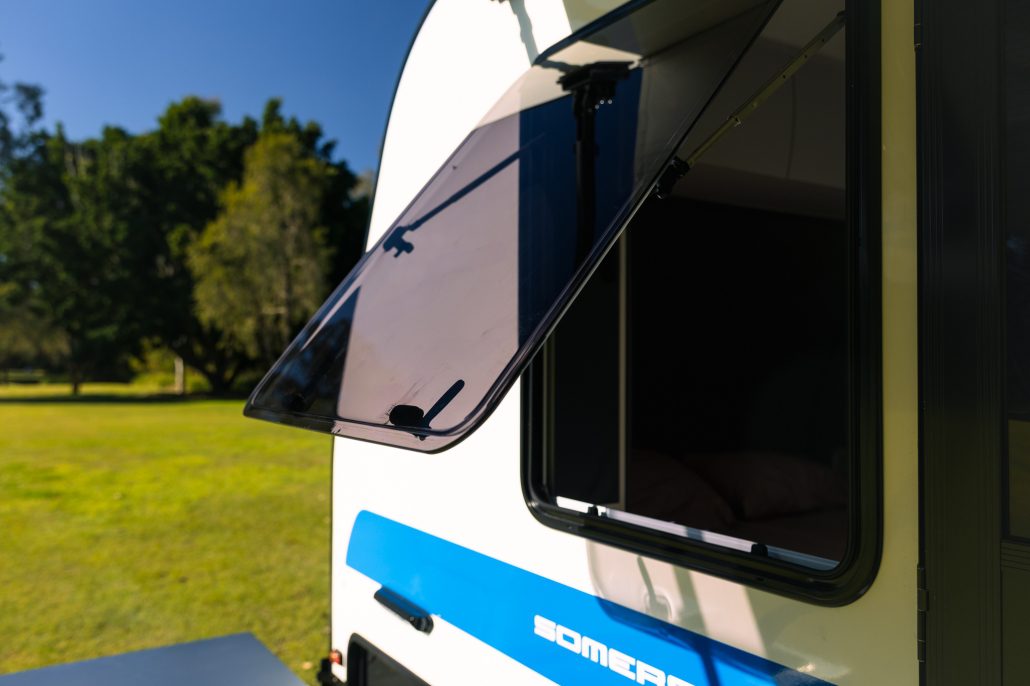

Tinted slim profile windows
6

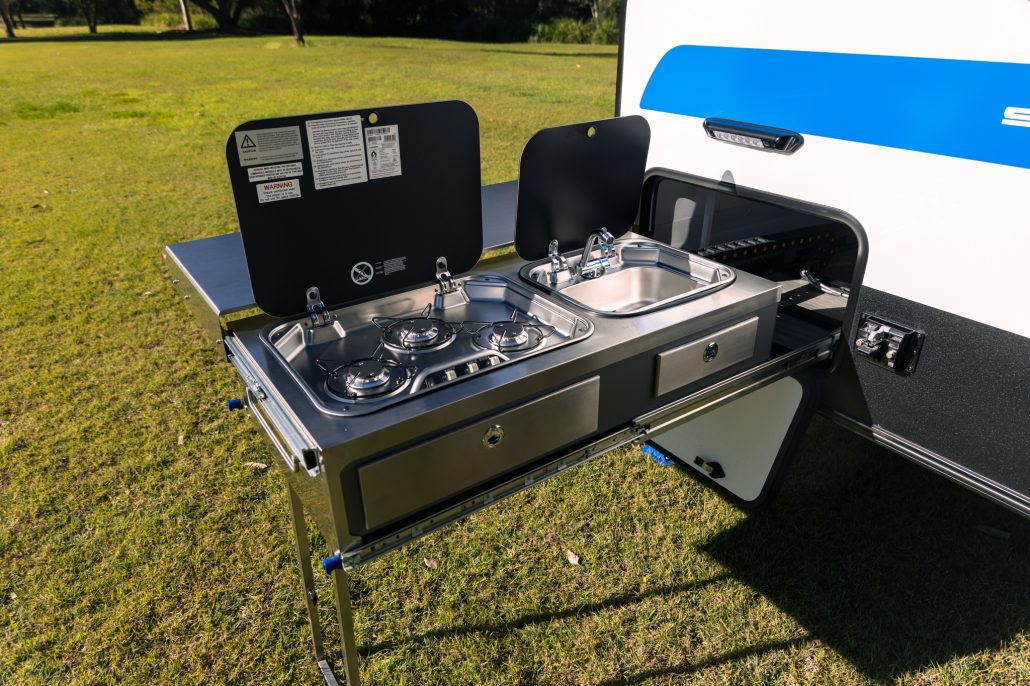

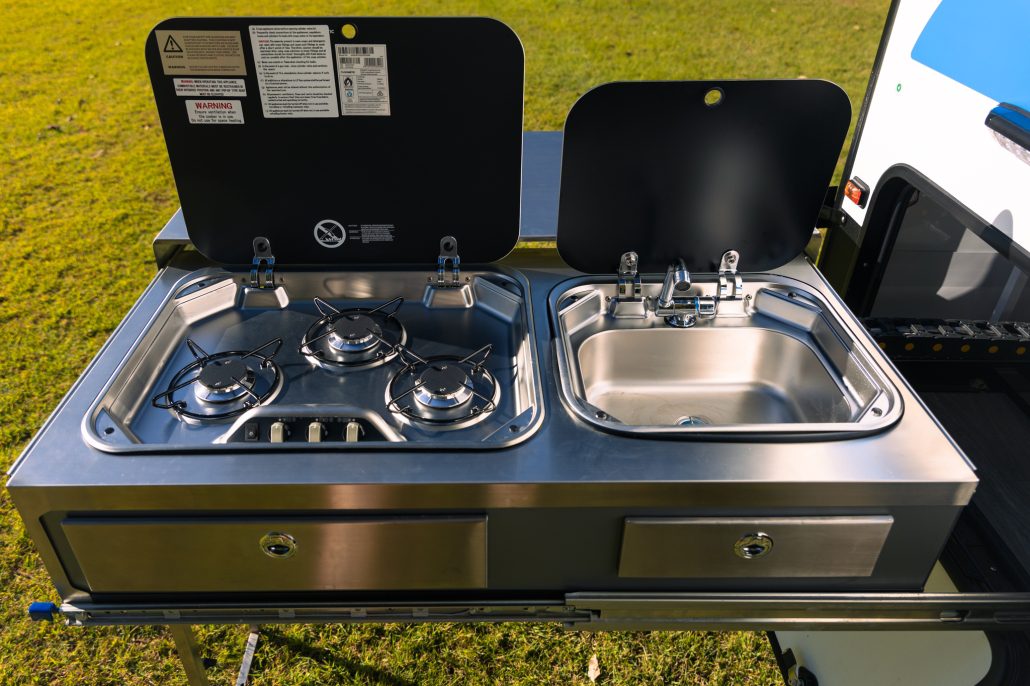

External 3-burner kitchen & stainless steel sink + prep area
7

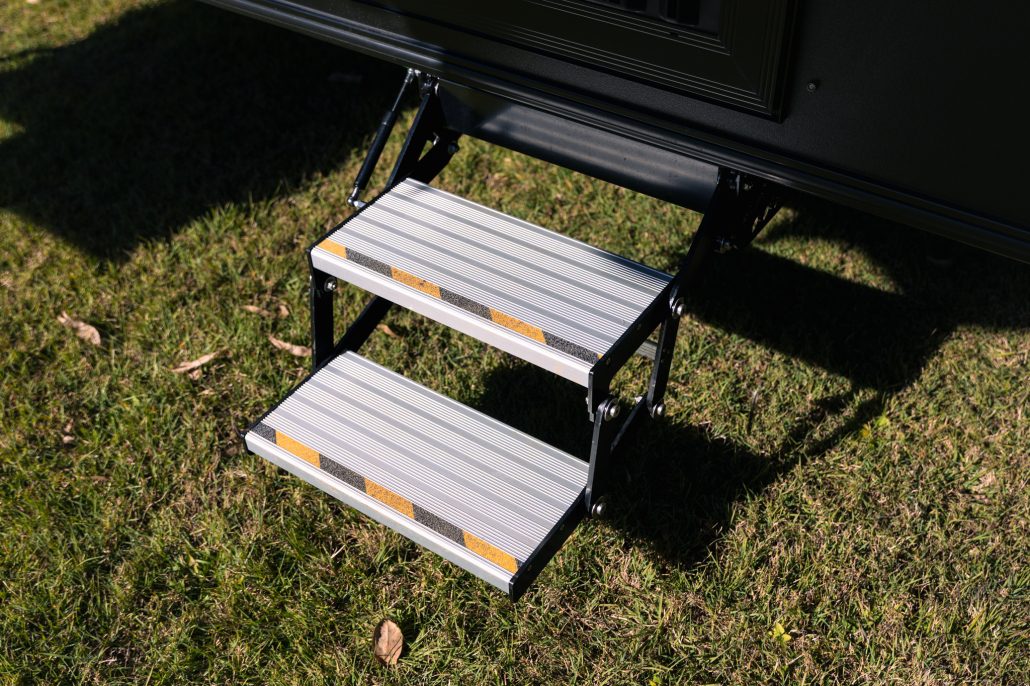

Double electric step
8
Fold down table
9
240L of fresh water / 75L grey water
10

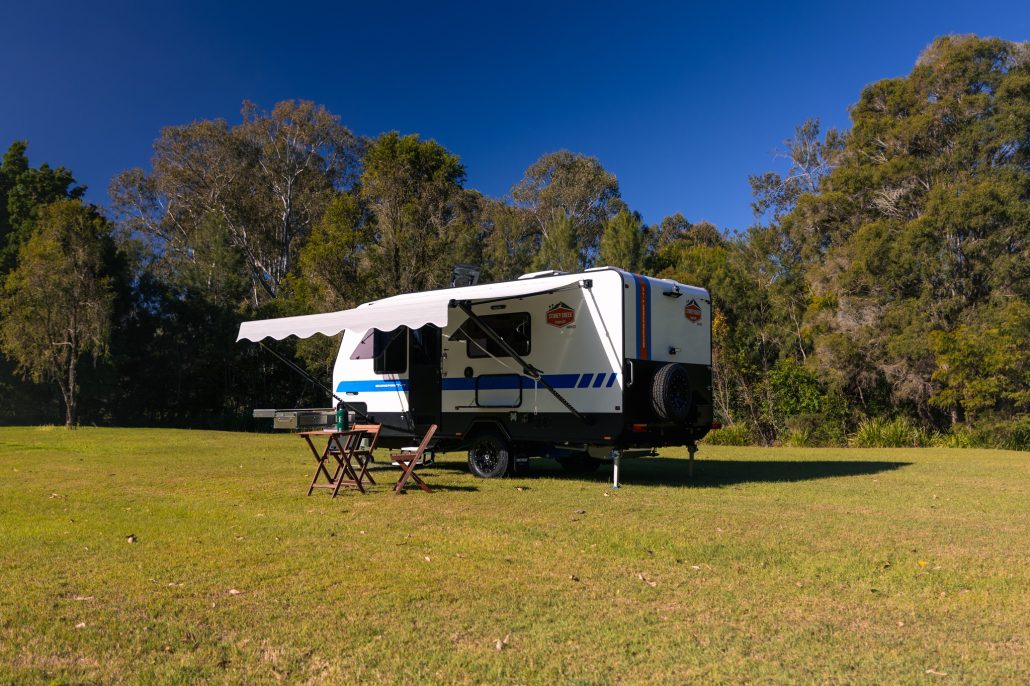

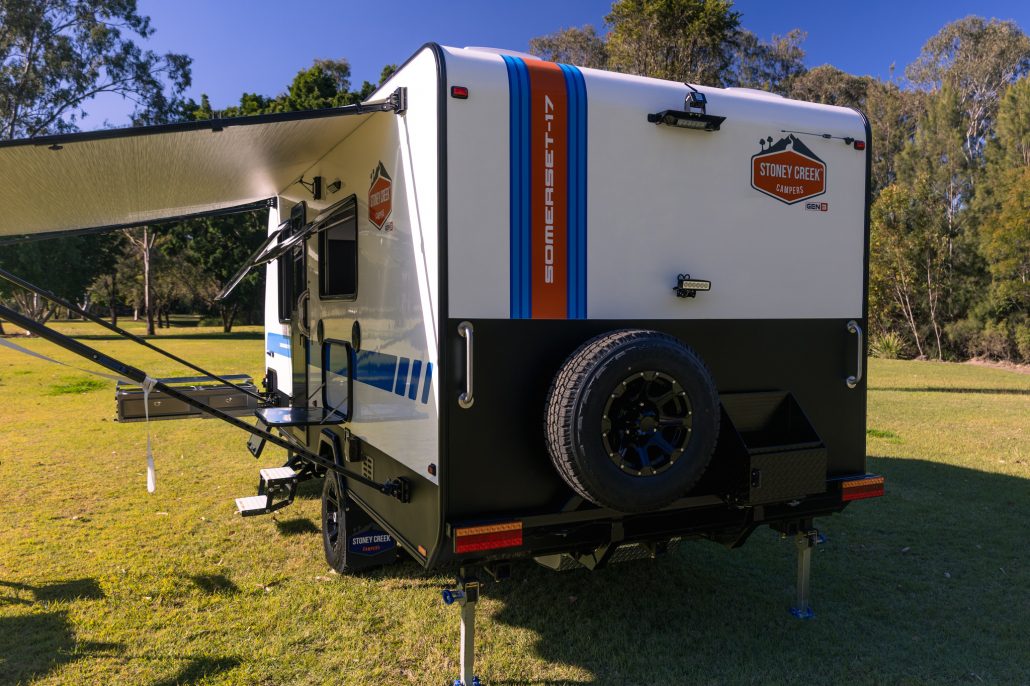

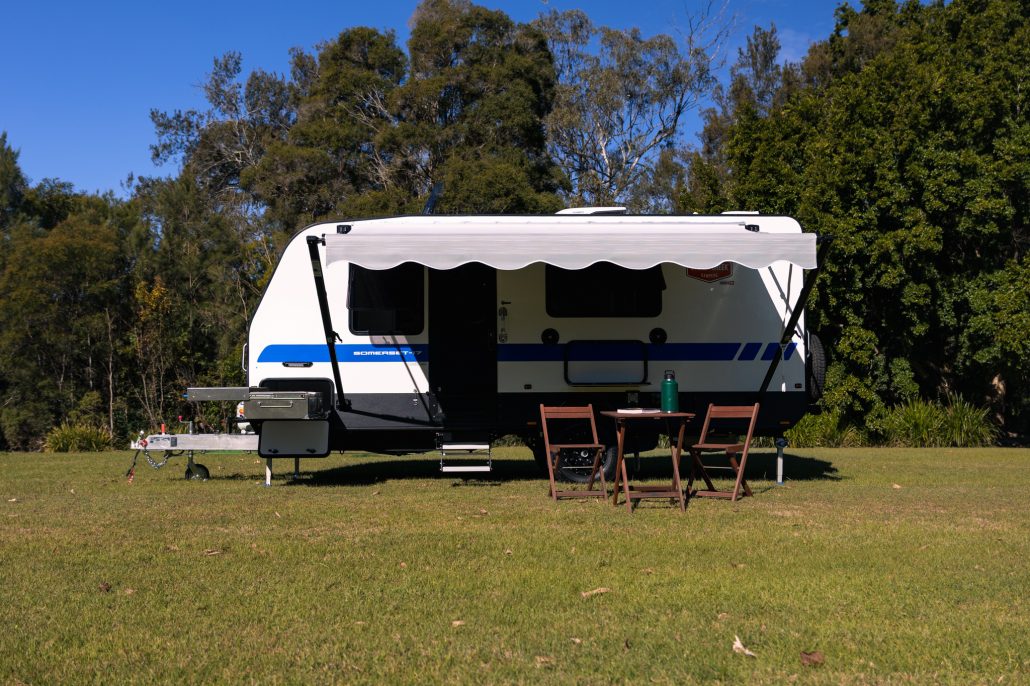

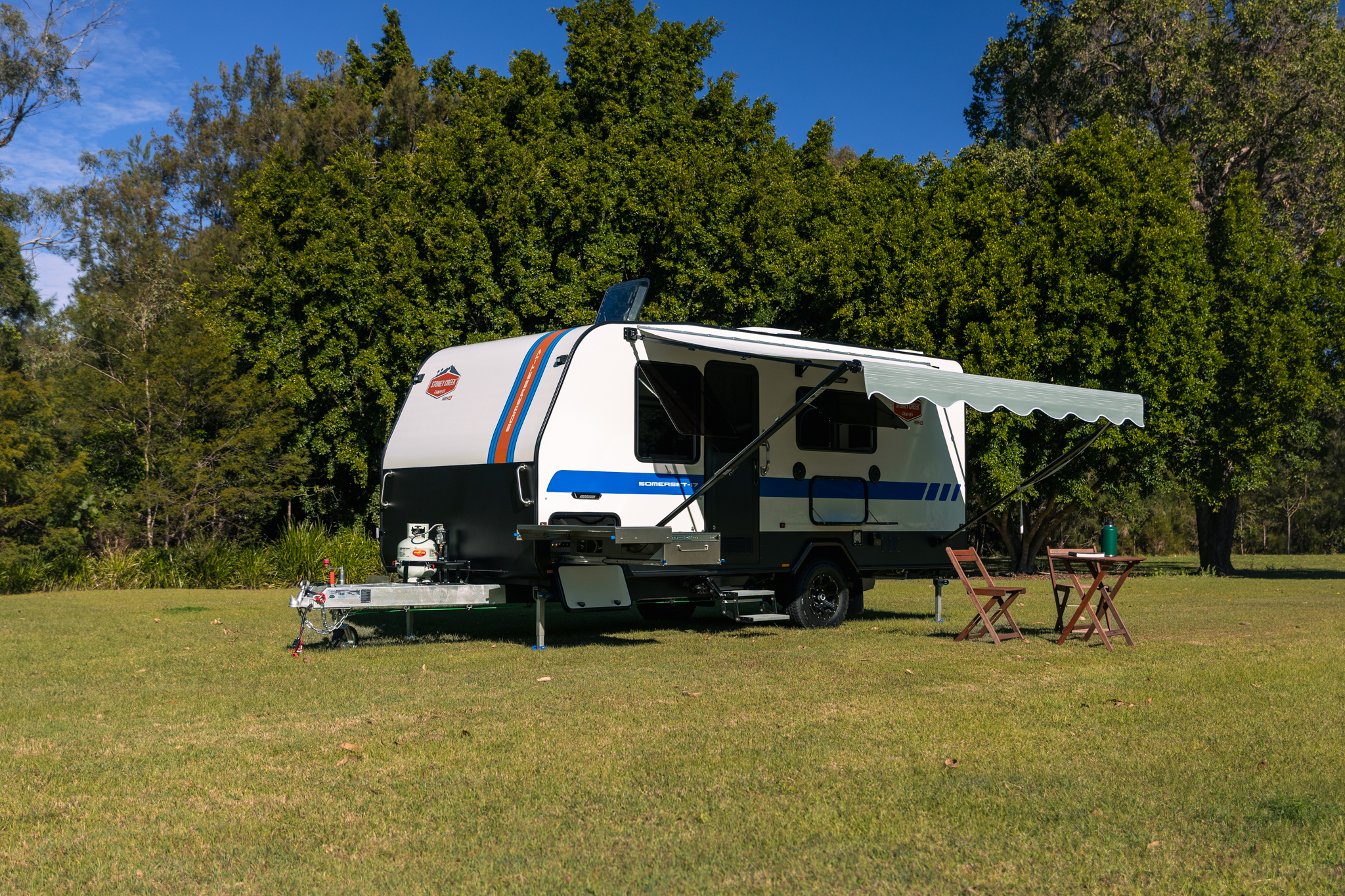

Roll-out awning
1
2
3
4
5
6
7
8
9
10

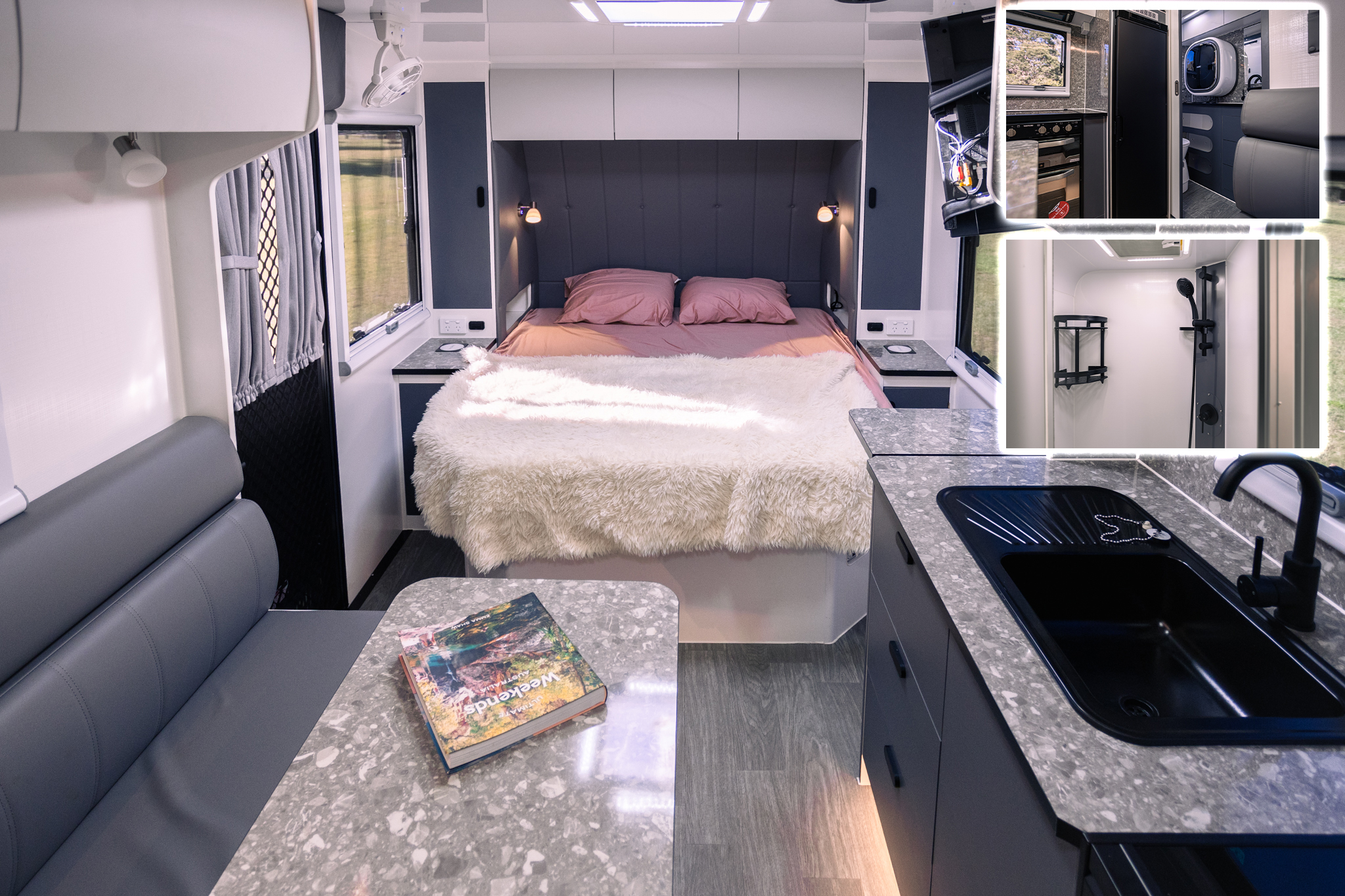

1

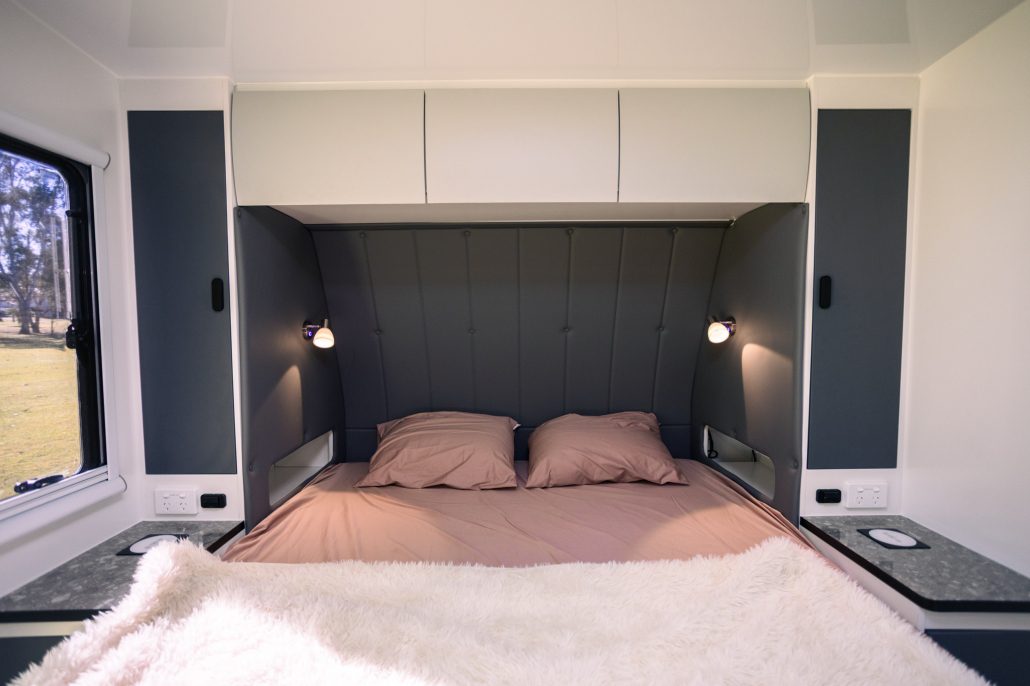

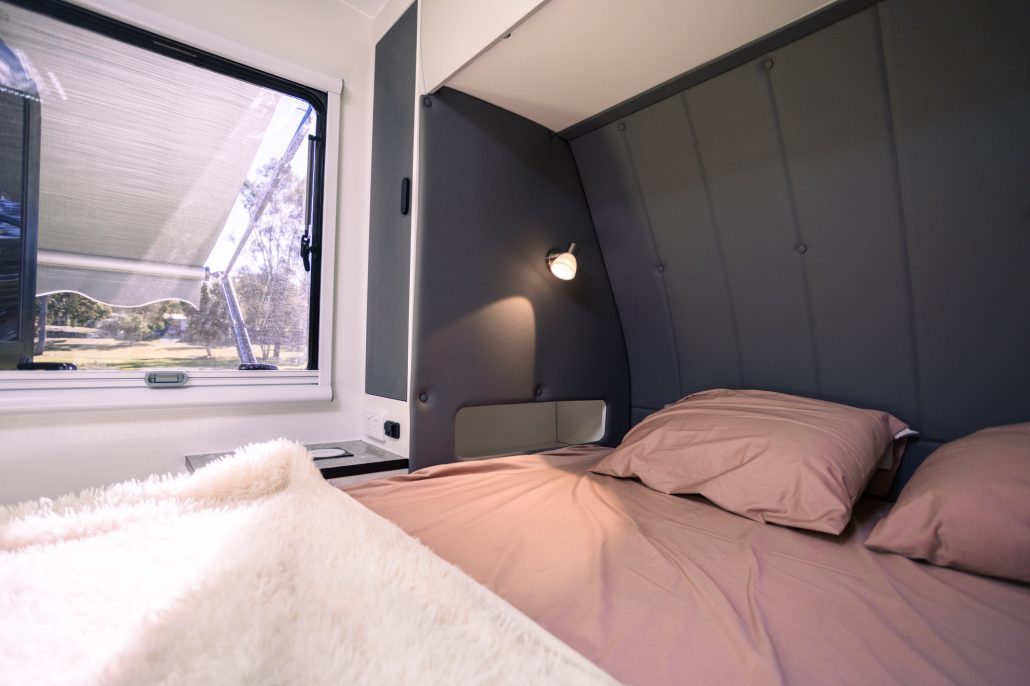

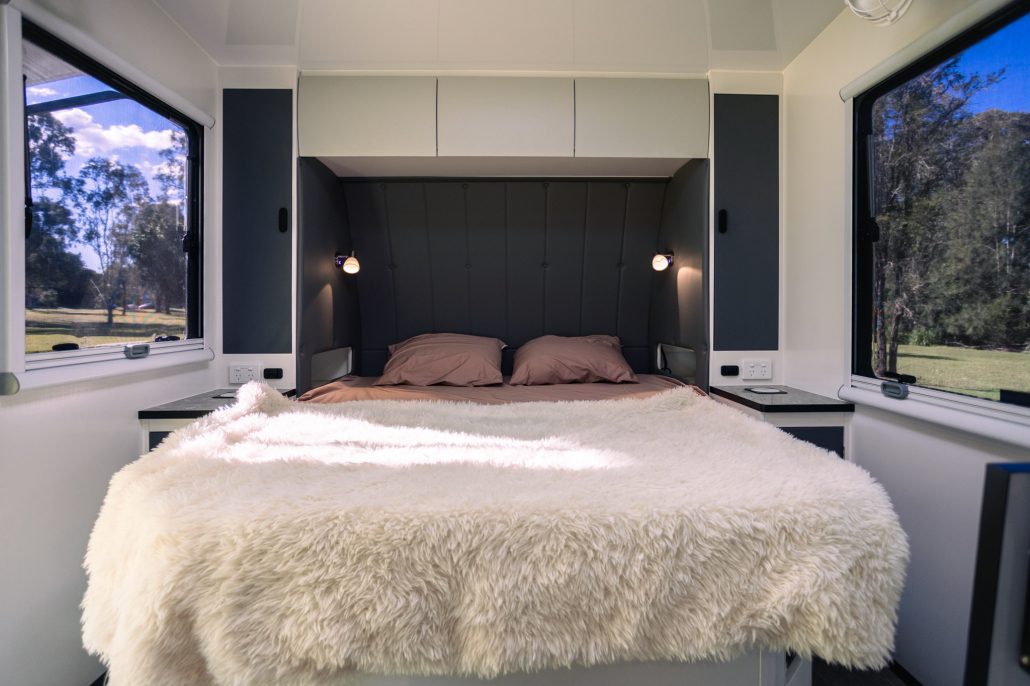

Queen-size bed with memory foam mattress
2
24″ smart TV
3
Extensive storage
4
Microwave
5
152L internal fridge/freezer
6

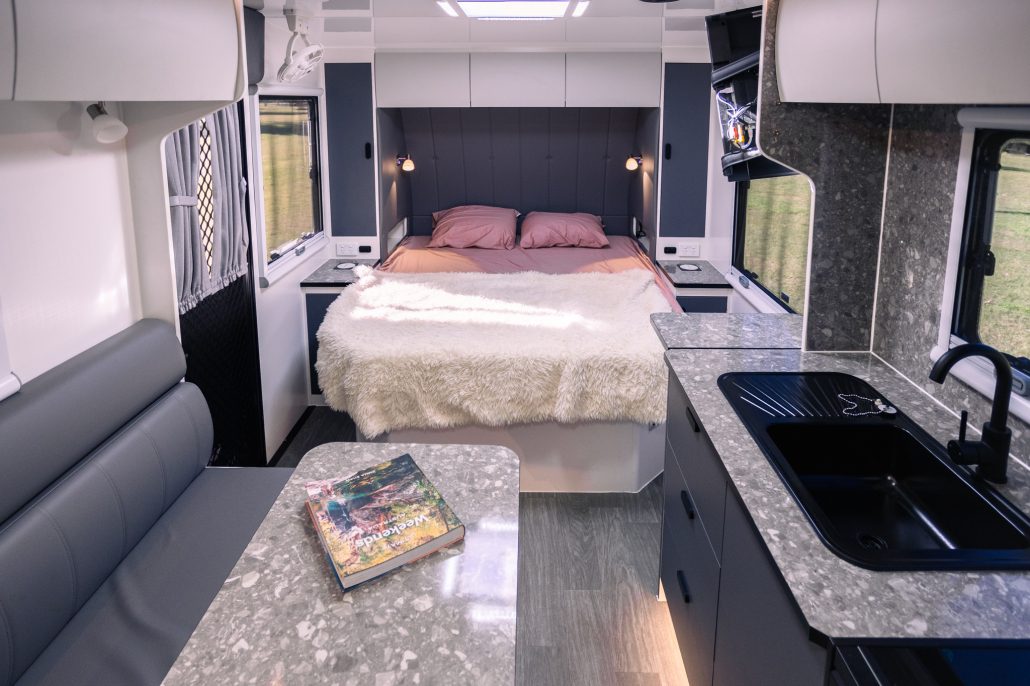

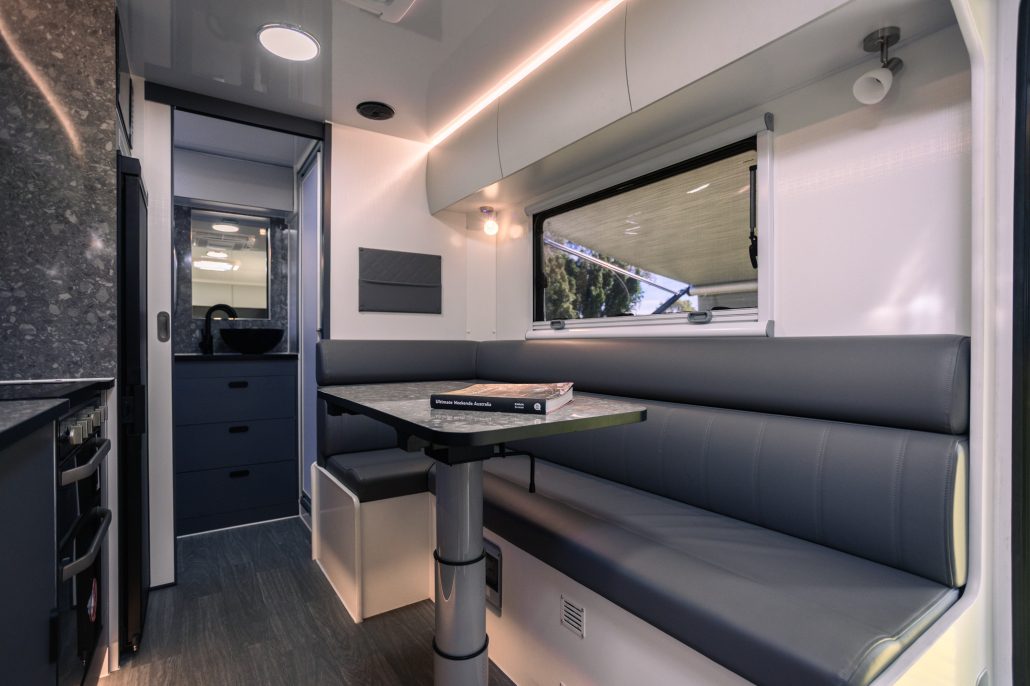

L-shaped lounge with table
7

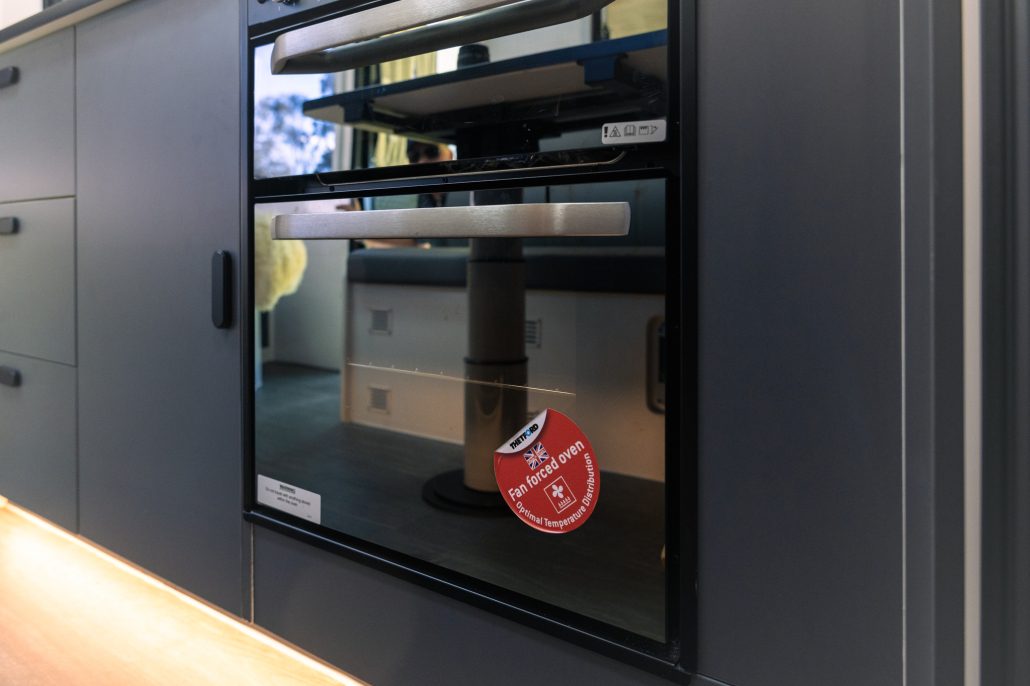

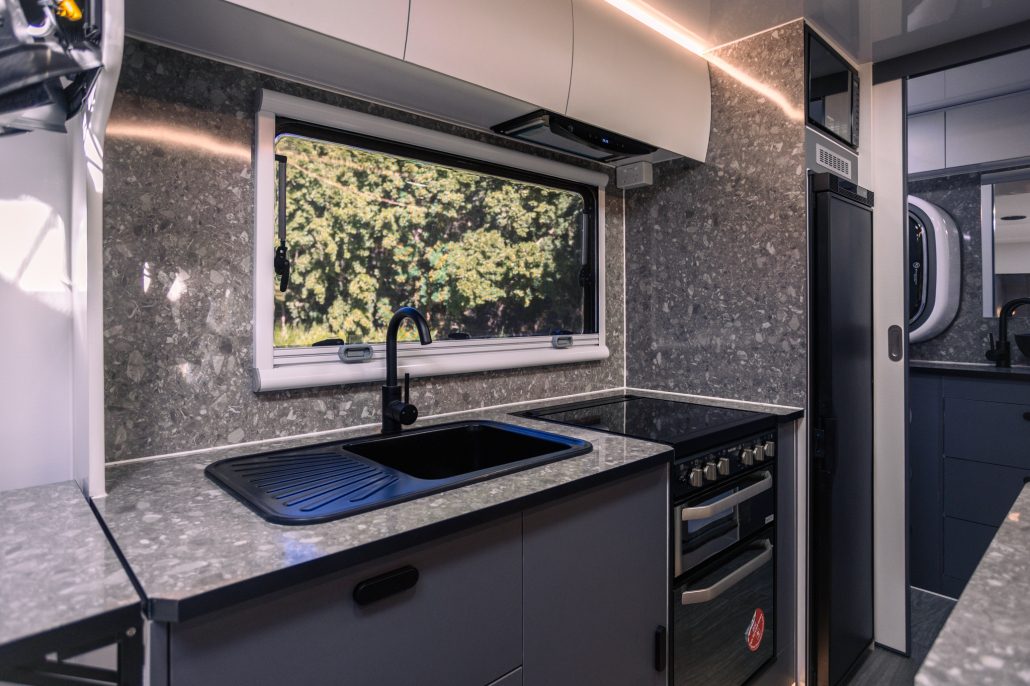

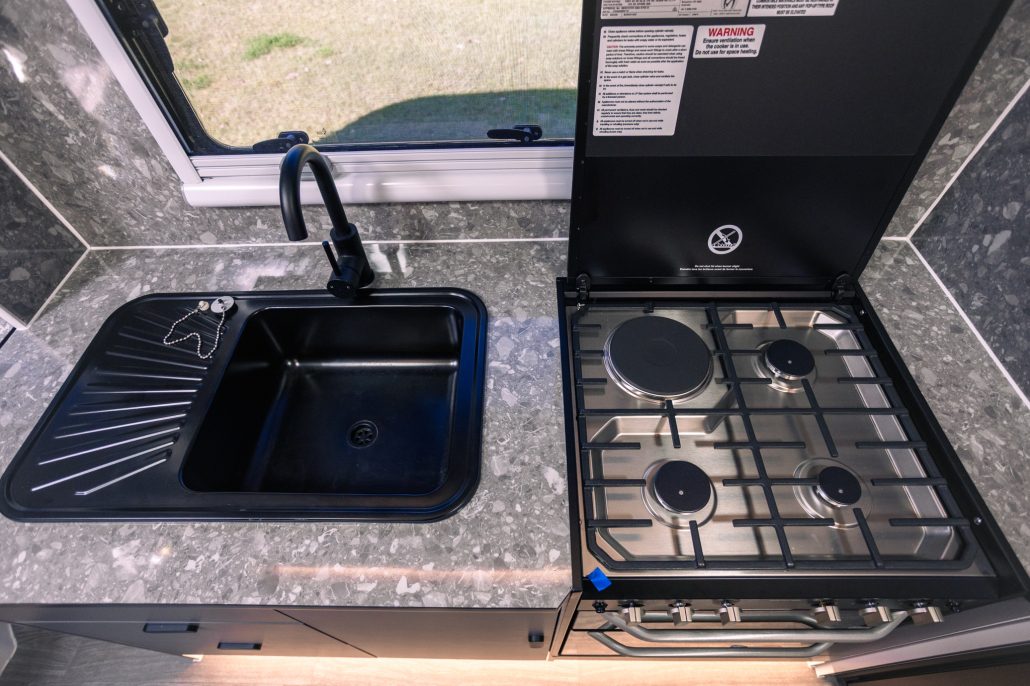

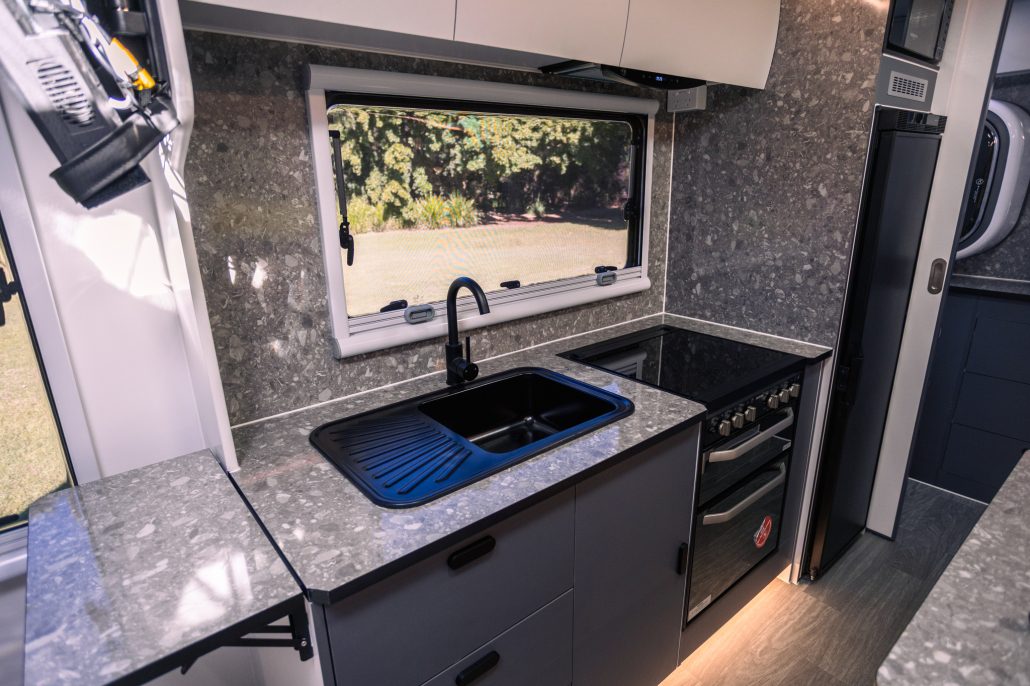

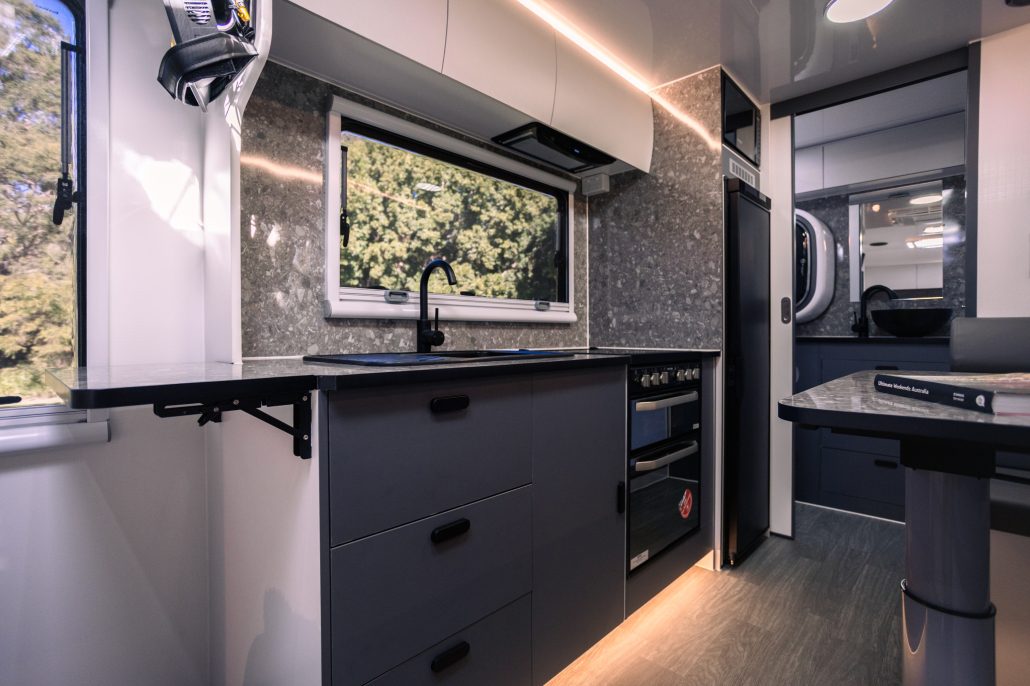

4 burner gas cooker stovetop & stylish sink with flick mixer. Oven and grill below.
8
Ensuite with separate toilet & shower
9

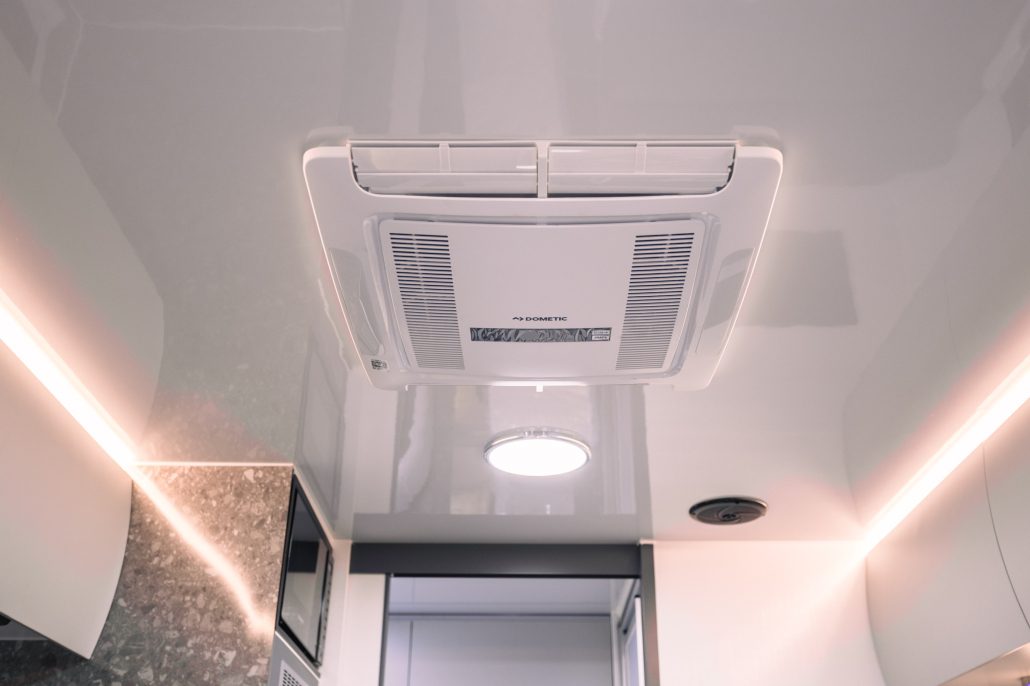

Dometic roof-mounted reverse cycle air-conditioning
10

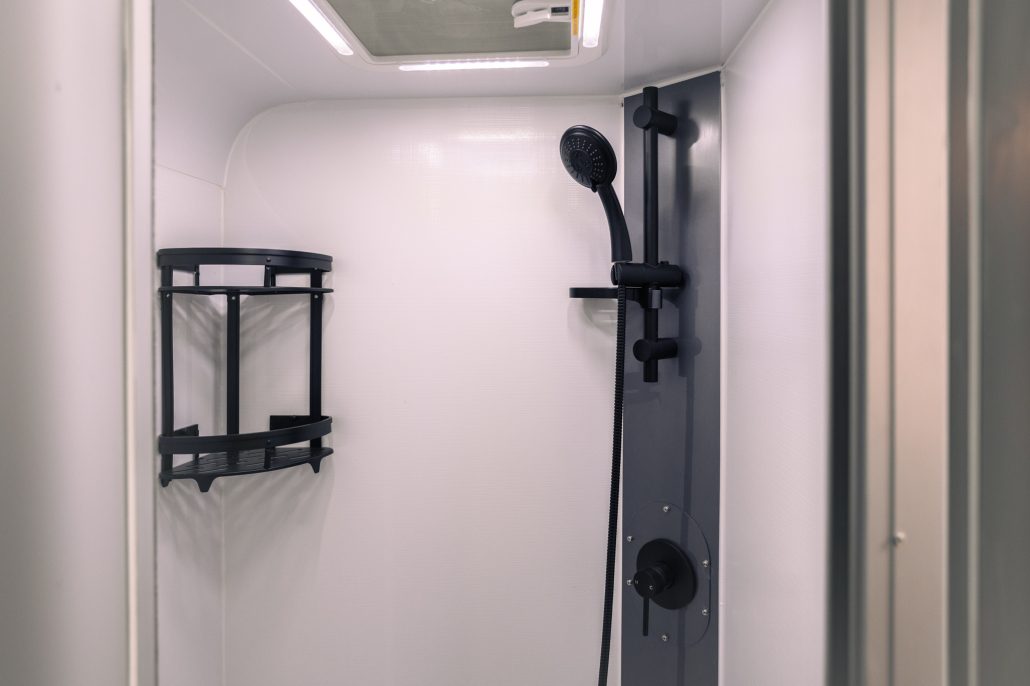

Internal shower
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Overall Length (mm) | 7100 |
| Body Length (mm) | 5400 |
| Travel Height (mm) | 2950 |
| External Width (mm) | 2350 |
| Tare Weight (kg) | 1925 |
| ATM Weight (kg) | 2500 |
| Ball Weight @ tare (approx) (kg) | 185 |
| Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. |
| Chassis, Suspension & Tyres | |
|---|---|

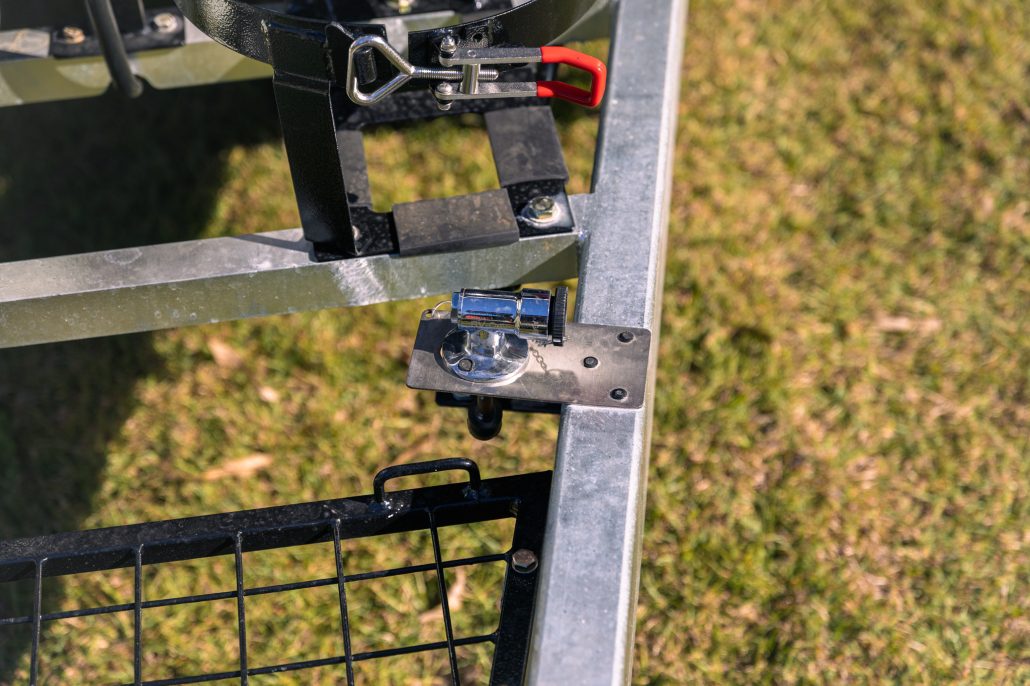

| Engineered Chassis | Hot-dipped galvanised steel chassis to protect against corrosion with 6″ x 2″ A Frame and 4″ x 2 ” Main Members. |
| Wall Structure | Composite wall structure providing strength, insulation, and a curved, aerodynamic, smooth skin, and hail & dent-resistant. |

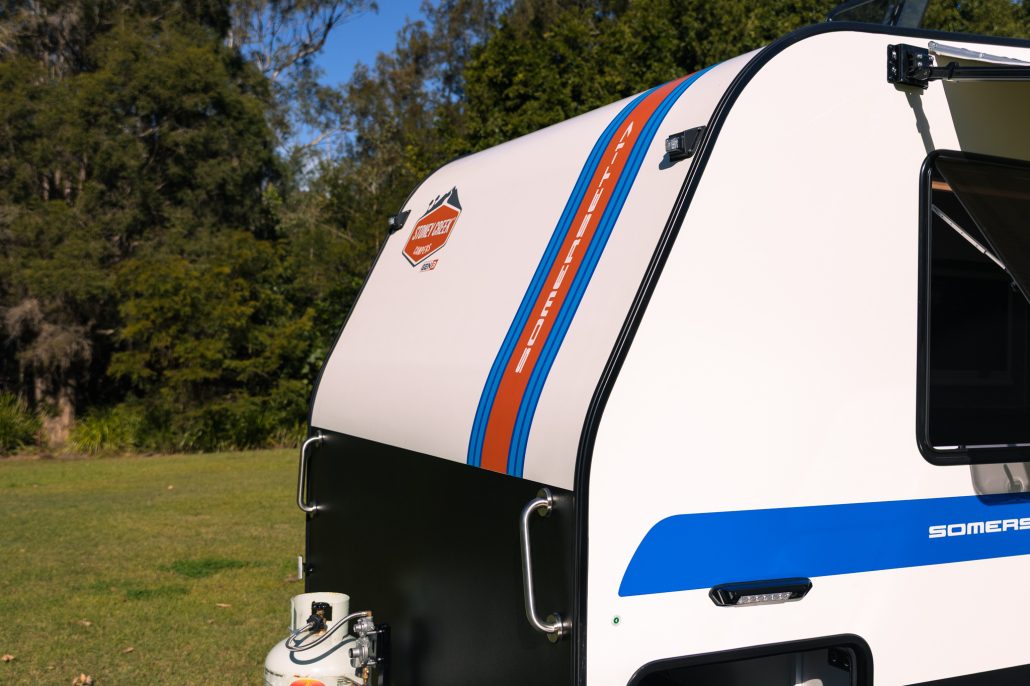

| Front Wall | Protective (black) coating for stylish appearance and protecting against marking. |
| Suspension | Torsion Axle Suspension System. |
| Suspension Fixings | High tensile fixings. |

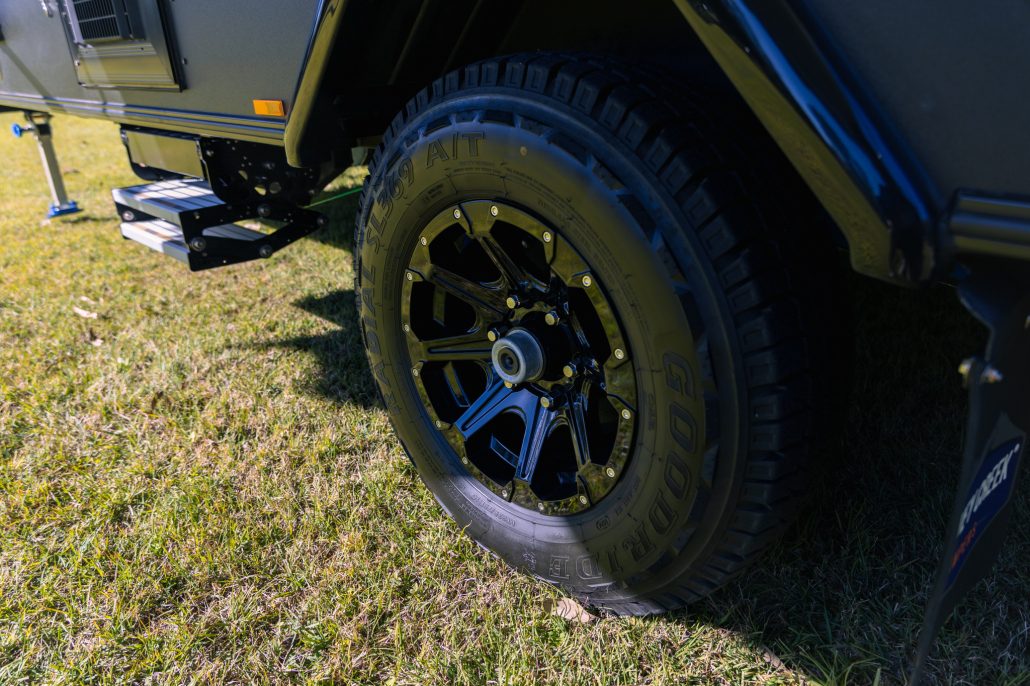

| Tyres | 235/75R15 tyres (inc. 1 spare). |
| Wheel Rims | 15″ Alloy rims with stylish appearance and reduced weight. |
| Tyre Pressure | Tyre pressure as per Stoney Creek Campers owners manual. |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |

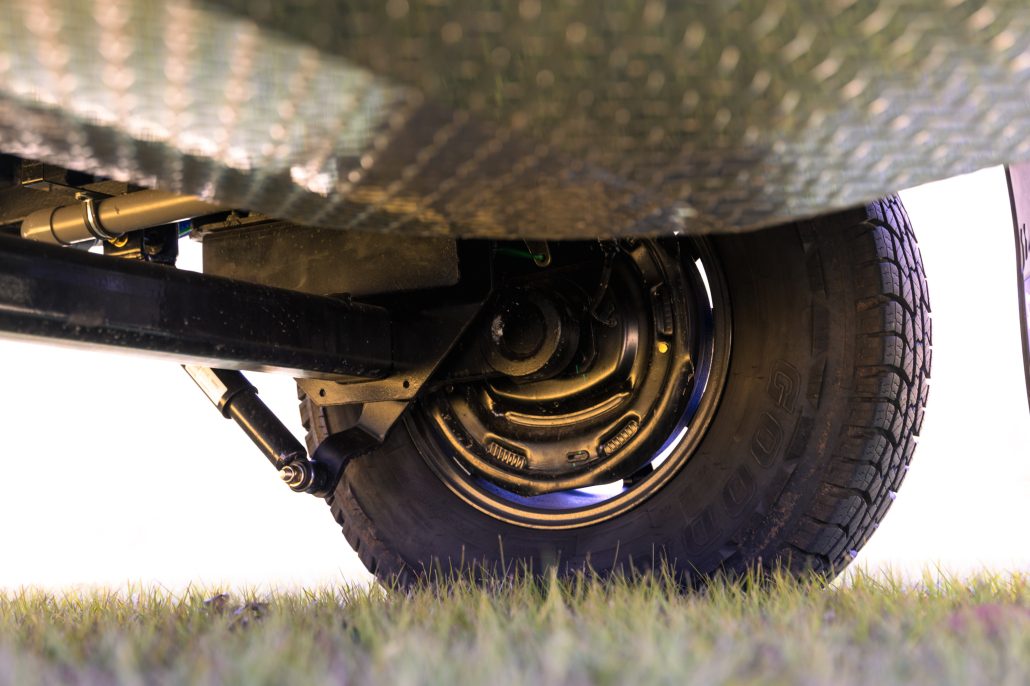

| Brakes | 12″ heavy-duty electric brakes with breakaway safety system and handbrake. |
| Chains | 2 x ADR compliant safety chains with D shackle. |
| Coupling | 50mm tow ball hitch. |
| Doors & Hinges | High quality metal hinges bolted to the frame. Adjustable latches on all external doors allow for easy adjustment. |
| Drop Down / Stabiliser Legs | Corner wind-down support legs (for stabilisation only). |
| Jockey Wheel | Adjustable and removable jockey wheel. |
| Mud Flaps | Heavy duty, durable mud flaps. |
| Power & Electrical | |
|---|---|
| Solar Power System | Roof-mounted panels and regulator (450w). |
| Battery | 230aH lithium battery. |
| Inverter | Renogy 2000W sine-wave inverter. |
| Power (240V) | Victron 240v power management system. |
| Power Outlets | Multiple weatherproof 12v & 240v outlets. |
| Mains Connector | Mains Pressure to van. |

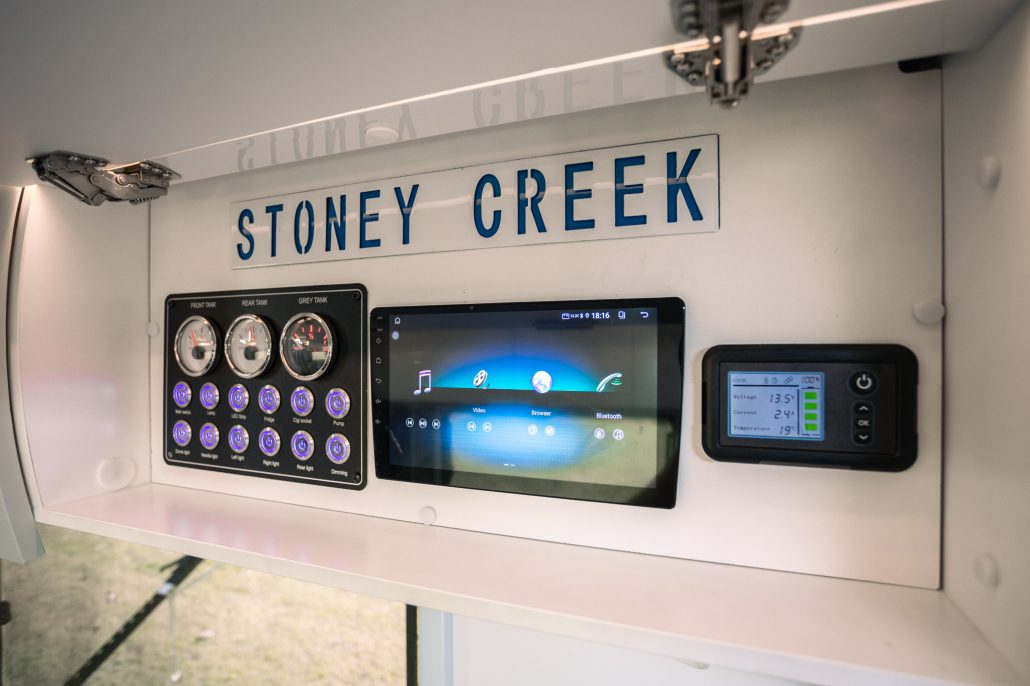

| Control Panel | All-in-one marine-style control panel with gauges for power and water. |
| DC-DC Charger | Renogy DC-DC 30amp smart charger. |
| Fuses | Resettable fuses. |

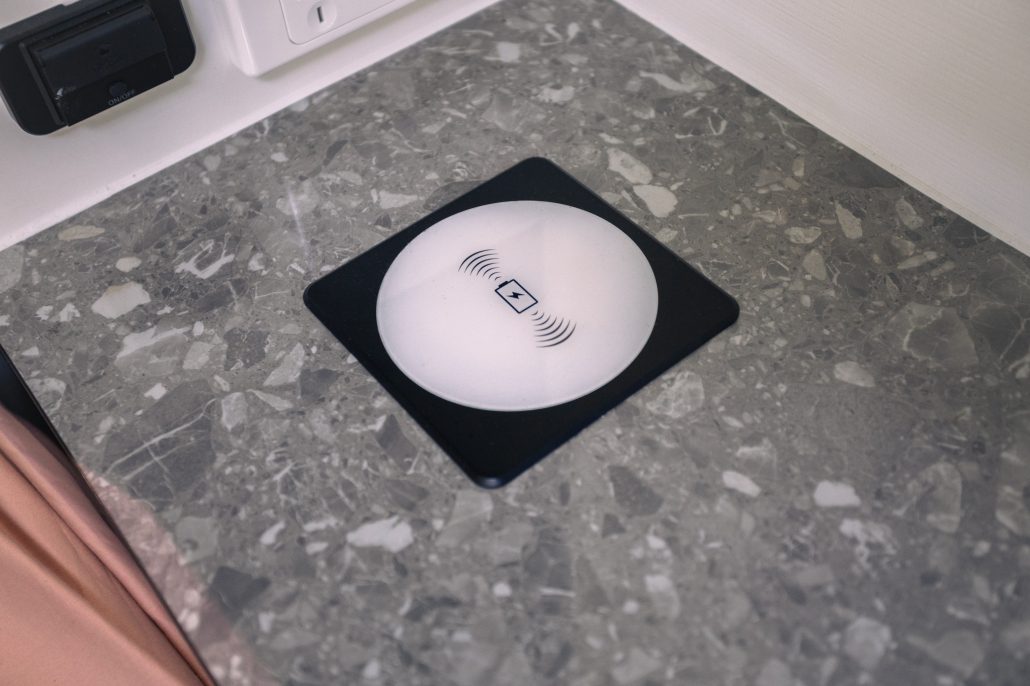

| Phone Charger | 2 x wireless phone charger located beside the bed. |
| Water System & Ventilation | |

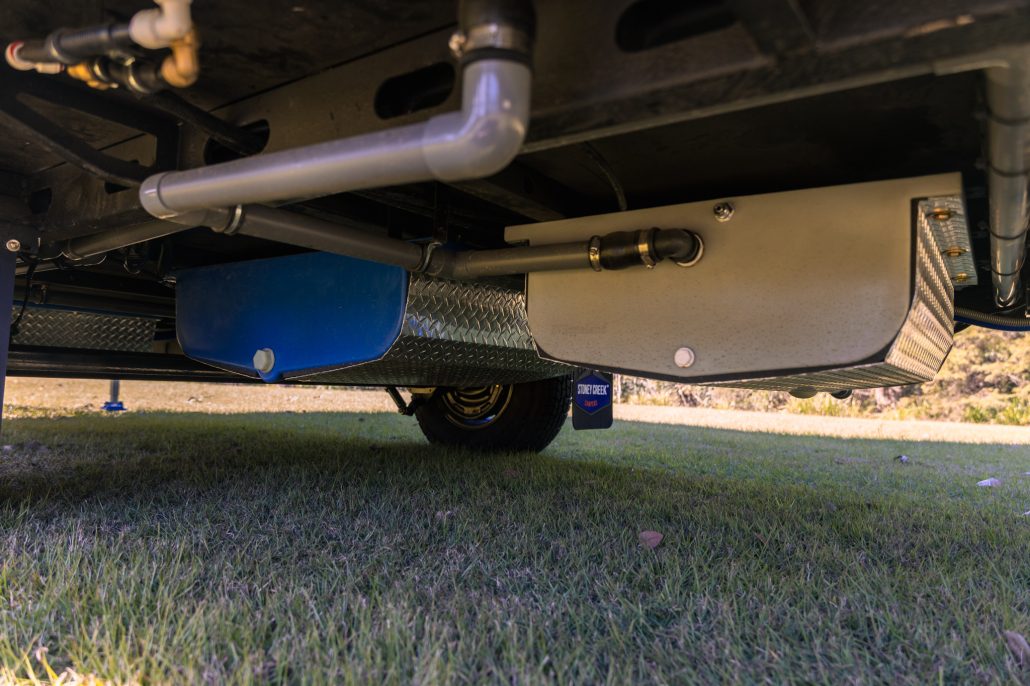

| Water Tank (Fresh) | 2 x 100L poly water tanks. |
| Water Tank (Grey) | 1 x 75L poly water tank. |
| Water Tank Protection | Chequer plate water tank guard. |

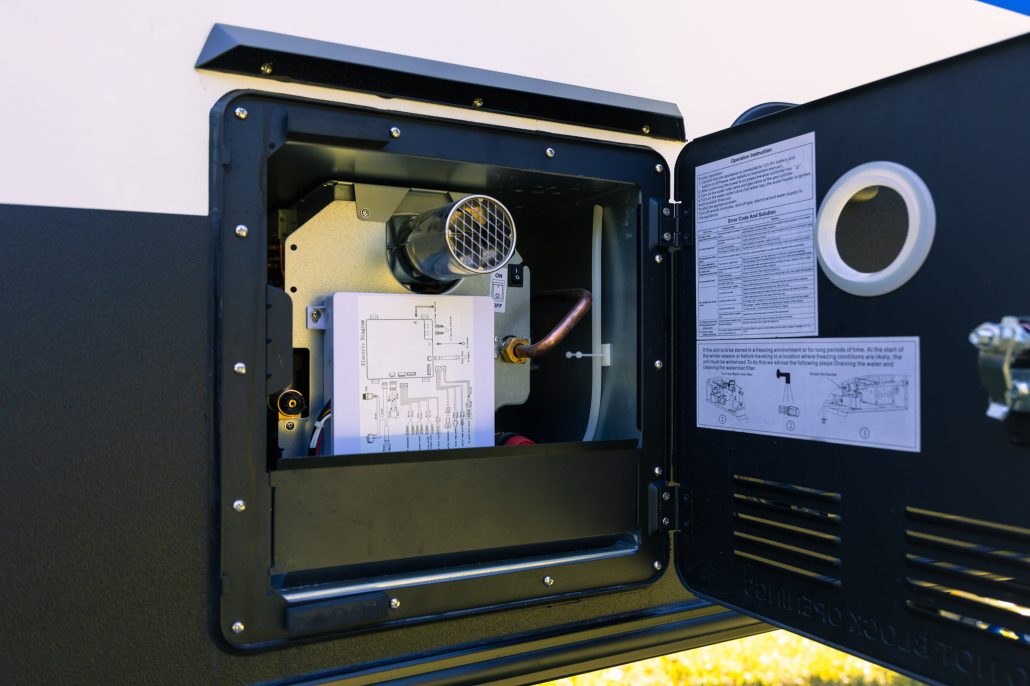

| Hot Water System | Gas Instant Hot water system. |
| Water Filler | Dual secure & lockable water fill points. |
| Water Pumps | 12v pump and external switch. |
| Air Conditioning | Dometic Roof-mounted reverse cycle air conditioning system. |
| Ventilation | Double-glazed tinted slim-line windows with internal screens and block-out blinds. Roof ventilation hatches. |
| Exterior | |

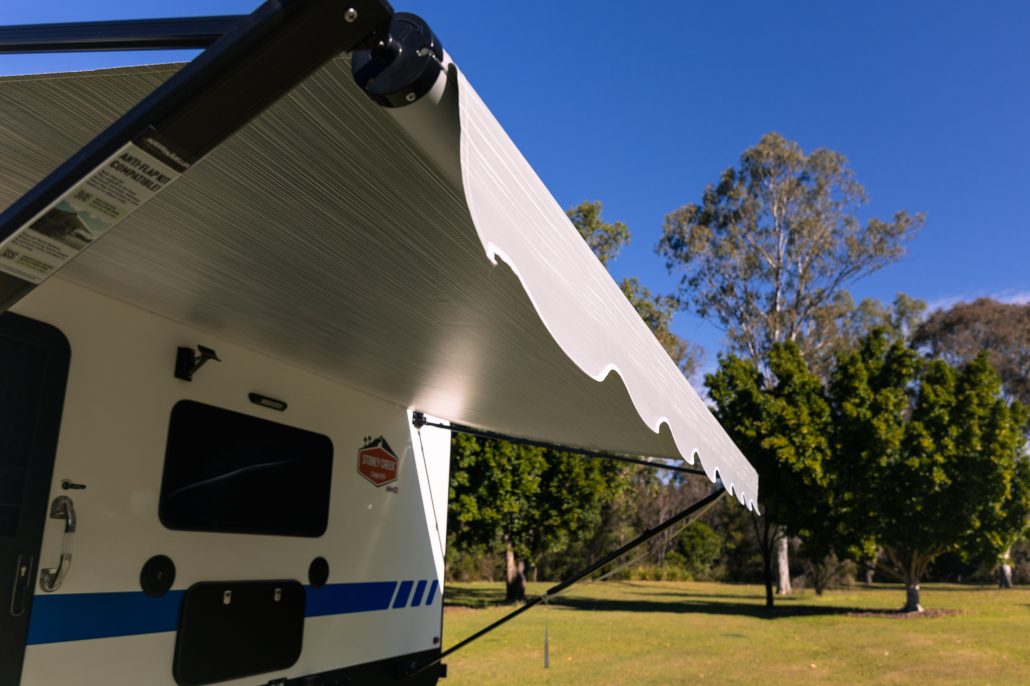

| Awning | Roll out awning with set up and coverage in moments. |
| Kitchen | Slide-out kitchen with cutlery drawer, utensil drawer, and fold-out bench extension with drop-down support legs. High quality 3-Burner (with Flame Failure Device) including wind protection (Australian gas compliant). |
| Sink | Stainless steel basin with hot and cold mixer tap. |
| Gas Bayonet | Exterior kitchen supplied with quick connect / release connection. |

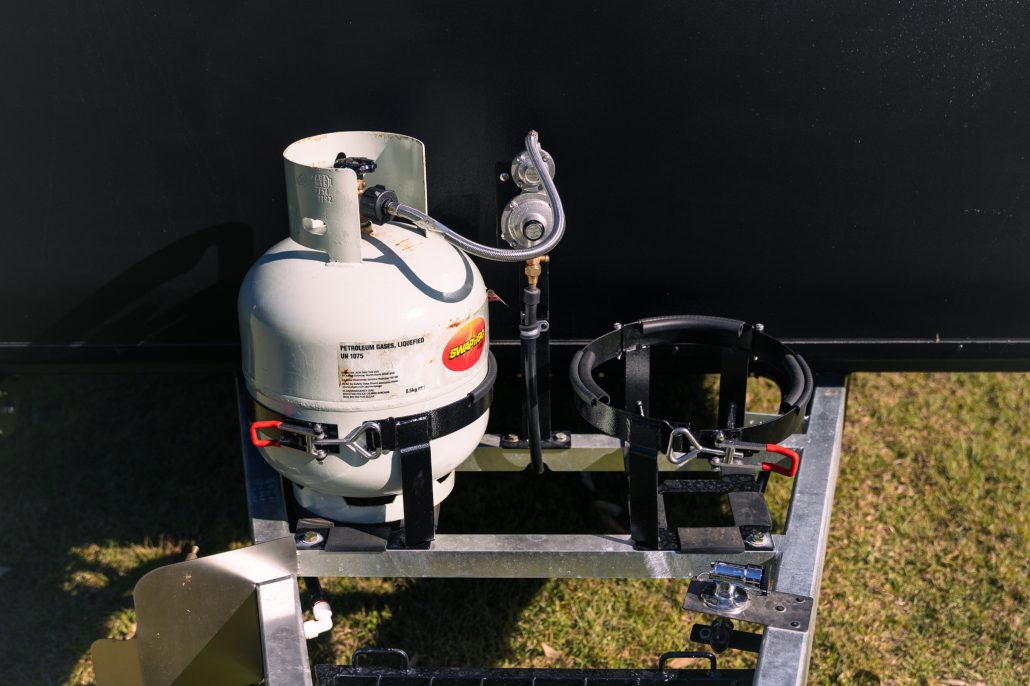

| Gas Bottles | Single 3.7kg gas bottle supplied, with dual gas bottle holders installed and certified by a qualified gas technician. |
| Jerry Can Holder | 20L Jerry can holder for additional fuel or water. |

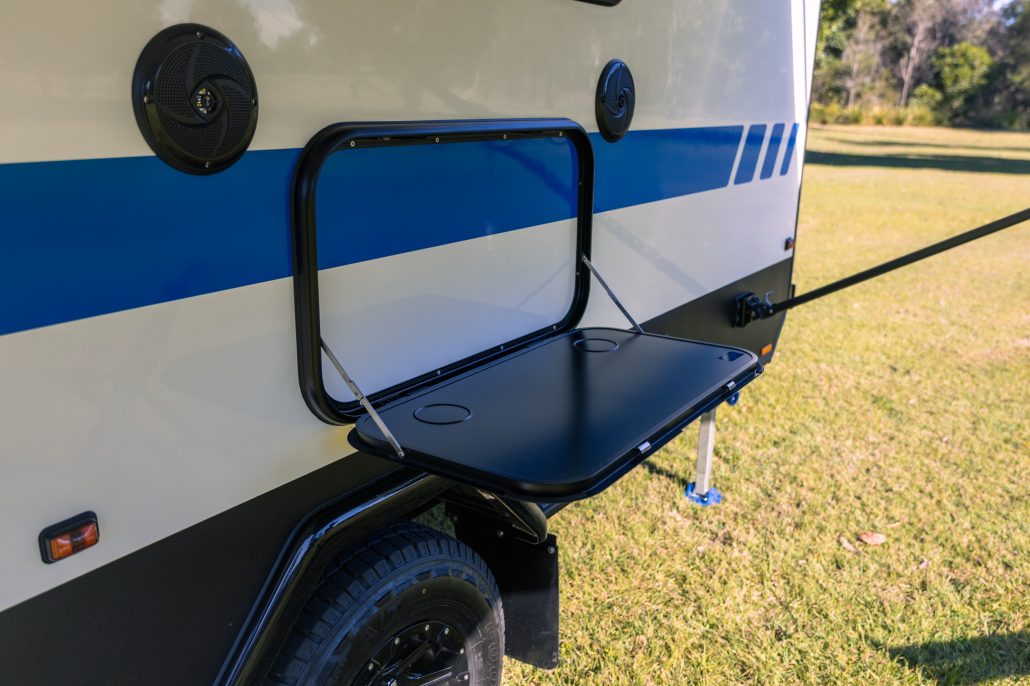

| Table | In-built fold-out table. |
| Lighting | Rear, side and annexe LED lighting. |
| Entry Step | Power-operated double entry step. |
| Interior | |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |

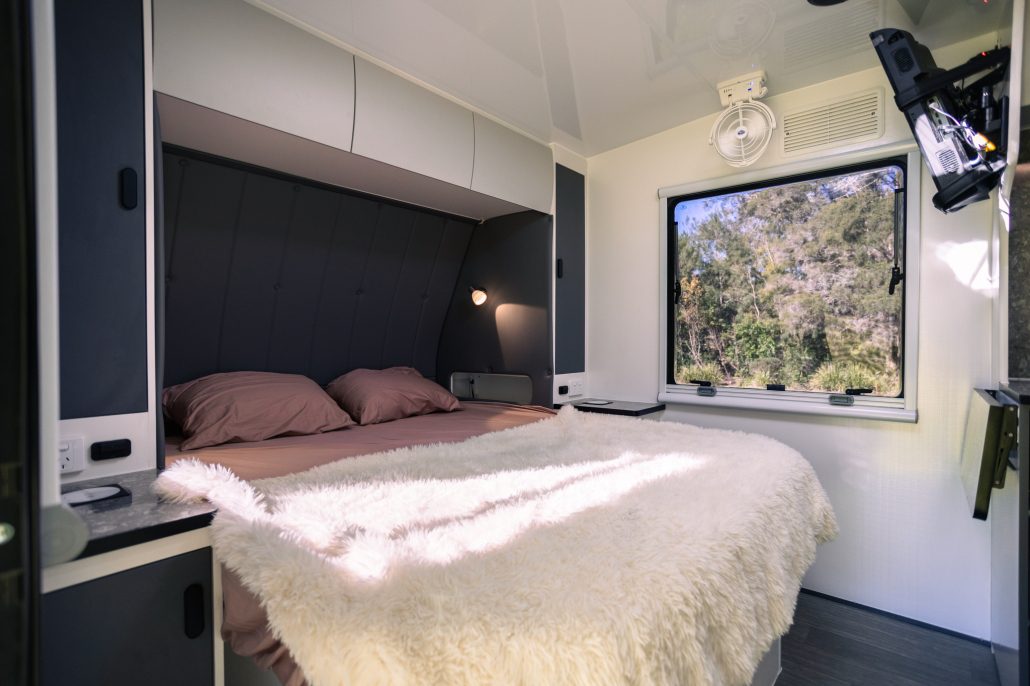

| Main Bed | Queen-style bed with comfortable, high quality memory foam mattress. |
| Kitchen | Stylish Sink with flick mixer, and 3 x burner gas stove top with rangehood. |

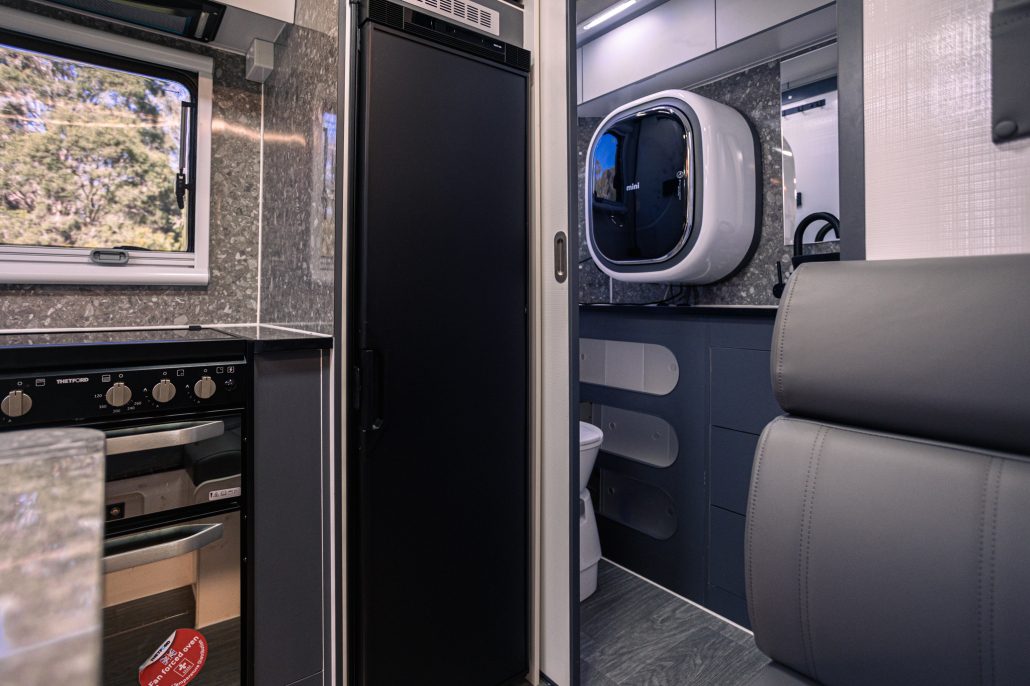

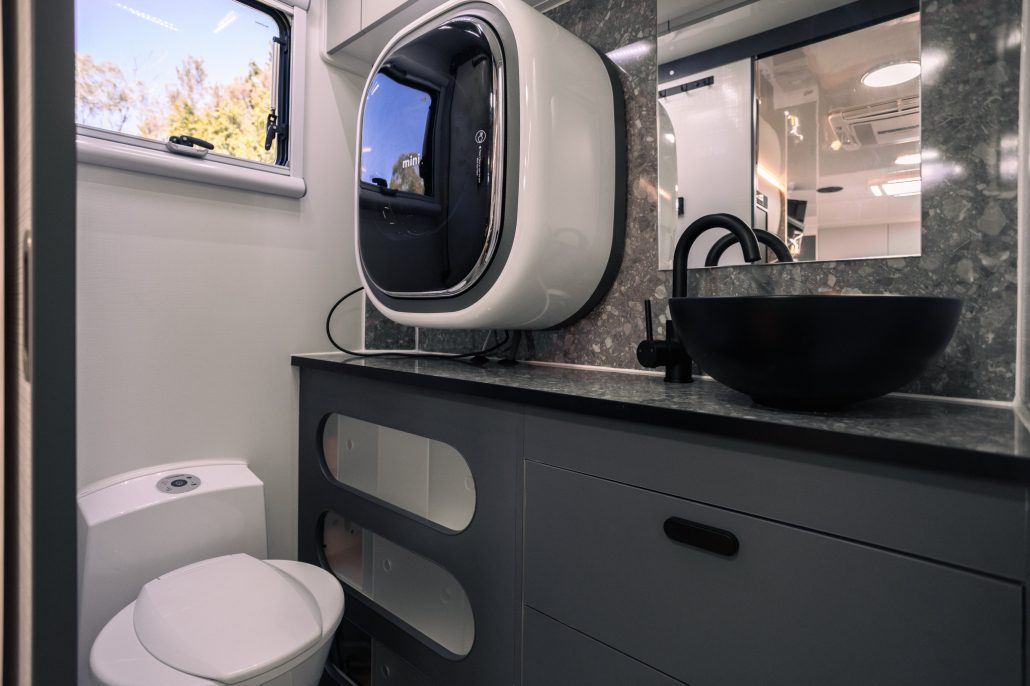

| Ensuite / Bathroom Facilities | Full-size caravan en-suite with spacious shower, separate toilet and dedicated bathroom storage. |
| Lounge | Straight lounge with return with plush cushioning and adjustable table. |
| Fridge/Freezer | 152L Internal Fridge/Freezer. |

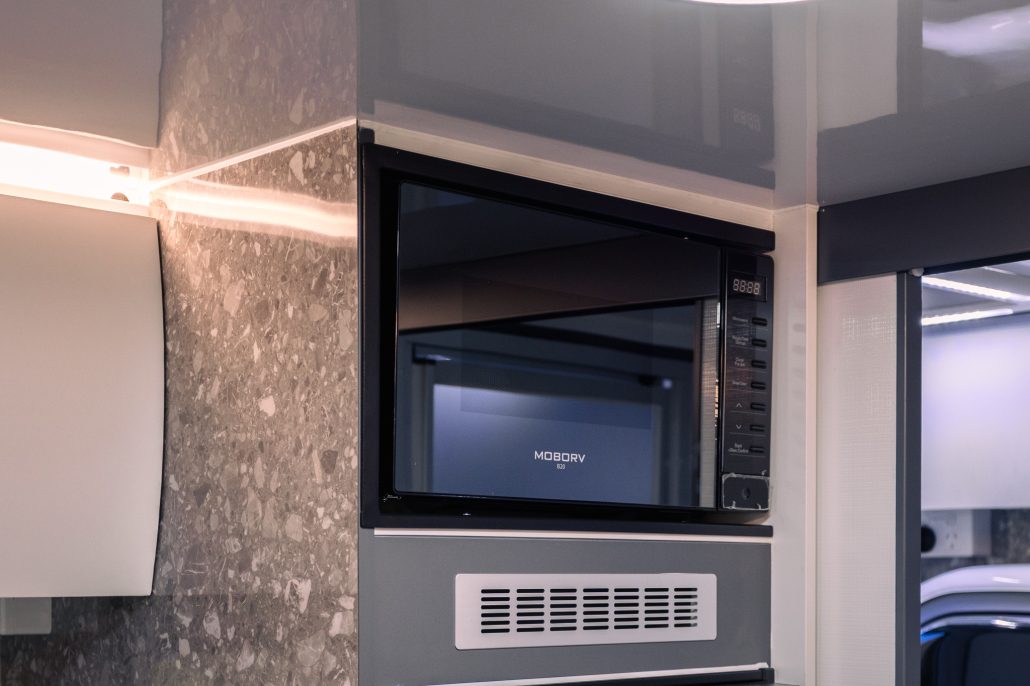

| Microwave | Internal microwave. |

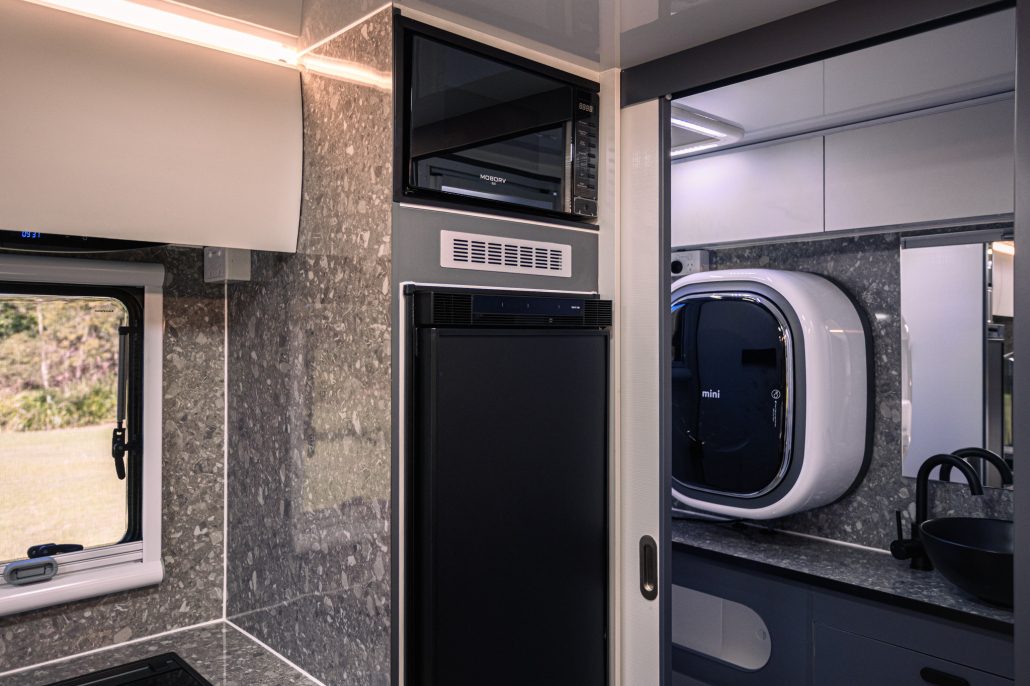

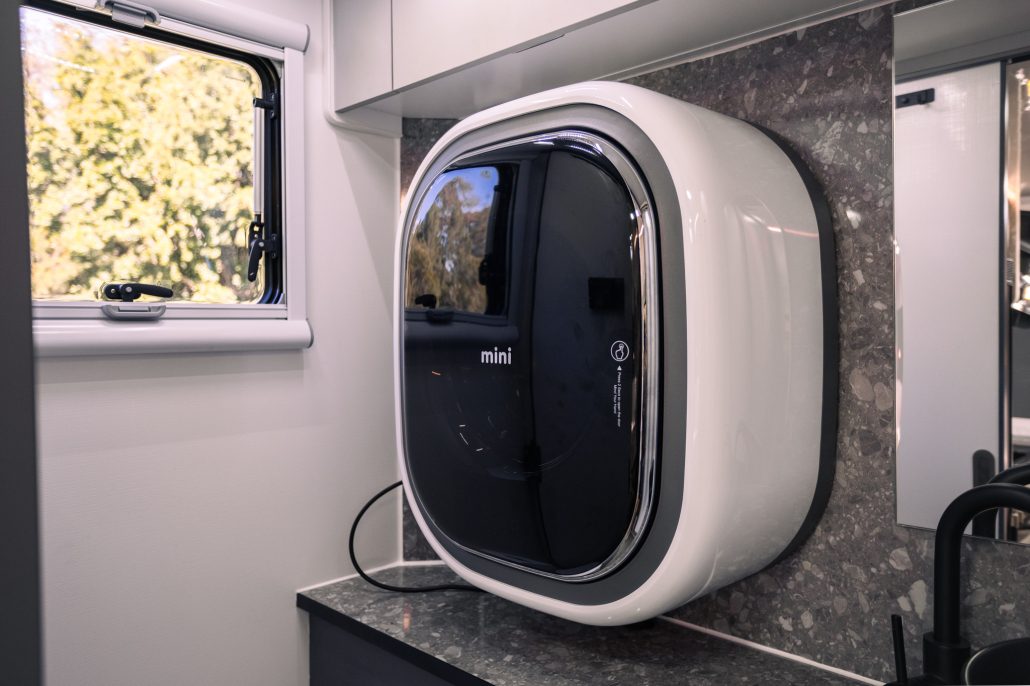

| Washing Machine | 2.5kg wall mounted mini-washer (240V) |
| Flooring | Durable vinyl in a modern design. |
| Lighting | 12V LED reading lamps and 12v ceiling LEDs. |
| Storage | Under-bed and overhead storage compartments. |
| Skylight Hatch | Overhead skylight with in-built LEDs, fly screen and adjustable. |
| Entertainment & Technology | |
| Television | 24″ Smart TV. |
| Television Aerial | 12V Power-boosted aerial. |
| Reversing Camera Kit | Rear-mounted rear vision camera (incl. dashboard monitor). |
| Stereo | Touchscreen entertainment unit & speaker system. |
| Item | Description |
|---|---|
| Awning Upgrades | Extensions and annexes available. |
| BBQ Arm | Powder-coated galvanised steel arm with chequer plate tray and universal drawbar mount. |
| Diesel Heater | 2kw diesel heater and fuel tank. |
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
