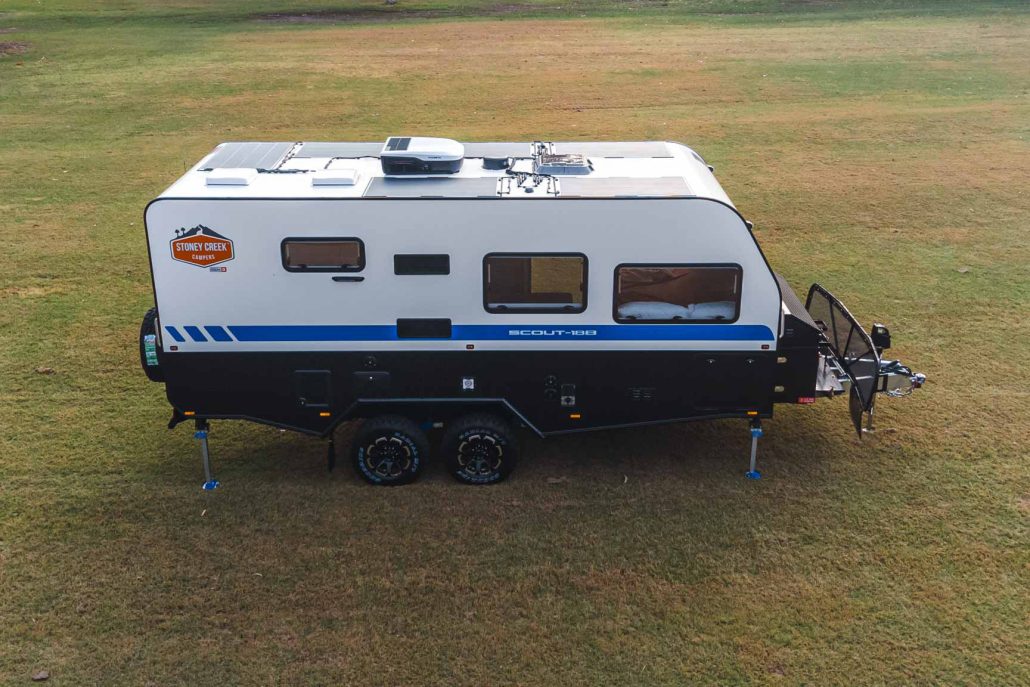

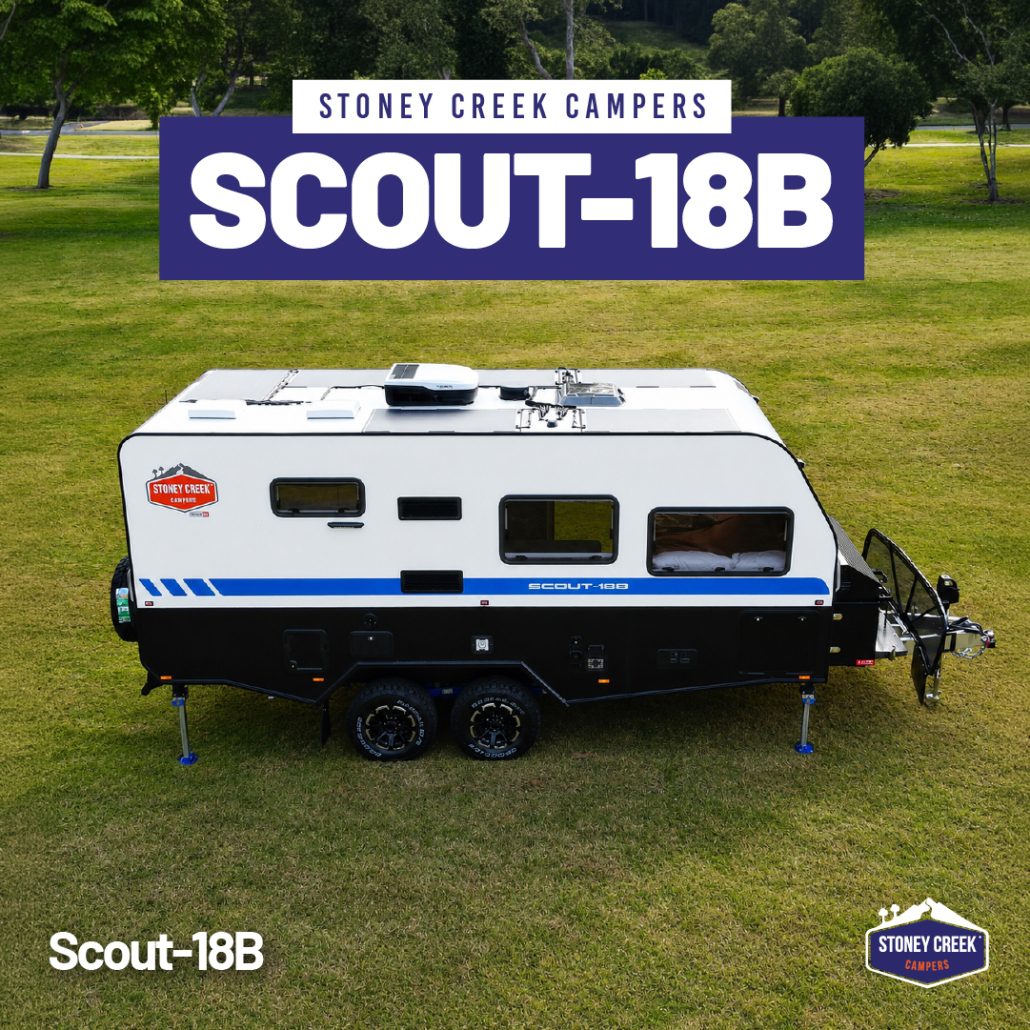

Scout-18B Off-Road Caravan
Scout-18B Off-Road Caravan
Experience luxury, innovation, comfort, and quality with the entire family.

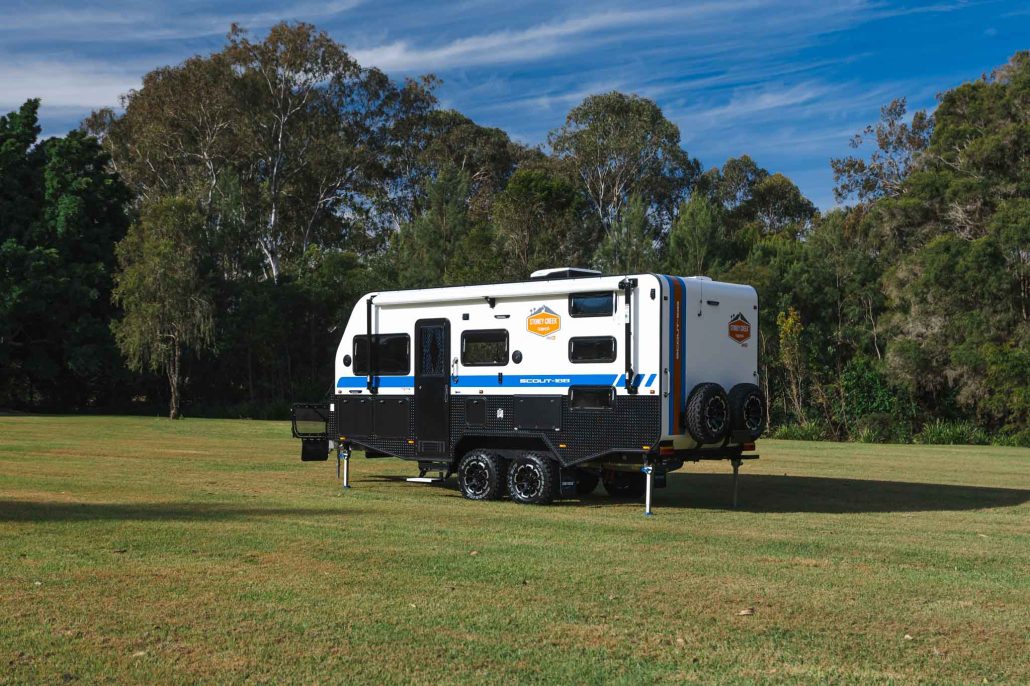

Discover the Scout-18B – Built for Big Adventures and Bigger Families
If you love the camping lifestyle but don’t want to sacrifice the comforts of home, the Scout-18B Off-Road Caravan is your perfect match. With triple bunks and a full-height design, it’s made for families who travel together and adventure hard.
Built tough for Australian conditions, the Scout-18B features advanced airbag suspension for a smooth, stable ride on all terrains—whether you’re tackling the outback or touring the coast.
Modern composite walls and roof deliver outstanding insulation and durability, while the sleek design gives this caravan a contemporary edge. Inside, premium materials and high-end finishes bring comfort and style to every journey.
The Scout-18B is where capability meets comfort, with space for the whole crew and quality that lasts. Your next adventure starts right here.
Check out the key features the Scout-18B has to offer
1
2
3
4
5
6
7
1

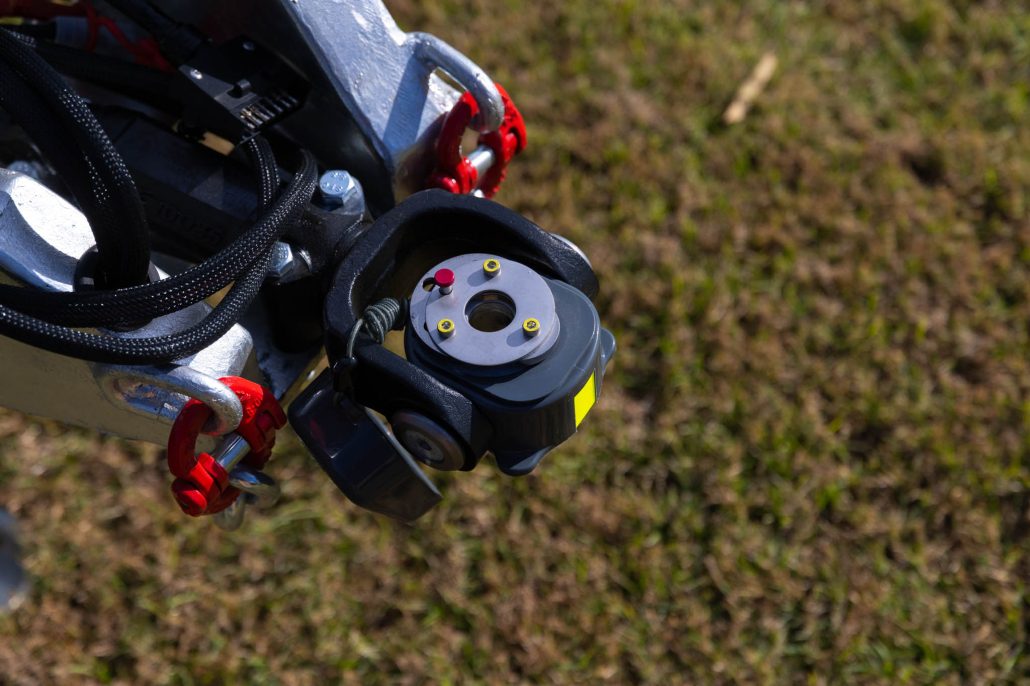

DO35 Hitch
2

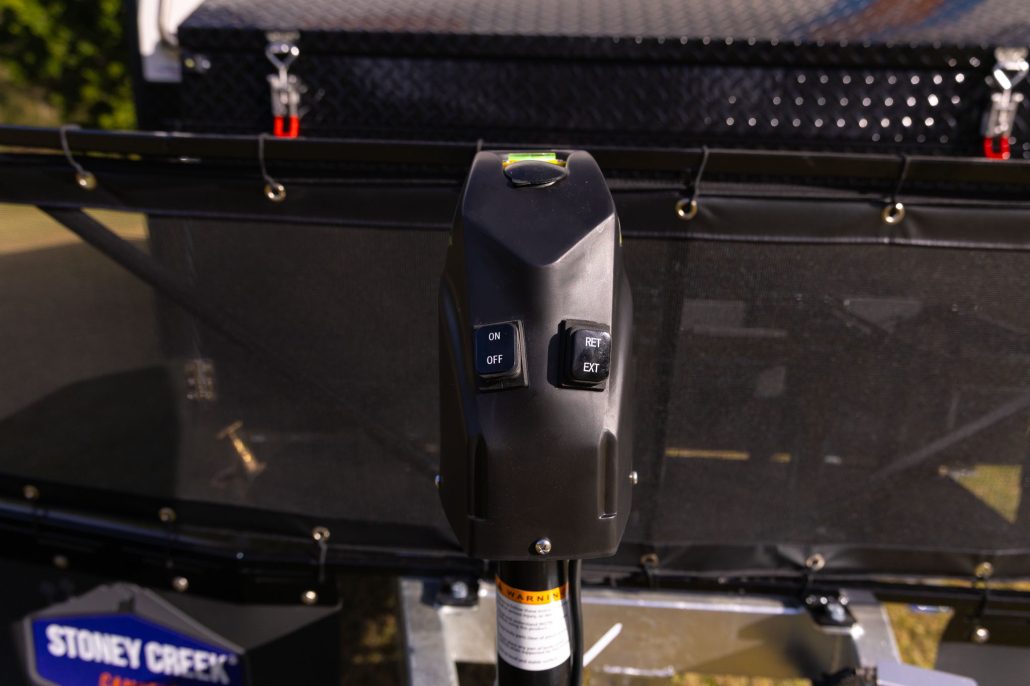

Electric Jack
3

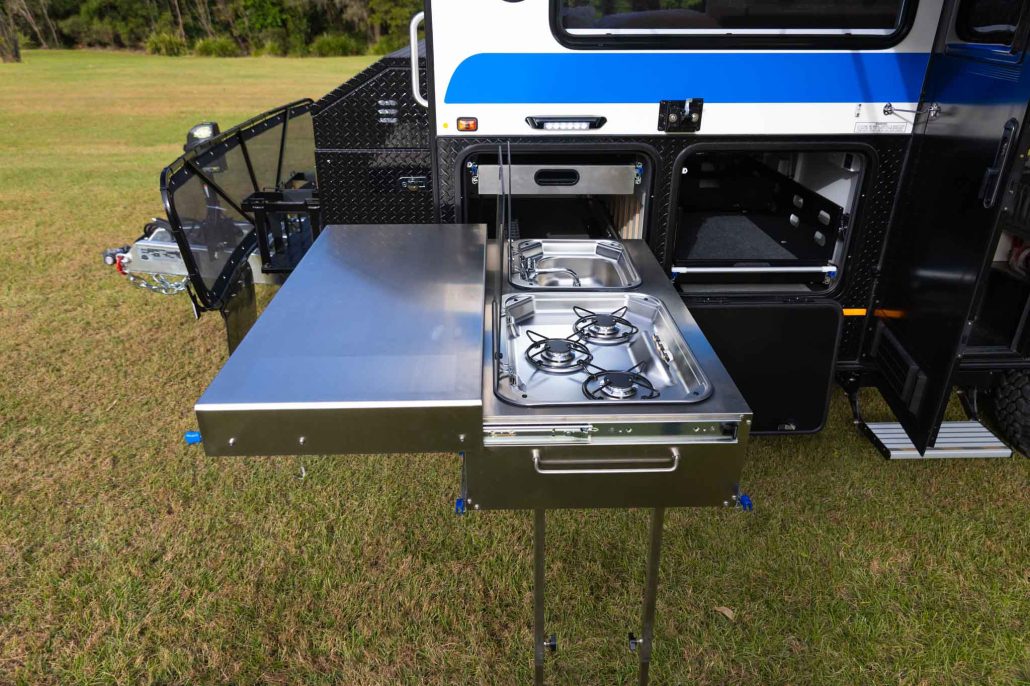

Exterior Kitchen
4
Exterior Toolbox Storage
5
Airbagman Airbag Suspension
6
Gen 3 Composite Material
7
Wind-out Awning
1
2
3
4
5
6
7
8
9
10
11
1

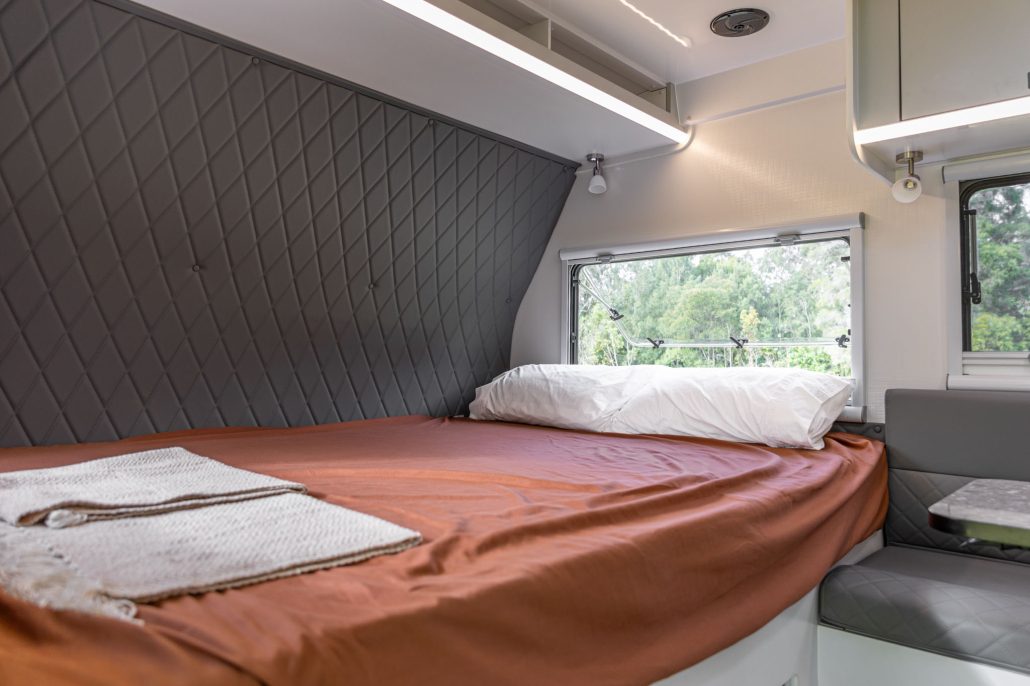

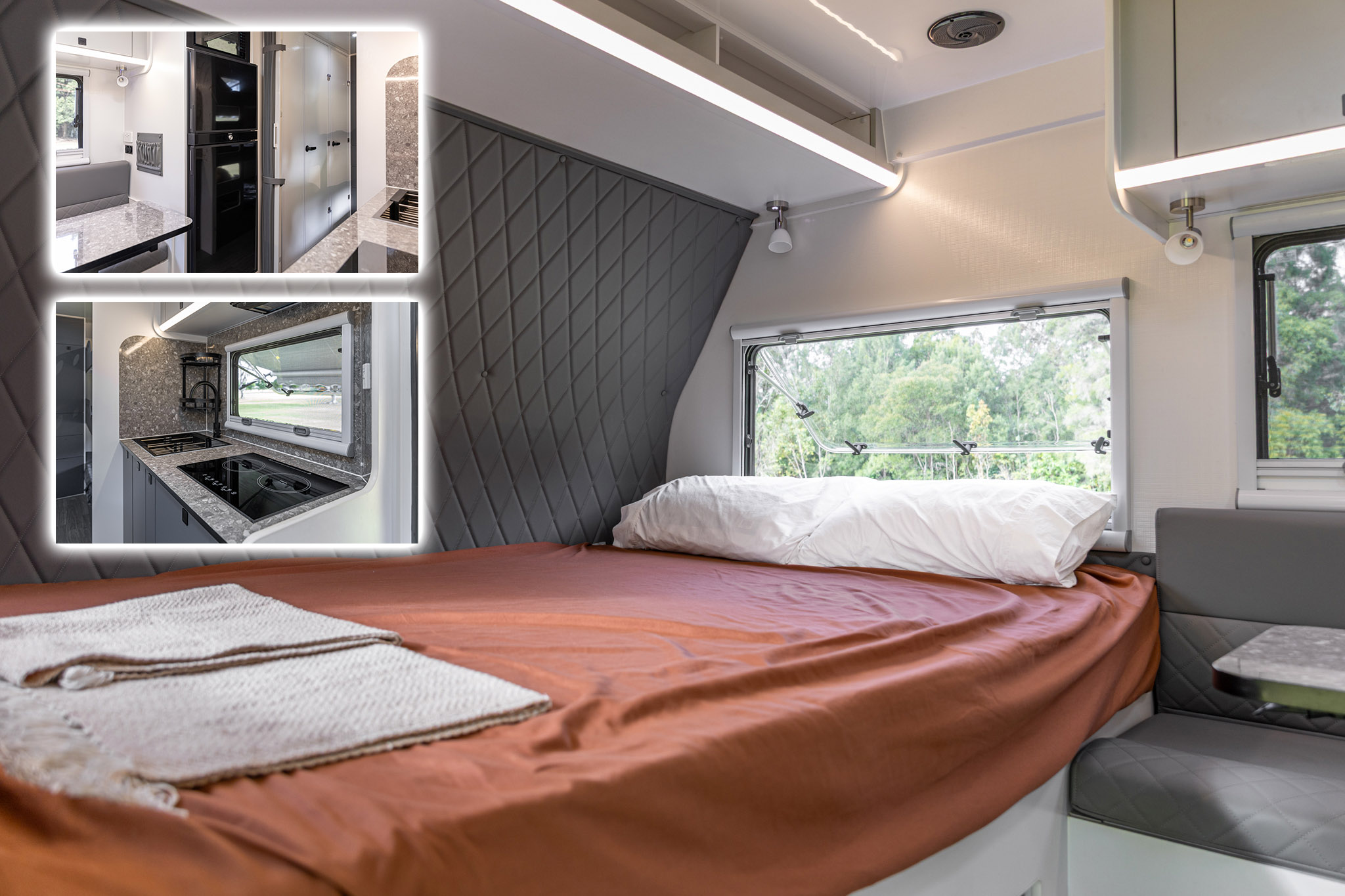

Queen Style Bed
2

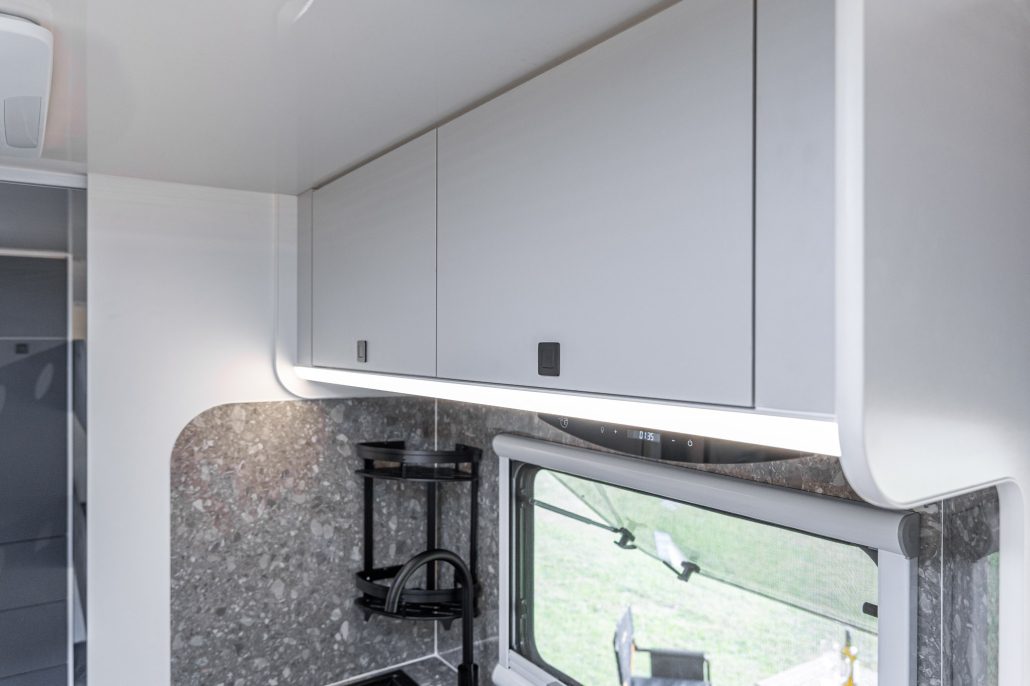

Extensive storage
3
240 & 12v points throughout
4
180L Full Size Fridge/Freezer
5

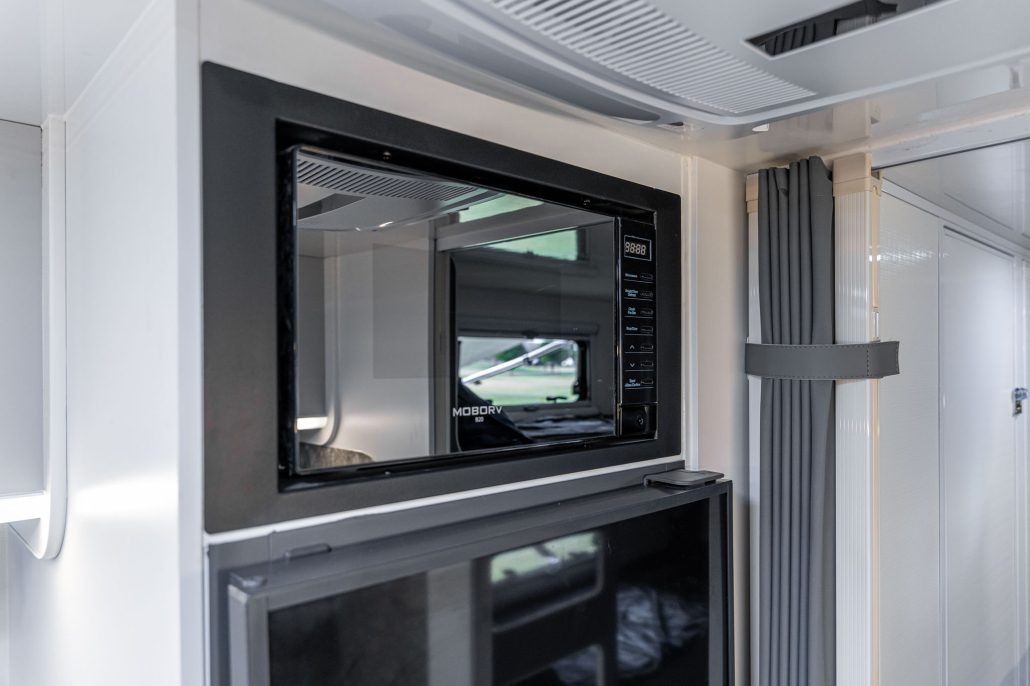

Microwave
6

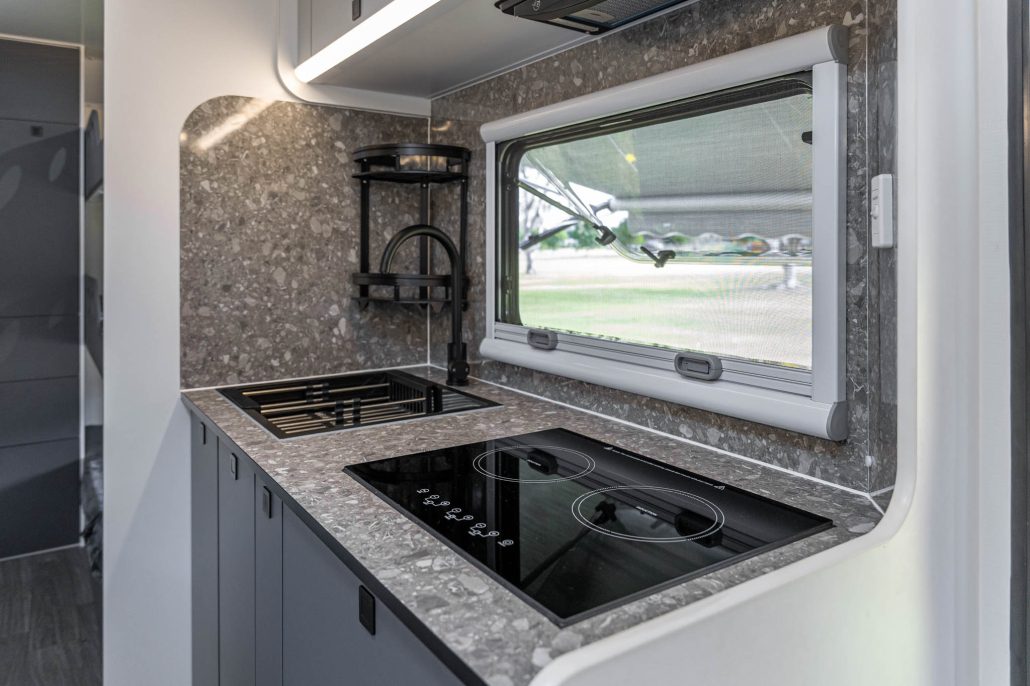

Induction Stovetop & Rangehood
7
Sink with hot/cold water
8

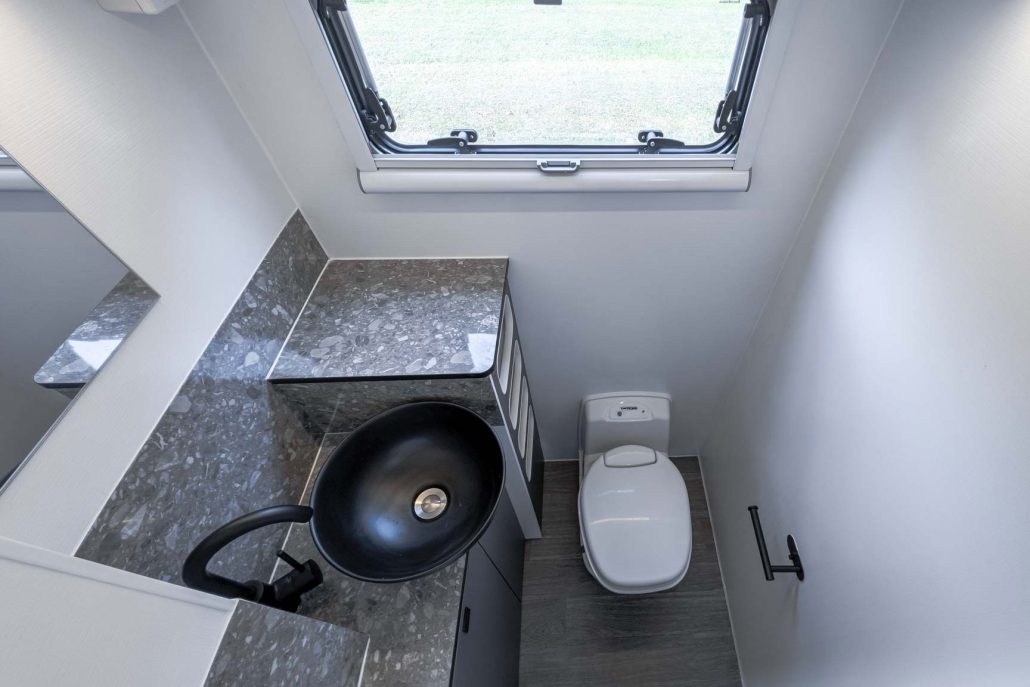

Ensuite with separate toilet & shower. Plenty of storage.
9
Interior Lounge & Table
10

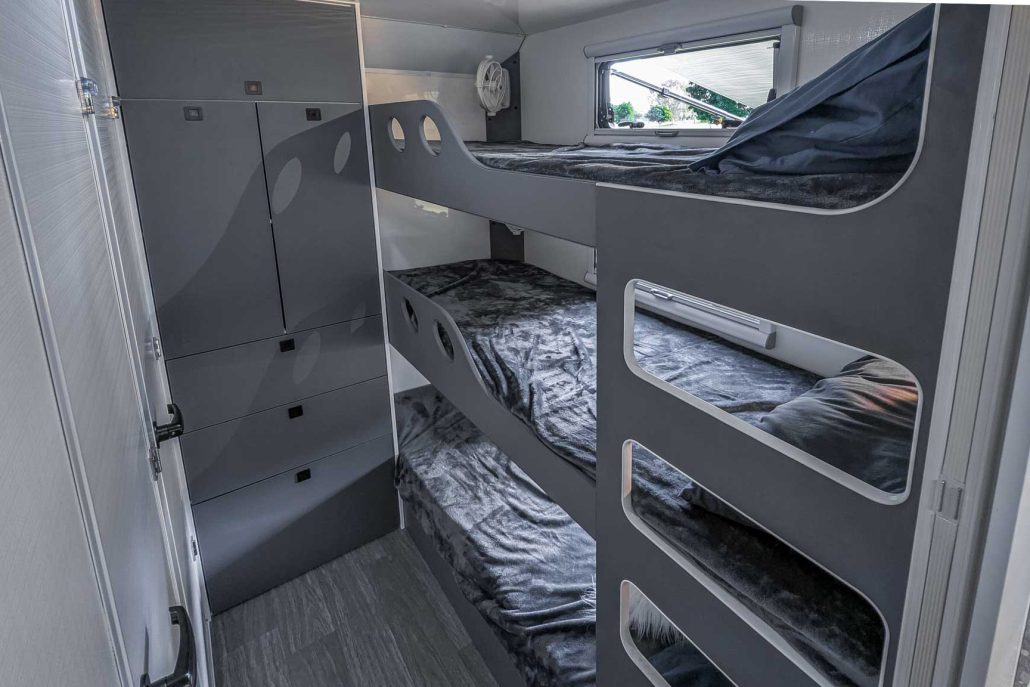

Large Triple Bunks
11
Sliding Door
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Overall Length (mm) | 7650 |
| Body Length (mm) | 5500 |
| Travel Height (mm) | 2950 (airbags @ 45psi highway driving pressure) |
| External Width (mm) | 2400 |
| Tare Weight (kg) | 2745 |
| ATM Weight (kg) | 3500 |
| Ball Weight @ tare (approx) (kg) | 265 |
| Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. | |

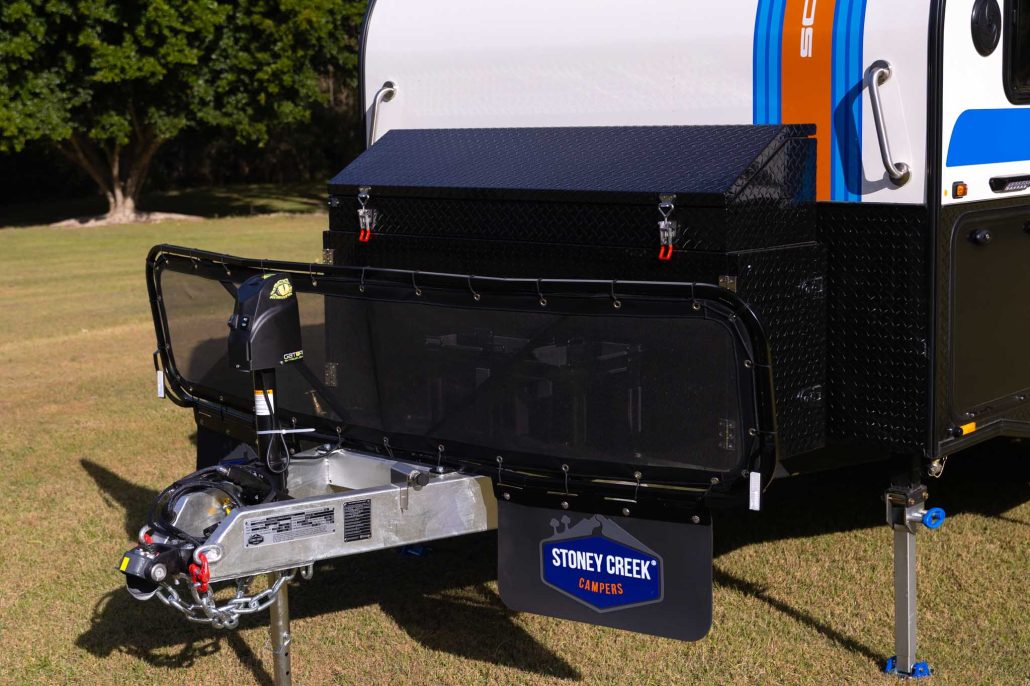

| Toolbox (mm) | 1530 x 430 x 880 |
| Chassis, Suspension & Tyres | |
|---|---|
| Frame | Hot-dipped galvanised frame to protect against corrosion with 6″ x 2″ main members. |
| Wall Structure | Composite wall structure providing strength, insulation, and a curved, aerodynamic, smooth skin, and hail & dent-resistant. |
| Stone Guard | Front stone guard for protection in-line with front toolbox unit to protect van and tow vehicle against rock damage and ricocheting stones. |

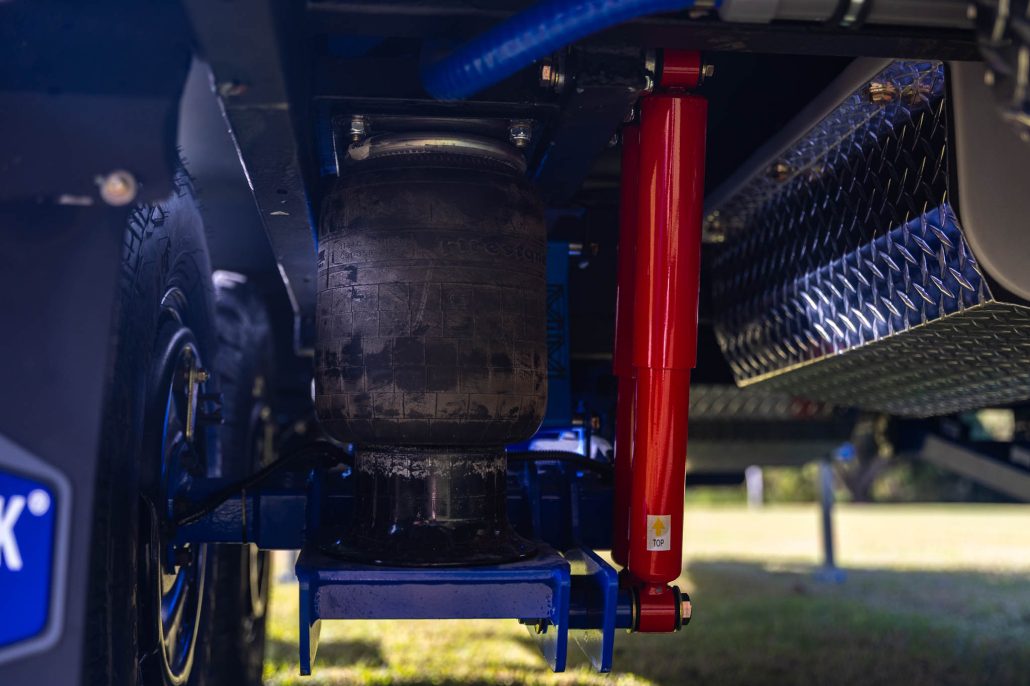

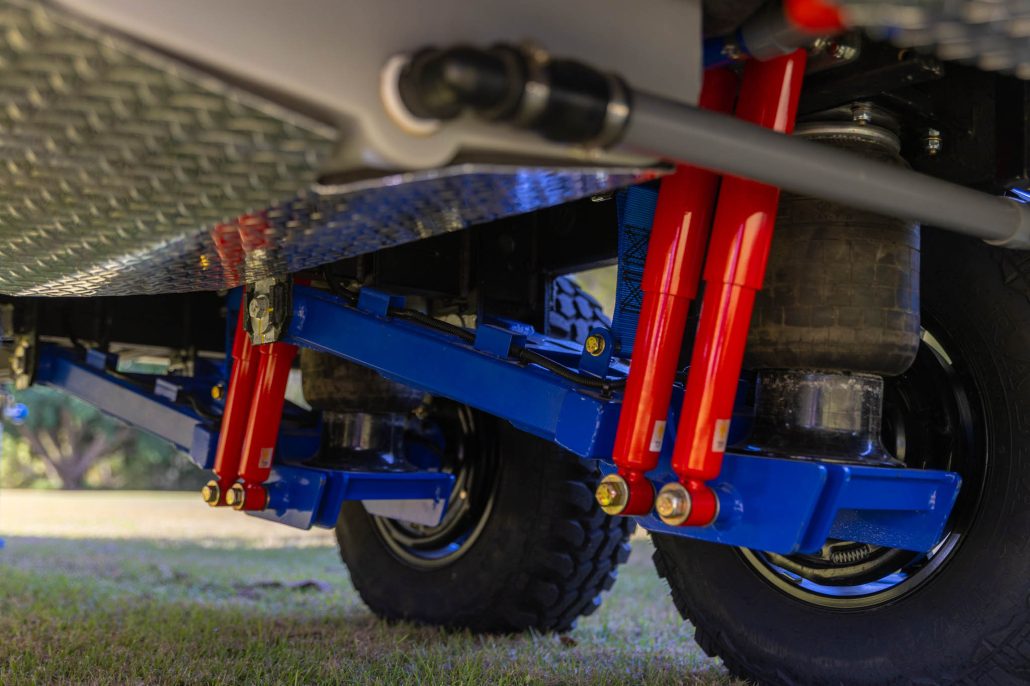

| Suspension | Tandem Axle with independent trailing arm suspension with dual shock absorbers and Airbag Man airbags. |
| Suspension Fixings | High tensile fixings. |
| Tyres | Mud Terrain 235/75R15 tyres (incl. two spares). |
| Wheel Rims | 15″ alloy rims for added strength and reduced weight (incl. two spares). |
| Tyre Pressure | Tyre pressure as per Stoney Creek Campers owners manual. |

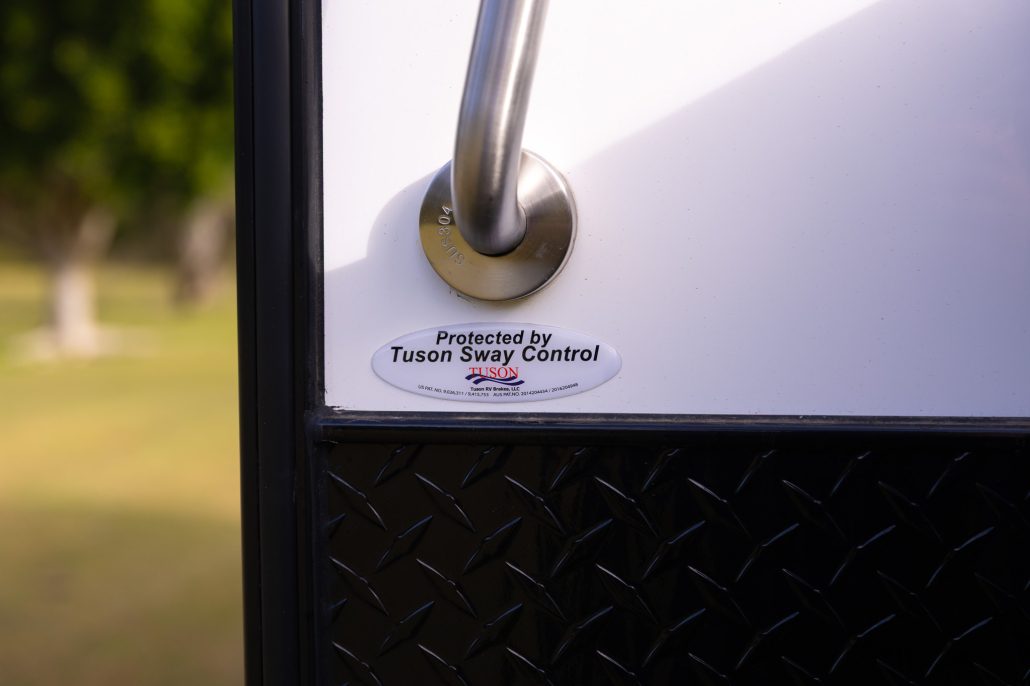

| Stabilisation | Tuson sway control. |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |
| Jockey Wheel | Electric Jockey Stand. |
| Brakes | 12″ heavy-duty electric brakes with breakaway safety system and handbrake. |
| Chains | 2 x ADR compliant safety chains with ‘D’ shackles. |
| Coupling | Cruisemaster DO35 All-Terrain Coupling. |
| Doors & Hinges | High quality metal hinges (not plastic) bolted to the frame (not screwed). Adjustable latches on all external doors allow for easy adjustment. |
| Drop Down / Stabiliser Legs | Corner wind-down support legs (for stabilisation only). |

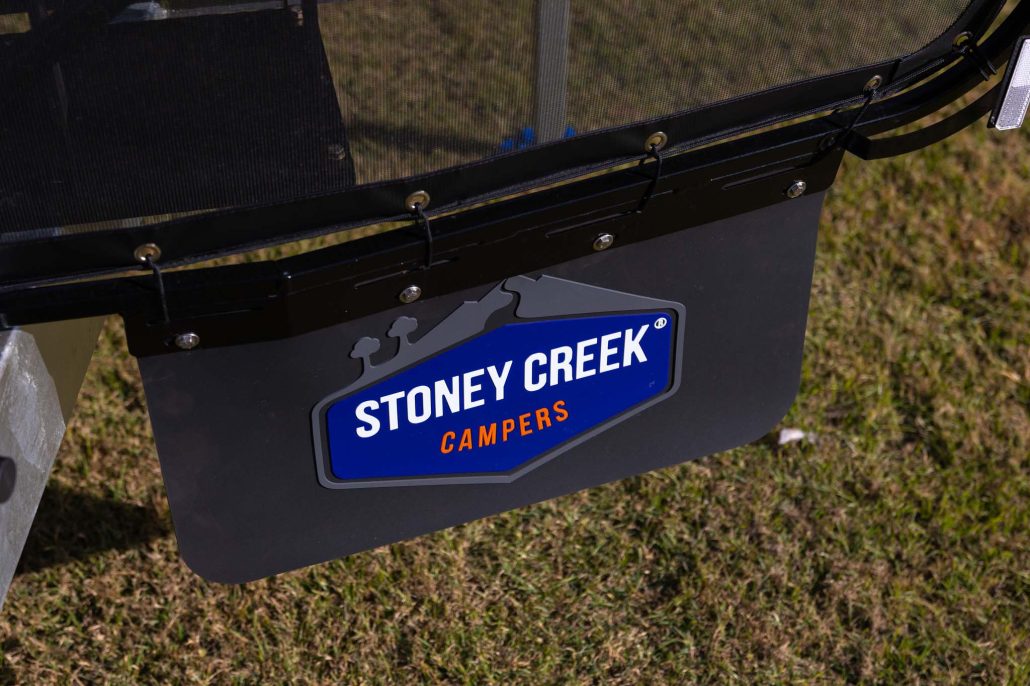

| Mud Flaps | Heavy duty, durable mud flaps. |
| Power & Electrical | |
|---|---|

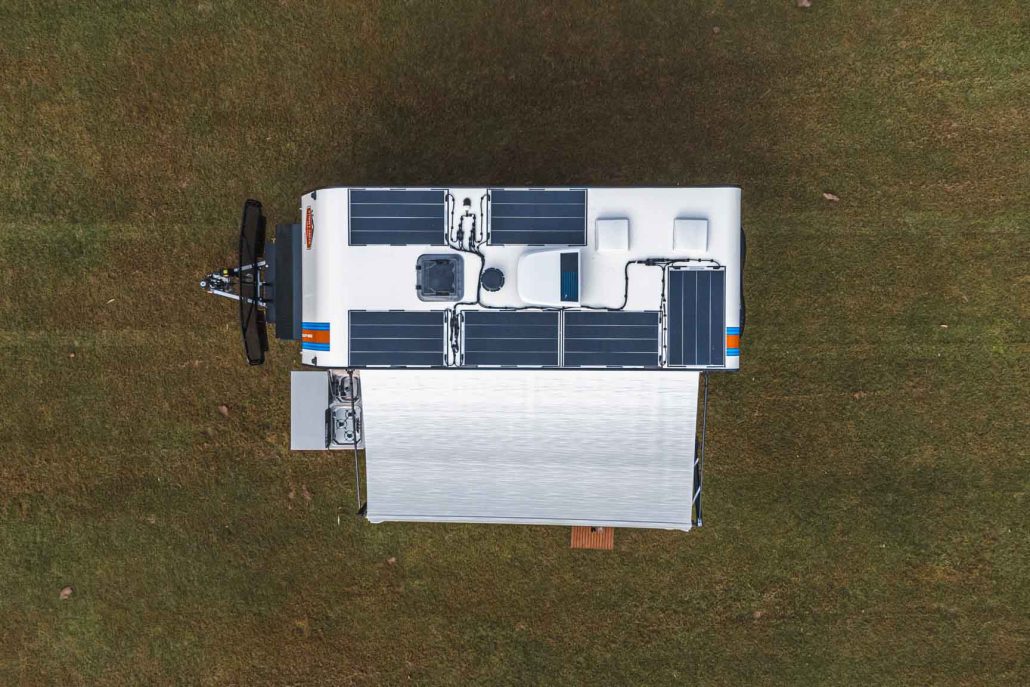

| Solar Power System | Roof-mounted panels and regulator (900w). |
| Battery | 2 x 230 Ah Haidi Lithium Battery Bank featuring advanced LFP (Lithium Iron Phosphate) Technology, delivering high-capacity, deep-cycle power with exceptional efficiency, long lifespan and proven reliability for extended off-grid use. |
| Inverter | Renogy 3000W Pure Sine Wave Inverter for powerful and stable off-grid performance. |
| Power (240V) | 240V Management and 30 amp charger |
| Mains Connector | Mains pressure to van. |

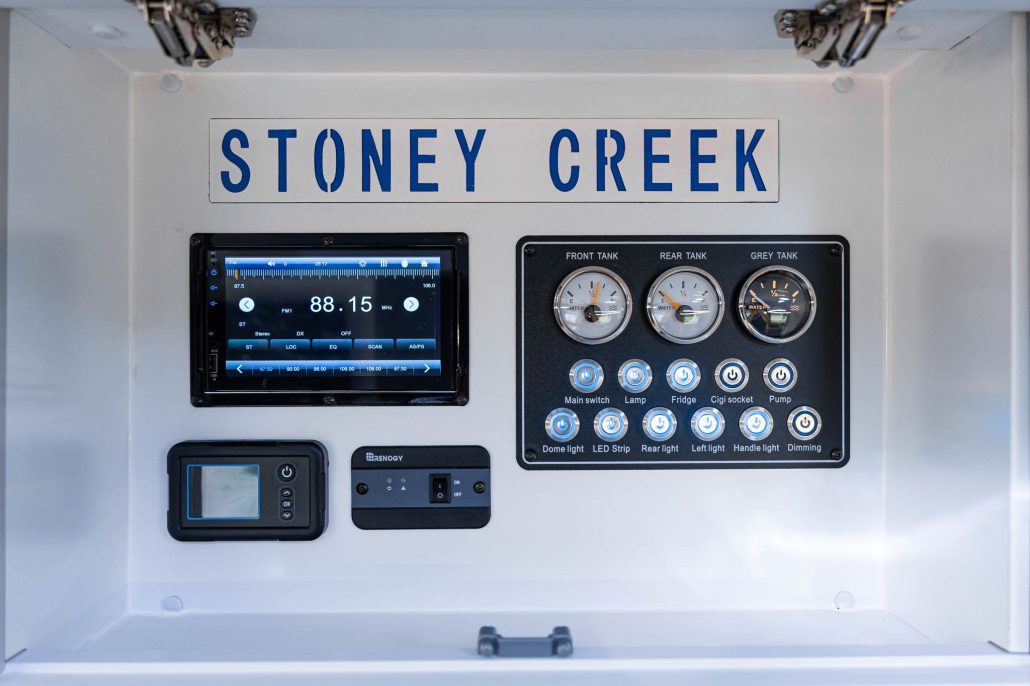

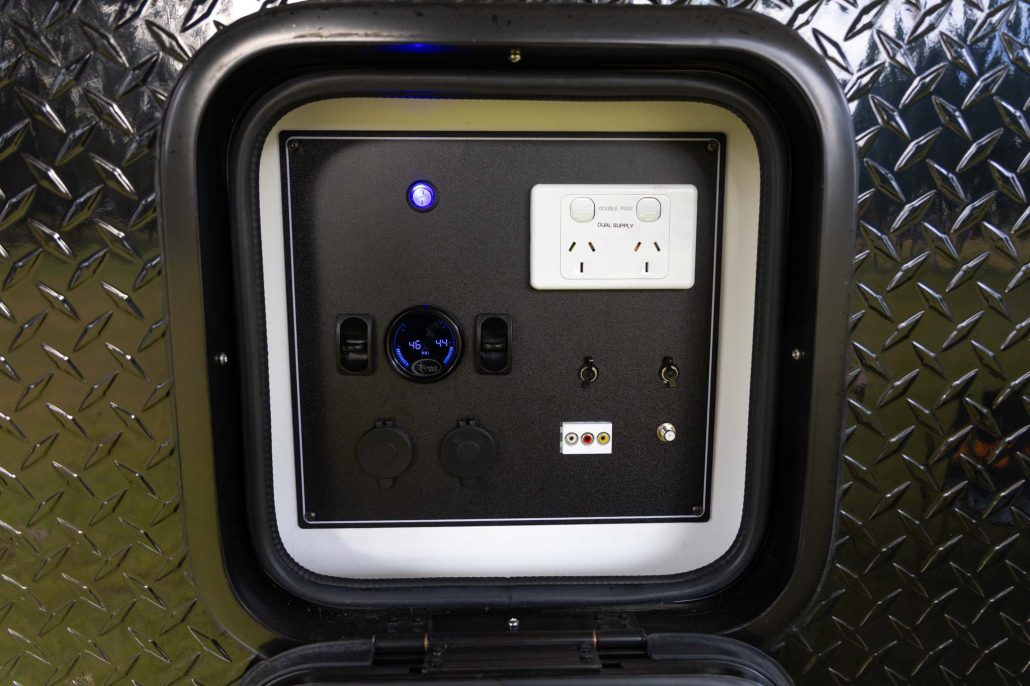

| Control Panel | All-in-one marine-style control panel with gauges for power and water. |
| DC-DC Charger | Victron DC-DC Smart Charger. |
| Fuses | Resettable fuses. |
| Water System & Ventilation | |

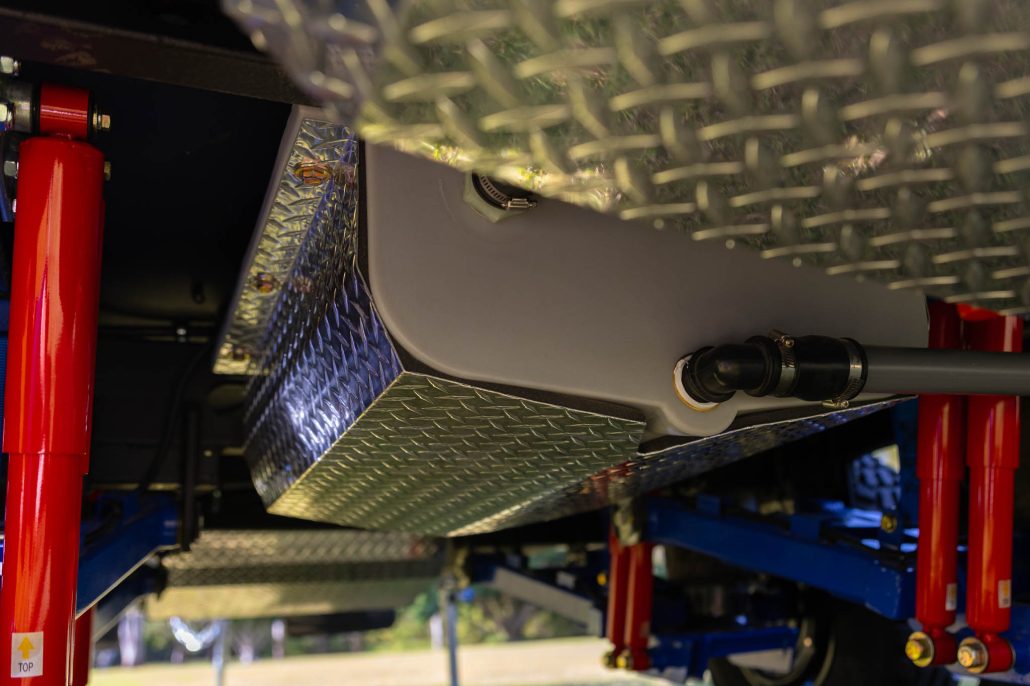

| Water Tank (Fresh) | Dual 120-litre poly water tanks. |
| Water Tank (Grey) | 80-litre poly water tank. |

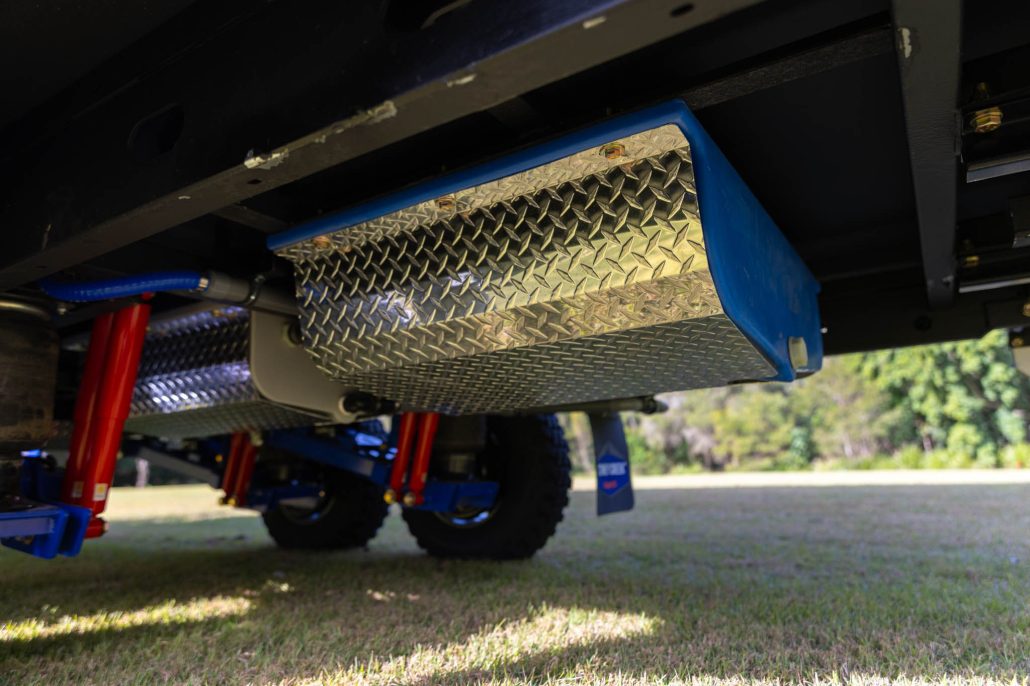

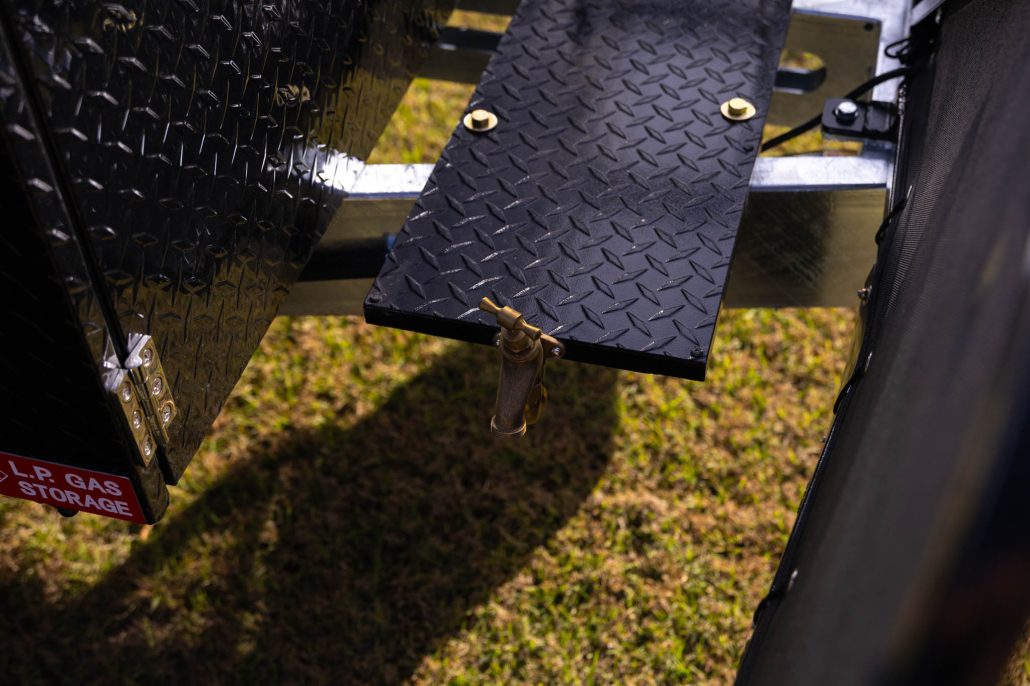

| Water Tank Protection | Chequer plate water tank guard. |
| Hot Water System | Truma gas hot water system. |

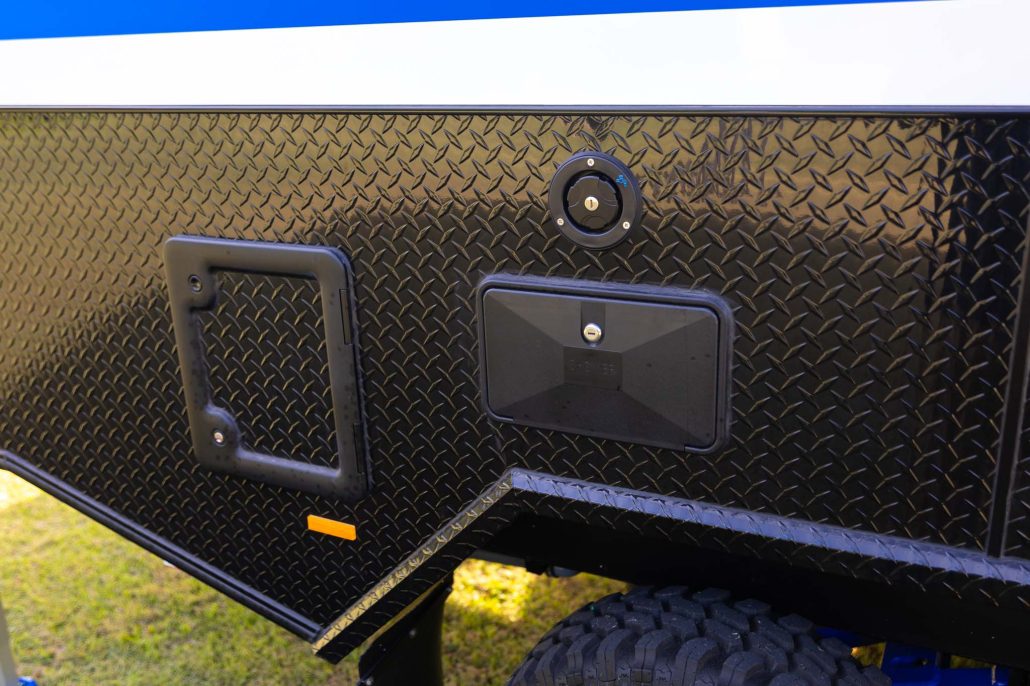

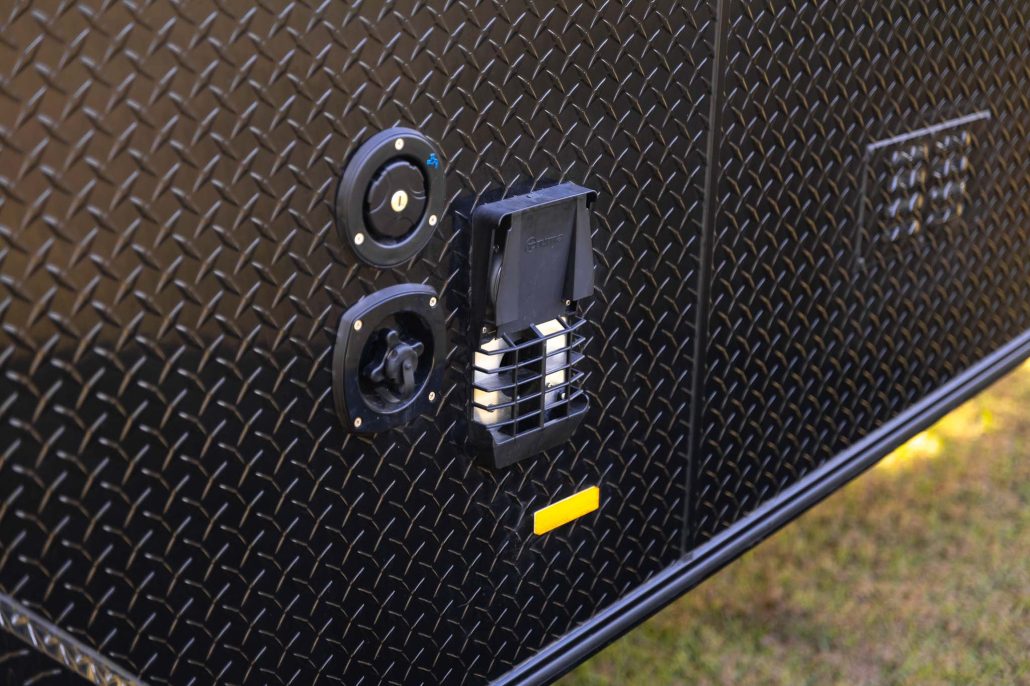

| Water Filler | Dual secure & lockable water fill points. |
| Water Pumps | 12v pump and external switch. |

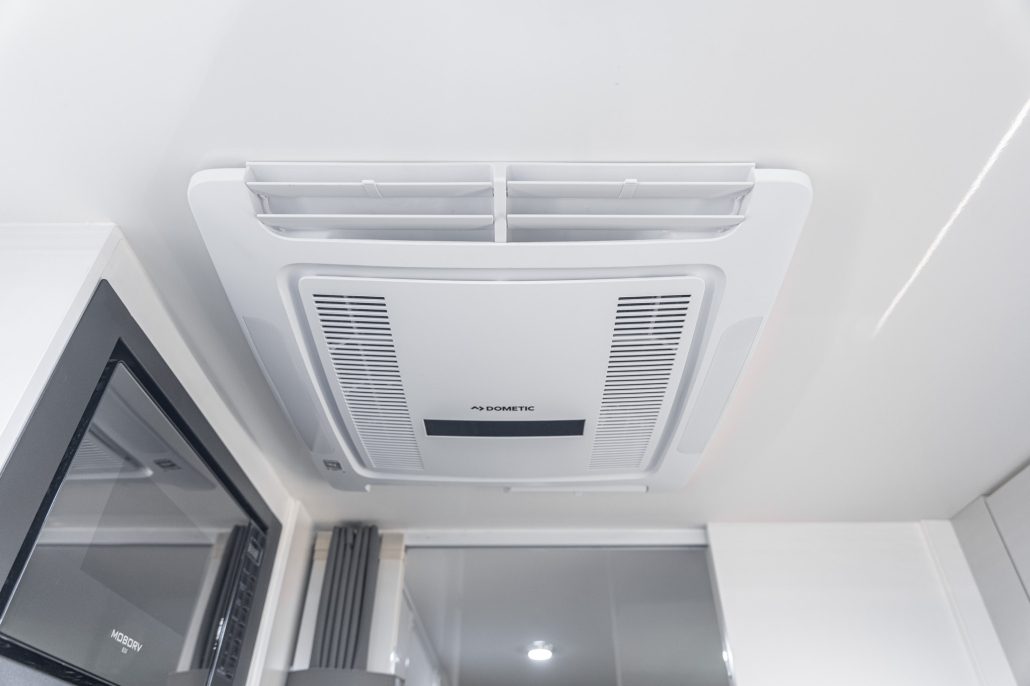

| Air Conditioning | Roof-mounted reverse-cycle air conditioning system. Inverter-compatible and can operate from the onboard battery system via the fitted inverter when off-grid. *Runtime will vary depending on battery, capacity, state of charge and overall system load. |
| Ventilation | Double-glazed windows with internal screens and block-out blinds. |
| Exterior | |

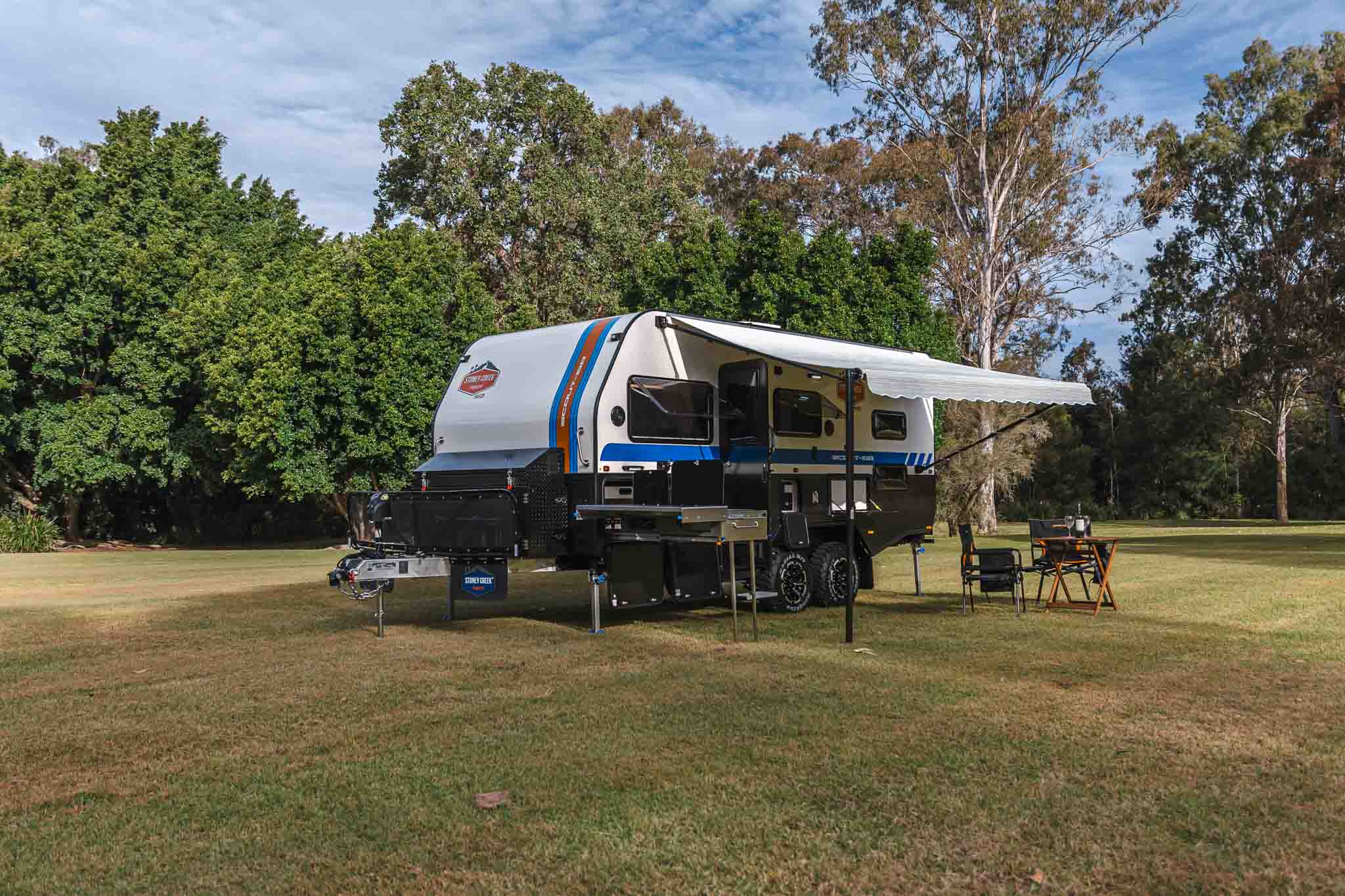

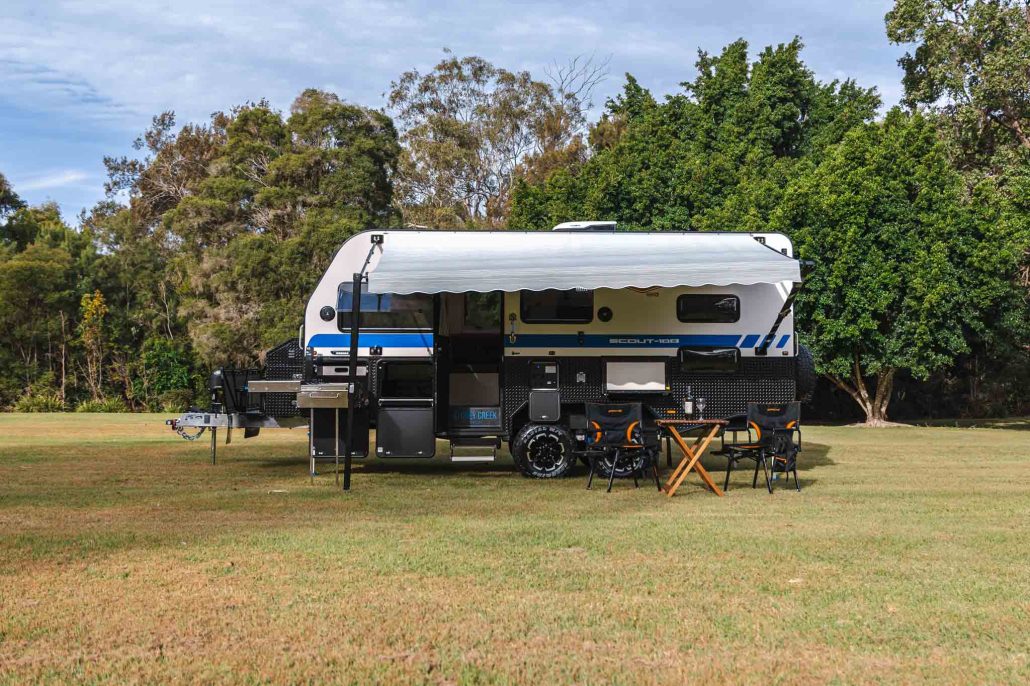

| Awning | Roll out awning. |

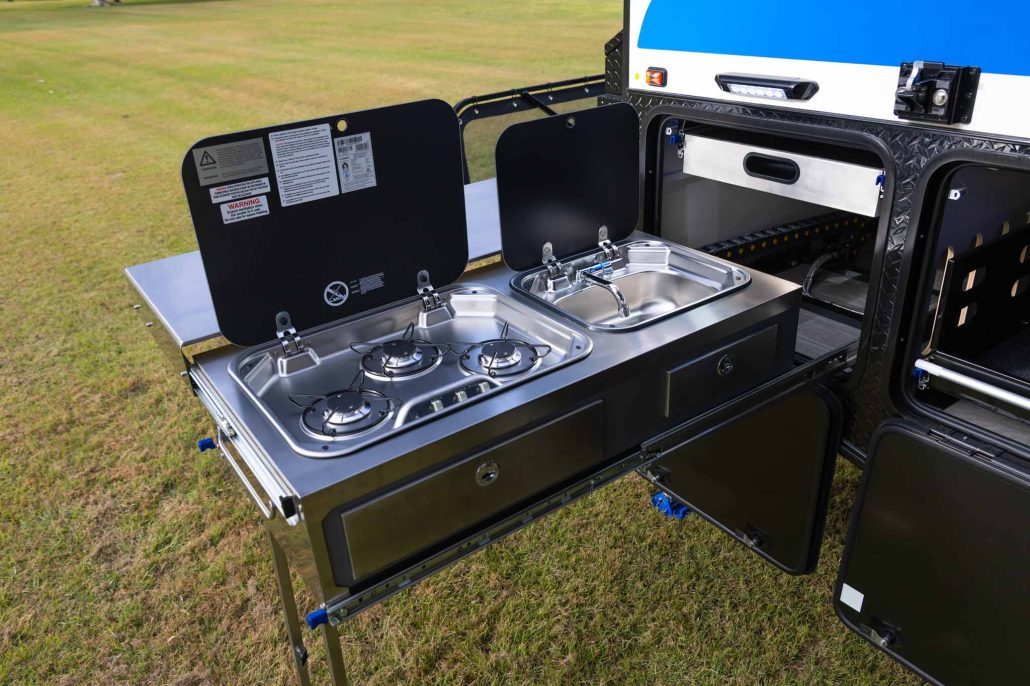

| Kitchen | Pull out kitchen with cutlery drawer, utensil drawer, and slide-out bench extension with drop-down support legs. |
| Sink | Stainless steel basin with hot & cold mixer taps. |
| Gas Stove Top | High quality 3-Burner (with Flame Failure Device) including wind protection (Australian gas compliant). |
| Gas Bayonet | Exterior kitchen supplied with quick connect / release connection. |
| Gas Bottles | 2 x 3.7kg gas bottles positions provision plumbed and certified by a qualified gas technician. |
| Jerry Can Holders | 2 x 20L Jerry can holder for additional fuel or water. |

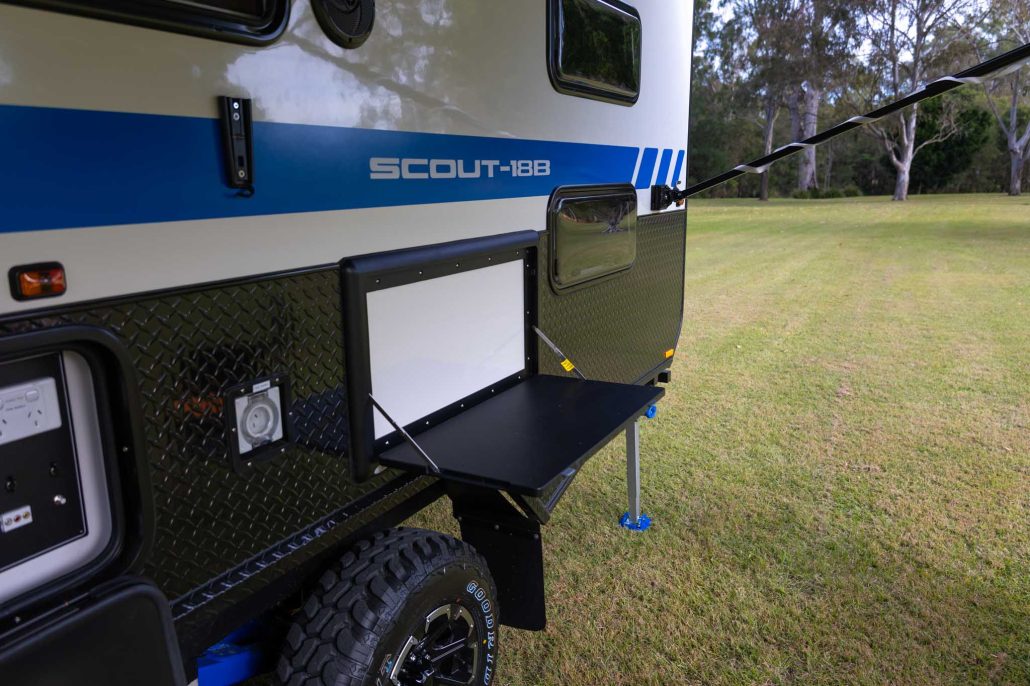

| Table | In-built fold-out table. |
| Lighting | Rear, side and annexe LED lighting. |
| Storage | Large offside storage areas. |
| Step | Power-operated single entry step. |
| Toolbox | Large A-frame toolbox for gas and generator (2Kva) storage. |
| Chequer Plate | Protective (black). |
| Interior | |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |

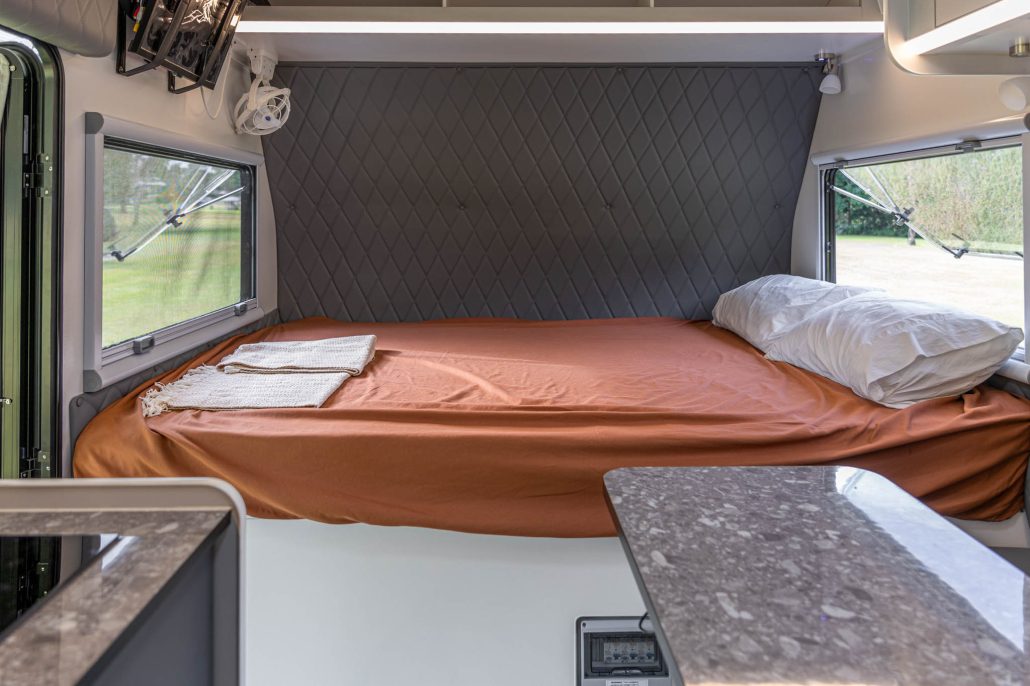

| Main Bed | Queen bed with comfortable, high quality memory foam mattress. |

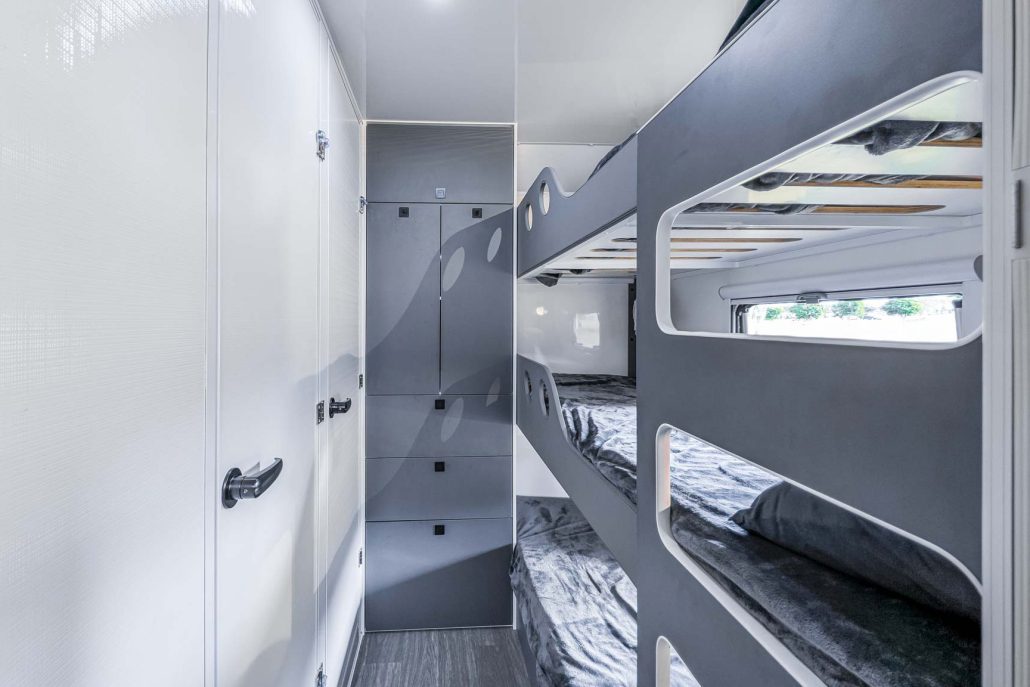

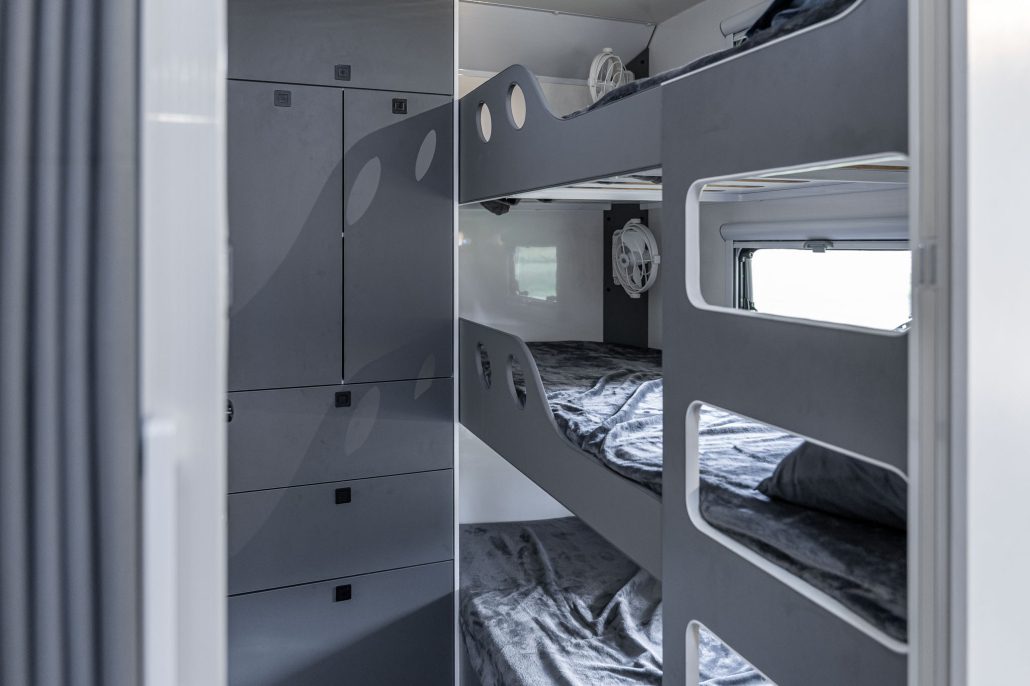

| Bunk Bed | Large triple bunk beds with sectioned sliding door for privacy from living area. |
| Kitchen | Induction stove cooktop with range hood. |

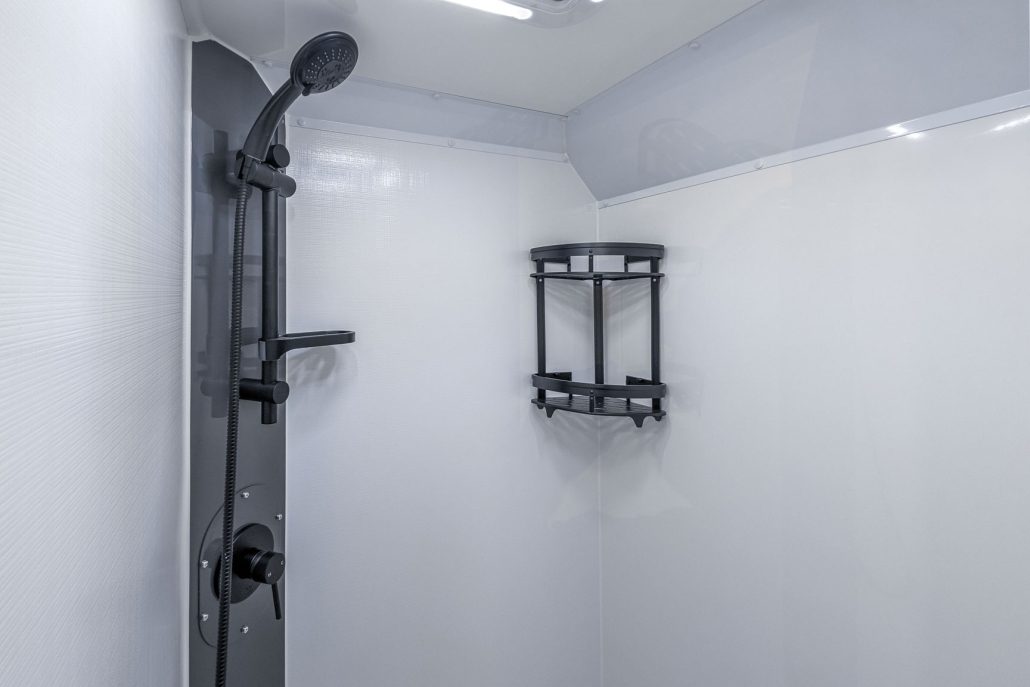

| Ensuite / Bathroom Facilities | Full-size caravan en-sute with spacious shower, separate toilet and dedicated bathroom storage. |

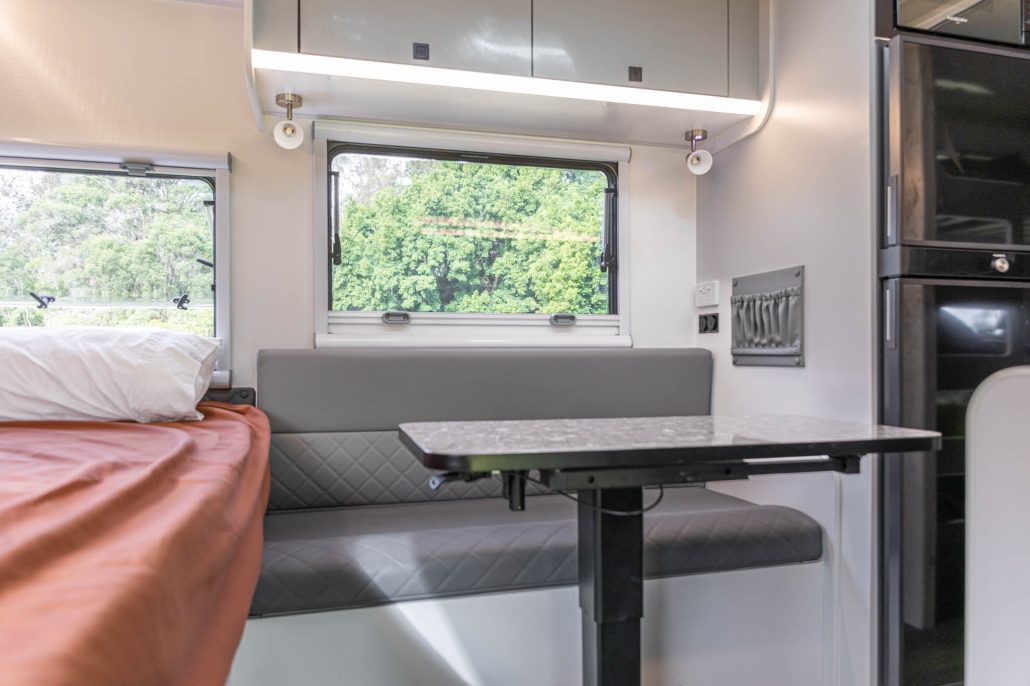

| Dinette & Seating | Straight lounge with plush cushioning and adjustable table. |

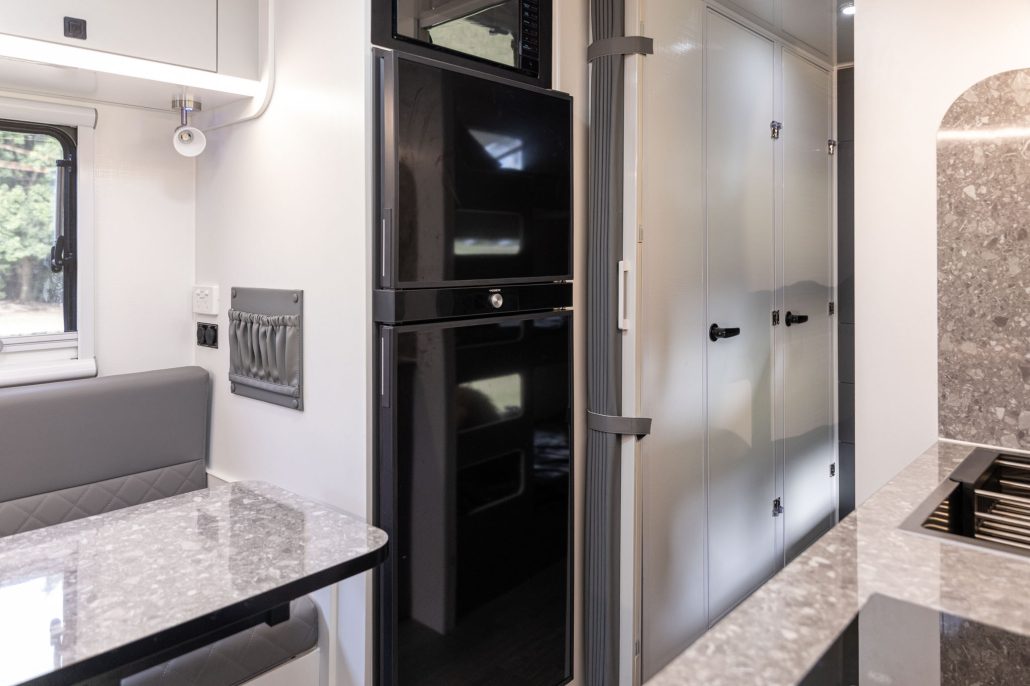

| Fridge/Freezer | Upright compressor fridge (incl. freezer). |
| Pantry | Cupboard storage system. |
| Microwave | Internal microwave |
| Flooring | Durable vinyl in modern design. |
| Lighting | 12V reading lamps and LED strip lighting. |
| Storage | Under-bed and overhead storage compartments. |
| Skylight Hatch | Overhead skylight with in-built LEDs, fly screen and adjustable. |
| Entertainment & Technology | |

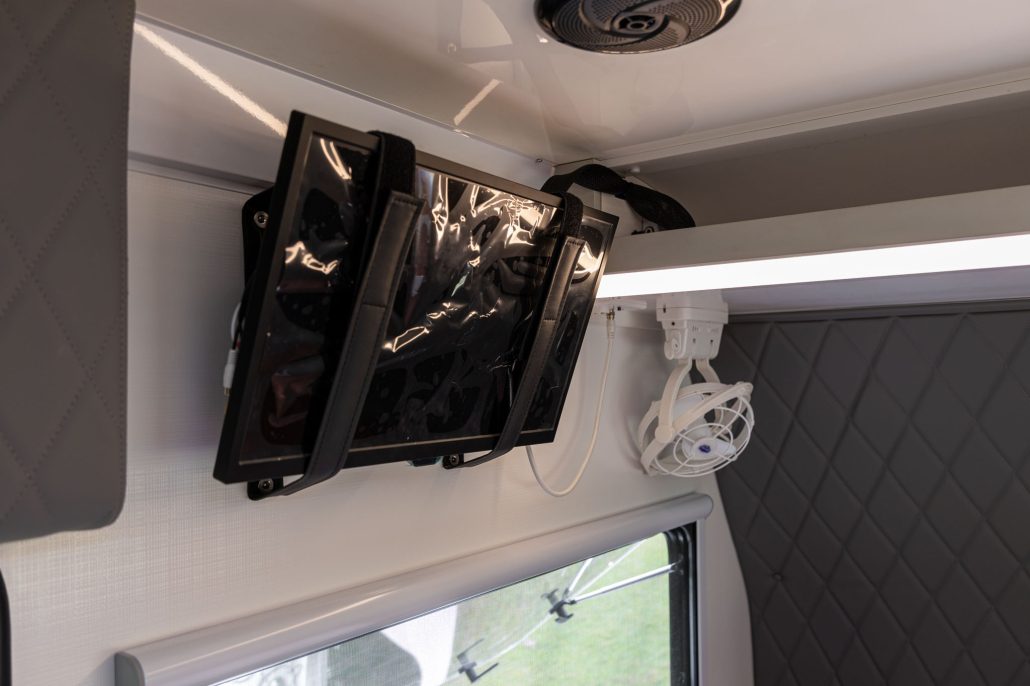

| Television | 22″ wall-mounted LED TV. |
| Television Aerial | 12V Power-boosted aerial available for use with TV system. |
| Reversing Camera Kit | Rear-mounted rear vision camera (incl. dashboard monitor). |
| Stereo | Touchscreen entertainment unit & speaker system. |
| Item | Description |
|---|---|
| Awning (Upgrade) | Various options to extend and/or enclose awning space. |

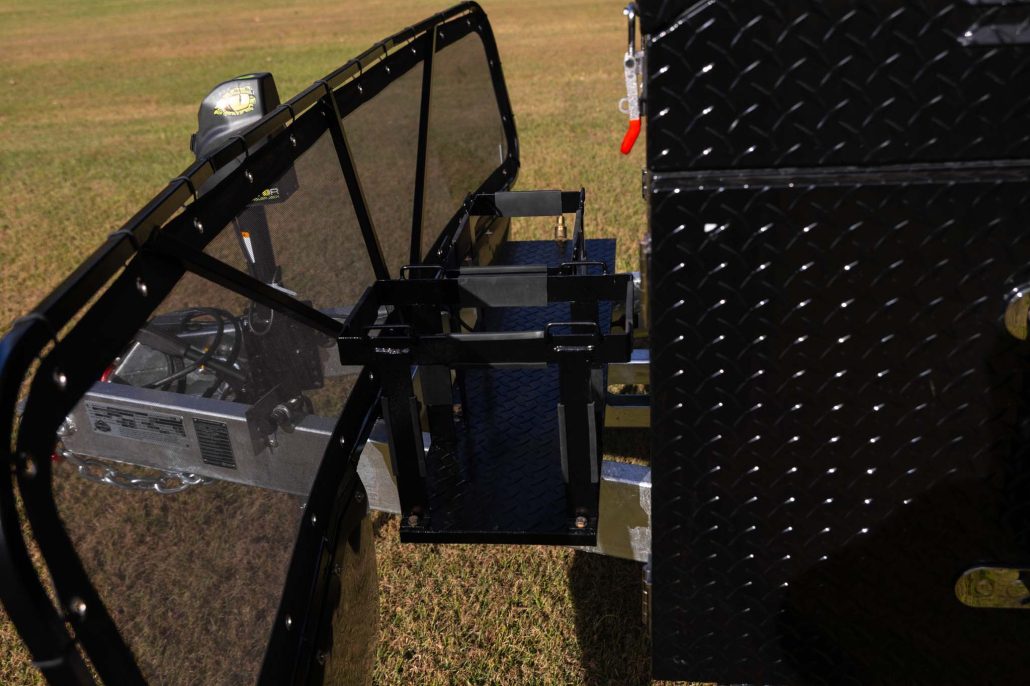

| BBQ ARM | Power-coated galvanised steel arm with checker plate tray and universal drawbar mount. |
| Diesel Heater | 2kw diesel heater and fuel tank. Compact, fuel-efficient heating solution for off-grid comfort. |
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
