Suitable for
2 x People

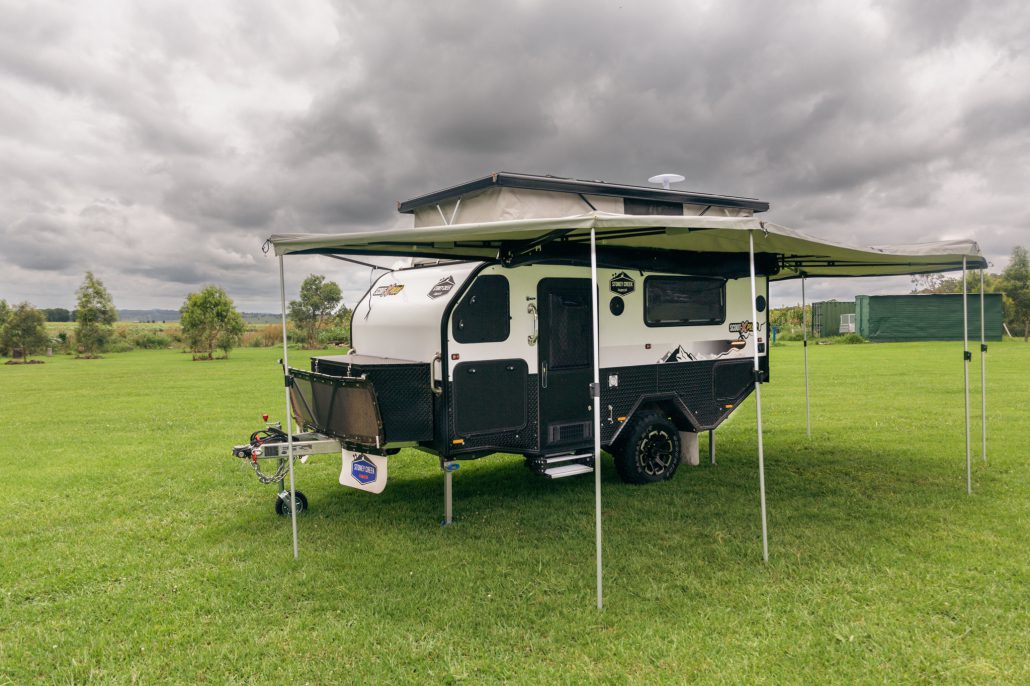

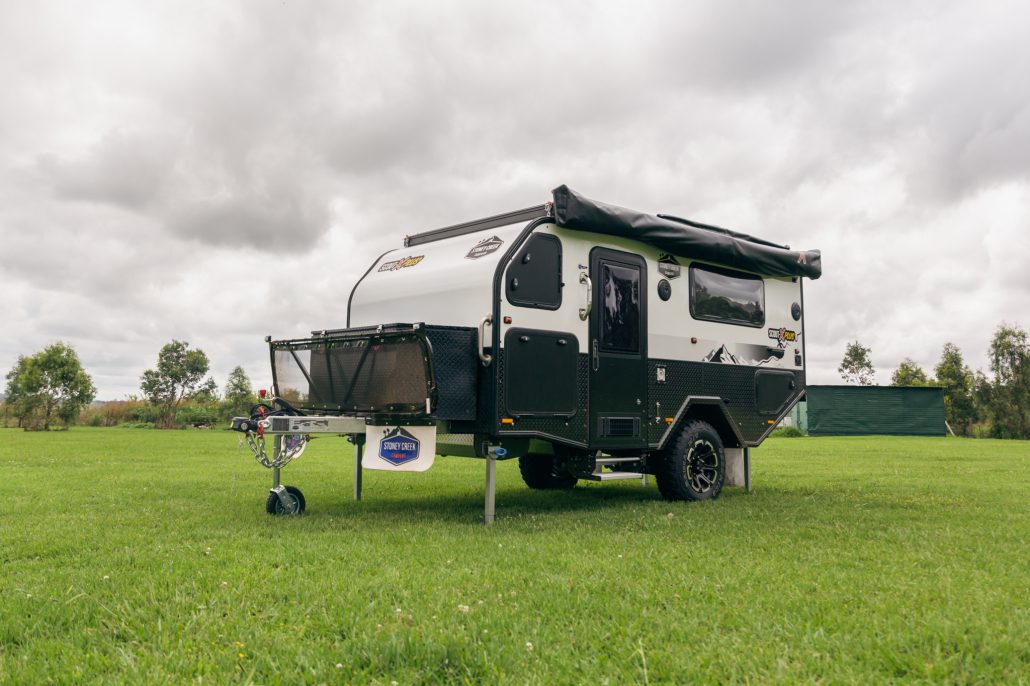

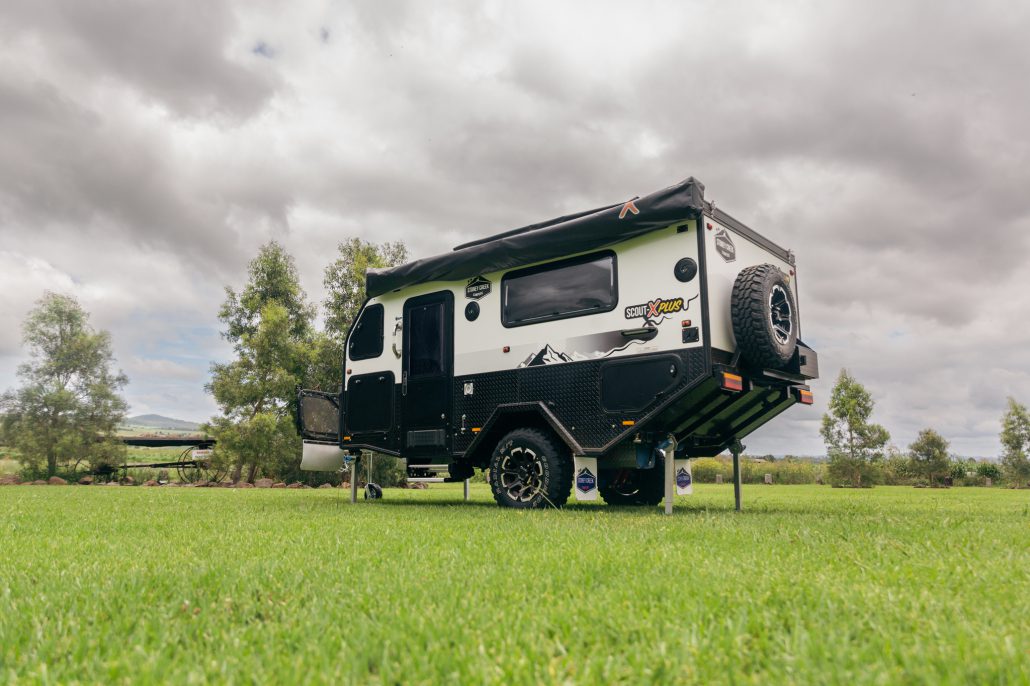

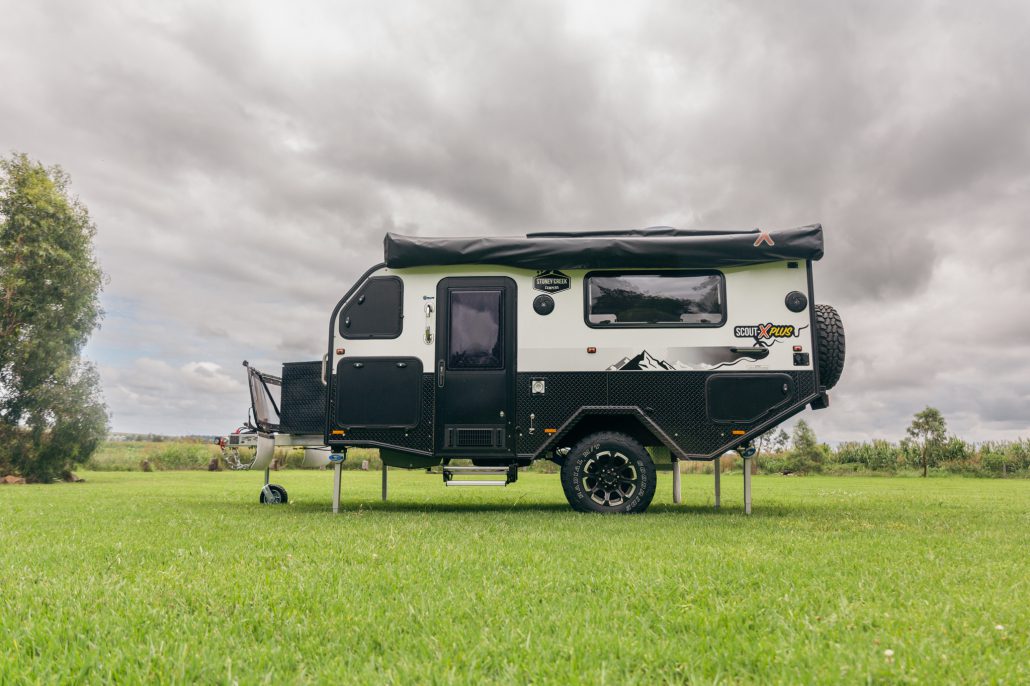

Scout-X Off-Road Hybrid Caravan
Compact-sized & Adventure Ready
One of the newest additions to the Stoney Creek Campers range and the latest addition to our market-leading Hybrid range, the adventure-rated Scout-X Plus Off-Road Hybrid Caravan is the perfect way for couples to hit the road with a compact-sized hybrid without leaving behind the comforts of home.
Focusing on comfort, quality, convenience and value, the Scout-X has inclusions usually only afforded in large caravans! From a queen-sized bed internal ensuite with toilet and shower and lots of storage – there is so much to love in this hybrid.
The Scout-X Plus has a unique layout featuring everything the adventurous couple needs, without the need for slide-outs, pull-outs or canvas sleeping areas.
Check out the key features the Scout-X has to offer
Scout-X Plus
Off-Road Hybrid Caravan
Sleeping 2 as standard.
Check out some of the upgrades we’ve implemented for our second generation of campers.
1
2
3
4
5
6
7
8
9
10
11
1
DO35 Off-Road coupling allowing you to tow anywhere with piece of mind.
2
4″ single-piece, hot dipped galvanised steel chassis for unmatched strength and superior rust resistance.
3
Lightweight protective mesh to protect the front of the Scout-X and rear of your car.
4
Black chequer plate toolbox with LPG gas bottle section on one side and further storage slide on the other side.
5
Innovative and weight-class leading composite panelling and flooring.
6
Mould resistant marine grade vinyl for enhanced insulation.
7

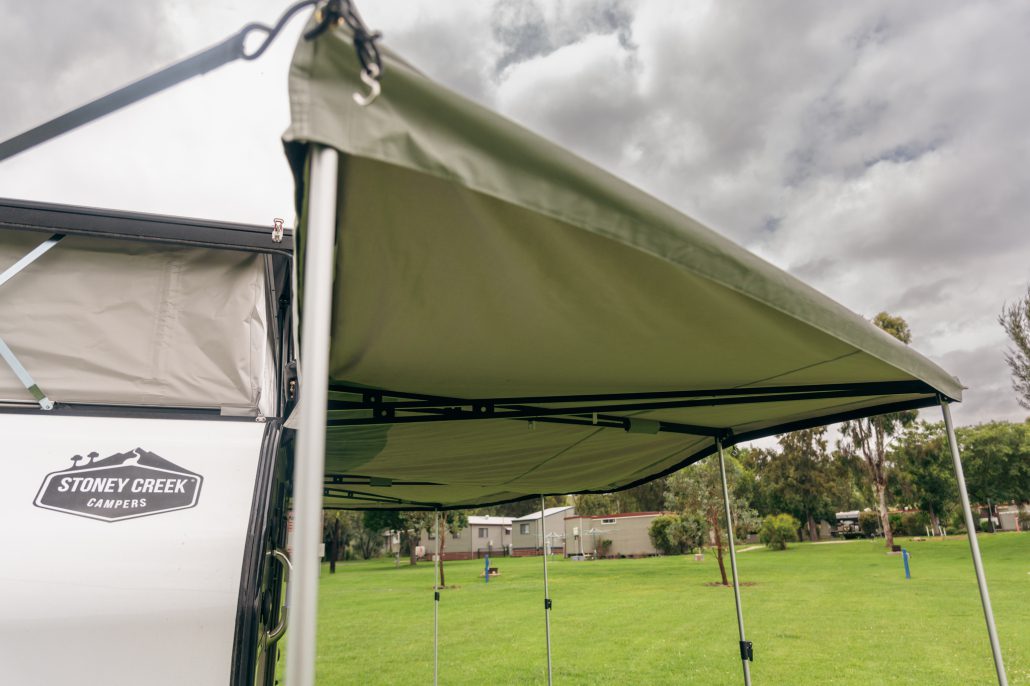

Expansive 270 degree batwing awning for industry leading protection.
8

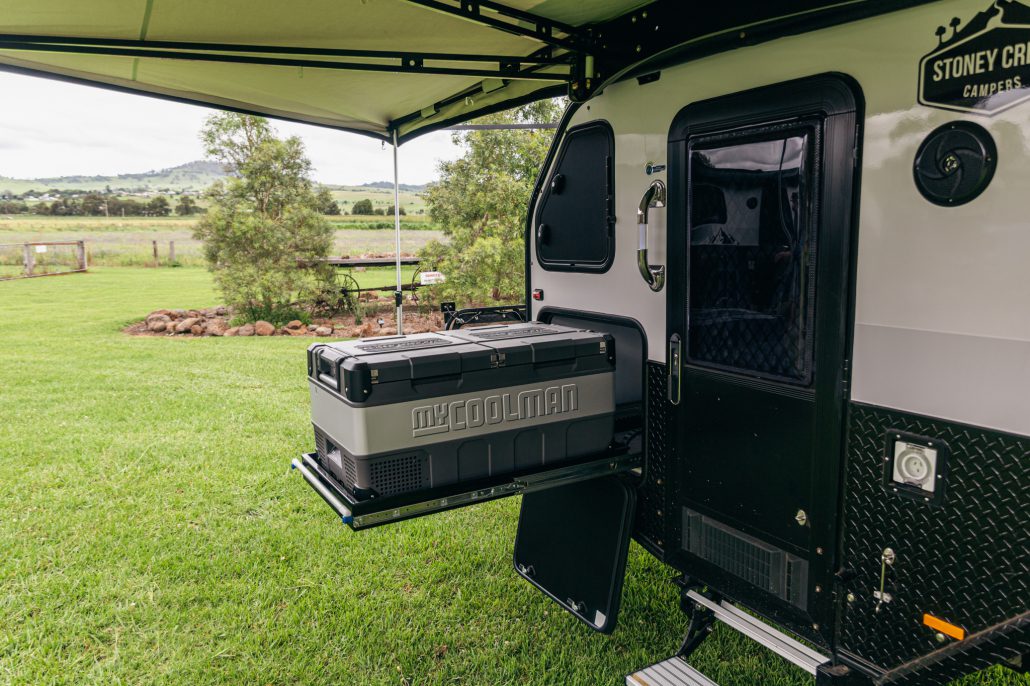

Spacious 85-litre fridge freezer storage slide.
9

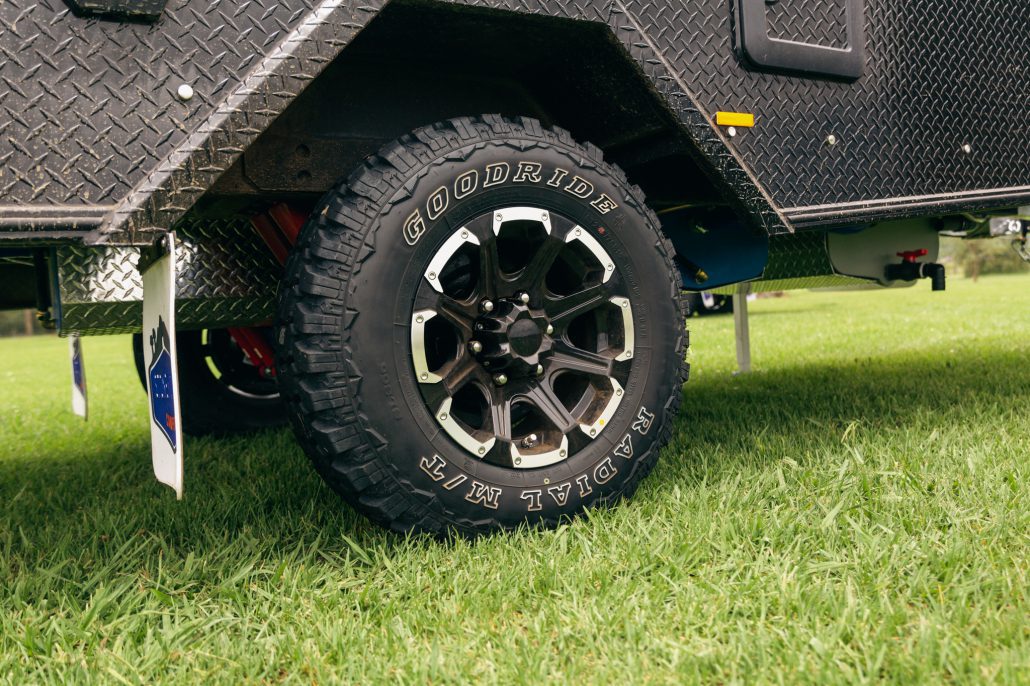

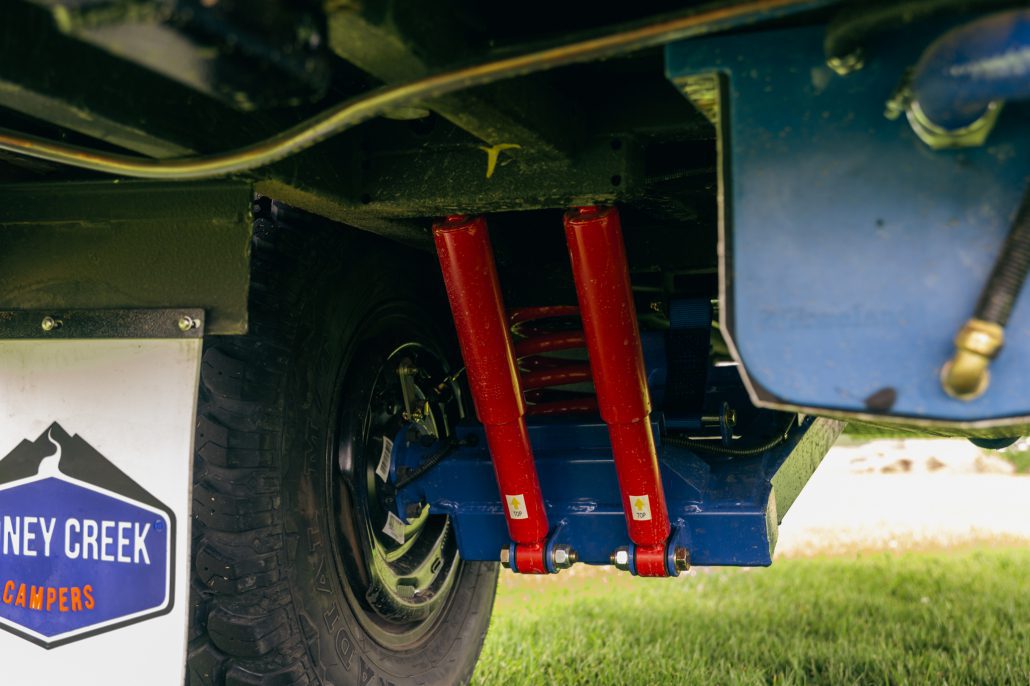

Upgraded independent trailing arm suspension with 15″ all-terrain tyres and 12″ electric brakes.
10

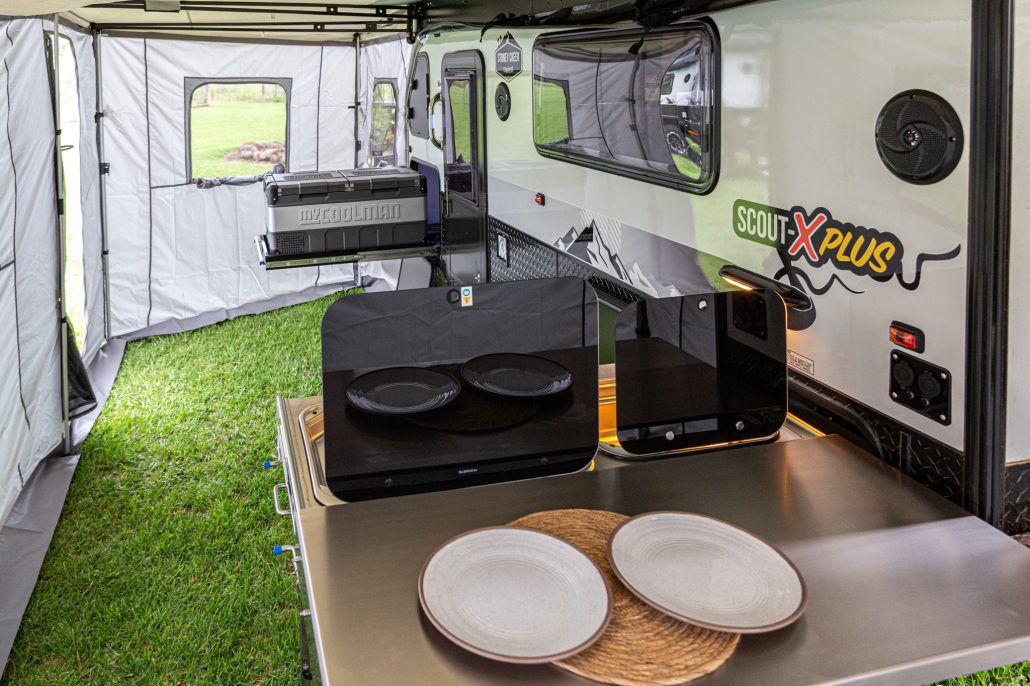

Hot/cold mixer tap sink and dual gas burner stove with bar table extension for outdoor entertaining.
11

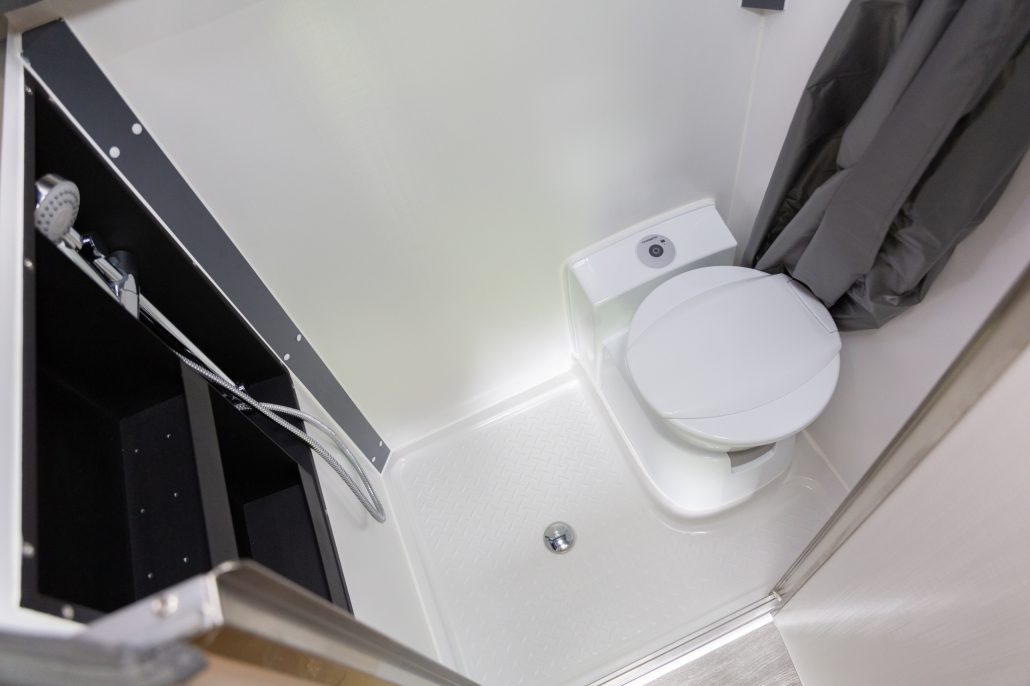

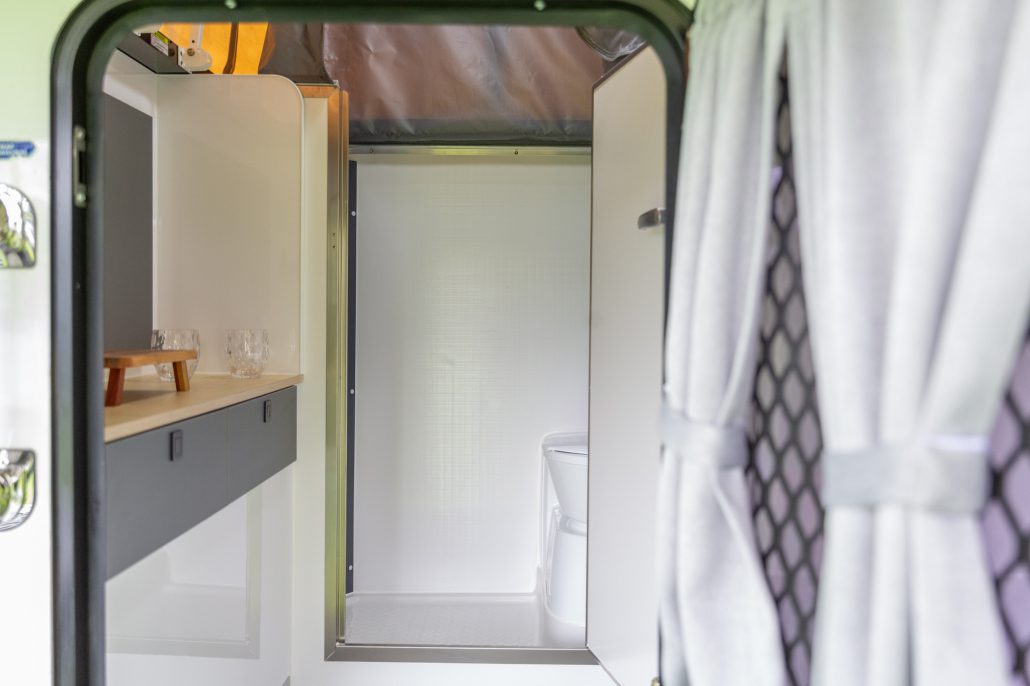

Interior Ensuite Toilet & Shower
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Overall Length (mm) | 5500 |
| Body Length (mm) | 3870 |
| Travel Height (mm) | 2390 |
| External Width (mm) | 2060 |
| Tare Weight (kg) | 1577 |
| ATM Weight (kg) | 2200 |
| Ball Weight @ tare (approx) (kg) | 175 |
| Note: | Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. |
| Chassis, Suspension & Tyres | |
|---|---|
| Frame | Hot-dipped galvanised frame to protect against corrosion with 4” & 2” main members. |
| Wall Structure | Composite body/panelling providing superior strength, durability, insulation and looks. Hail & dent resistant. |
| Stone Guard | In line with front toolbox/storage unit to help protect caravan & tow vehicle against rock damage & ricocheting stones. |
| Suspension | Independent trailing arm suspension engineered and designed with twin shock absorbers and coil springs. |
| Suspension Fixings | High tensile fixings. |
| Tyre Pressure | Tyre pressure as per Stoney Creek Campers owners manual. |
| Wheel Rims | Alloy rims for strength and weight saving. |

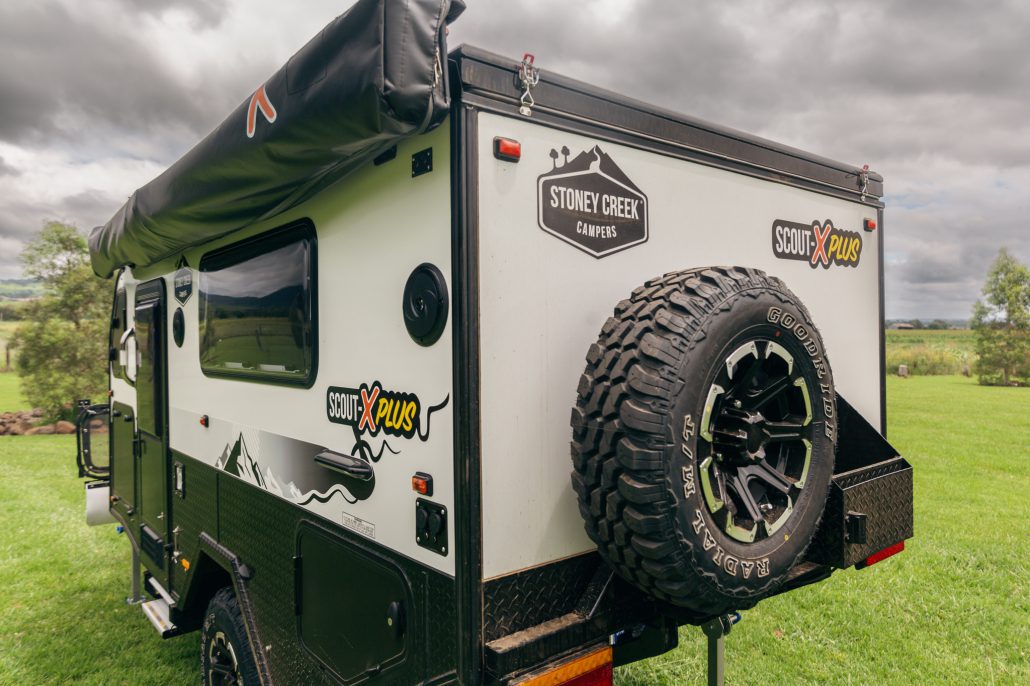

| Tyres | Mud Terrain 235/75R15 tyres (inc. 1 x spare). |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |
| Jockey Wheel | Removable and adjustable jockey wheel. |
| Brakes | 12″ heavy-duty electric brakes with breakaway safety system and handbrake. |
| Chains | 2 x ADR compliant safety chains with ‘D’ shackle. |
| Coupling | Cruisemaster DO35 all-terrain coupling. |
| Drop-down Stabiliser Legs | Corner wind-down support legs (for stabilisation only). |
| Mud Flaps | Heavy duty, durable mud flaps. |
| Power & Electricity | |
|---|---|
| Solar System | Roof-mounted panel and regulator (300w). |
| Solar Power System | Roof-mounted solar panel & regulator (300w). |
| Battery | 230amp lithium batteries. |
| Inverter | Renogy 2000W sine-wave inverter |
| Power (240V) | Victron 240v power management system. |
| Power | Multiple 12V weatherproof cig socket and 240V weatherproof outlets. |

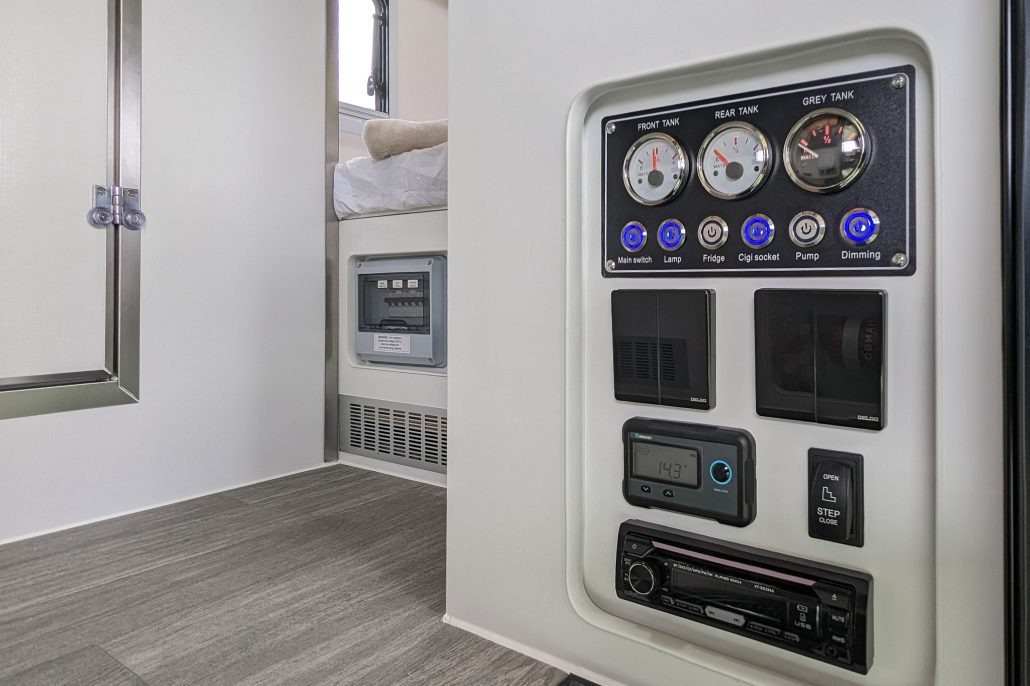

| Control Panel | Marine-style control panel with water gauges, 12v power and two USB outlets. |
| DC-DC Charger | Victron DC-DC 30amp smart charger. |
| Fuses | Resettable fuses. |
| Water System & Ventilation | |

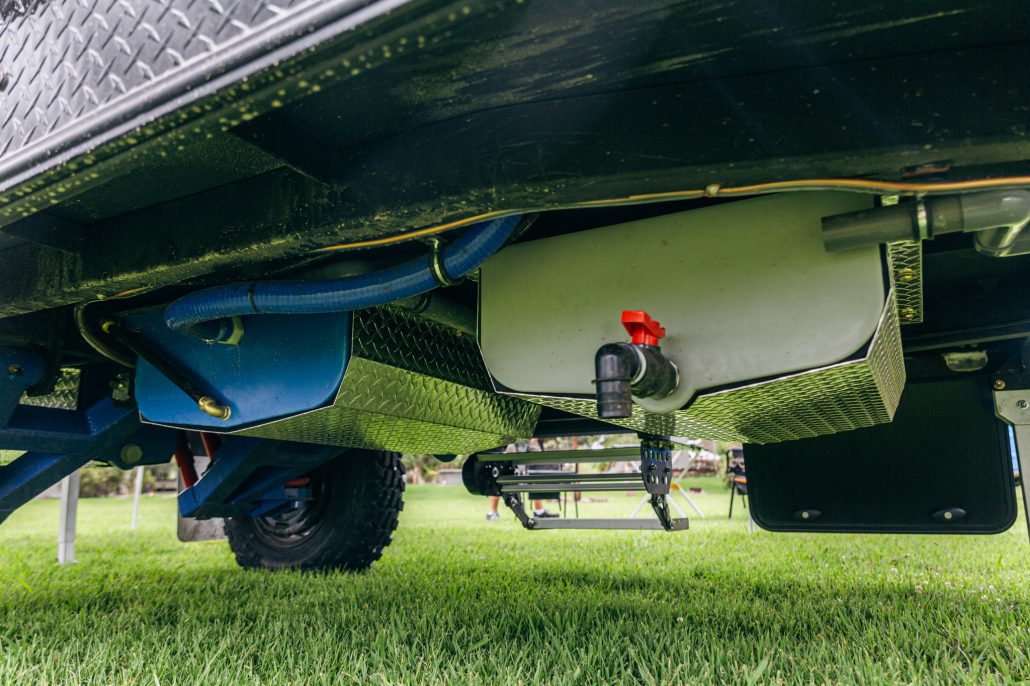

| Water Tank (Fresh) | 2 checker plate protected poly water tanks. 1 x 50L & 1 x 80L. |
| Water Tank (Grey) | 80L Checker plate protected poly grey-water tank |
| Hot Water System | Truma gas/electric hot water system |
| Water Filler | Secure & lockable water fill points. |
| Water Pumps | 12v pump and external switch. |
| Air Conditioning | Under-bed air conditioning system. |
| Ventilation | Double-glazed windows with internal screens and block-out blinds. |
| Exterior | |
| Awning | Protective and private 270° awning brings next level shade to your camping set up. |
| Shower | Secure externally-accessible shower with handheld shower head |
| Kitchen | Pull-out kitchen with heavy duty rollers, cutlery drawer, utensil drawer and retractable table extension. |
| Sink | Stainless steel basin with hot and cold mixer. |
| Gas Stove Top | High quality 3-burner cooktop (with Flame Failure Device) including wind protection (Australian gas compliant). |
| Gas Bayonet | Supplied (in kitchen) with quick connect / release connection. |
| Gas Bottles | 2 x 3.7kg gas bottles provision plumbed and certified by a qualified gas technician. |
| Lighting | Side LED & annexe LED. |
| Entry Step | Power-operated single step (double available). |
| Storage | Forward main front box, tunnel boot (access off-side) |
| Interior | |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |

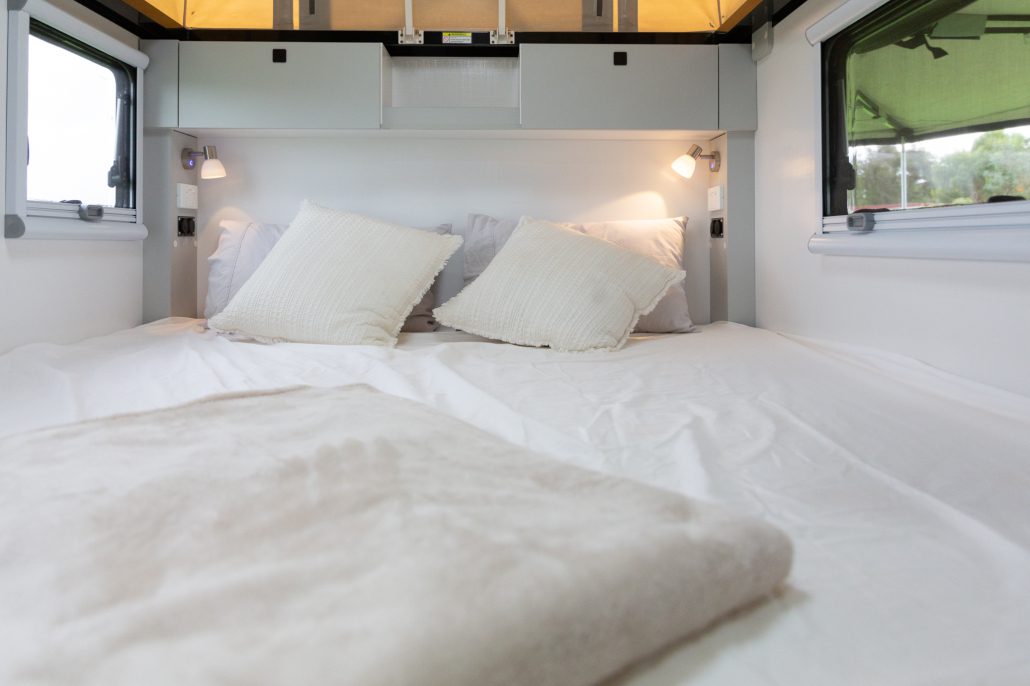

| Main Bed | Queen bed with comfortable, high-quality memory foam mattress. |

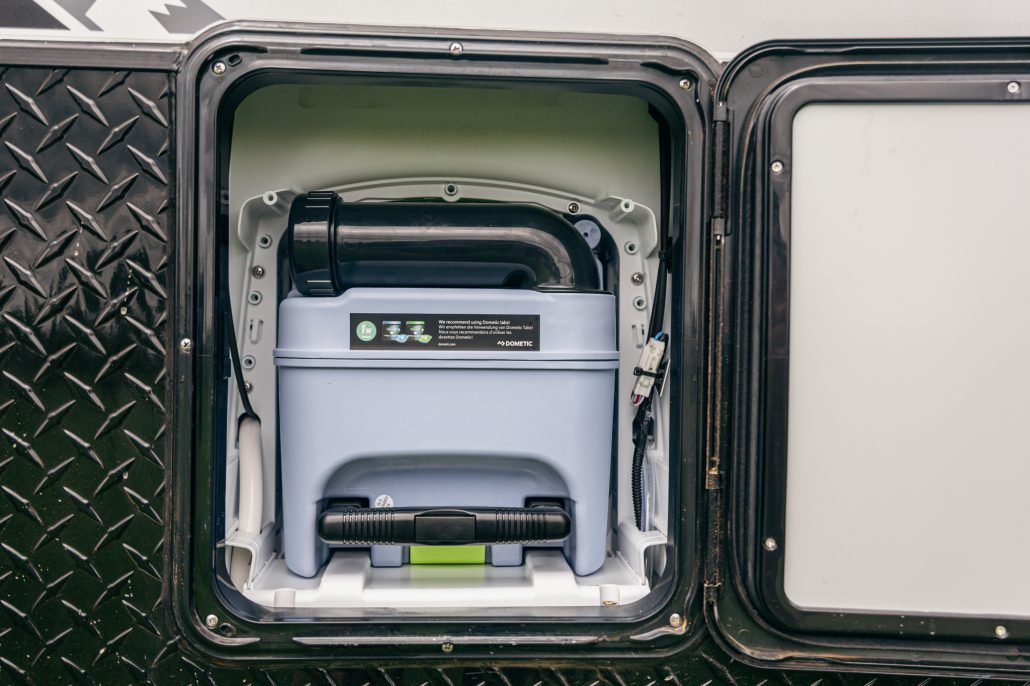

| Ensuite | Shower with removable head & cassette toilet |
| Flooring | Durable material with a modern design. |
| Lighting | Reading 12V and ceiling 12V LED. |
| Storage | Overhead cupboard, centre robe and under-bed storage |
| Entertainment & Technology | |
| Television | 22″ Smart TV. |
| Stereo System | Touchscreen entertainment unit. |
| Item | Description |
|---|---|
| Ensuite Tent | Externally fitted 23Zero Shower Tent drop ensuite. |
| BBQ Arm | Powder-coated galvanised steel arm with chequer plate tray and universal drawbar mount. |
| Fridge/Freezer | Mycoolman 85-litre dual zone. |
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
