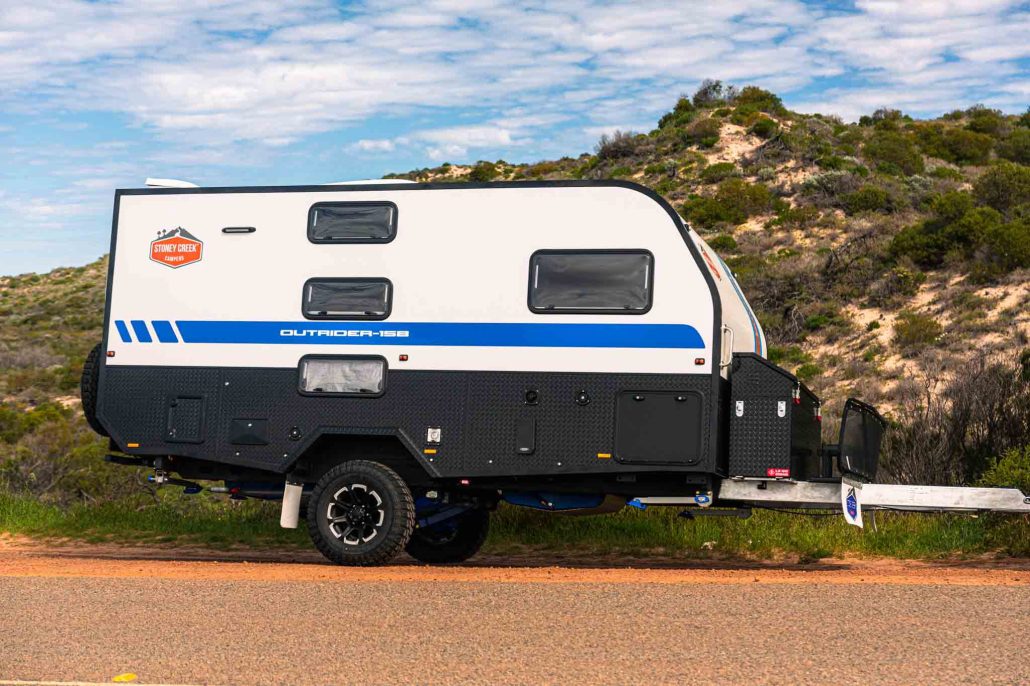

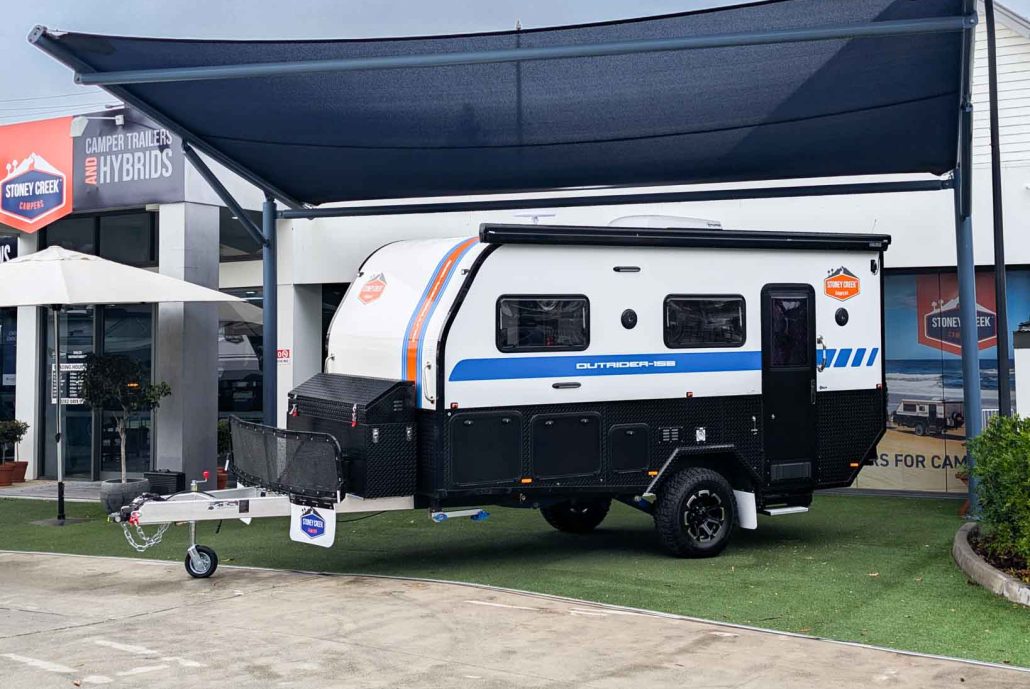

Outrider-15B Off-Road Caravan
Outrider-15B Off-Road Caravan
For The Adventurous Family
The evolution continues with Gen 3; which has furthered the efforts of significant design and structural improvements and innovation. Our design and engineering team have spent countless hours pushing the envelope with a more advanced composite structure meaning you now have a more durable, lighter and sleeker construction design; resulting in enhanced usability and increased value.
The Outrider-15B (B for it’s triple bunks) is meticulously crafted to deliver exceptional performance, comfort and style; but now for the entire family!
If you love camping and the great outdoors but don’t want to leave the luxuries of a solid roof, a large bed or a shower and toilet at home, then look no further than the Outrider-15B Off-Road Caravan. This Gen3 model boasts the largest triple bunks on the market, so you’re able to pack the whole family in and tour this great land!
Outrider-15B is powered by a twin lithium battery and 600w roof mounted solar setup; including a 2000W inverter. Constructed with our Gen 3 composite panelling, wall and floor, the Outrider-15B Off-Road Caravan is perfect for all terrains.
This carefully designed exterior lets you head into the rugged terrain, but its ease of towing makes it just as worthy of those more conservative and accessible camping grounds.
The Outrider-15B allows you to create memories that the family will remember for a lifetime.

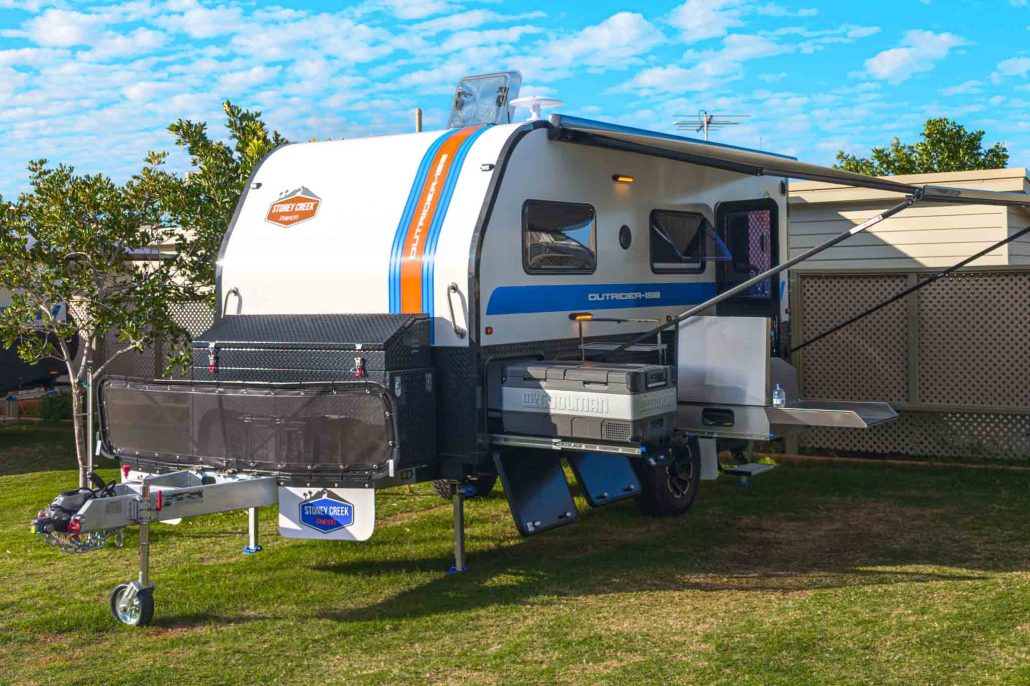

Check out the key features the Outrider-15B has to offer
1
2
3
4
5
6
7
8
9
10
1
Cutting-edge composite walls and roof that offer superior durability, insulation and a sleek design
2
6″ single-piece, hot dipped galvanised steel chassis for unmatched strength and superior rust resistance.
3
Lightweight protective mesh to protect the front of the Outrider-15 and rear of your car.
4
Black chequer plate toolbox with LPG gas bottle slide on one side, generator storage slide on the other and further storage on top
5
Roll-out awning for quick set up
6

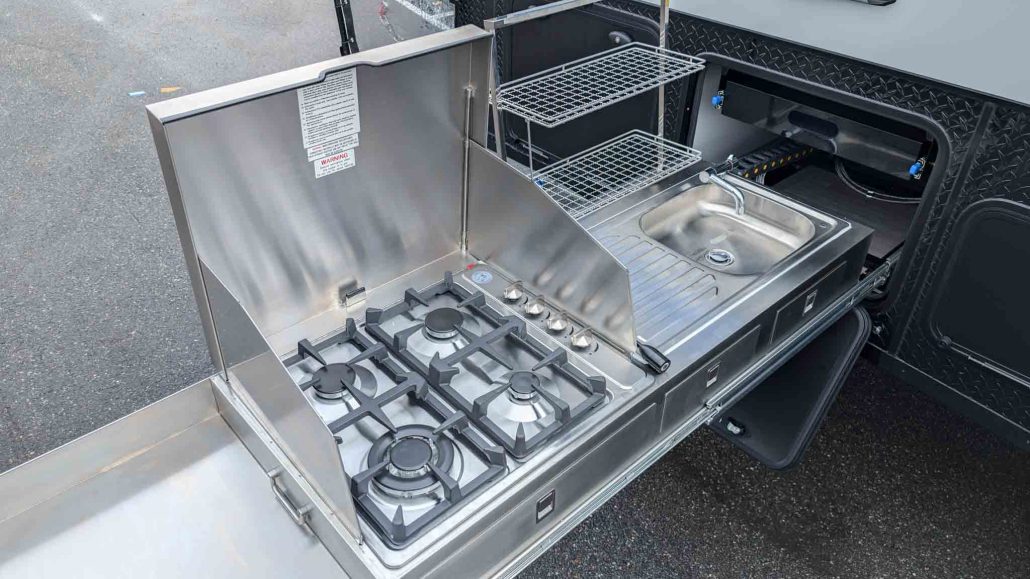

Slide out kitchen with 3 burners, sink, drying rack and prep area
7
Spacious 85-litre fridge freezer storage slide.
8
Electric fold out step
9

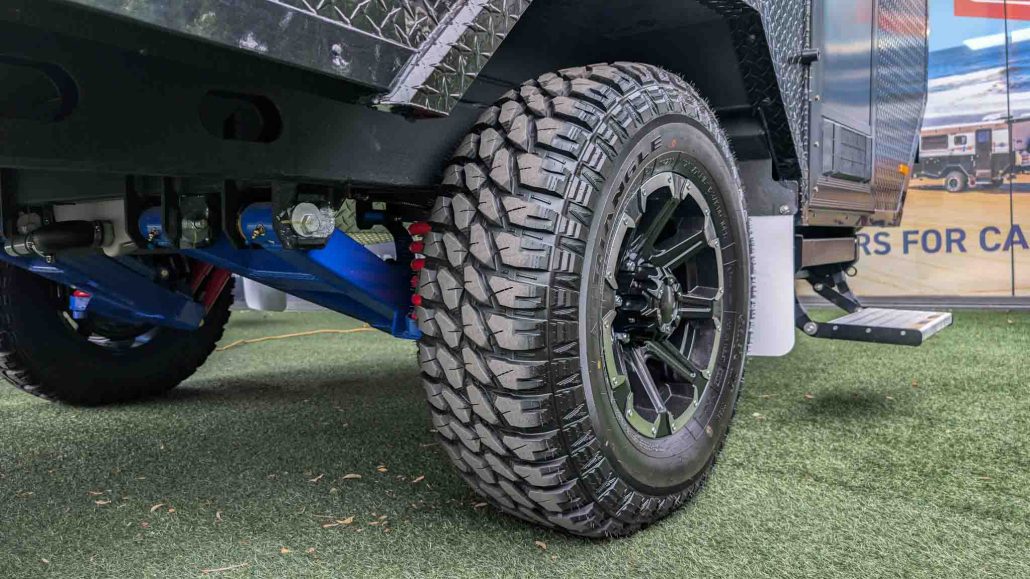

Upgraded independent trailing arm suspension with 16″ all-terrain tyres and 12″ electric brakes.
10
Exterior speakers
1
2
3
4
5
6
7
8

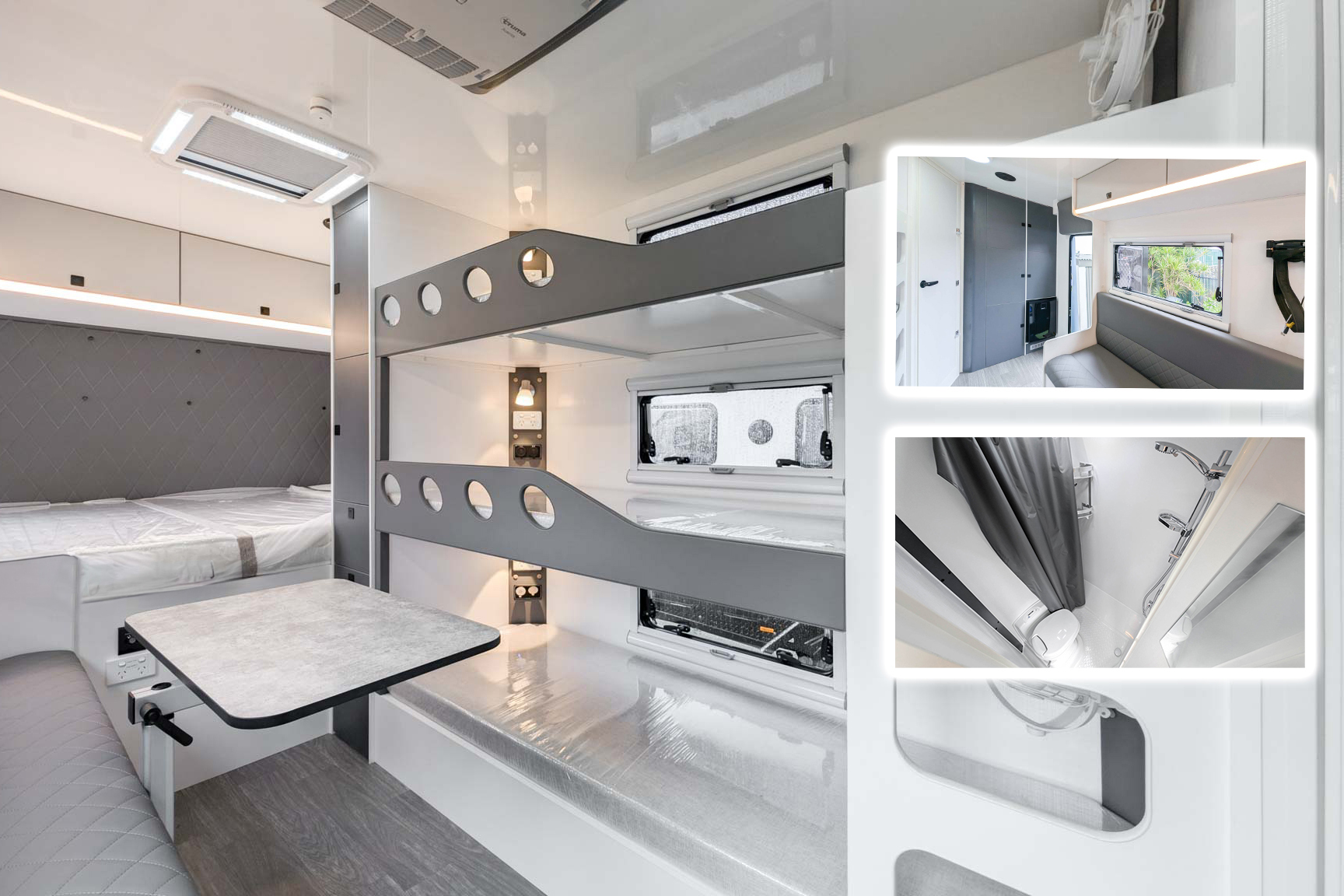

1

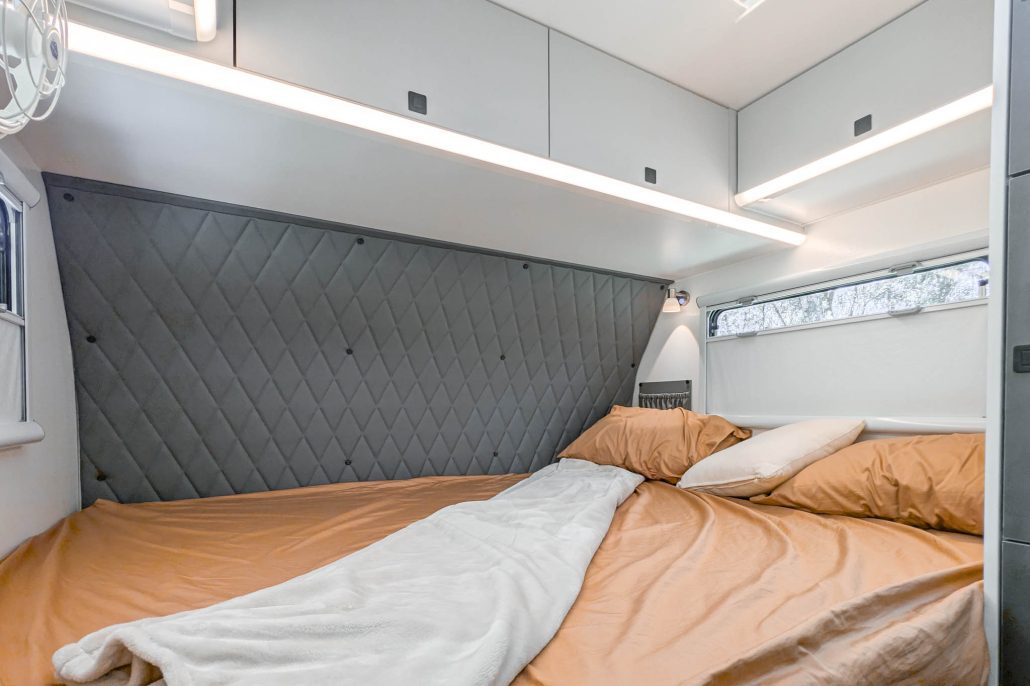

King Size Bed
2
Extensive storage
3
Air-Conditioning
4

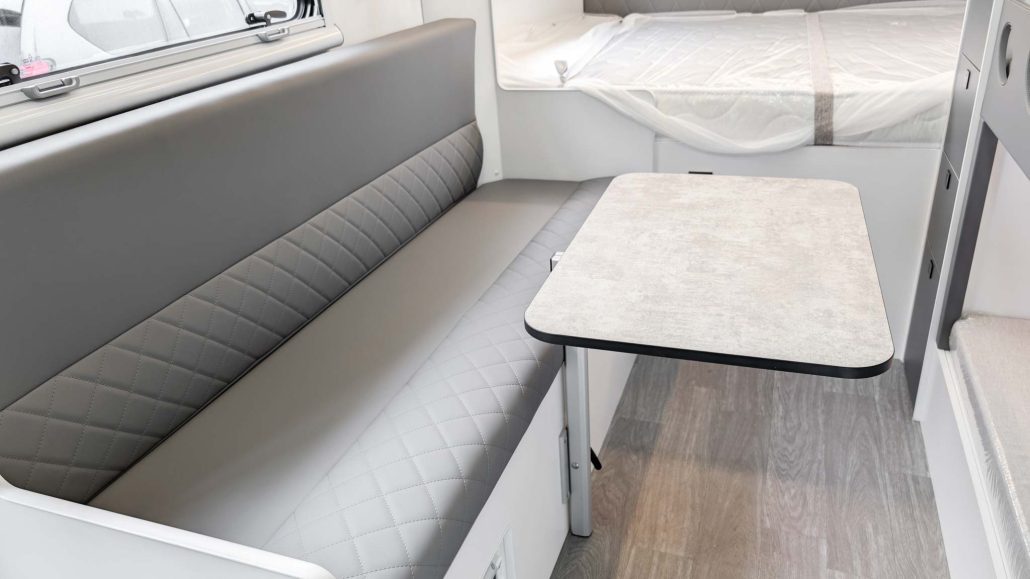

Dinette seating with durable designer fabric with high resilience, antibacterial foam.
5

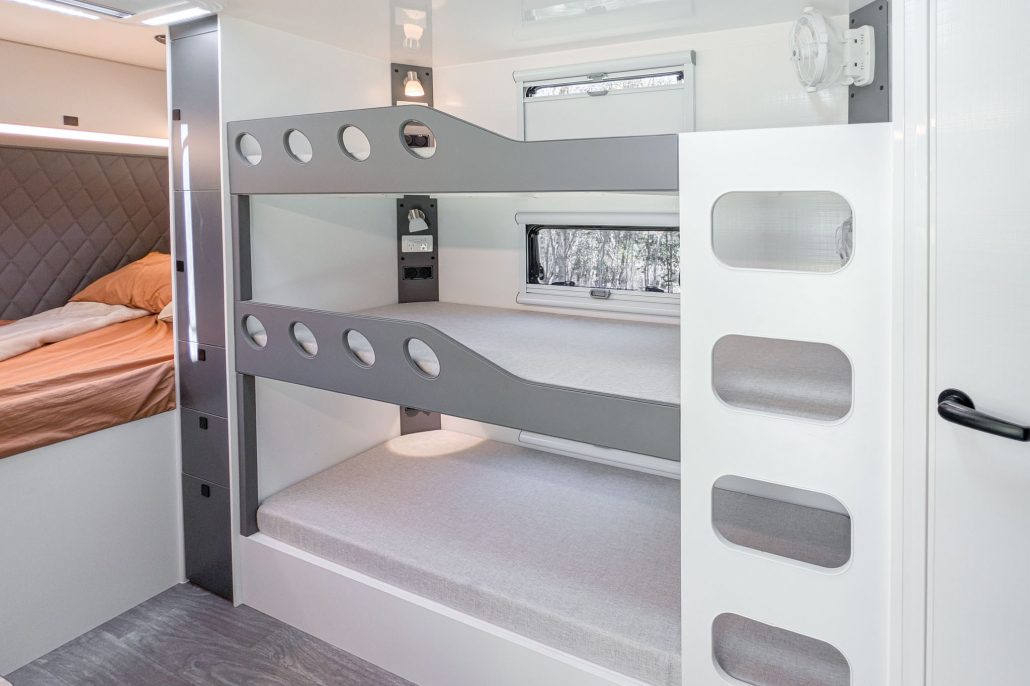

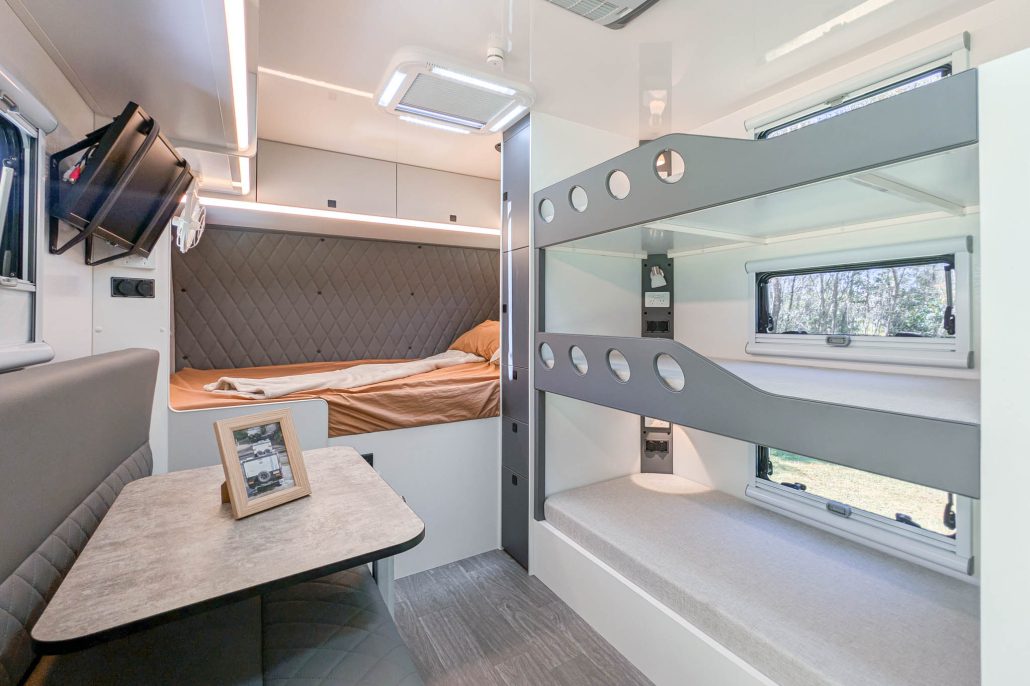

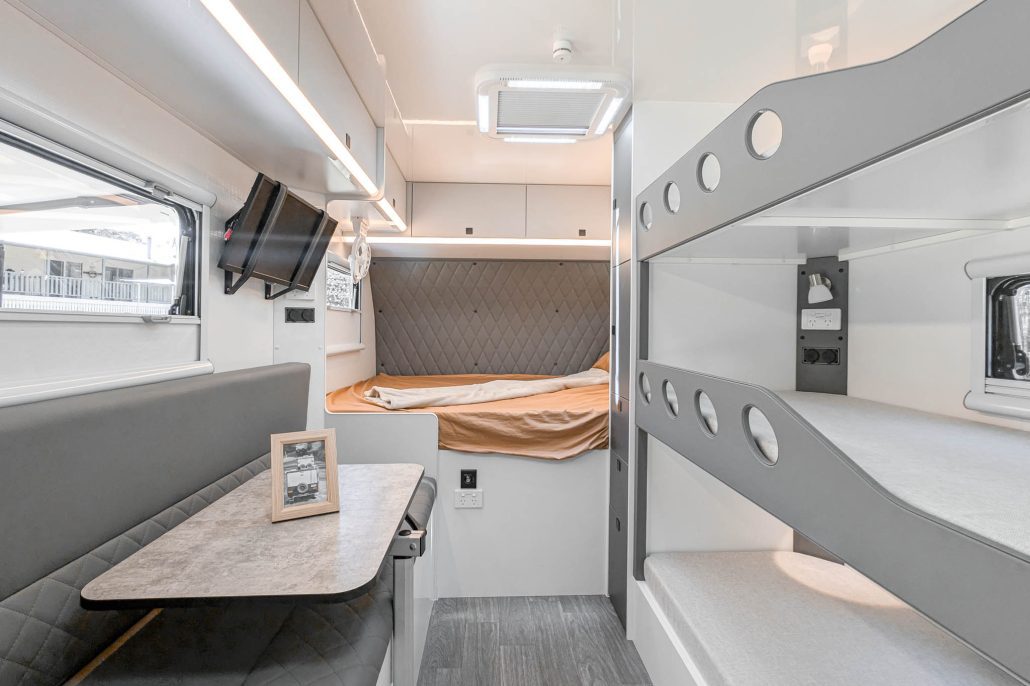

Largest bunk beds on the market.
6

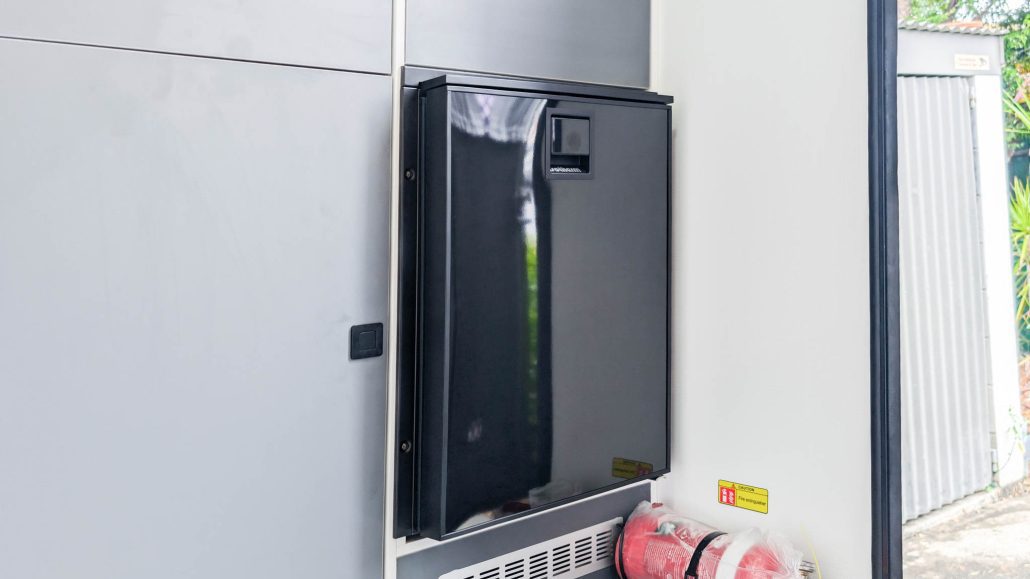

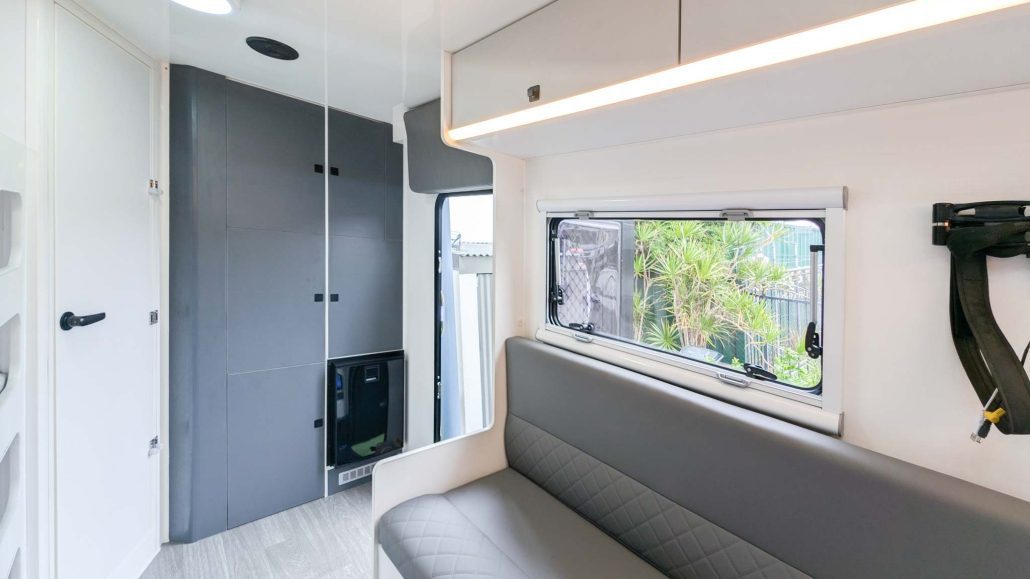

49L internal fridge
7

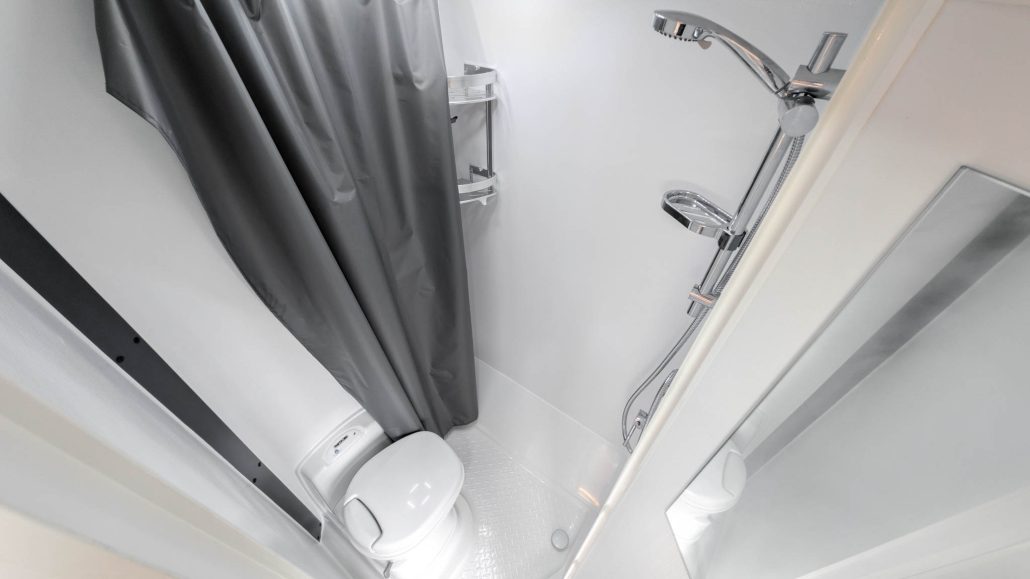

Interior ensuite.
8
Ensuite view
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Overall Length (mm) | 7650 |
| Body Length (mm) | 4850 |
| Travel Height (mm) | 3100 |
| External Width (mm) | 2300 |
| Tare Weight (kg) | 2150 |
| ATM Weight (kg) | 3000 |
| Ball Weight @ tare (approx) (kg) | 200 |
| Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. | |
| Toolbox (mm) | 1530 x 430 x 880 |
| Fridge Slide Draw (mm) | 500 x 420 x 820 |
| Chassis, Suspension & Tyres | |
|---|---|
| Frame | Hot-dipped galvanised frame to protect against corrosion with 6″ x 2″ main members. |
| Wall Structure | Composite body/panelling providing superior strength, durability, insulation and looks. Hail and dent resistant. |
| Stone Guard | Front stone guard for protection in-line with front toolbox unit to protect van and tow vehicle against rock damage and ricocheting stones. |

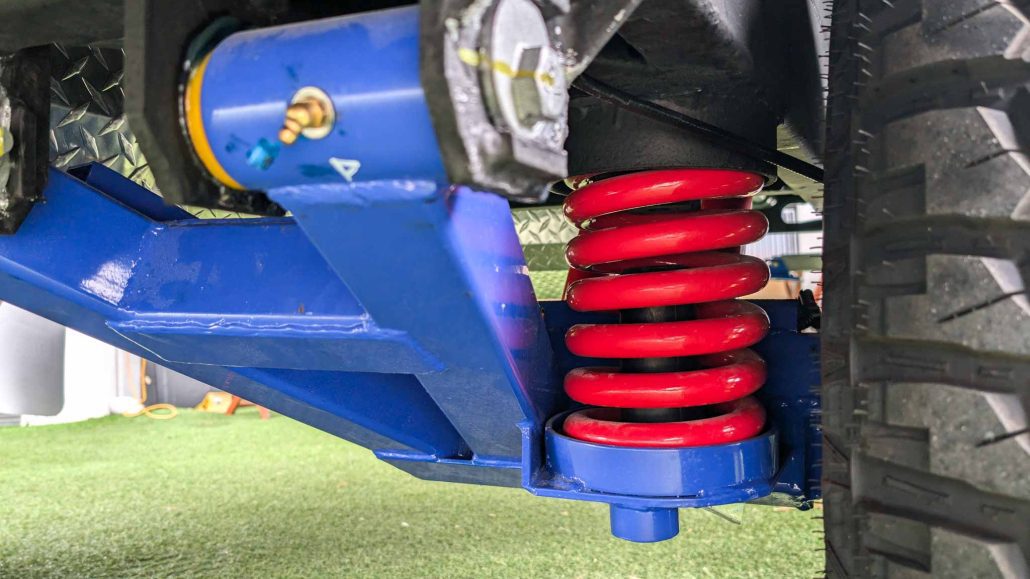

| Suspension | Independent trailing arm suspension with dual shock absorbers and coil springs. |
| Suspension Fixings | High tensile fixings. |
| Tyres | Mud Terrain 265/75R16 tyres (inc. 2 spares). |
| Wheel Rims | Alloy rims for added strength and reduced weight. |
| Tyre Pressure | Tyre pressure as per Stoney Creek Campers owners manual. |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |
| Jockey Wheel | Adjustable and removable jockey wheel. |
| Brakes | 12″ heavy-duty electric brakes with breakaway safety system and handbrake. |
| Chains | 2 x ADR compliant safety chains with D shackle. |
| Coupling | Cruisemaster DO35 all-terrain coupling. |
| Doors & Hinges | High quality metal hinges bolted to the frame. Adjustable latches on all external doors allow for easy adjustment. |
| Drop Down / Stabiliser Legs | Corner wind-down support legs (for stabilisation only). |
| Mud Flaps | Heavy duty, durable mud flaps. |
| Power & Electrical | |
|---|---|
| Solar Power System | Roof-mounted panel and regulator (600w). |
| Battery | 460 Ah Haidi Lithium Battery Bank featuring advanced LFP (Lithium Iron Phosphate) Technology, delivering high-capacity, deep-cycle power with exceptional efficiency, long lifespan and proven reliability for extended off-grid use. |
| Inverter | Renogy 3000W Pure Sine Wave Inverter for powerful and stable off-grid performance. |
| Power (240V) | 240V Management and 30 amp smart charger |
| Mains Connector | Mains Pressure to van. |

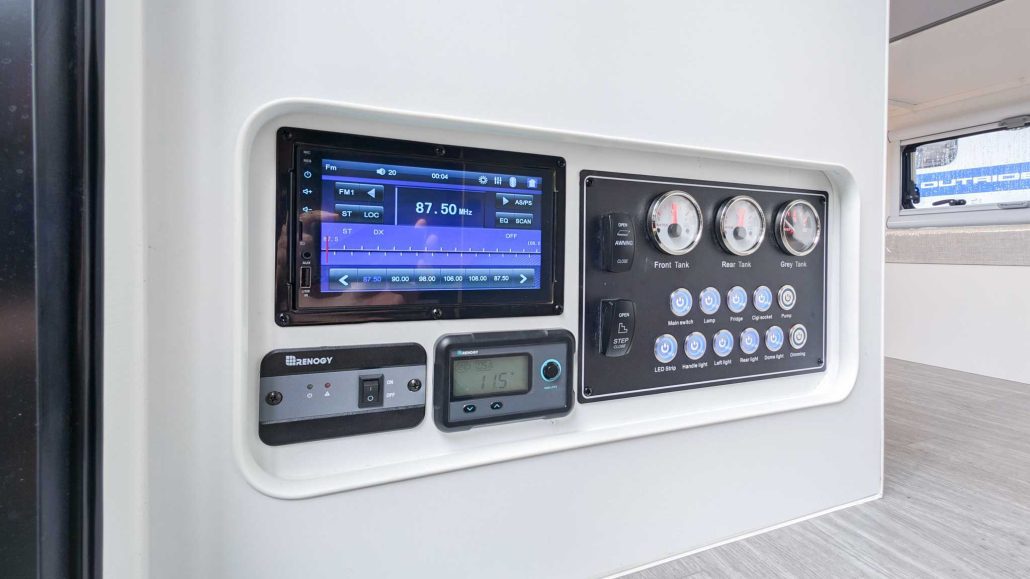

| Control Panel | Marine-style control panel water gauges, 12v power and two USB outlets. |
| Fuses | Resettable fuses. |
| Water System & Ventilation | |
| Water Tank (Fresh) | 2 x 120L poly water tanks. |
| Water Tank (Grey) | 80L poly water tank. |
| Water Tank Protection | Chequer plate water tank guard. |
| Water Filler | 2 x secure & lockable water fill points. |
| Water Pumps | 12v pump and external switch. |
| Air Conditioning | Roof-mounted air conditioning system. Inverter-compatible and can operate from the onboard battery system via the fitted inverter when off-grid. *Runtime will vary depending on battery, capacity, state of charge and overall system load. |
| Ventilation | Double-glazed windows with internal screens and block-out blinds. |
| Exterior | |
| Awning | Roll-out awning for set-up in moments. |
| Kitchen | 4-Burner (with Flame Failure Device) including wind protection (Australian gas compliant), stainless steel sink with hot/cold water and drying rack. |
| Fridge/Freezer | 85L External Fridge/Freezer |
| Gas Bayonet | Supplied (ext. kitchen) with quick connect / release connection. |
| Gas Bottles | 2 x 3.7kg gas bottles positions provision plumbed and certified by a qualified gas technician. |
| Jerry Can Holders | 2 x 20L Jerry can holders for additional fuel or water. |
| Lighting | Side running LED and annexe LED. |
| Entry Step | Power-operated single step. |
| Toolbox | Large A-frame toolbox for gas and generator (2Kva) storage. |
| Chequer Plate | Protective (black). |
| Interior | |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |
| Main Bed | Queen-size bed with comfortable, high quality memory foam mattress. |
| Triple Bunks | Largest triple bunks on the market. |
| Ensuite / Bathroom Facilities | Convenient shower and cassette toilet ensuite |
| Dinette Table | Café-style swing-away for dinette. |
| Lounge | Comfortable lounge with durable fabric and high resilience, antibacterial foam cushioning. |
| Fridge/Freezer | 49L Internal Fridge/Freezer |
| Internal Flooring | Gen 3 composite material design. Strong and Light-Weight |
| Internal Lighting | Reading 12V and ceiling 12V LED. |
| Storage | Under-bed and overhead storage compartments. |
| Entertainment & Technology | |
| Television | 22″ Smart TV |
| Television Aerial | 12V Power-boosted aerial available for use with TV system. |
| Stereo | Touchscreen entertainment unit & speaker system. |
| Item | Description |
|---|---|
| BBQ Arm | Powder-coated galvanised steel arm with chequer plate tray and universal drawbar mount. |
| Diesel Heater | AUFocus Diesel Heater – compact, fuel-efficient heating solution for off-grid comfort. |
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
