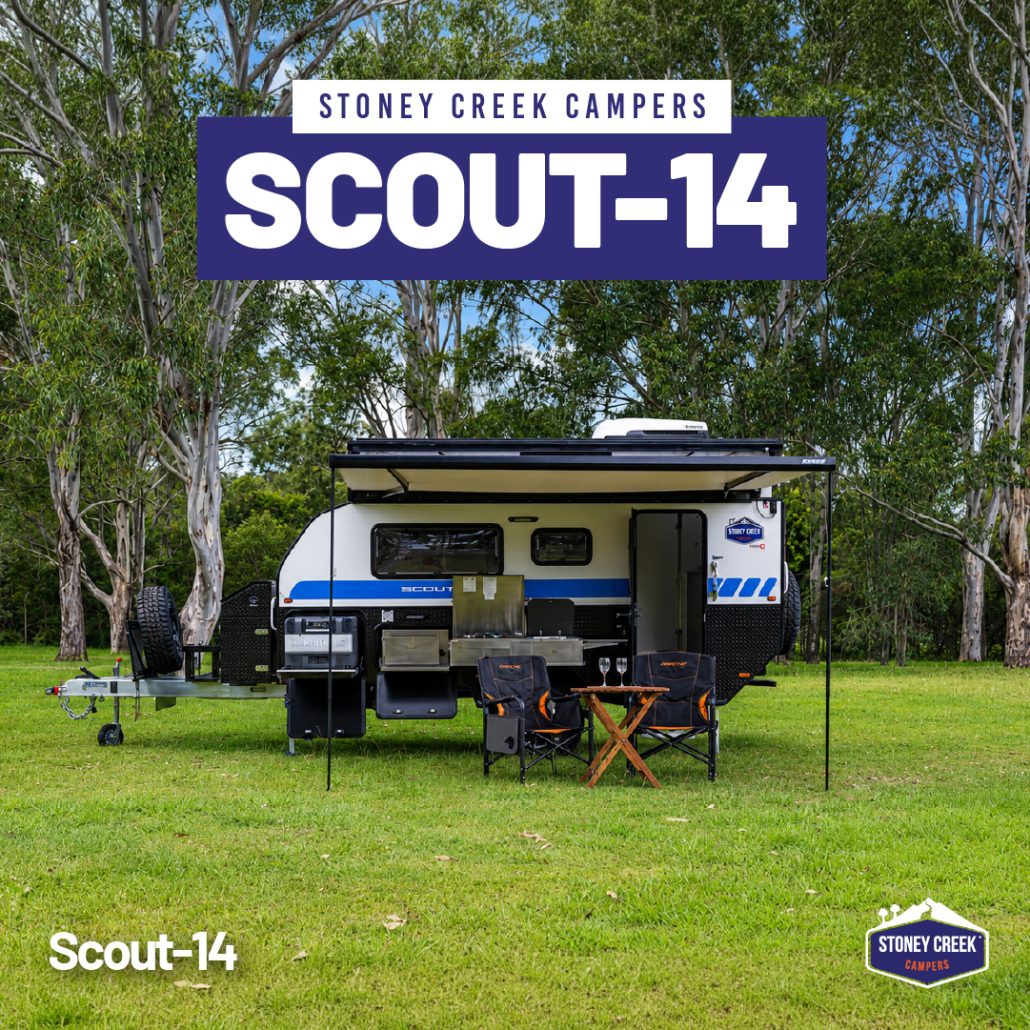

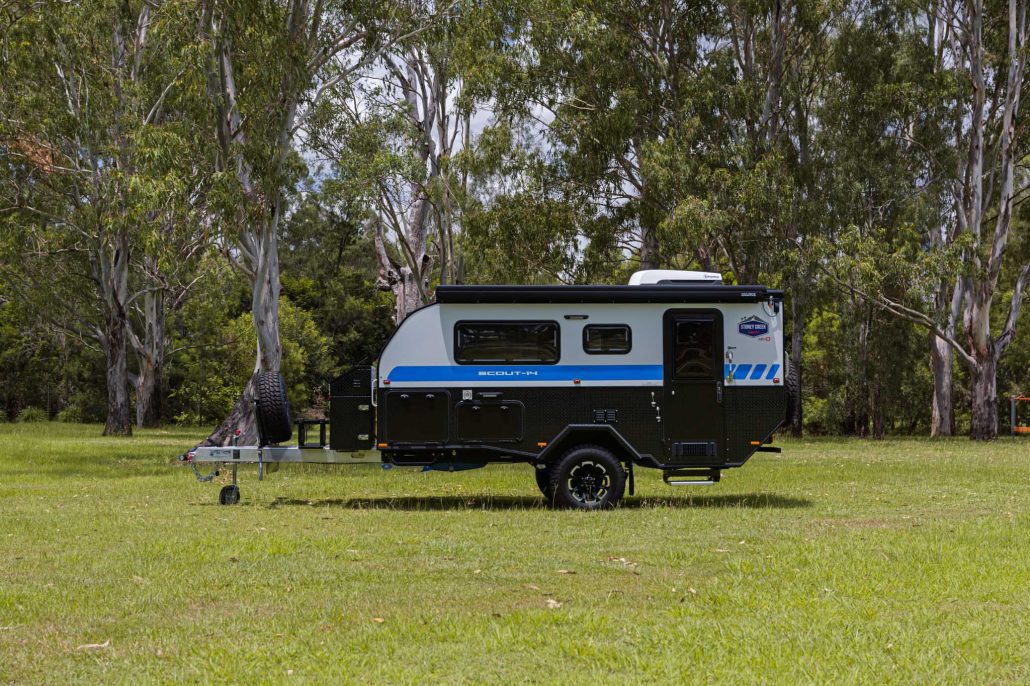

Scout-14 Off-Road Hybrid Caravan
The Ultimate Couple’s Retreat.
The Scout-14 Off-Road Hybrid Caravan is the result of thoughtful design and structural planning, executed with a focus on comfort, quality, functionality, and value. The Scout-14 has inclusions usually only afforded in large caravans.
The Scout-14 Off-Road Hybrid Caravan has a unique layout to include everything you need. It is the perfect caravan for a couple who loves camping and outdoors but doesn’t want to depart from the luxuries of a solid roof, large bed, shower, and toilet.
The Scout-14 is powered by a twin lithium battery and solar setup, constructed with Stoney Creek Campers’ class-leading composite materials making it lighter, tougher, insulated, durable and ready for even the most isolated campsites.
The Scout-14 not only looks great but is designed to take on the toughest tracks our amazing country has to offer.
Check out the key features the Scout-14 has to offer
Explore the Gen 3 features.
The latest generation of hybrid caravans from Stoney Creek Campers
Scout-14
Off-Road Hybrid Caravan
1
2
3
4
5
6
7
8
9
1
Composite body/panelling providing superior strength, durability, insulation & looks. Hail and dent resistant.
2

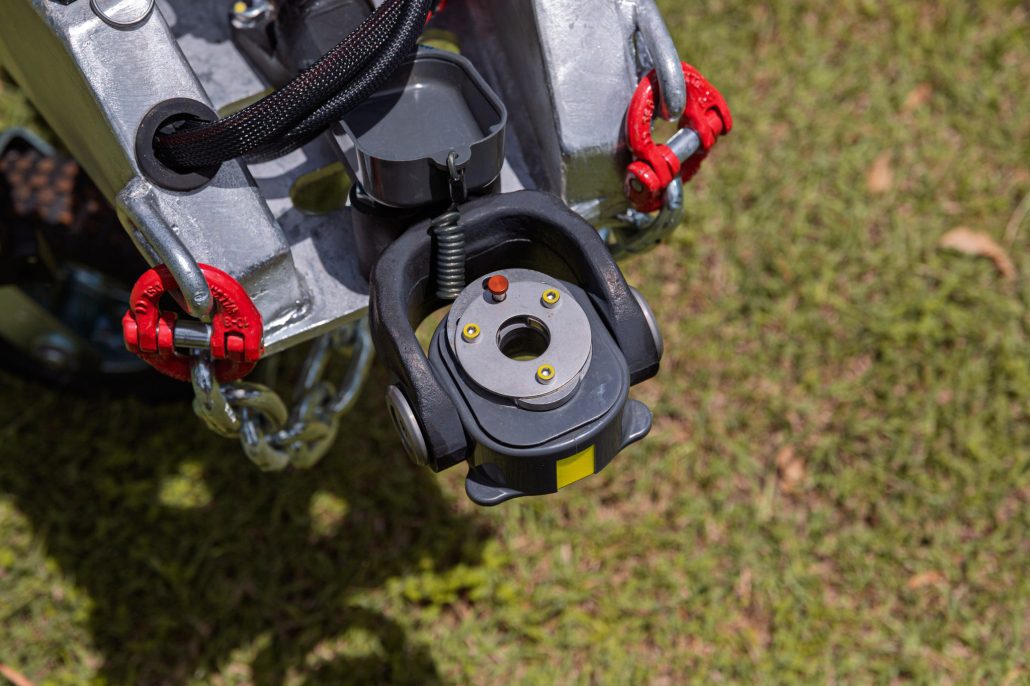

Cruisemaster DO35 All-Terrain Coupling
3
6-inch “single piece” galvanised steel chassis
4

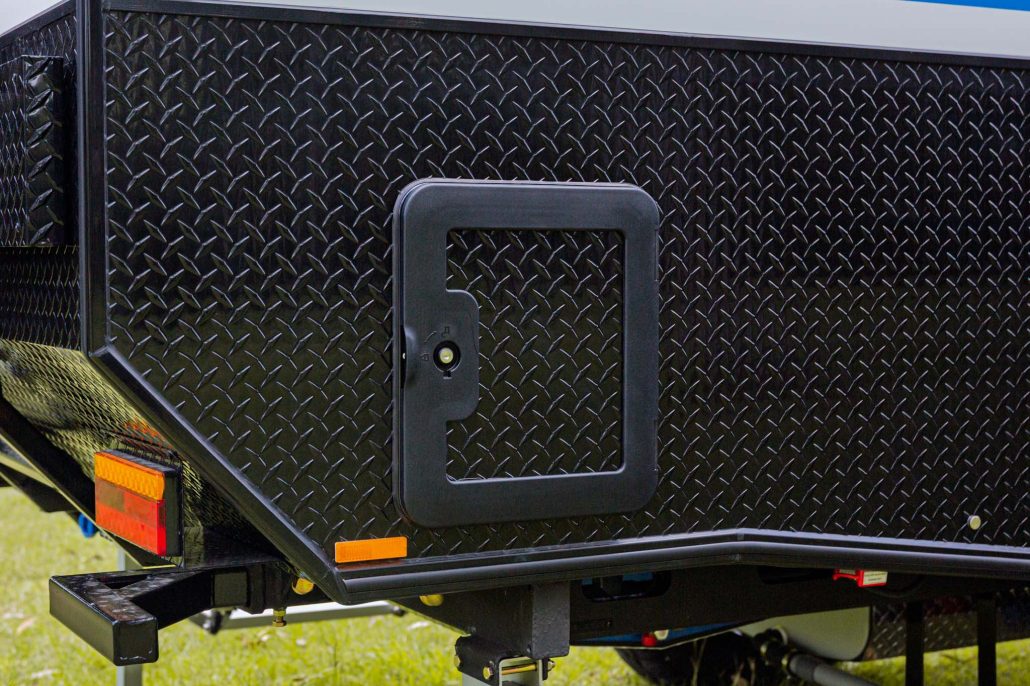

Dedicated, secure LPG storage in tough, lightweight checker-plate front toolbox
5
Slide-out stainless steel kitchen
6

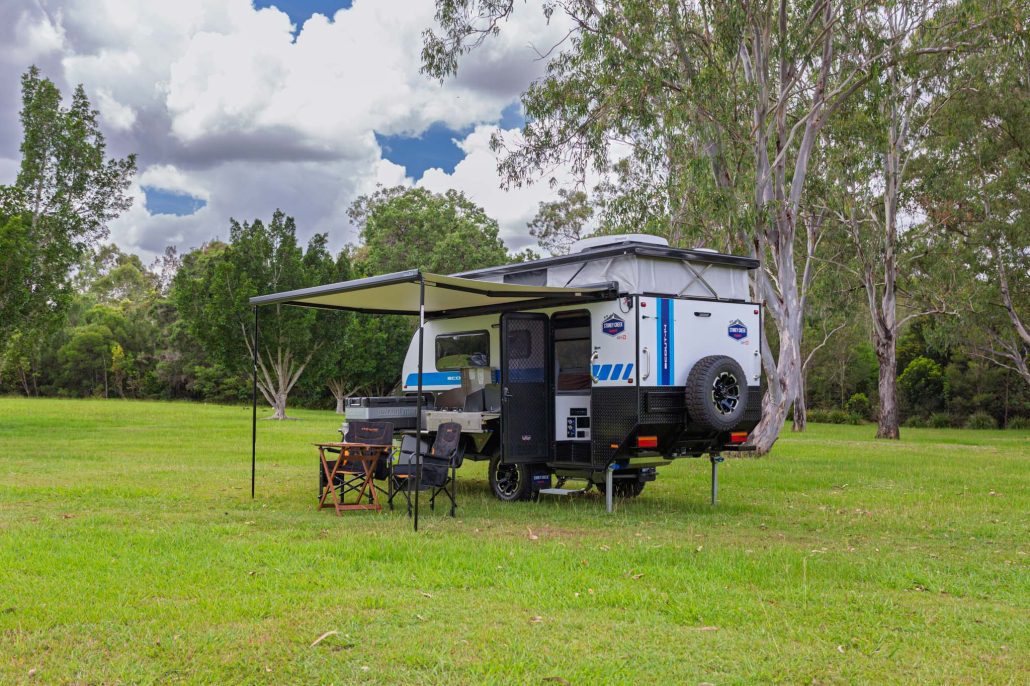

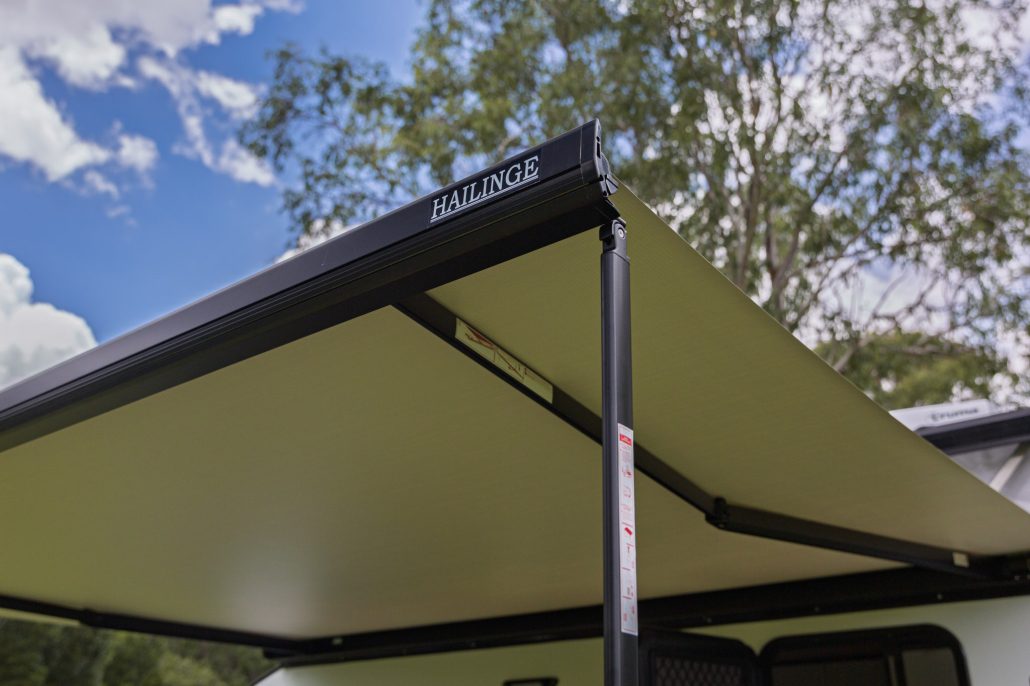

Convenient wind-out awning (with option to upgrade)
7

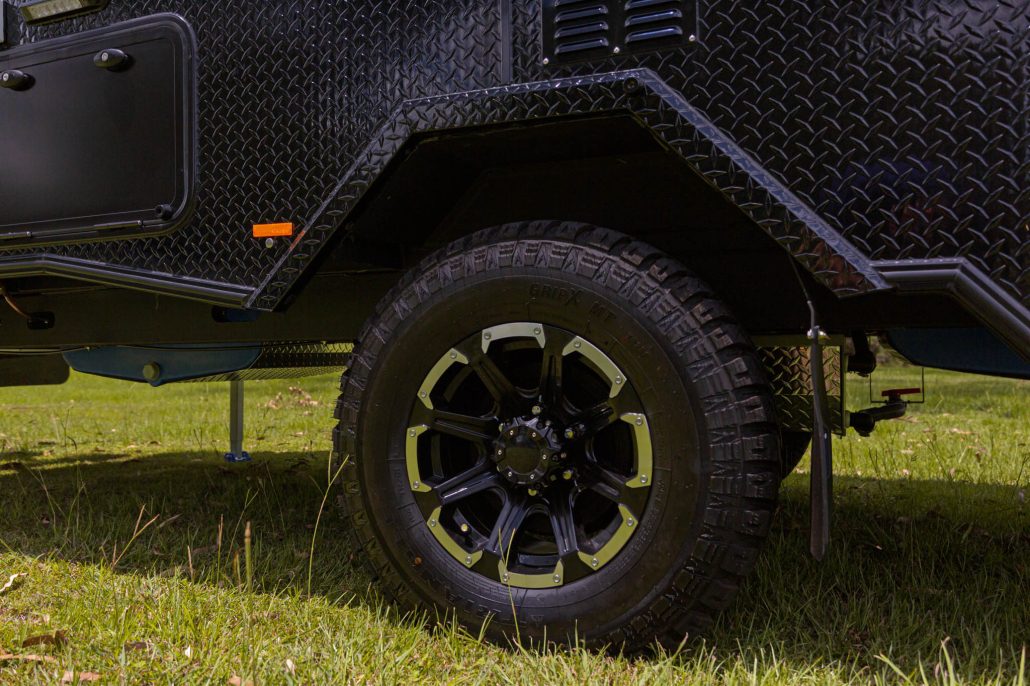

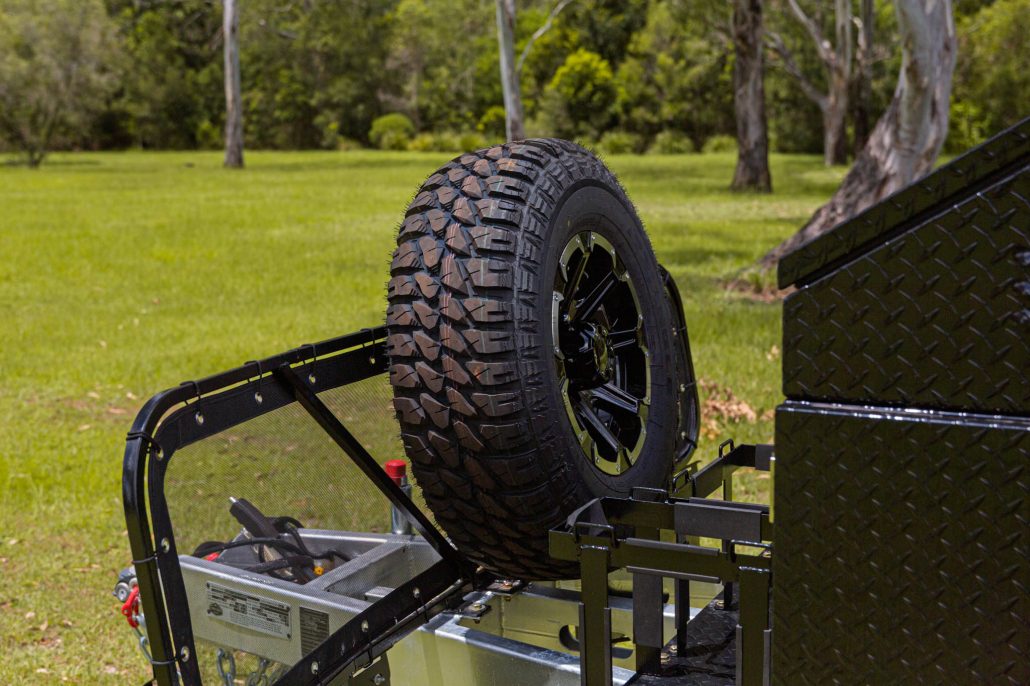

Mud terrain tyres and alloy rims
8
Heavy duty off-road independent trailing arm suspension with dual shock absorbers and large coil springs
9
85L 12v myCOOLMAN Fridge/Freezer.
1
2
3
4
5
6
7
8
9
1

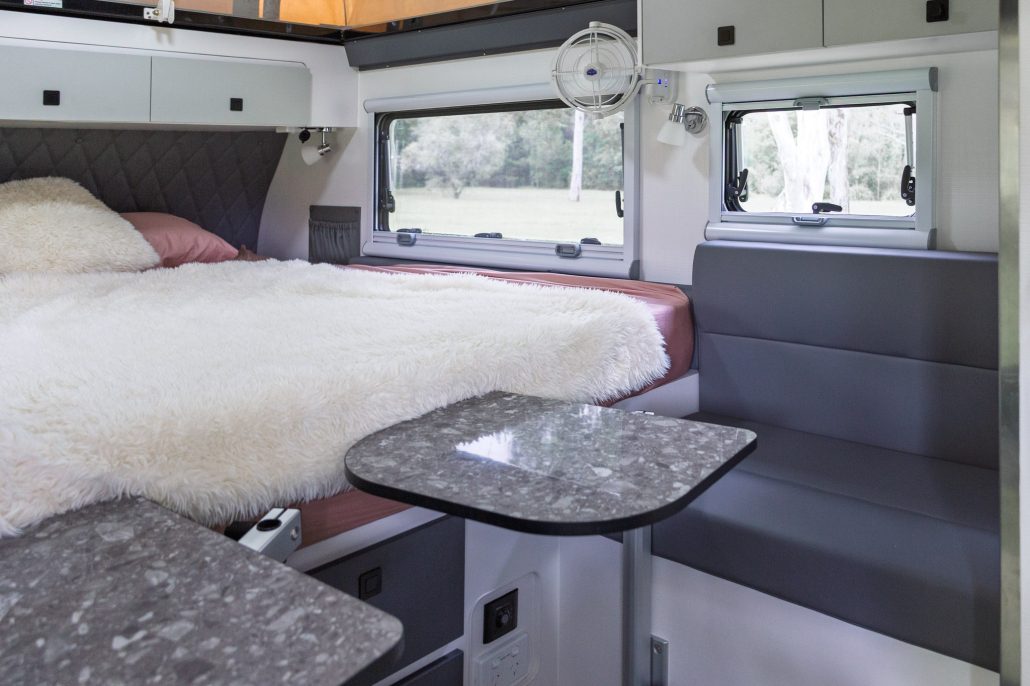

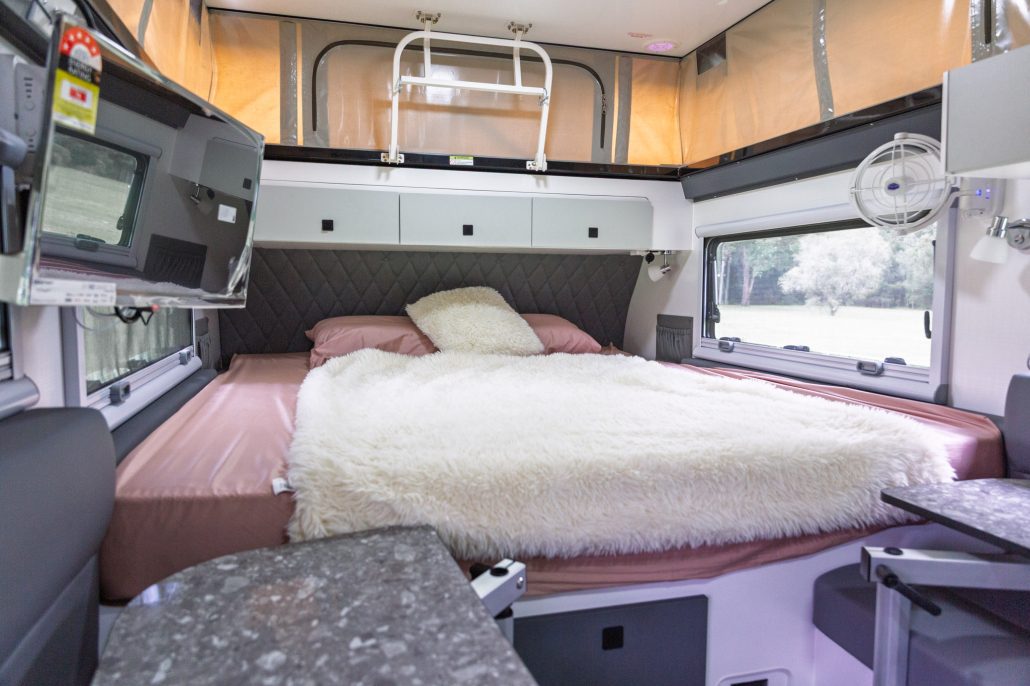

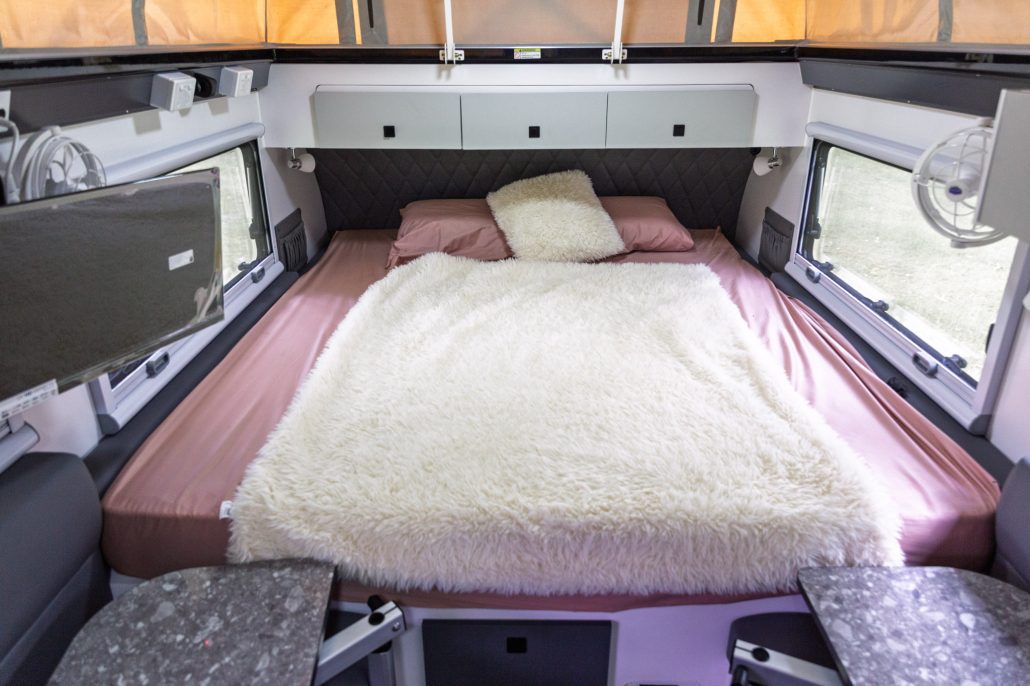

King size bed with memory foam mattress
2
Large bedside windows for natural light
3
22 inch smart TV
4
Above bed storage
5

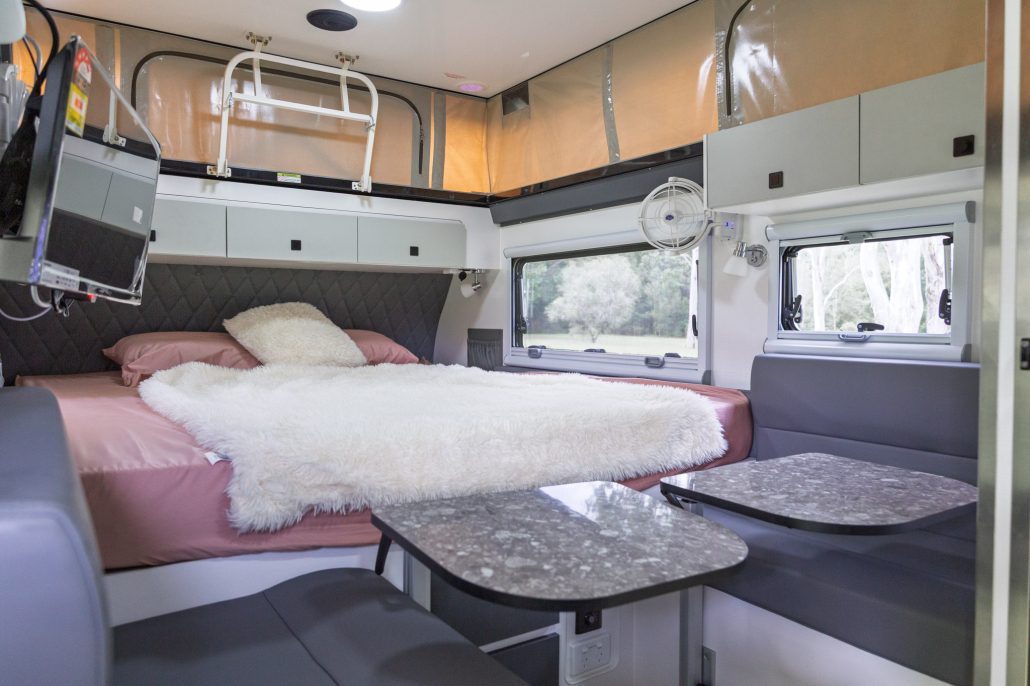

Comfortable interior lounge seats with individual dinette tables
6
Fans and Truma Reverse-Cycle Air-Conditioning
7

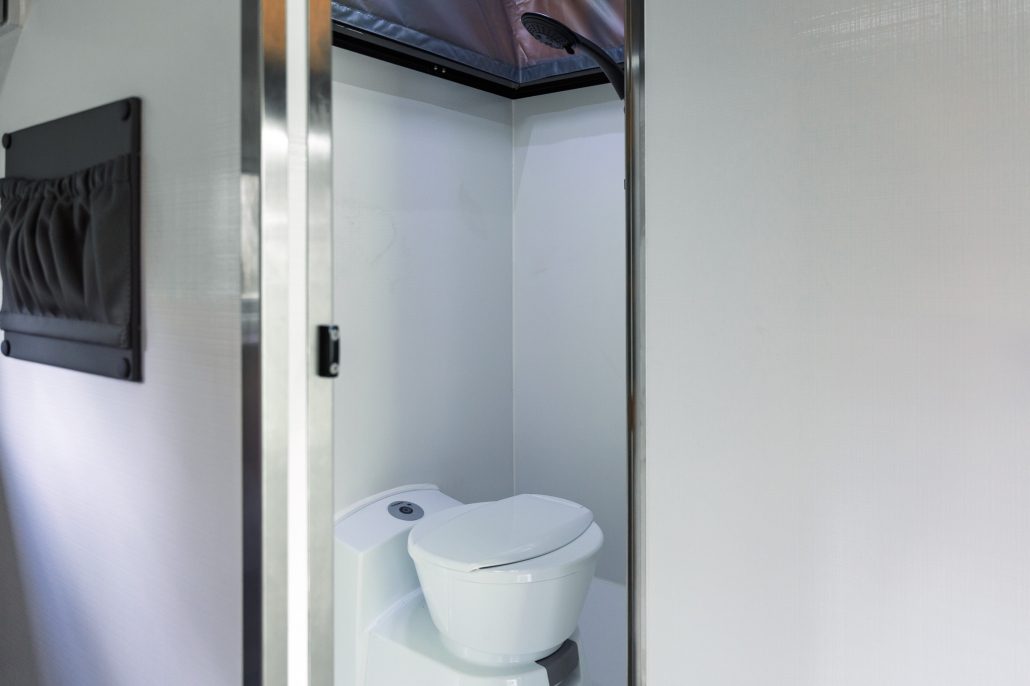

Interior toilet & shower ensuite
8

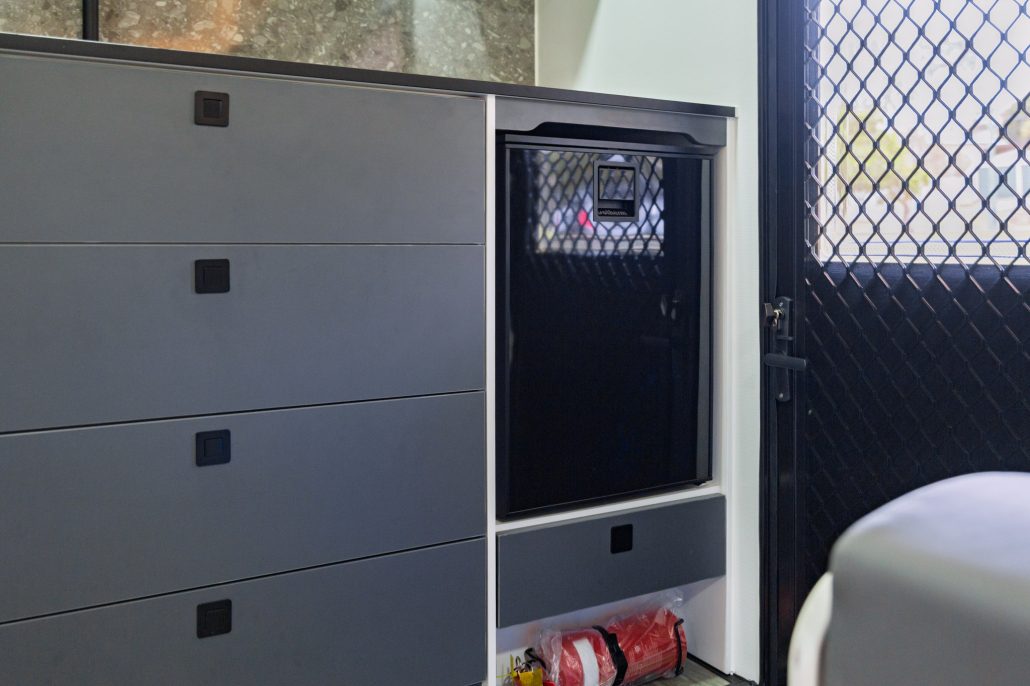

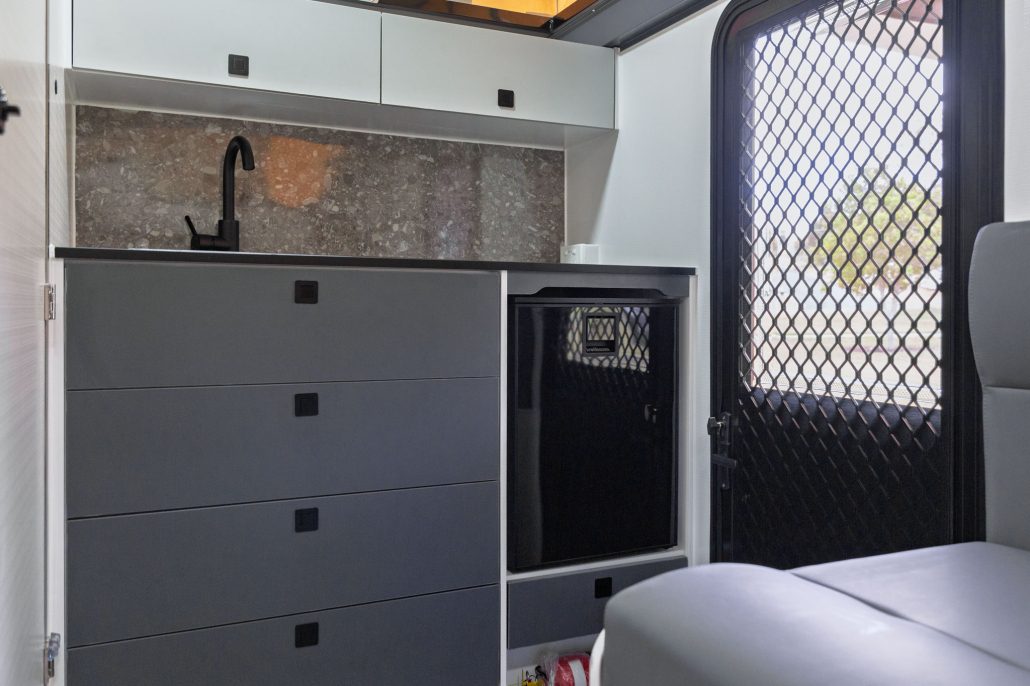

49L interior fridge or freezer
9
Plenty of storage
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Overall Length (mm) | 6850 |
| Body Length (mm) | 4300 |
| Travel Height (mm) | 2650 |
| External Width (mm) | 2130 |
| Tare Weight (kg) | 2020 |
| ATM Weight (kg) | 2800 |
| Ball Weight @ tare (approx) (kg) | 175 |
| Note: | Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. |
| Chassis, Suspension & Tyres | |
|---|---|
| Wall Structure | Composite body/panelling providing superior strength, durability, insulation & looks. Hail and dent resistant. |
| Frame | Hot-dipped galvanised frame to protect against corrosion with 6” x 2” main members. |
| Stone Guard | In-line with front toolbox to protect the van and tow vehicle against rock damage and ricocheting stones. |
| Suspension | Upgraded independent trailing arm suspension engineered and designed with twin shock absorbers and coil springs. |
| Suspension Fixings | High tensile fixings. |
| Tyres | Mud Terrain 265/75R16 tyres (inc. 2 spares). |
| Wheel Rims | Alloy rims for added strength and reduced weight. |
| Tyre Pressure | Tyre pressure as per Stoney Creek Campers owners manual. |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |

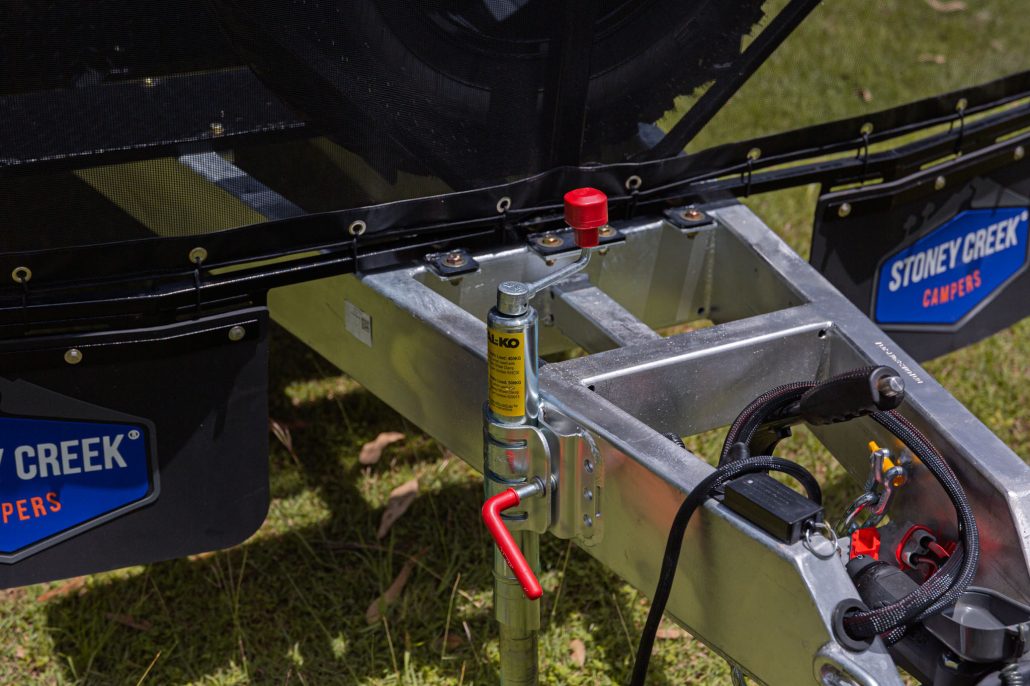

| Jockey Wheel | Removable and adjustable jockey wheel. |
| Brakes | 12″ heavy-duty electric brakes with breakaway safety system and handbrake. |
| Chains | 2 x ADR compliant safety chains with ‘D’ shackle. |
| Coupling | Cruisemaster DO35 all-terrain coupling. |
| Doors & Hinges | High quality hinges secured to the frame. All doors are sealed to prevent dust and water ingress. Adjustable latches on all external doors for easy adjustment. |
| Drop-down Stabiliser Legs | Corner wind-down support legs (for stabilisation only). |
| Mud Flaps | Heavy duty, durable mud flaps. |
| Power & Electrical | |
|---|---|
| Solar Power System | Roof-mounted panel and regulator (400w). |
| Battery | 460 Ah Haidi Lithium Battery Bank featuring advanced LFP (Lithium Iron Phosphate) Technology, delivering high-capacity, deep-cycle power with exceptional efficiency, long lifespan and proven reliability for extended off-grid use. |
| Inverter | Renogy 3000W Pure Sine Wave Inverter for powerful and stable off-grid performance. |
| Power (240v) | Victron 240v power management system. |
| Power Outlets | 12V weatherproof cig socket & 240V weatherproof outlet. |

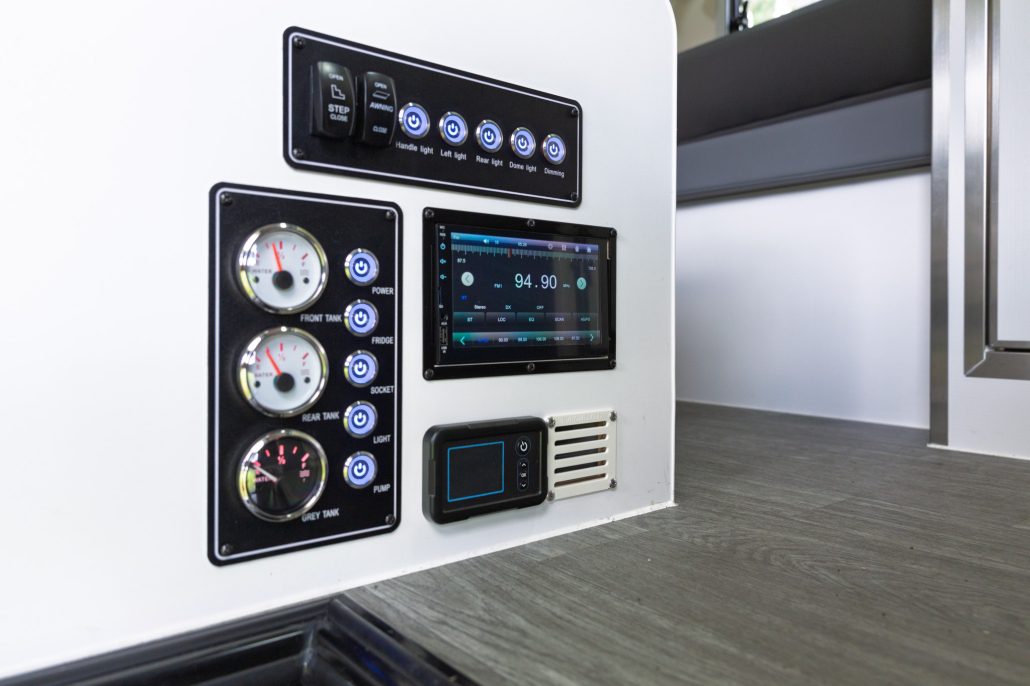

| Control Panel | Marine-style control panel with water gauge, 12v power and two USB outlets. |
| DC-DC Charger | Victron DC-DC 30amp smart charger. |
| Fuses | Resettable fuses. |
| Water System & Ventilation | |

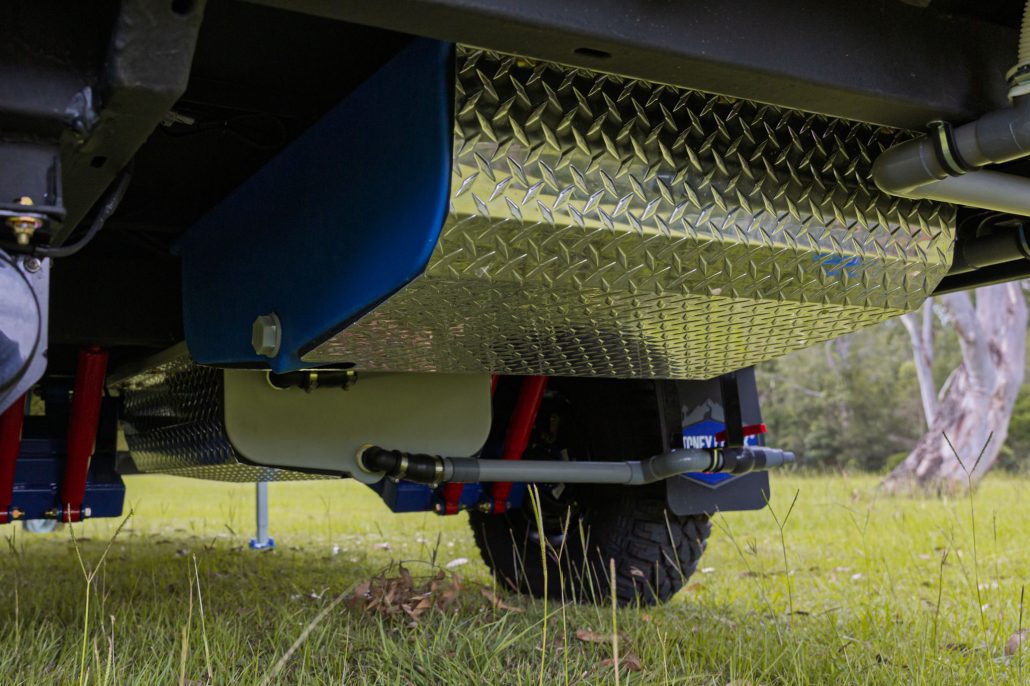

| Water Tank (Fresh) | 2 x 120L poly water tanks. |
| Water Tank (Grey) | 1x80L poly water tank. |
| Water Filler | 2 x secure & lockable water fill points. |
| Water Pumps | 12v pump and external switch. |

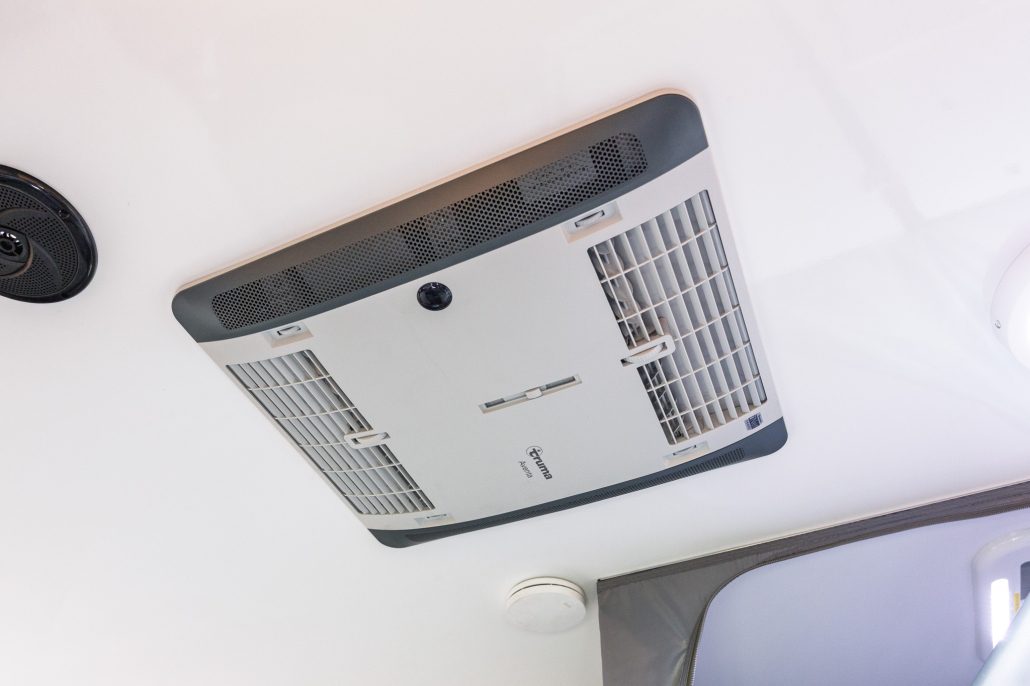

| Air Conditioning | Truma Roof-mounted air conditioner. Inverter-compatible and can operate from the onboard battery system via the fitted inverter when off-grid. *Runtime will vary depending on battery, capacity, state of charge and overall system load. |
| Ventilation | Double-glazed windows with internal screens and block-out blinds. |
| Exterior | |

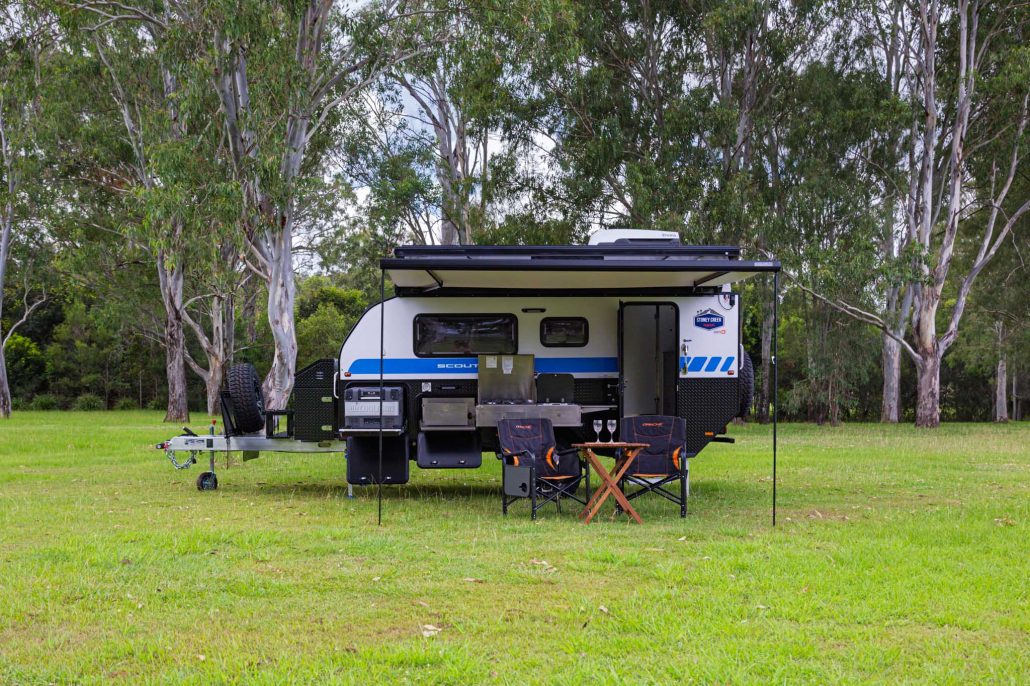

| Awning | Electric awning (with option to upgrade) for basic setup in moments. |

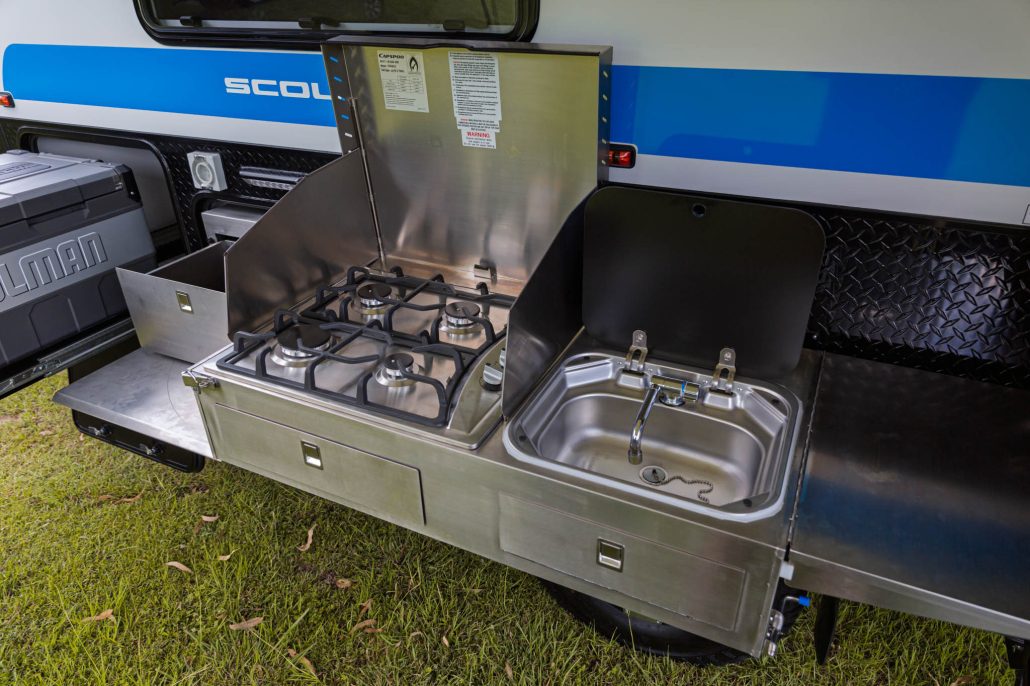

| Kitchen | Pull-out kitchen with cutlery drawer, utensil drawer, and retractable bench extension. |
| Fridge/Freezer | 85-litre 12V fridge/freezer. |
| Sink | Stainless steel basin with hot and cold mixer. |
| Gas Stove Top | High quality Dometic 4 Burner Grill (with Flame Failure Device) including wind protection (Australian gas compliant). |
| Gas Bayonet | Supplied (in kitchen) with quick connect / release connection. |
| Gas Bottles | 2 x 3.7kg gas bottle holders provision plumbed and certified by a qualified gas technician. |

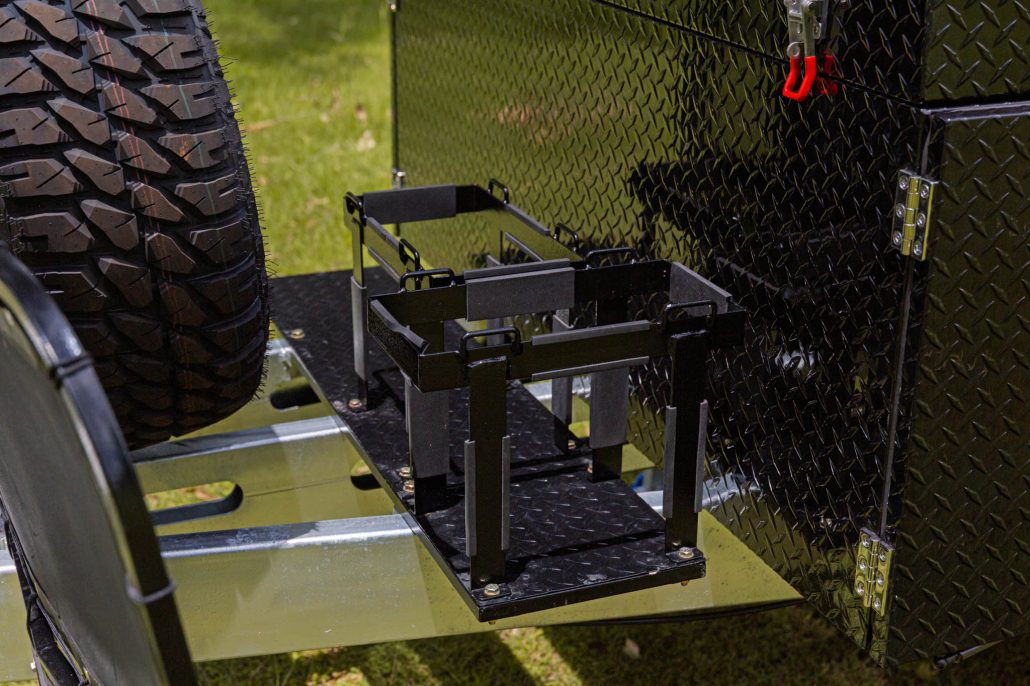

| Jerry Can Holders | 2x20L Jerry can holders for additional fuel or water. |
| Lighting | Side running LED and annexe LED. |

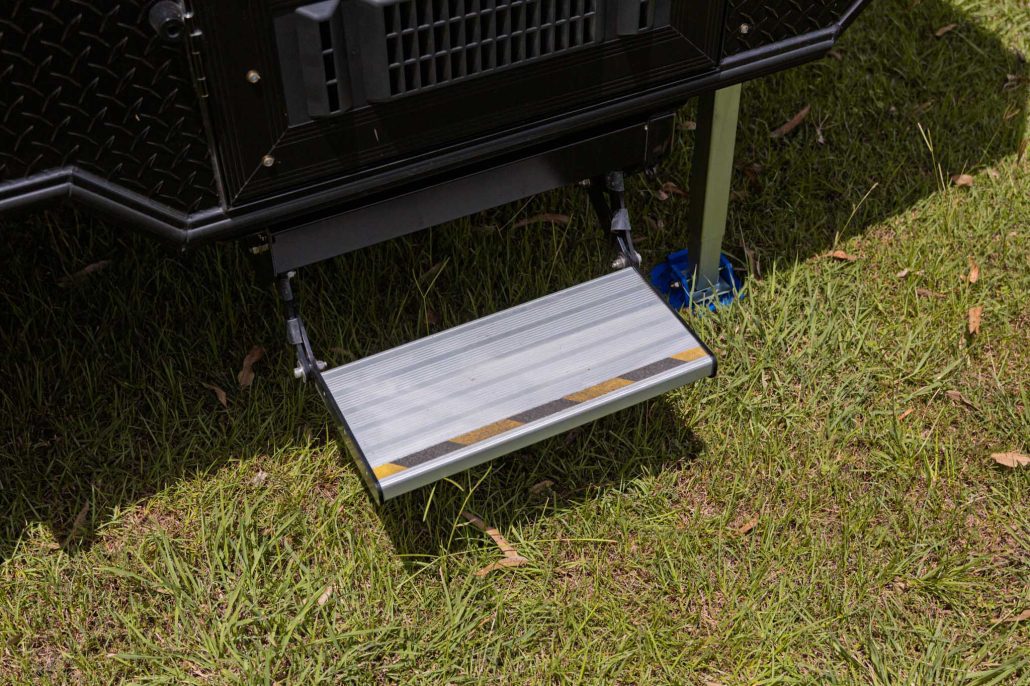

| Entry Step | Power-operated single step. |

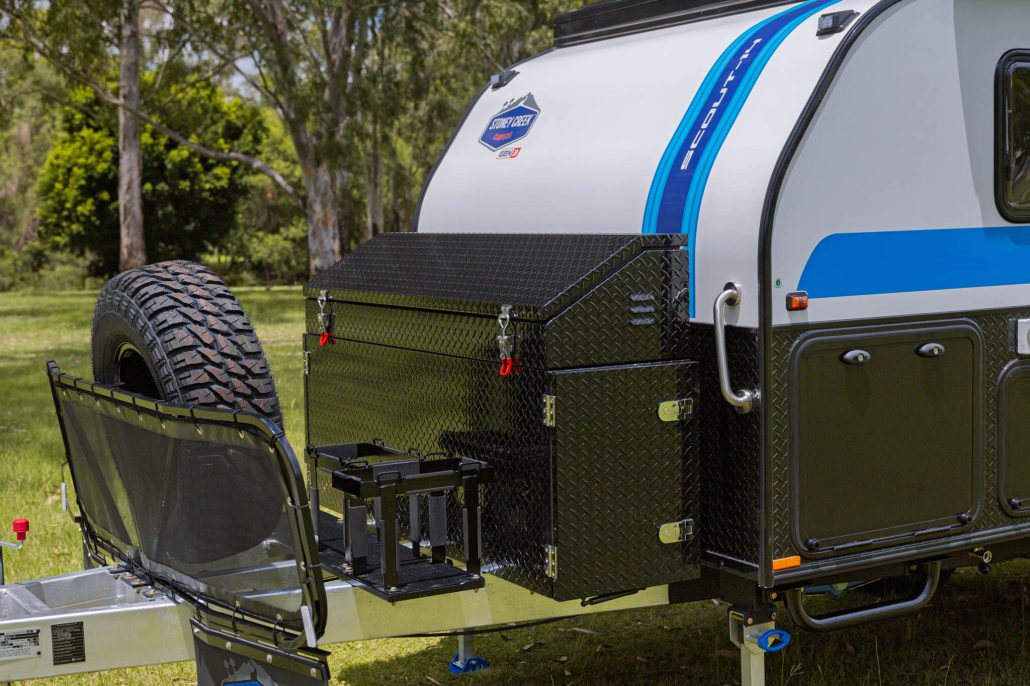

| Toolbox | Large toolbox on A-frame with gas & generator (2Kva) storage. |
| Interior | |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |

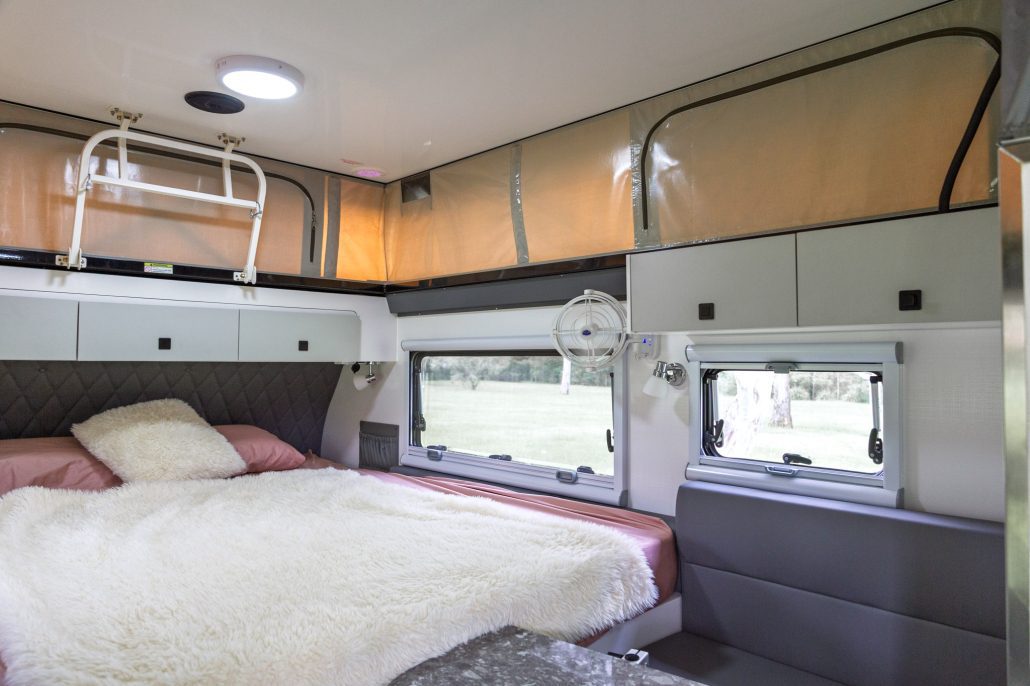

| Main Bed | King-size with comfortable, high-quality memory foam mattress. |
| En-suite / Bathroom Facilities | Shower with removable shower head and Thetford cassette toilet. |
| Dinette & Seating | Highly durable, plush material with individual swing-away dinette tables. |
| Lighting | 12V reading LED and 12V ceiling LEDs. |
| Entertainment & Technology | |
| Television | 22″ Smart TV. |
Scout-14 Optional Extras
| Item | Description |
|---|---|
| Awning (Upgrade) | Aussie Traveller Coolabah awning. |
| BBQ Arm | Powder-coated galvanised steel arm with chequer plate tray and universal drawbar mount. |
| Coupling | ADR-approved off-road hitch (DO 35, rated to 3.5 tonnes). |
| Diesel Heater | 2kw diesel heater and fuel tank. Compact, fuel-efficient heating solution for off-grid comfort. |
| Gas Bottles (Upgrade) | 2 x 9kg (A-frame). |
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
