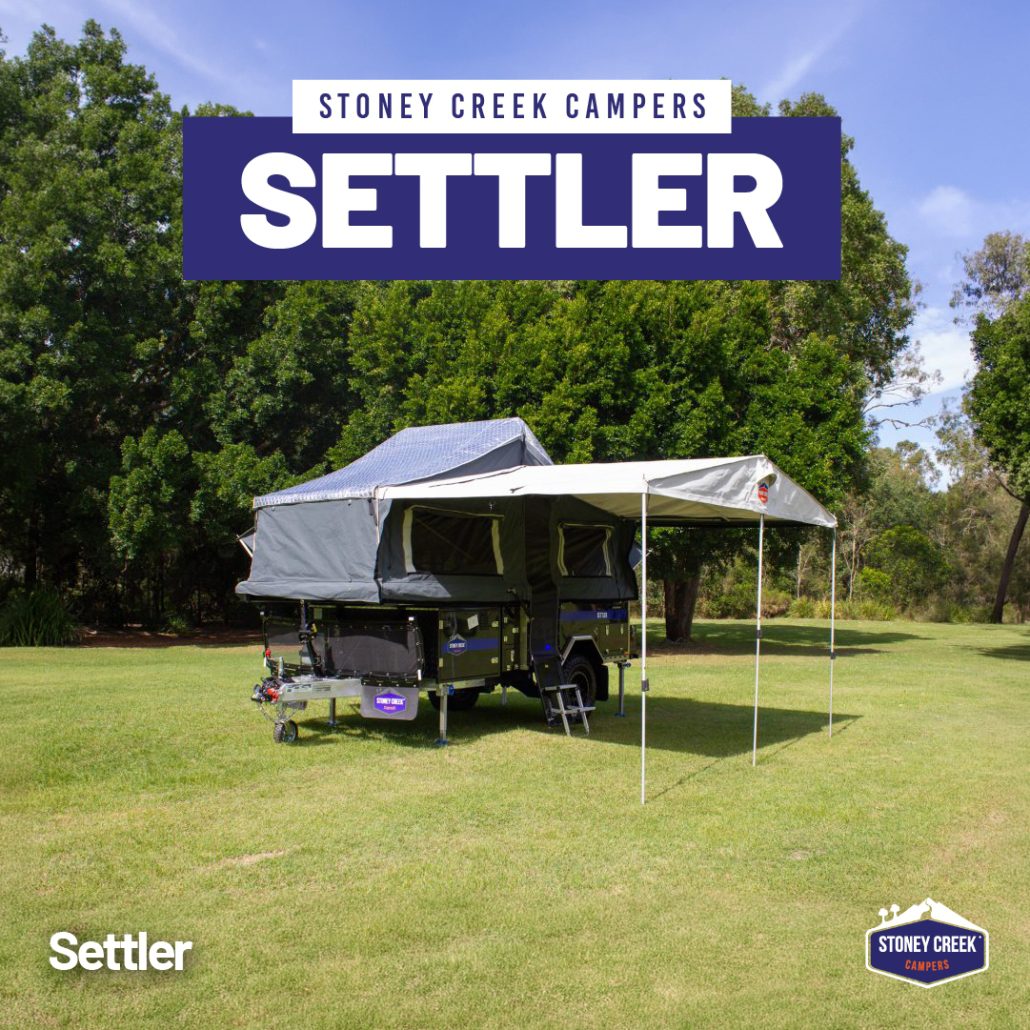

Settler Off-Road Camper Trailer
Suitable for
4 x People
Settler Off-Road Camper Trailer
Family Focused & Forever Fun.
The all-new Stoney Creek Campers Settler is the first Gen 3 camper trailer release, combining increased storage, practical design, and quality off-road capability for every adventure. Designed for modern adventurers, the Settler delivers more standard features, smarter functionality, and a faster, easier setup than ever before. Tough, practical, and built for effortless escapes, the Settler is ready to take your camping experience to the next level.
Technical Specifications & Optional Extras
| Item | Description |
|---|---|
| Body Length | 3400mm |
| Overall Length | 5200mm |
| Travel Height | 1620mm |
| External Width | 1950mm |
| Tare Weight | 1450kg |
| ATM Weight | 2000kg |
| Ball Weight @ tare (approx) | 185kg |
| Note: | Measurements, weights and fit out inclusions are provided as a guide only and are not binding. With the inclusions of accessories these specifications may vary, it is advisable to discuss with your Stoney Creek representative. |
| Chassis, Suspension & Tyres | |
|---|---|
| Trailer Chassis | 6″ x 2″ with rolled edges for strength. Hot dipped galvanised A-frame helps protects the steel from corrosion. |
| Trailer Structure |
Painted aluminium sheet panels and stainless steel edging at all joins. Engineered for excellent sealing to help prevent dust ingress, while delivering strong protection against the elements.
|
| Trailer Frame | External wraps around a structural post in corners and main door for structural strength. |
| Stone Guard | In-line with front toolbox / storage unit, to protect against stones and rocks damaging the camper and help prevent damage to the tow vehicle from stones bouncing back. |
| Suspension |
Independent trailing arm suspension, premium engineered for a smooth, high-quality ride, featuring twin shock absorbers and coil springs.
|
| Suspension Fixings | High tensile fixings. |
| Tyres |
Mud Terrain 265/75R16 tyres (inc. 1 x spare).
|
| Wheel Rims | Stylish upgraded alloy rims, designed to enhance visual appeal while maintaining strength and reducing weight. |
| Tyre Pressure | Refer to our tyre pressure guide in your product manual. |
| Trailer Plug Connection | Included 7-pin as standard (or alternative to suit vehicle). |
| Trailer Power Connection | Included Anderson plug. |
| Carrier |
Heavy-duty roof racks with tie-down points, perfect for carrying bulky items.
|
| Jockey Wheel | Removable and adjustable jockey wheel. |
| Brakes | 12″ heavy-duty electric brakes, with breakaway safety system and handbrake. |
| Chains | 2 x ADR compliant safety chains with ‘D’ shackle. |
| Doors & Hinges | High quality hinges secured to the frame. All doors are sealed to prevent dust and water ingress. Adjustable latches are provided on all external doors for easy future adjustment. |
| Drop Down Legs | Four easy-to-operate adjustable drop-down legs, designed to provide stable support when stationary. |
| Mud Flaps | Heavy duty, durable, mud flaps. |
| Power & Electrical | |
|---|---|
| Solar Wiring | Dedicated Anderson plug – for direct solar panel connection to charge. |
| Battery | Premium 230Ah lithium-ion RV battery, designed to deliver reliable off-grid power. |
| Battery Charger | Victron 30A 12/240V power management system with integrated display and Bluetooth connectivity for easy monitoring and control. |
| Inverter | 2000W inverter, enabling you to run 240V appliances directly from the 12V battery system while off-grid. |
| Control Panel | Marine style control panel with gauges for water, power with 12v and USB outlets. |
| DC-DC Charger | Victron 30A intelligent DC-DC charger with adaptive charging technology, ensuring efficient and safe charging of the battery while driving. |
| Fuses | Resettable fuses. |
| Water System & Ventilation | |
| Water Tank | 80L poly + 50L secondary tank (plumbed separately with the ability to isolate or balance). |
| Water Filler | 2 x secure & lockable water fill points. |
| Water Pumps | 12v pump and external switch. |
| Hot Water System | Built-in, instant hot water system with external shower. |
| Ventilation | Tent window flyscreens. Living room walls roll up. |
| Exterior | |
| Tent Frame | Strong yet lightweight easy-style internal frame allowing basic setup in under 2 mins. |
| Tent Canvas | Heavy-duty 14oz canvas, double-stitched for strength and durability, with waterproof treatment. |
| Annexe | Full annexe with poles, walls and floor supplied. Guy ropes and steel pegs supplied. |
| Poles | Lightweight smart ‘one-handed’ clamping system allows for simple extension and retraction. |
| Kitchen | Smooth slide-out kitchen with upgraded rollers, featuring a spice and storage rack, dedicated cutlery and utensil drawers, plus a cleverly integrated hidden table extension. |
| Fridge | 60L – 12v Fridge/Freezer |
| Sink | Hot and cold mixer with stainless steel basin. |
| Pantry | The ultimate camper trailer pantry, engineered with a fold-out tray and hidden drawer to cover all your storage needs, so you can take the comforts of home with you. |
| Gas Cook Top | High quality gas stove top with 4 burners and wind protection (Australian gas compliant). |
| Gas Bayonet | Supplied (in kitchen) with quick connect / release connection. |
| Gas Bottles | 2 x 4.5kg gas bottles provision plumbed and certified by gas technician. |
| Jerry Can Holder | Dual 20L jerry can holders for additional water. |
| Lighting | Dual colour side LED. |
| Storage | Dedicated external storage offering flexible packing options, with market-leading capacity for maximum convenience. |
| Interior | |
| Fire Extinguisher | 1kg Dry Powder Type Stored Pressure Fire Extinguisher. |
| Main Bed | Queen-style bed featuring a very comfortable, high-quality memory foam mattress for a premium sleeping experience. |
| Secondary Bed Lounge | Convert dining lounge to double style bed. |
| Seating | Highly durable upholstery with modern design, featuring a dedicated rear day lounge and convenient under-seat storage. |
| Flooring | Durable vinyl material with a modern design. |
| Lighting | 3 x internal LED strip light. |
| Storage | Extensive internal storage in addition to external compartments, featuring four internal cupboards, a spacious main storage area, and additional under-seat storage for flexible packing options. |
| Entertainment & Technology | |
| TV / DVD | 19” Television. |
| Stereo | Stereo & speakers. |
| Item | Description |
|---|---|
| Solar System | 300w portable solar panel with regulator. |
| TV Aerial | Aerial available for use with television. |
| Carrier/Boat Loader | Heavy-duty gas strut assisted Boat or Kayak loader. *(Allow small increase to Tare weight). |
Settler Off-Road Forward Fold Camper Trailer
Note: Images, videos, photos, plans and specifications are for illustrative purposes only, and the final product may vary. All details are subject to change. Please ensure you confirm all specifications, appearances, colours, extras etc. with your Stoney Creek Campers Representative before purchase.
